Earth’s polar regions communicate via oceanic ‘postcards,’ atmospheric ‘text messages’

From Eurekalert

Oregon State University

187073_web

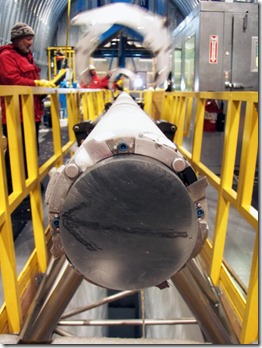

Caption Freshly drilled segment of the WAIS Divide ice core is brought to the surface. Credit Tommy Cox Usage Restrictions None

CORVALLIS, Ore. – Scientists have documented a two-part climatic connection between the North Atlantic Ocean and Antarctica, a fast atmospheric channel and a much slower oceanic one, that caused rapid changes in climate during the last ice age – and may again.

In a new study published this week in Nature, an international team of scientists describe how extremely abrupt climate change events 60,000 to 12,000 years ago came from the repeated strengthening and weakening of an oceanic current that warms Greenland and Europe by bringing warm water from the tropics via the Gulf Stream into the North Atlantic Ocean. That current is known as the Atlantic Meridional Overturning Circulation (AMOC).

The new research documents how the North Atlantic communicates these extreme events to Antarctica, at the opposite side of the world.

“The North Atlantic is sending messages to Antarctica on two different time scales,” said Christo Buizert, an Oregon State University climate change specialist and lead author on the study. “The atmospheric connection is like a text message that arrives right away, while the oceanic one is more like a postcard that takes its time getting there – in this case, 200 years, which makes the postal service look pretty good by comparison.

“When the North Atlantic warms because of the strengthened AMOC, all of Antarctica eventually will cool because of oceanic changes. It begins with the winds, but the ocean delivers a much bigger impact two centuries later.”

During the last ice age this AMOC current was usually very weak, plunging the North Atlantic region into frigid conditions. But occasionally it would strengthen very quickly, causing Greenland to warm suddenly, the researchers say. Whenever Greenland warmed, climate in Antarctica on the other side of the world would change – twice.

Global atmospheric conditions changed immediately and westerly winds blowing around Antarctica shifted away from the land, which caused warming in some parts of Antarctica and cooling in others. The second half of the impact was much slower, a cooling effect of the southern hemisphere oceans that didn’t manifest itself in Antarctica for 200 years.

The study explains why the climate in Greenland and Antarctica have not exactly aligned over time, according to Oregon State atmospheric scientist Justin Wettstein, a co-author on the study.

“This is the first time that you can so clearly see the nuts and bolts of how the climate works on time scales much longer than our meteorological observations,” Wettstein said. “It allows us to see how Greenland and Antarctica have been connected – spatially and temporally – long before people were running around with thermometers to measure the temperature.”

To reconstruct the climate, the researchers examined ice cores from five different locations in Antarctica and synchronized the dates by looking at layers of volcanic ash. They measured changes in the temperature by analyzing ratios of water isotopes. They then matched the data with well-established dates of the so-called “Dansgaard-Oeschger” events in Greenland ice cores to pinpoint the connection between the hemispheres.

These extremely abrupt events happened roughly 25 times during the last ice age, from 100,000 to 20,000 years ago, the researchers say.

“When the Gulf Stream switches on to full strength, Greenland can warm as much as 10 to 15 degrees Celsius within a decade,” Buizert said. “The change is abrupt and massive. As the ocean transfers heat to the north, the rest of the global ocean starts to cool down. Antarctica eventually ‘notices’ the oceans getting colder, but only after 200 years have passed.”

The atmospheric shift in Antarctica’s past has a certain pattern of where it is warmer and where it is colder – a kind of temperature fingerprint, Buizert said.

“What is really neat is that by looking at modern-day observational data we can find an analog for what happened in the past,” Buizert said. “Like forensic detectives, we can compare the temperature fingerprint in the ice cores to the fingerprints of modern-day wind patterns. This is how we identified the culprit – the southern hemisphere westerly winds.”

Observational data and climate models show that the AMOC current today is weakening because of global climate change, thus what happened during the last ice age could happen again.

The researchers say that if the past is a guide for what the future may hold, the weakening of the AMOC likely will decrease the potency of Asian monsoons and billions of people depend on that rain for their livelihood. The changing wind patterns in the southern hemisphere also will lessen the ocean’s ability to take up carbon dioxide, meaning more CO2 emissions will stay in the atmosphere, strengthening the greenhouse effect.

“We know that our world is now warming on average, but the regional changes depend also on how the atmospheric and oceanic circulations respond,” Wettstein said, “and that is something that climate models still disagree on. This study gives us a real-world example of past circulation change that we can use to test and improve our models.”

The researchers caution that other influences besides the AMOC also will affect climate change – rising temperatures from greenhouse gases are a major factor globally, and changes to the ozone layer affect wind patterns and climate in Antarctica.

Buizert, who has been on scientific expeditions to Antarctica and Greenland multiple times, said the research is “really exciting for climate geeks like us to figure out how the pieces of our climate are connected.”

“The findings also may have implications for the future,” he noted. “The AMOC is weakening now because of global warming and meltwater from Greenland. The ‘text message’ is being sent and atmospheric conditions are changing. The ‘postcard’ is on the way.”

###

The study was supported by the National Science Foundation and other sources. Authors on the study were from the U.S., Switzerland, Italy, Norway, Denmark, Australia, Japan and France.

Buizert and Wettstein are in OSU’s College of Earth, Ocean, and Atmospheric Sciences.
