Solar Variations Controversy

From Dr. Judith Curry’s Climate Etc.

by Judith Curry

“The field of Sun-climate relations . . . in recent years has been corrupted by unwelcome political and financial influence as climate change sceptics have seized upon putative solar effects as an excuse for inaction on anthropogenic warming” – Lockwood (2012)

“We argue that the Sun/climate debate is one of these issues where the IPCC’s “consensus” statements were prematurely achieved through the suppression of dissenting scientific opinions.” –  Connolly et al. (2021)

The impact of solar variations on the climate is uncertain and subject to substantial debate. However, you would not infer from the IPCC assessment reports that there is debate or substantial uncertainty surrounding this issue.

The Sun goes through cycles of approximately 11 years (the Schwabe Cycle) in which solar activity goes up and down. Above the Earth’s atmosphere, the difference in Total Solar Irradiance (TSI, measured in Watts per square meter W/m2) between the 11-year maxima and minima is small, on the order of 0.1% of the total TSI, or about 1 W/m2.  A multidecadal increase in TSI should cause global warming (all else being equal); similarly, a multidecadal decrease in TSI should cause global cooling. Researchers have speculated that multi-decadal and longer changes in solar activity could be a major driver of climate change.

Exactly how TSI has changed over time has been a challenging problem to resolve. Since 1978, we have had direct measurements of TSI from satellite.  However, interpreting any multi-decadal trends in TSI requires comparisons of observations from overlapping satellites.  Substantial uncertainty exists in the TSI composites during the period from 1978 to 1992. This is mostly due to the fact that the ACRIM2 solar satellite mission was delayed because of the Space Shuttle Challenger disaster in 1986 (ACRIM2 was eventually launched in late 1991). This delay prevented this record from overlapping with the ACRIM1 record that ended in July 1989. The ACRIM-gap prevents a direct cross-calibration between the two high-quality ACRIM1 and ACRIM2 TSI records. [link]

This rather arcane issue of cross-calibration of two satellite records has profound implications. There are a number of rival composite TSI datasets, disagreeing as to whether TSI increased or decreased during the period 1986-1996.  Further, the satellite record of TSI is used for calibrating proxy models, so that past solar variations can be inferred from sunspots and cosmogenic isotope measurements.  Velasco Herrera et al. 2015 As a result, some of the datasets for past values of TSI (since 1750) have low variability, implying very low impact of solar variations on global mean surface temperature, whereas datasets with high TSI variability can explain 50-98% of the temperature variability since preindustrial times.

The IPCC AR5 adopted the low variability solar reconstructions, without discussing this controversy. The AR5 concluded that the best estimate of radiative forcing due to TSI changes for the period 1750–2011 was 0.05 W/m(medium confidence). For reference, the forcing from atmospheric greenhouse gases over the same period was 2.29 W/m2. Thus, the IPCC AR5 message was that changes in solar activity are nearly negligible compared to anthropogenic ones for forcing climate change.

The IPCC AR6 acknowledges a much larger range of estimates of changes in TSI over the last several centuries, stating that the TSI between the Maunder Minimum (1645–1715) and second half of the 20th century increased by 0.7– 2.7 W/m2, a range that includes both low and high variability TSI data sets. However, the recommended forcing dataset for the CMIP6 climate model simulations used in the AR6 averages two low variability data sets (Matthes et al. 2017).

The uncertainties and debate surrounding solar variations and their impact on climate was the topic of a ClimateDialogue, a remarkable blogospheric experiment . ClimateDialogue was the result of a request by the Dutch parliament to facilitate the scientific discussions between climate experts representing the full range of views on the subject. The Dialogue on solar variations (2014) included five distinguished scientists with extensive publication records on the topic.  One participant was in line with the IPCC AR5, thinking that solar variations are only a minor player in the Earth’s climate. Two participants argued for a larger and even dominant role for the Sun, and the other two emphasized uncertainties in our current understanding.

More recently, a review article was published in the journal Research in Astronomy and Astrophysics by Connolly et al. (2021). The article has 23 co-authors with a range of perspectives, but who were united by their agreement not to take the consensus approach of the IPCC.  Rather, the paper emphasized where dissenting scientific opinions exist as well as identifying where there is scientific agreement. The authors found that the Sun/climate debate is an issue where the IPCC’s consensus statements were prematurely achieved through the suppression of dissenting scientific opinions.

Of direct relevance to projections of 21st century climate is whether we might expect a substantial change in solar activity. On multidecadal timescales, proxy reconstructions of solar activity reveal occasional phases of unusually high or low solar activity, which are respectively called Grand Solar Minima and Maxima (Usoskin et al., 2014). Grand solar maxima occur when several solar cycles exhibit greater than average activity for decades or centuries.

Solar activity reached unusually high levels in the second half of the twentieth century, although there is disagreement among reconstructions as to whether this maximum peaked in the 1950’s or continued into the 1990’s. It has been estimated that about 20 grand maxima have occurred over the last 11 millennia (Usoskin et al. 2007), averaging one per 500 years.  During the last 11 millennia, there have been 11 grand solar minima, with intervals between them ranging from a hundred years to a few thousand years. The most recent grand minimum was the Maunder Minimum, during 1645-1715.  [link]

There are several reasons to expect lower solar activity during the 21st century, relative to the 20th century. The recently completed solar cycle 24 was the smallest sunspot cycle in 100 years and the third in a trend of diminishing sunspot cycles. Solar physicists expect cycle 25 to be even smaller than Cycle 24. Further, a grand maximum is more likely to be followed by a grand minimum than by another grand maximum (Inceoglu et al., 2016). Empirically-based projections imply a new solar minimum starting in 2002–2004 and ending in 2063–2075 (Velasco Herrera et al. 2015)  It has been estimated that there is an 8% chance of the Sun falling into a Grand Minimum during the next 40 years  (Barnard et al. 2011). However, the depth and length of a phase of low solar activity in the 21st century is largely uncertain.

If the Sun did fall into a minimum during mid 21st century of the magnitude of the Maunder Minimum, how much cooling could we expect?  Estimates from climate models and other analytical models expect the cooling to be small, ranging from 0.09 to 0.3oC (Fuelner 2010). These models assume that solar-climate interaction is limited to TSI forcing alone.

However, there is growing evidence that other aspects of solar variability amplify the TSI forcing or are independent of TSI forcing, which are referred to as solar indirect effects. Candidate processes include: solar ultraviolet changes; energetic particle precipitation; atmospheric-electric-field effect on cloud cover; cloud changes produced by solar-modulated galactic cosmic rays; large relative changes in the magnetic field; and the strength of the solar win.  Solar indirect effects can be classified as ‘known unknowns.’  While these indirect effects are not included in the CMIP6 21st century projections, we can make some inferences based upon recent publications. Recent research suggest that solar indirect effects could amplify an anomaly in solar insolation by a factor of up to 3-7. Shaviv (2008), Scafetta (2013) Svensmark (2019).  If such an amplification factor is included, then a surface temperature decrease of up to 1oC (or even more) from a Maunder Minimum could occur.

So, what are plausible scenarios for solar-driven global temperature changes in the 21st century?  These three scenarios pretty much cover the plausible range:

  • CMIP6 Reference scenario:  approximately -0.1oC (Matthes 2017)
  • Intermediate: -0.3oC, corresponds to high Maunder minimum estimate without amplification effects (Fuelner 2010), or a weaker minimum with amplification effects
  • High: -0.6oC, a low solar scenario (which is not a Maunder Minimum) with amplification by solar indirect effects Solheim

The next 20 to 30 years of observations should reveal a lot about the role of the Sun in climate.

JC reflections

The IPCC acknowledges substantial uncertainty in changes of TSI over the last centuries, stating that the TSI between the Maunder Minimum (1645–1715) and second half of the 20th century increased by 0.7– 2.7 W/m2, a range that includes both low and high variability TSI data sets. However, the recommended forcing dataset for the CMIP6 climate model simulations used in the AR6 averages two low variability data sets (Matthes et al. 2017).

The implications of such large uncertainty in TSI on equilibrium climate sensitivity and attribution of 20th century warming are ignored by the IPCC. If the high variability data sets are correct, this has substantial implications for estimates of climate sensitivity to CO2, and attribution of 20th century warming.  This issue can’t continue to be swept under the rug.  Other authors are not ignoring this.  Here are three recent publications for discussion:

Scafetta:  Testing the CMIP6GCM simulations versus surface temperature records from 1980-1990 to 2010-2020 [link]

Connolly et al: How much has the sun influenced Northern Hemisphere temperature trends?  An ongoing debate [link]

Girma Orssengo:  Determination of the sun-climate relationship using empirical mathematical models for climate data sets. [link

4.9 36 votes
Article Rating
Newest Most Voted
Inline Feedbacks
View all comments
November 23, 2021 6:22 am

It is the Sun what does it! Watching the solar cycles of the last twenty years and comparing them to the historic measurements has me worried. A Dalton or Maunder would be truly devastating for civilisation as we know it. (They) We worry about the wrong climate catastrophe. (Please, please be wrong).

Reply to  Bil
November 23, 2021 10:57 am

Why do you worry about things you don’t know and are out of your control?
Don’t worry, be happy!

Reply to  Javier
November 24, 2021 2:53 am

You are of course correct, I was being hystorical. I don’t worry, I keep smiling. It’s the hubris I laugh at.

November 23, 2021 6:23 am

Why would the sun have anything to do with it?

Reply to  Scissor
November 23, 2021 6:41 am

The sun has nothing to do with the climate just as H!tler hasn’t with WW2.
We all know that WW2 was result of a bar fight in a club in San Marino.Once those guys stopped fighting the war was over,something similar is happening with climate right now.
It’s not a bar fight but a farting co2w.

Peter Wells
Reply to  Scissor
November 23, 2021 7:15 am

A number of years ago a road agent in a small New Hampshire town published in the annual town report his records from snow plowing over the past 15 or so years. Those records showed two years of unusually high snowfall. I decided to check solar cycle records, and noticed that those two years just happened to coincide with solar cycle minimums eleven years apart.

I rather doubt that such a strong correlation would hold on a long-term regular basis. However, since I had studied solar influences for a few years, I thought it was worthy of at least some note.

Andy H
Reply to  Peter Wells
November 23, 2021 7:28 am

UK gets similar periods with droughts.

Reply to  Andy H
November 23, 2021 7:44 pm

A drought in the UK is two days without rain.

Old Woman of the North
Reply to  Peter Wells
November 24, 2021 1:41 pm

I did the same with rainfall records when we were in a drought in 1969/70 in Central Queensland. The record were from 1865 – 1968. I found that there were two eleven year cycles that followed each other. One was wetter than the other, but varied greatly. The 1890 were relatively wet and that area had a major drought 1902/3. The 1950s were very wet as were the 1970s then 1990s and 2010s. Before 1950, from 1900s it was dryer for most of that time, with normal falls but not the great floods. I was just a young farmer’s wife but had empirical data to work with.

November 23, 2021 6:41 am

I have always felt that the temperature of the tea is most governed by the height of the flame under the tea kettle and not by the brand of the tea in the tea ball.

Reply to  Shrnfr
November 23, 2021 7:34 am

And you were wrong. Because scientific investigations and computer models clearly showed that it’s not as much the hit of the flame, but levels of CO2 in air around your kettle that governs the temperature of your tea.

Reply to  Bumbum
November 23, 2021 8:57 am

Manabe’s climate model explains the effects of CO2 too well …

Reply to  John Shewchuk
November 23, 2021 9:41 am

My friends should get a Nobel Prize for precisely predicting COP26 would FLOP26. And that months in advance.
Next prediction is, with slightly more CO2, COP27 will be LUKEWARM-TEA-27.
So there!
Details of model classified….

Richard M
Reply to  John Shewchuk
November 23, 2021 6:34 pm

I doubt it. The CERES data highlighted in this paper,

Radiative Energy Flux Variation from 2001–2020
Hans-Rolf Dübal  and Fritz Vahrenholt

is clearly impossible if you assume typical CO2 forcings used in climate models. Hence, those forcings must be wrong and the models as well.

Reply to  Richard M
November 23, 2021 6:42 pm

You’re right. Getting a Nobel Prize for the worst climate model is — let’s say … naughty.

Reply to  Shrnfr
November 23, 2021 7:50 am

The co2 inside the tea regulates the temperature 🙂
Sometimes,after reaching a magical number that always ends with a zero,let’s say 350ppm the tea gets warmer on it’s own by a runaway green tea effect.

Reply to  SxyxS
November 23, 2021 8:22 am

“The co2 inside the tea regulates the temperature”

Exactly. That’s why carbonated beverages are always so hot!

Rich Davis
Reply to  TonyG
November 23, 2021 9:12 am

Sometimes I leave a bottle of carbonated beverage in the back seat of my car and when I get back, it’s very hot. The sun has nothing to do with it.

Reply to  SxyxS
November 23, 2021 9:43 am

Surely you mean this :

Reply to  Shrnfr
November 23, 2021 7:56 am

Being allergic to tea I know little about it but always assumed it started out at 100C if at sea level.

Joel O’Bryan
November 23, 2021 6:50 am

Solar physicists expect cycle 25 to be even smaller than Cycle 24. “

Well that statement is certainly wrong without a leading “Some solar physicists.”

Reply to  Joel O’Bryan
November 23, 2021 4:55 pm

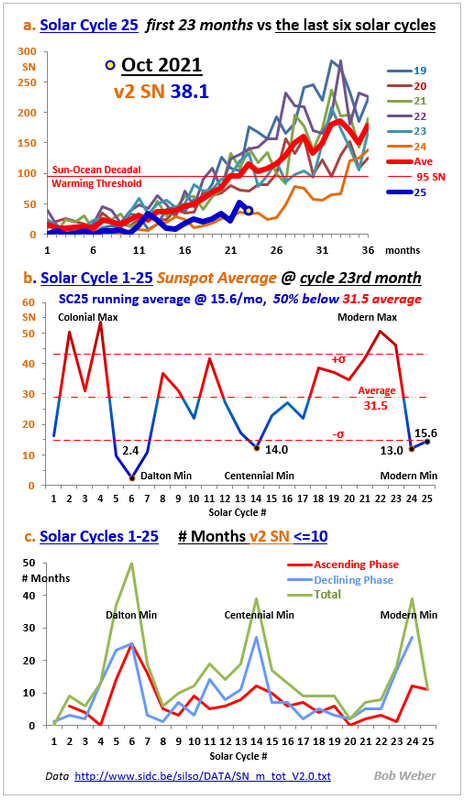

As of today that is certainly wrong. SC25 has been consistently just under one standard deviation below the average for solar cycles 1-24 each month, yet still higher than SC24:
