The U.S. Could Have Wildfire Smoke Radar

Imagine the ability to determine the three-dimensional distribution of wildfire smoke across the United States in real-time.

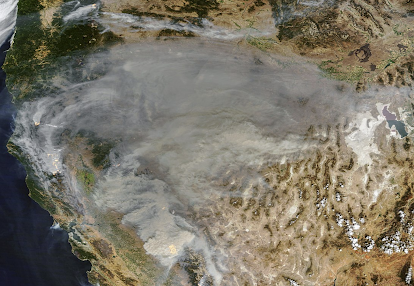

We can see the spatial distribution of smoke from space but lack the detailed three-dimensional structure

Such a capability–let’s call it smoke radar— would improve weather prediction, because smoke influences temperature and clouds.

A smoke radar would help protect human health by assisting in the prediction of the future distribution of smoke near the surface.  Air quality forecasting would be improved.

Smoke radar could enhance aircraft safety

And a smoke radar would be a potent tool for research, from diffusion studies to climate change.

Best of all, the National Weather Service already has the hardware in place, but simply needs to find the funds to collect the data.  And for a modest additional investment, the current units could be upgraded to dramatically improve their capabilities.

The Opportunity

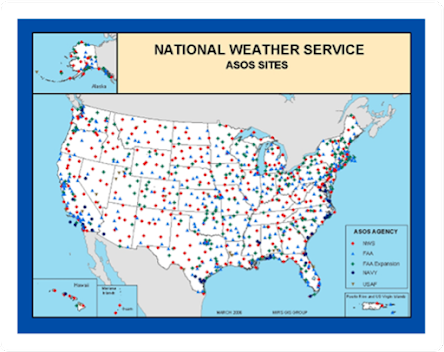

The National Weather Service and the Federal Aviation Administrations have weather observation equipment at every major and minor airport across the U.S. (see map).  Roughly 1000 of them.

Called the Automatic Surface Observing System (ASOS), this collection of instruments includes all the expected parameters (e.g, temperatures, wind, humidity, and precipitation) but also includes a device called a ceilometer that can measure the height of the bases of clouds.

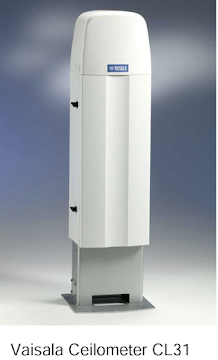

The currently installed ceilometer (the Vaisala CL31, see below) has a laser that sends out light pulses that are reflected and scattered back to the ground by clouds and other atmospheric features.  By timing the pulses and measuring the amount of return, the location and relative density of the target can be determined.

The Vasailla Ceilometer can see targets as high as 25,000 ft, although the National Weather Service only uses its capabilities over the lower 12,000 ft.

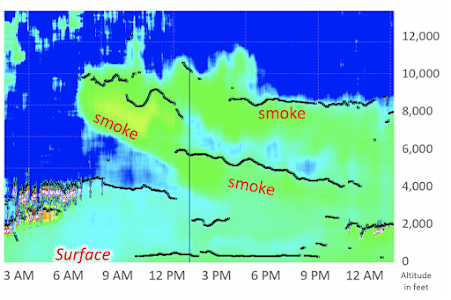

But now the exciting thing.  These ceilometers can sense wildfire smoke and penetrate thin to moderate smoke to see smoke layers aloft.    Here is an example from Tacoma earlier this year.  In essence, this device is a smoke radar for the atmosphere above the unit.  And there are enough of them across the U.S. to provide a detailed three-dimensional description of wildfire smoke (and clouds) around the nation.

But the tragedy of it all is that this data is never leaving the devices.   The National Weather Service lacks the communication infrastructure to get this valuable data off the ceilometers, to collect it at a central site, and then to distribute it to eager users.

It is estimated that this would cost approximately 3 million dollars, a very small sum considering the huge value of the information.

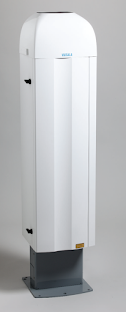

But there is more.   The current ceilometers (CL31) represent old technology and Vaisala has a vastly more capable unit (the CL51) that could provide greatly improved smoke information…both in detail and in vertical extent.

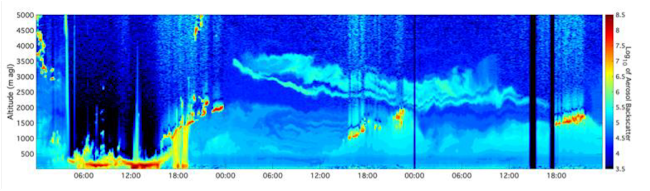

A sample is shown below. Wow.  Really impressive detail.

All the ceilometers in the U.S. could be upgraded for approximately 30 million dollars, a modest investment for such a powerful tool.
A number of U.S. scientific groups have advocated this investment. For example, in 2012, the Thermodynamic Profiling Technologies Workshop (Hoff et al., 2012) recommended that the ASOS network be better leveraged to obtain this data.  Here in the Northwest, a group of air quality agencies, under the leadership of Dr. Phil Swartzendruber of the Puget Sound Clean Air Agency, has advocated for acqur=iring ceilometer smoke information from ASOS.An Example of the Use of Ceilometer Smoke Information
I personally use ceilometer data during the smoke season for predicting changes in surface air quality…. and my colleagues at Puget Sound Clean Air Agency (PSCAA) do as well.  Both the University of Washington and PSCAA have their own ceilometers.   During last summer,  there were mornings that the ceilometers showed smoke a few thousand feet above the surface, but the air quality was good near the ground.  But we knew that the heated surface would cause vertical mixing (like in your heated cereal pot) and that mixing would bring the smoke down to the surface causing degraded air quality.
It happened, just as expected.  Do I like ceilometers!

These days, there is a lot of talk about upgrading U.S. infrastructure.   With all the concern about wildfire smoke, smoke radar from ceilometers should be high on the list.  And we are fortunate to have a well-placed Senator, Maria Cantwell, who chairs the committee that oversees NOAA and the National Weather Service.

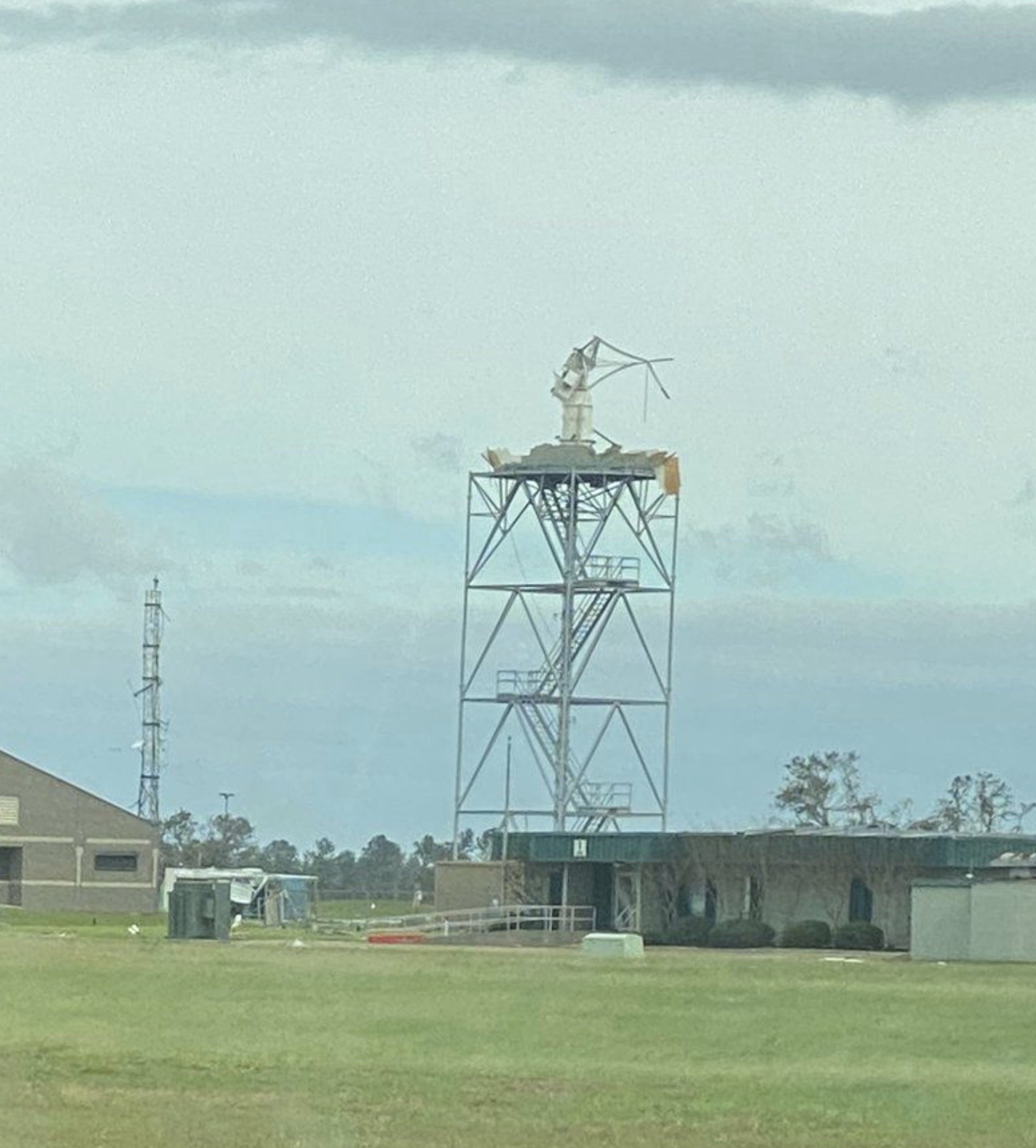

Senator Cantwell played an extraordinary role in securing the acquisition of the Langley Hill Radar near Hoquiam, which greatly enhanced weather prediction and heavy precipitation in our region.  Maybe she can do her magic again with the ceilometers.
