Sea Level Rise; A Major Non-Existent Threat Exploited by Alarmists and Politicians

Guest Opinion: Dr. Tim Ball

I know there are many articles on this website about sea level, none better than the recent one by David Middleton that speaks about “More nonsense about sea level rise.” I thought his article would make the continuance of this article unnecessary. It doesn’t because it is written for the WUWT readers. Unfortunately, too many of them like most of the public, scientists, and media don’t know what is involved in creating the net result that is sea level. I think because they don’t know, that it is time for something more basic as a citizen’s template for fighting city hall. Citizens of Honolulu are the most recent victims of this as the Mayor of Honolulu directs the City to prepare for a 3-foot sea level rise in some undetermined time period. It was reinforced during a recent radio interview when a caller asked about it because his city was planning to spend millions on structures to anticipate sea level rise. I provided a few facts about changes in sea level, scientifically called eustasy, and all the other mechanisms that could explain that change.

Let’s start with the automatic assumption by the public and the media that any major environmental issue, like global warming, glaciers melting, or sea level rising, is due to human activity. It reflects that bias, but also how little they know about all the natural causes of change. The simple assumption is that sea level rise is due to anthropogenic global warming (AGW) causing increased melting of glaciers adding more water to the oceans. In reality, just as with climate change, there is a multitude of causes, and few people know very little about any of them, and even those that do know have a quite limited understanding. As one group of scientists explained;

“a wide range of explanations for the current observed rise in sea level is possible.”

In 1997, before it sold out to sensationalism to survive as a science journal for the public, Scientific American, took a reasoned look at the issue. Figure 1 shows the cover story.

clip_image002

Figure 1

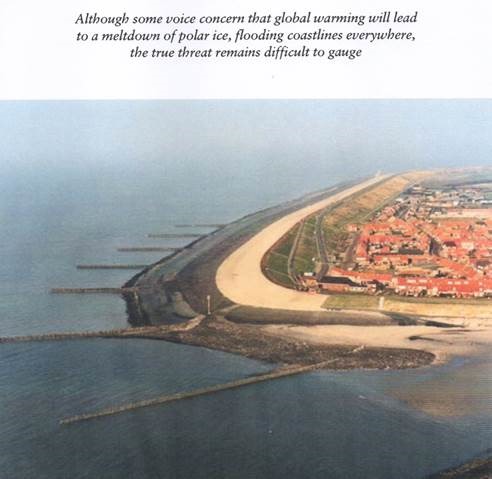

The conclusion they reached was illustrated in the story accompanying a picture of Holland because it was considered at greatest risk (Figure 2). Remember, this was before the UN exploited the South Pacific Islands by offering money in return for their collective votes in support of the Intergovernmental Panel on Climate Change agenda.

clip_image004

Figure 2

The caption is a good starting point toward understanding how this issue was distorted, misrepresented, and exploited. The extent to which this was an ideal vehicle for scaring the public about AGW is reflected in how it dominates Al Gore’s propaganda movie An Inconvenient Truth. A central, dramatic, feature included computer simulations of water inundating Florida and other areas.

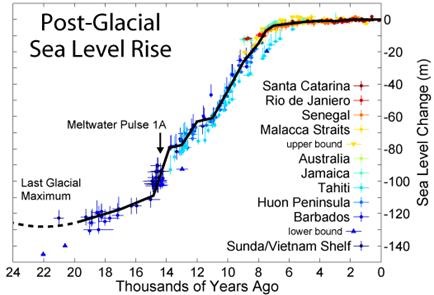

Like everything related to the AGW deception the sea level issue began with a grossly simplistic position. It was based on the changes in sea level reconstructed since the zenith of the last glaciation that showed sea level rose approximately 120 meters with most of the increase occurring between 14,000 and 8000 years ago (Figure 3).

clip_image006

Figure 3

It is important to note that the last 8000 years covered most of the Holocene Optimum when temperatures were warmer than today for over 90% of the time. A recent study indicates temperatures as high as 6°C warmer than today 9000 years ago at Svalbard, Arctic North Atlantic. The question is why didn’t the rate of melt of the previous 6000 years continue? Regardless, early estimates of sea level rise and those made for future change, take the entire volume of ice, melt it down and add the volume of water to the existing sea level.

In the week before Gore received a Nobel Prize for his propaganda movie, a UK court ruled there were nine scientific errors some of which were created to enhance “the context of alarmism and exaggeration”. One of these was his claim of sea level rise of up to 20 feet “in the near future”. The Judge wrote, “This is distinctly alarmist and part of Mr. Gore’s “wake up call”. He noted that even if Greenland melted the water would be released, “but only after, and over millennia.” The judge also spoke to the claim of the threat to low-lying inhabited Pacific islands. Gore claimed they are, “being inundated because of anthropogenic global warming” and evacuations are occurring. The Court said there was no evidence of any evacuations. Gore exaggerates future levels well beyond his fellow Nobel Prize winners at the IPCC. Why haven’t they challenged his claims?

Unfortunately, few people know of the Court ruling, but even if they did, the debate is so ill-informed that sea level rise continues as a major concern? But what are the facts? What do we know? The facts, as usual, show what is happening is perfectly normal with no evidence of a human influence. Some of the following information is known to a few specialist scientists but the majority, like almost all the public, including most scientists, have little or no knowledge.

Sea level is not level. Most people can’t get their minds around this idea because water is frequently used as a measure of ‘level.’ Water on one side of the bowl will be at the same level as water on the other side. The belief is that if the water is all in one body, then it will be level in all areas. Confusingly, that is nowhere near the case with the Oceans. For example, sea level is different at each end of the Panama Canal, yet the Pacific and Atlantic Oceans are connected at both ends of the Americas. This is an important point because you might think the difference is due to the proximity of the land. It isn’t, as sea level varies considerably in the open ocean.

One cause is changes in atmospheric pressure. The weight of the atmosphere pressing down on the surface pushes the water down and causes it to flow out to other areas. Since air pressure varies considerably all the time, then the sea level varies accordingly. We see and can measure, this effect when the bulge caused in the region of very low pressure associated with hurricanes comes ashore and creates what is called a tidal surge. Sea level can rise several meters over very large areas under large low-pressure systems. As the system moves the sea level changes, and in low lying areas, causes flooding.

The water level will vary with wind speed. It is called a set-up and occurs measurably even in lakes. For example, lake levels in the south end of Lake Winnipeg (Figure 4) can be 2 meters higher in the south end with a steady northwest wind over a couple of days.

On the oceans, most people know waves and their size are a function of winds blowing over a stretch of water called a reach, but few think about the ‘piling up’ of water. Of course, if it increases the sea level in one area, it is decreasing the level in another. Some know the general pattern of surface winds also create surface ocean currents. Few know those currents, due to the frictional effect of the wind only extends down about 1000 meters, below that the circulation is very different, primarily being a function of cold water sinking at the Poles and rising at the Equator.

clip_image008

Figure 4.

Some scientists show that gravity differences cause variations in sea level. Figure 5 shows an image produced from satellite data. As the author notes,

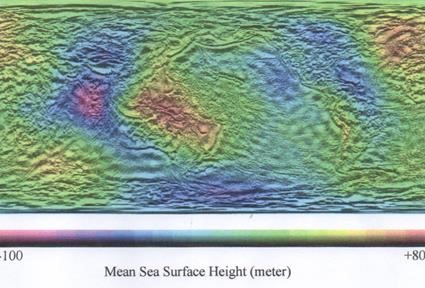

It is clear from this image, sea ‘level’ actually changes in height with spatial variations of 100m over the oceans.

clip_image010

Figure 5

A discussion of the interaction between sea level and gravity are provided in a 2002 paper that notes,

Sea level rise is often accounted for by summarising mass budgets. In fact, however, the problem of sea level rise is complicated because a number of contributions interact with one another. For example, at the centre of concerns about sea level are the ice sheets. Changes in their mass not only effect (sic) eustatic sea level directly; they effect (sic) it too through viscous flows in the Earth’s mantle that change the shape and gravity field of the Earth, and they effect the ocean dynamical circulation because freshwater fluxes affect the buoyancy of the ocean water masses. Thus a comprehensive understanding of sea level needs not only to identify causes of sea level changes, but also ways in which they may interact.

There is another factor related to tidal conditions. Tides, which is the rise and fall of the oceans due to the gravitational attraction of the Sun and the Moon varies with the positions of the Sun and Moon relative to earth. However, those change over time. For example, we know from work on the Milankovitch Effect that the distances between the Sun and the earth change over relatively short time periods. The orbital change is given as 95,000 years, which seems too long to be of significance, but this is the complete cycle from extreme ellipse to almost circular (as it is now) and back. So, the actual change is one-half the time.

Sea level varies when water temperatures change. Warmer temperatures expand the volume of water and sea level rises; cooler temperatures shrink the volume and water levels lower. This can result in a global or a regional change or both. But even this is not simple because the water temperature varies with depth and different layers change temperature differently. There is one important temperature range, 0° to 4°C, that results in a different volume reaction. This is very important because it means that large areas of polar water and water at depth, even in the tropics, does not to respond to temperature change in the same way. We don’t know how much water that entails in the total ocean volume, but it is clearly a large amount and precludes any study assuming a simple volume change with water temperature change.

This idea of volume change as a function of temperature is even more problematic than the assumption that it is uniform in space and time. Two parts of my career taught me the error of that assumption. When I was involved in chasing Soviet submarines around the North Atlantic, we used instruments to detect the noises they make. Because of the way sound travels through water it required an accurate temperature profile of the water called a bathythermograph. We had instruments called Sonobuoys that could lower microphones or thermometers to preset depths to measure temperature as they descended. It was astonishing to see the temperature variance with depth that could occur. This means the volume of each layer varies thus affecting the net sea level value.

Similarly, we installed weather instruments every 200 ft on a 1000 ft radio tower outside of Winnipeg. Again, the variance in temperature with height at any given time was quite remarkable. We were especially surprised by the number of inversions that occurred. This is why the global temperature measured at weather stations located between 1 and 1.25 meters above the surface is that and only that. It is the temperature of the atmosphere between 1 and 1.25 meters.

The salt content of the oceans, known as salinity, varies considerably from region to region and that creates an imbalance. Different salinity creates different water density, and that can create different water levels and density currents. Perhaps one of the best known is between the Mediterranean and the Atlantic through the Straits of Gibraltar.

So far, we have examined sea level changes under the general category of eustasy. Now we need to examine sea level changes caused by changes in land levels under the general category of isostasy.

When you observe a shoreline over time, and the water line changes it is natural, because of education and reason, to assume it is the water level that has changed. However, it is also possible that the land is rising or falling. There are ways to determine which change is going on, but not usually by observation. This results in people attributing a change in sea level rise incorrectly as evidence of global warming when the land is sinking. This misattribution occurs most often on the Gulf of Mexico coast of the southern US. The North American continent is a useful example to explain what is going on.

There are two parts to the crust of the Earth. One part is a crust that covers the entire globe and is primarily composed of silica and magnesium (sima). The continents, the second part of the crust are primarily formed of silica and aluminum (sial). This makes the continental crust lighter than the underlying oceanic crust, which is rich in iron and denser than the continental crust. It means the continents effectively ‘float’ on the underlying oceanic crust, which in turn sits on the fluid material of the mantle. Everything rises and falls with the convective currents in the mantle but also with changes in weights added or removed from the continent.

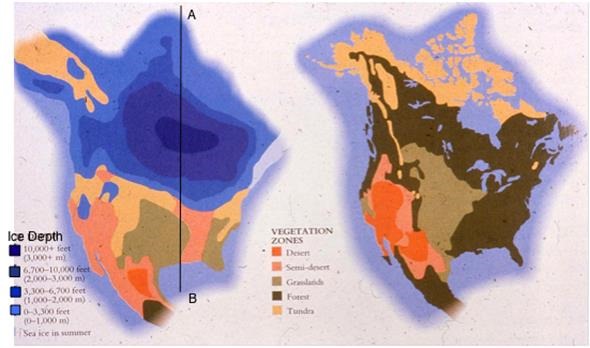

Figure 6 compares North America 20,000 years ago with today. On the left map, the blue shows the extent of the ice, at the peak of the Ice Age. It was greater in area than the current Antarctic glacier and was thickest in the dark blue region centered on Hudson Bay. Notice the difference in coastline compared to the current situation on the right.

clip_image012

Figure 6: Maps of North America; Left, 20,000 years ago. Right, Today.

Figure 7 shows a cross-section along A to B. The weight of the ice sitting on a floating continent changes the level of the land in two ways. It pushes the entire continent down at the northern end, so the southern end rises. It also depresses the rock of the continent as indicated by the arrows at A, a process called deformation.

clip_image013

Figure 7; Cross section AB through the ice sheet and continent.

When winter snow survived the summer melt high in the Torngat Mountains of Labrador, layers built until a continental glacier was formed. The ice sheet center spread west as the snow was heavier in the prevailing westerlies. At the peak of glaciation, the thickest ice lay over Hudson Bay.

Since the ice melted, the continent has adjusted by rising in the north and sinking in the south. At the same time, the depressed land has regained some of its altitude. The land sinking along the Gulf of Mexico is mostly due to this adjustment. The rate of recovery is rapid and sometimes noticeable even without measure because it occurs within a person’s lifespan. Two pictures illustrate the rate the first (Figure 8) is of shorelines along the coast of Hudson Bay that form and are abandoned as the land rises.

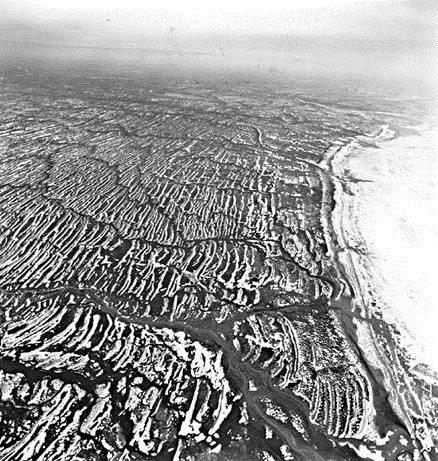

clip_image015

Figure 8

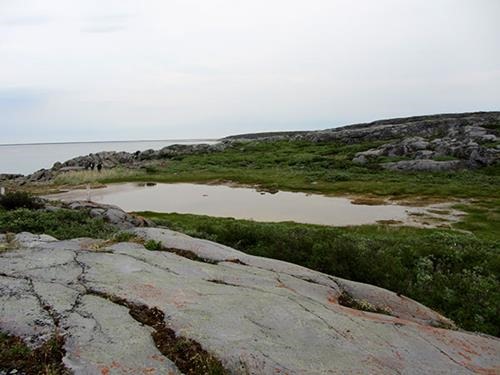

The second image is my favorite because I saw the differences between my first and last visits to a place called Sloop Cove near Churchill, Manitoba (Figure 9). The name comes from the fact that in the 18th and 19th centuries, the Hudson’s Bay Company anchored their small sailing vessels called sloops in the inlet. Today the inlet is above water even during the highest tides. Geologic estimates are the land has risen 2 meters since they began using it.

clip_image017

Figure 9.

People in Manitoba who own cottages on the southern end of Lake Winnipeg (Figure 4) also noticed the effect because the Lake is moving south as the northern end rises. This vertical rise is converted to a greater horizontal movement so is more noticeable as the lake threatens your cottage. I learned much about this when serving on a Commission of Inquiry created because people blamed the ‘flooding’ on the utility (ManitobaHydro) that built a dam at the north end of the Lake to use it as a reservoir for hydroelectricity. In fact, in about 30 years the water moved south by several feet.

Measurement

Traditionally, sea level was measured by taking the average of tide gauge readings, however, since 1992 it is done by satellite. All the discussion is about an increase in the mean or average height of the sea, but only fractional increases. They were talking about millimeter increases when that type of precision wasn’t possible with tide gauges and even the TOPEX/POSEIDON satellites claim,

“Measured sea levels with unprecedented accuracy to better than 5 cm.”

It’s important to note that this estimate is with an uncertainty of 3-4 mm. This is important because the IPCC claim, “For the period 1993 to 2003, the rate of sea level rise is estimated from observations with satellite altimetry as 3.1 ± 0.7 mm yr-1.” But what are they actually measuring? It is the average variation of sea level relative to an imaginary line called the reference ellipsoid. Potential for error exists in determining the ellipsoid, the height of the satellite, in the actual measurements, and in the changes going on in the ocean and on the land. Frankly, it is useless to even talk about millimeter changes. There are so many inputs, and so many adjustments that the final results claimed are unjustified. As Carl Wunsch said,

“It remains possible that the data base is insufficient to compute mean sea level trends with the accuracy necessary to discuss the impact of global warming–as disappointing as this conclusion may be.”



He adds,



“Useful estimation of the global averages is extremely difficult given the realities of space/time sampling and model approximations. Systematic errors are likely to dominate most estimates of global average change: published values and error bars should be used very cautiously.”

Claims don’t fit the reality.

Everything was done by the IPCC to attribute the increase to global warming especially through increased sea temperature. They claimed that about 25 percent of sea level rise of the last 50 years was due to thermal expansion with that rising to 50 percent for the last decade. As with everything they do, the IPCC start with the assumption that their estimates of global warming are accurate and therefore their extrapolation of perceived trend going forward of increased sea level is also accurate. The arrogance of attributing 50 percent of the increased sea level to thermal expansion is done with a computer model that eliminates almost all the variables that cause temperature change, and the result is then applied to computer models that leave out most of the causes of sea level change.





Looking forward.

Originally, sea level rise was a grossly simplistic theory that asked how much sea level rise would occur if the Greenland and Antarctic ice sheets melt completely and the total water produced was then added to the current sea level. Let’s consider a similar scenario going forward. What is the maximum sea level rise that can occur if all the ice melts and the water is added to the current sea level?

Among the things to consider are the problem that much of the ice is already in the ocean, so it won’t add to the level. In fact, if we only consider that portion, then sea level will go down because water expands by about 9% when it freezes, the space occupied by the ice below sea level will hold 9% more water. Similarly, ice above sea level will produce 9% less water by volume. Then there are the isostatic adjustments the land will make as the weight of the ice is removed.

But all this assumes total melt, and that is unlikely for thousands of years, if at all because the average temperature of Antarctica is below –20°C (-4°F). How much warming is required before that moves above the freezing point?

Of course, you can stop worrying because Al Gore confirmed his practice of doing what I say not what I do. He bought waterfront property, and according to reports has not made it ‘green’ friendly. These are the best signs that neither global warming nor sea level rise are a threat?

Advertisements

108 thoughts on “Sea Level Rise; A Major Non-Existent Threat Exploited by Alarmists and Politicians

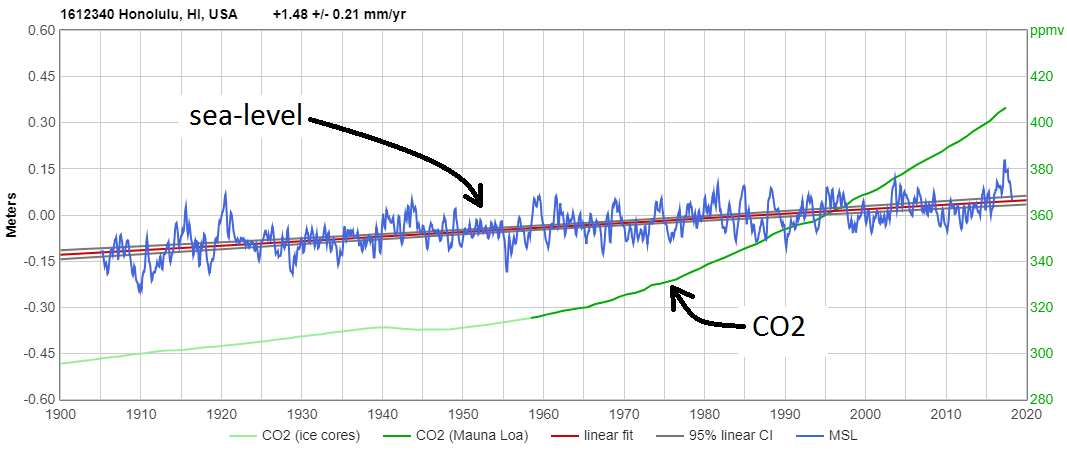

    • Sea level in Hawaii was higher during some months of 1920 than it is right now.
      And the seasonal variation, not to mention the monthly and yearly variations, are larger than the sum total of the net changes from 1900 until the present.
      Decidedly unscary.

  1. A monolith has been found about 130 ft. below sea level in the Mediterranean Sea, about 37 miles south of Sicily. Does Al Gore want to extend man caused global to that submergence as well ? I bought Gore’s d.v.d. inconvenient “truth” where he made a big deal about Washington, D.C. trees being bare in Civil War period spring and leafed out in the same month now, completely disregarding that we were coming out of the Little Ice Age. I got a little angry at the false presentations.

    • “A monolith has been found about 130 ft. below sea level…”

      Is it black, have a proportions of 1:4:9 and is “full of stars”? If so, I suggest they don’t mess with it, strange things seem to happen around that kind of monolith.

  2. starting an article by insulting the intelligence of the readers is always a good tactic I find to
    ensure that people give it a fair hearing.

      • Of course not. Dr Ball actually was flattering the audience saying that earlier treatments of the topic were too technical for the general public, having been written for the WUWT reader. Percy apparently doesn’t count himself as a WUWT reader.

  3. “Some scientists show that gravity differences cause variations in sea level.”

    Gravity is tricky…not only do sea floor volcanoes and mountains increase gravity and hold water higher on top of them…..gravity has the duel effect of pulling satellites down
    So what are they actually measuring and how do you adjust for that?

    It’s not coincidence that global gravity maps….and global sea level maps….look exactly the same

    gravity…
    https://www.space.dtu.dk/english/-/media/Institutter/Space/English/scientific_data_and_models/global_marine_gravity_field/grav581.ashx?la=da&hash=D9EE067474C39F212AC3F51AE4F088D6CD465273

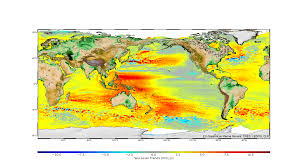

    sea level……..
