Bucket list: Historic global ocean temperature data – the missing pedigree is a comedy of errors

By Hartmut Hoecht

1. Introduction

This paper addresses the glaring disregard within the scientific community in addressing thermal data errors of global ocean probing. Recent and older records are compiled with temperatures noted in small fractions of degrees, while their collection processes often provide errors much greater than full degrees. As a result of coarse methods the very underpinning of the historic and validity of the present database is questioned, as well as the all-important global temperature predictions for the future.

Follow me into the exploration of how the global ocean temperature record has been collected.

First, a point of reference for further discussion:

Wikipedia, sourced from NASA Goddard, has an illustrative graph of global temperatures with an overlay of five-year averaging. Focus on the cooling period between mid 1940’s and mid 1970’s. One can glean the rapid onset of the cooling, which amounted to approximately 0.3 degree C in 1945, and its later clearly discernible reversal.

clip_image001

Land-ocean temperature index, 1880 to present, with base period 1951-1980. The solid black line is the global annual mean and the solid red line is the five-year lowess smooth, i.e. a nonparametric regression analysis that relies on a k-nearest-neighbor model. The function is evaluated using a fraction of data corresponding to a ten year window of data, giving an effective smoothing of approximately five years. The blue uncertainty bars (95% confidence limit) account only for incomplete spatial sampling. This is based upon Fig. 1A in Hansen et al. (2006) and Fig. 9a in Hansen et al. (2010). Source: https://commons.wikimedia.org/wiki/File:Global_Temperature_Anomaly.svg

The May 2008 paper by Thompson et al in Nature got my attention. Gavin Schmidt of RealClimate and also the New Scientist commented on it. Thompson claims he found the reason why the 1940’s cooling started with such a drastic reversal from the previous heating trend, something that apparently had puzzled scientists for a long time. The reason for this flip in temperature was given as the changeover in methods in collecting ocean temperature data. That is, changing the practice of dipping sampling buckets to reading engine cooling water inlet temperatures.

Let us look closer at this cooling period.

Before and after WWII the British fleet used the ‘bucket method’ to gather ocean water for measuring its temperature. That is, a bucket full of water was sampled with a bulb thermometer. The other prevalent probing method was reading ships’ cooling water inlet temperatures.

These two data gathering methods are explained in a 2008 letter to Nature, where Thompson et al coined the following wording (SST = sea surface temperature):

“The most notable change in the SST archive following December 1941 occurred in August 1945. Between January 1942 and August 1945 ~80% of the observations are from ships of US origin and ~5% are from ships of UK origin; between late 1945 and 1949 only ~30% of the observations are of US origin and about 50% are of UK origin. The change in country of origin in August 1945 is important for two reasons: first, in August 1945 US ships relied mainly on engine room intake measurements whereas UK ships used primarily uninsulated bucket measurements, and second, engine room intake measurements are generally biased warm relative to uninsulated bucket measurements.”

Climate watchers had detected a bump in the delta between water and night time atmospheric temperatures (NMAT). Therefore it was thought that they had found the culprit for the unexplained 0.3 degree C flip in temperatures around 1945, which invited them to tweak and modify the records. The applied bias corrections, according to Thompson, “might increase the century-long trends by raising recent SSTs as much as ~0.1 deg. C”.

Supposedly this bias correction was prominently featured in the IPCC 2007 summary for policy makers. The question to ask – how was Thompson’s 0.1 degree correction applied – uniformly? Over what time period? Is the number of 0.1 degree a guess and arbitrarily picked? Does it account for any measurement errors, those discussed further in this paper?

A fundamental question arises how authentic is our temperature record? How confidently can we establish trend lines and future scenarios? It is obvious that we need to know the numbers within 0.1 degree C accuracy to allow sensible interpretation of the records and to believably project future global temperatures.

We shall examine the methods of measuring ocean water temperatures in detail, and we will discover that the data record is very coarse, often by much more than an order of magnitude!

First, it is prudent to present the fundamentals, in order to establish a common understanding.

2. The basics

We can probably agree that, for extracting definite trends from global temperature data, the resolution of this data should be at least within +/-0.1 degree C. An old rule of thumb for any measurement cites the instrument having better than three times the accuracy of the targeted resolution. In our case it is +/0.03 degree C.

Thermal instrument characteristics define error in percent of full range. Read-out resolution is another error, as is read-out error. Example: assume a thermometer has a range of 200 degrees , 2 % accuracy is 4 degrees, gradation (resolution) is 2 degrees. Read-out accuracy may be 0.5 degrees, to be discerned between gradations, if you ‘squint properly’.

Now let us turn to the instruments themselves.

Temperature is directly measured via bulb and capillary function liquid based thermometers, bimetal dial gages and, with the help of electronics, the thermistors, as well as a few specialized methods. Via satellite earth temperatures are interpreted indirectly from infrared radiative reflection.

We are all familiar with the capillary and liquid filled thermometers we encounter daily. They and bimetal based ones have typical accuracy of +/-1 to 2 percent and are no more accurate than to 0.5 degree C. The thermistors can be highly accurate upon precise calibration.

Temperature data collection out in nature focuses not just on the thermal reading device by itself. It is always a system, which comprises to various extent the data collection method, temporary data storage, data conversion and transmission, manipulation, etc. Add to this the variations of time, location, of protocol, sensor drift and sensor deterioration, variations in the measured medium, different observers and interpreters, etc. All of this contributes to the system error. The individual error components are separated into the fixed known – errors and the random – variable errors. Further, we must pay attention to the ‘significant figures’ when assessing error contributors, since a false precision may creep in, when calculation total error.

Compilation of errors:

All errors identified as random errors are combined using the square root of the sum of the squares method (RSS). Systematic errors are combined by algebraic summation. The total inaccuracy is the algebraic sum of the total random error and total systematic error.

3. Predominant ocean temperature measuring methods

a. Satellite observations

Data gathering by infrared sensors on NOAA satellites has been measuring water surface temperatures with high-resolution radiometers.

Measurements are indirect and must take into account the uncertainties associated with other parameters, which can be only poorly estimated. Only the top-most water layer can be measured, which can induce a strong diurnal error. Satellite measurements came into use around the 1970’s, so they have no correlation to earlier thermal profiling. However, since they are indirect methods of reading ocean temperature and have many layers of correction and interpretation with unique error aspects, they are not investigated here. Such an effort would warrant a whole other detailed assessment.

b. Direct water temperature measurements – historical

Dipping of a thermometer in a bucket of a collected water sample was used prior to the need for understanding the thermal gradients down in deeper portions of the ocean. The latter became vital for submarine warfare, before and during WWII. Earlier, water temperature knowledge was needed only for meteorological forecasting.

The ‘Bucket Method’:

Typically a wooden bucket was thrown from a moving ship, hauled aboard, and a bulb thermometer was dipped in this bucket to get the reading. After the earlier wooden ones, canvas buckets became prevalent.

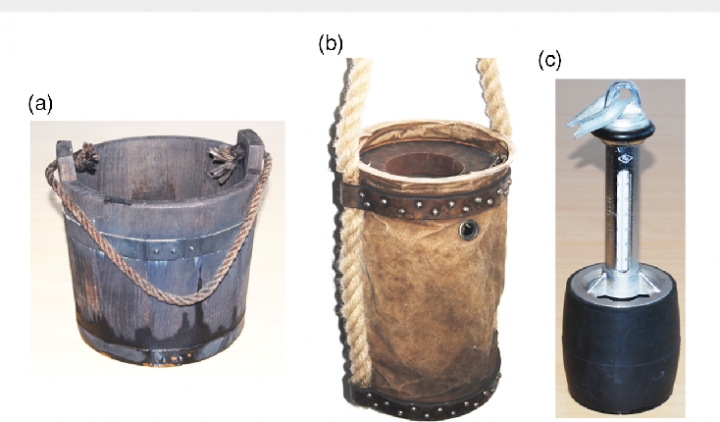

(a) Wooden bucket; (b) canvas bucket; (c) German scoop (modern version). [Colour figure can be viewed at wileyonlinelibrary.com].

With greater attention to accuracy insulated canvas buckets were introduced. In addition to typical thermometer accuracy of 0.5 to 1.0 degree C, highly variable random error sources were:

  • depth of bucket immersion
  • surface layer mixing from variable wave action and solar warming
  • churning of surface layer from ship’s wake
  • variable differential between water and air temperature
  • relative direction between wind and ship’s movement
  • magnitude of combined wind speed and ship’s speed
  • time span between water collection and actual thermal readings
  • time taken to permit thermometer taking on water temperature
  • degree of thermometer stirring (or not)
  • reading at the center vs. edge of the bucket
  • thermometer wet bulb cooling during reading of temperature
  • optical acuity and attitude of operator
  • effectiveness of bucket insulation and evaporative cooling effects of leakage
  • thermal exchange between deck surface and bucket

Here is an infrared sequence showing how water in a canvas bucket cools.

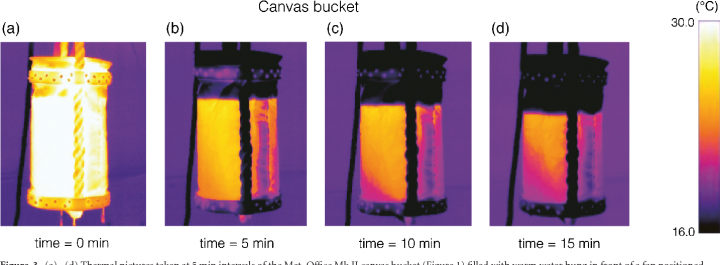

Figure 3. (a)–(d) Thermal pictures taken at 5 min intervals of the Met. Office Mk II canvas bucket (Figure 1) filled with warm water hung in front of a fan positioned to the right in these images. The bucket is not stirred and the lid is shut.

Figures above from this paper:

Measurements and models of the temperature change of water samples in sea-surface temperature buckets

  • Graziella Carella, Alexis R Morris,

ABSTRACT: Uncertainty in the bias adjustments applied to historical sea-surface temperature (SST) measurements made using buckets are thought to make the largest contribution to uncertainty in global surface temperature trends. Measurements of the change in temperature of water samples in wooden and canvas buckets are compared with the predictions of models that have been used to estimate bias adjustments applied in widely used gridded analyses of SST. The results show that the models are broadly able to predict the dependence of the temperature change of the water over time on the thermal forcing and the bucket characteristics: volume and geometry; structure and material. Both the models and the observations indicate that the most important environmental parameter driving temperature biases in historical bucket measurements is the difference between the water and wet-bulb temperatures. However, assumptions inherent in the derivation of the models are likely to affect their applicability. We observed that the water sample needed to be vigorously stirred to agree with results from the model, which assumes well-mixed conditions. There were inconsistencies between the model results and previous measurements made in a wind tunnel in 1951. The model assumes non-turbulent incident flow and consequently predicts an approximately square-root dependence on airflow speed. The wind tunnel measurements, taken over a wide range of airflows, showed a much stronger dependence. In the presence of turbulence the heat transfer will increase with the turbulent intensity; for measurements made on ships the incident airflow is likely to be turbulent and the intensity of the turbulence is always unknown. Taken together, uncertainties due to the effects of turbulence and the assumption of well-mixed water samples are expected to be substantial and may represent the limiting factor for the direct application of these models to adjust historical SST observations.

Engine Inlet Temperature Readings:

A ship’s diesel engine uses a separate cooling loop, to isolate the metal from the corrosive and fouling effect of sea water. The raw water inlet temperature is most always measured via gage (typical 1 degree C accuracy and never recalibrated), which is installed between the inlet pump and the heat exchanger. There would not be a reason to install thermometers directly next to the hull without data skewing engine room heat-up, a location which would otherwise be more useful for research purposes.

Random measurement influences to be considered:

  • depth of water inlet
  • degree of surface layer mixing from wind and sun
  • wake churning of ship, also depending on speed
  • differential between water and engine room temperature
  • variable engine room temperature

Further, there are long-term time variable system errors to be considered:

  • added thermal energy input from the suction pump
  • piping insulation degradation and from internal fouling.



c. Deployed XBT (Expendable Bathythermograph) Sondes

The sonar sounding measurements and the need for submarines hiding from detection in thermal inversion layers fueled the initial development and deployment of the XBT probes. They are launched from moving surface ships and submarines. Temperature data are sent to aboard the ship via unspooling of a thin copper wire from the probe, while it takes on a slightly decreasing descending speed. Temperature is read by a thermistor; processing and recording of data is done with shipboard instruments. The depth is calculated by the elapsed time, and based on a manufacturer’s specific formula. Thermistor readings are recorded via voltage changes of the signal.

Random errors introduced:

  • thermal lag effect of probe shipboard storage vs. initial immersion temperature
  • storage time induced calibration drift
  • dynamic stress plus changing temperature effect on copper wire resistance during descent
  • variable thermal lag effect on thermistor during descent
  • variability of surface temperature vs. stability of deeper water layers
  • instrument operator induced variability.



d. ARGO Floating Buoys

The concept of these submersed buoys is a clever approach to have nearly 4000 such devices worldwide autonomously recording water data, while drifting at different ocean depths. Periodically they surface and batch transmit the stored time, depth (and salinity) and temperature history via satellite to ground stations for interpretation. The prime purpose of ARGO is to establish a near-simultaneity of the fleet’s temperature readings down to 2500 meters in order to paint a comprehensive picture of the heat content of the oceans.

Surprisingly, the only accuracy data given by ARGO manufacturers is the high precision of 0.001 degree C of their calibrated thermistor. Queries with the ARGO program office revealed that they have no knowledge of a system error, an awareness one should certainly expect from this sophisticated scientific establishment. An inquiry about various errors with the predominant ARGO probe manufacturer remains unanswered.

In fact, the following random errors must be evaluated:

  • valid time simultaneity in depth and temperature readings, since the floats move with currents and may transition into different circulation patterns, i.e. different vertical and lateral ones
  • thermal lag effects
  • invalid readings near the surface are eliminated; unknown extent of depth of the error
  • error in batch transmissions from the satellite antenna due to wave action
  • error in two-way transmissions, applicable to later model floats
  • wave and spray interference with high frequency 20/30 GHz IRIDIUM satellite data transmission
  • operator and recordation shortcomings and misinterpretation of data

Further, there are unknown resolution, processor and recording instrument systems errors, such as coarseness of the analog/digital conversion, any effects of aging float battery output, etc. Also, there are subtle characteristics between different float designs, which are probably hard to gage without detailed research.

e. Moored Ocean Buoys

Long term moored buoys have shortcomings in vertical range, which is limited by their need to be anchored, as well as in timeliness of readings and recordings. Further, they are subject to fouling and disrupted sensor function from marine biological flora. Their distribution is tied to near shore anchorage. This makes them of limited value for general ocean temperature surveying.

f. Conductivity, Temperature, Depth (CTD) Sondes

These sondes present the most accurate method of water temperature readings at various depths. They typically measure conductivity, temperature (also often salinity) and depth together. They are deployed from stationary research ships, which are equipped with a boom crane to lower and retrieve the instrumented sondes. Precise thermistor thermal data at known depths are transmitted in real-time via cable to onboard recorders. The sonde measurements are often used to calibrate other types of probes, such as XBT and ARGO, but the operational cost and sophistication as a research tool keeps them from being used on a wide basis.

4. Significant Error Contributions in Various Ocean Thermal Measurements

Here we attempt to assign typical operational errors to the above listed measuring methods.

a. The Bucket Method

Folland et al in the paper ‘Corrections of instrumental biases in historical sea surface temperature data’ Q.J.R. Metereol. Soc. 121 (1995) attempted to quantify the bucket method bias. The paper elaborates on the historic temperature records and variations in bucket types. Further, it is significant that no marine entity has ever followed any kind of protocol in collecting such data. The authors of this report undertake a very detailed heat transfer analysis and compare the results to some actual wind tunnel tests (uninsulated buckets cooling by 0.41 to 0.46 degree C). The data crunching included many global variables, as well as some engine inlet temperature readings. Folland’s corrections are +0.58 to 0.67 degree C for uninsulated buckets and +0.1 to 0.15 degrees for wooden ones.

Further, Folland et al (1995) state The resulting globally and seasonally averaged sea surface temperature corrections increase from 0. 11 deg. C in 1856 to 0.42 deg. C by 1940.”

It is unclear why the 19th century corrections would be substantially smaller than those in the 20th century. Yet, that could be a conclusion from the earlier predominance of the use of wooden buckets (being effectively insulating). It is also puzzling, how these numbers correlate to Thompson’s generalizing statement that recent SSTs should be corrected via bias error “by as much as ~0.1 deg. C”? What about including the 0.42 degree number?

In considering a system error – see 3b. – the variable factors of predominant magnitude are diurnal, seasonal, sunshine and air cooling, spread of water vs. air temperature, plus a fixed error of thermometer accuracy of +/- 0.5 degree C, at best. Significantly, bucket filling happens no deeper than 0.5 m below water surface, hence, this water layer varies greatly in diurnal temperature.

Tabatha, 1978, says about measurement on a Canadian research ship – bucket SSTs were found to be biased about 0.1°C warm, engine-intake SST was an order of magnitude more scattered than the other methods and biased 0.3°C warm”. So, here both methods measured warm bias, i.e. correction factors would need to be negative, even for the bucket method, which are the opposite of the Folland numbers.

Where to begin in assigning values to the random factors? It seems near impossible to simulate a valid averaging scenario. For illustration sake let us make an error calculation re. a specific temperature of the water surface with an uninsulated bucket.

Air cooling 0.50 degrees (random)

Deckside transfer 0.05 degrees (random)

Thermometer accuracy 1.0 degrees (fixed)

Read-out and parallax 0.2 degrees (random)

Error e = 1.0 + (0.52 + 0.052 + 0.22)1/2 = 1.54 degrees or 51 times the desired accuracy of 0.03 degrees (see also section 2.0).

b. Engine intake measurements

Saur 1963 concludes : “The average bias of reported sea water temperatures as compared to sea surface temperatures , with 95% confidence limits, is estimated t be 1.2 +/-0.6 deg F (0.67 +/-0.3 deg C) on the basis of of a sample of 12 ships. The standard deviation is estimated to be 1.6 deg F (0.9 deg C)….. The ship bias (average bias of injection temperatures from a given ship) ranges from -0.5 deg F to 3.0 deg F (0.3 deg C to 1.7 deg C) among 12 ships.”

Errors in engine-intake SST depend strongly on the operating conditions in the engine room (Tauber 1969).

James and Fox (1972) show that intakes at 7m depth or less showed a bias of 0.2 degree C and deeper inlets had biases of 0.6 degree C.

Walden, 1966, summarizes records from many ships as reading 0.3 degree C too warm. However, it is doubtful that accurate instrumentation was used to calibrate readings. Therefore, his 0.3 degree number is probably derived crudely with shipboard standard ½ or 1 degree accuracy thermometers.

Let us make an error calculation re. a specific water temperature at the hull intake.

Thermometer accuracy 1.0 degree (fixed)

Ambient engine room delta 0.5 degree (random)

Pump energy input 0.1 degree (fixed)

Total error 1.6 degree C or 53 times the desired accuracy of 0.03 degrees.

One condition of engine intake measurements that differs strongly from the bucket readings is the depth below water surface at which measurements are collected, i.e. several meters down from the surface. This method provides cooler and much more stable temperatures as compared to the buckets nipping water and skipping along the top surface. However, engine room temperature appears highly influential. Many records are only given in full degrees, which is the typical thermometer resolution.

But, again the only given fixed error is the thermometer accuracy of one degree, as well as the pump energy heating delta. The variable errors may be of significant magnitude on larger ships and they are hard to generalize.

All these wide variations makes the engine intake record nearly impossible to validate. Further, the record was collected at a time when research based calibration was hardly ever practiced.

c. XBT Sondes

Lockheed-Martin (Sippican) produces several versions, and they advertise temperature accuracy of +/- 0.1 degree C and a system accuracy of +/- 0.2 degree C. Aiken (1998) determined an error of +0.5 and in 2007 Gouretski found an average bias of +0.2 to 0.4 degree C. The research community also implies accuracy variations with different data acquisition and recording devices and recommends calibration via parallel CTD sondes. There is a significant variant in the depth – temperature correlation, about which the researchers still hold workshops to shed light on.

We can only make coarse assumptions for the total error. Given the manufacturer’s listed system error of 0.2 degrees and the range of errors as referenced above, we can pick a total error of, say, 0.4 degree C, which is 13 times the desired error of 0.03 degrees.

d. ARGO Floats

The primary US based float manufacturer APEX Teledyne boasts a +/-0.001 degree C accuracy, which is calibrated in the laboratory (degraded to 0.002 degrees with drift). They have confirmed this number after retrieving a few probes after several years of duty. However, there is no system accuracy given, and the manufacturer stays mum to inquiries. The author’s communication with the ARGO program office reveals that they don’t know the system accuracy. This means they know the thermistor accuracy and nothing beyond. The Seabird Scientific SBE temperature/salinity sensor suite is used within nearly all of the probes, but the company, upon email queries, does not reveal its error contribution. Nothing is known about the satellite link errors or the on-shore processing accuracies.

Hadfield (2007) reports a research ship transection at 36 degree North latitude with CTD measurements. They have compared them to ARGO float temperature data on both sides of the transect and they are registered within 30 days and sometimes beyond. Generally the data agree within 0.6 degree C RMS and a 0.4 degree C differential to the East and 2.0 degree to the West. These readings do not relate to the accuracy of the floats themselves, but relate to limited usefulness of the ARGO data, i.e. the time simultaneity and geographical location of overall ocean temperature readings. This uncertainty indicates significant limits for determining ocean heat content, which actually is the raison d’etre for ARGO.

The ARGO quality manual for CTD’s and transectory data does spell out the flagging of probably bad data. The temperature drift between two average values is to be max. 0.3 degrees as fail criterion, the mean at 0.02 and a minimum 0.001 degrees.

Assigning an error budget to ARGO float readings certainly means a much higher than the manufacturer’s stated value of 0.002 degrees.

So, let’s try:

Allocated system error 0.01 degree (assume fixed)

Data logger error and granularity 0.01 (fixed)

Batch data transmission 0.05 (random)

Ground based data granularity 0.05 (fixed)

Total error 0.12 degrees, which is four times the desired accuracy of 0.03 degrees.

However, the Hadfield correlation to CTD readings from a ship transect varies up to 2 degrees, which is attributable to time and geographic spread and some amount of ocean current flow and seasonal thermal change, in addition to the inherent float errors.

The NASA Willis 2003/5 ocean cooling episode:

This matter is further discussed in the summary section 5.

In 2006 Willis published a paper, which showed a brief ocean cooling period, based on ARGO float profile records.

“Researchers found the average temperature of the upper ocean increased by 0.09 degrees Celsius (0.16 degrees F) from 1993 to 2003, and then fell 0.03 degrees Celsius (0.055 degrees F) from 2003 to 2005. The recent decrease is a dip equal to about one-fifth of the heat gained by the ocean between 1955 and 2003.”

The 2007 paper correction tackles this apparent global cooling trend during 2003/4 by removing specific wrongly programmed (pressure related) ARGO floats and by correlating earlier warm biased XBT data, which, together, was said to substantially minimize the magnitude of this cooling event.

Willis’ primary focus was gaging the ocean heat content and the influences on sea level. The following are excerpts from his paper, with and without the correction text.

Before correction:

“The average uncertainty is about 0.01 °C at a given depth. The cooling signal is distributed over the water column with most depths experiencing some cooling. A small amount of cooling is observed at the surface, although much less than the cooling at depth. This result of surface cooling from 2003 to 2005 is consistent with global SST products [e.g. http://www.jisao.washington.edu/data_sets/global_sstanomts/]. The maximum cooling occurs at about 400 m and substantial cooling is still observed at 750 m. This pattern reflects the complicated superposition of regional warming and cooling patterns with different depth dependence, as well as the influence of ocean circulation changes and the associated heave of the thermocline.

The cooling signal is still strong at 750 m and appears to extend deeper (Figure 4). Indeed, preliminary estimates of 0 – 1400 m OHCA based on Argo data (not shown) show that additional cooling occurred between depths of 750 m and 1400 m.”

After correction:

“…. a flaw that caused temperature and salinity values to be associated with incorrect pressure values. The size of the pressure offset was dependent on float type, varied from profile to profile, and ranged from 2–5 db near the surface to 10–50 db at depths below about 400 db. Almost all of the WHOI FSI floats (287 instruments) and approximately half of the WHOI SBE floats (about 188 instruments) suffered from errors of this nature. The bulk of these floats were deployed in the Atlantic Ocean, where the spurious cooling was found. The cold bias is greater than −0.5°C between 400 and 700 m in the average over the affected data.

The 2% error in depth presented here is in good agreement with their findings for the period. The reason for the apparent cooling in the estimate that combines both XBT and Argo data (Fig. 4, thick dashed line) is the increasing ratio of Argo observations to XBT observations between 2003 and 2006. This changing ratio causes the combined estimate to exhibit cooling as it moves away from the warm-biased XBT data and toward the more neutral Argo values.

Systematic pressure errors have been identified in real-time temperature and salinity profiles from a small number of Argo floats. These errors were caused by problems with processing of the Argo data, and corrected versions of many of the affected profiles have been supplied by the float provider.

Here errors in the fall-rate equations are proposed to be the primary cause of the XBT warm bias. For the study period, XBT probes are found to assign temperatures to depths that are about 2% too deep.”

Note that Willis and co-authors estimated the heat content of the upper 750 meters. This zone represents about 20 percent of the global ocean’s average depth.

Further, the Fig. 2 given in Willis’ paper shows the thermal depth profile of one of the eliminated ARGO floats, i.e. correct vs. erroneous.

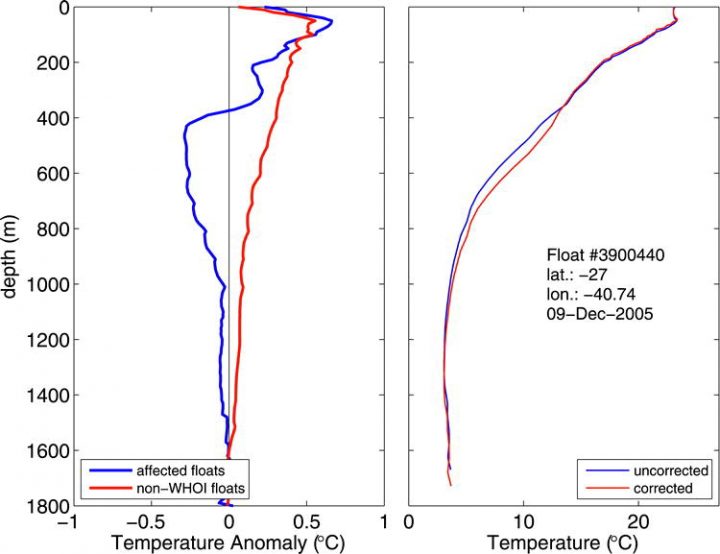

Fig. 2. (left) Temperature anomaly vs depth relative to the WGHC for WHOI floats with incorrect pressure values (blue line) and non-WHOI floats from the same region (red line). Data were restricted to the Atlantic and to latitudes between 50°S and 50°N from 1 Jan 2003 through 30 Jun 2007. (right) Effect of the correction for a single float WHOI FSI float in the south Atlantic. From Willis 2007

Averaging the error at specific depth we can glean a 0.15 degree differential, ranging from about 350 to 1100 m. That amount differs from the cold bias of -0.5 degree as stated above, albeit as defined within 400 and 700 meters.

All of these explanations by Willis are very confusing and don’t inspire confidence in any and all ARGO thermal measurement accuracies.

5. Observations and Summary

5.1 Ocean Temperature Record before 1960/70

Trying to extract an ocean heating record and trend lines during the times of bucket and early engine inlet readings seems a futile undertaking because of vast systematic and random data error distortion.

The bucket water readings were done for meteorological purposes only and

a. without quality protocols and with possibly marginal personnel qualification

b. by many nations, navies and merchant marine vessels

c. on separate oceans and often contained within trade routes

d. significantly, scooping up only from a thin surface layer

e. with instrumentation that was far cruder than the desired quality

f. subject to wide physical sampling variations and environmental perturbances

Engine inlet temperature data were equally coarse, due to

a. lack of quality controls and logging by marginally qualified operators

b. thermometers unsuitable for the needed accuracy

c. subject to broad disturbances from within the engine room

d. variations in the intake depth

e. and again, often confined to specific oceans and traffic routes

The engine inlet temperatures differed significantly from the uppermost surface readings,

a. being from a different depth layer

b. being more stable than the diurnally influenced and solar heated top layer

Observation #1:

During transition in primary ocean temperature measuring methods it appears logical to find an upset of the temperature record around WWII due to the changes in predominant method of temperature data collection. However, finding a specific correction factor for the data looks more like speculation, because the two historic collection methods are just too disparate in characteristics and in what they measure. This appears to be a case of the proverbial apples and oranges comparison. However, the fact of a rapid 1945/6 cooling onset must still be acknowledged, because the follow-on years remained cool. Then, the warming curve in the mid-seventies started again abruptly, as the graph in section 1 shows so distinctly.



5.2 More recent XBT and ARGO measurements:

Even though the XBT record is of limited accuracy, as reflected in a manufacturer’s stated system accuracy of +/- 0.2 degrees, we must recognize its advantages and disadvantages, especially in view of the ARGO record.

XBT data:

a. they go back to the 1960’s, with an extensive record

b. ongoing calibration to CBT measurements is required because the calculation depth formulae are not consistently accurate

c. XBT data are firm in simultaneous time and geographical origin, inviting statistical comparisons

d. recognized bias of depth readings, which are relatable to temperature

ARGO data:

a. useful quantity and distribution of float cycles exist only since around 2003

b. data accuracy cited as extremely high, but with unknown system accuracy

c. data collection can be referenced only to point in time of data transmission via satellite. Intermediary ocean current direction and thermal mixing during float cycles add to uncertainties.

d. calibration via CTD probing are hampered by geographical and time separation and have lead to temperature discrepancies of three orders of magnitude, i.e. 2.0 (Hadfield 2007) vs. 0.002 degrees (manufacturer’s statement)

e. programming errors have historically read faulty depth correlations

f. unknown satellite data transmission errors, possibly occurring with the 20/30 GHz frequency signal attenuation from wave action, spray and hard rain.

Observation#3:

The ARGO float data, despite the original intent on creating a precise ocean heat content map, must be recognized within its limitation. The ARGO community knows not the float temperature system error.

NASA’s Willis research on the 2003/4 ocean cooling investigation leaves open many questions:

a. is it feasible to broaden the validity of certain ARGO cooling readings from a portion of the Atlantic to the database of the entire global ocean?

b. is it credible to conclude that a correction to a small percentage of erroneous depth offset temperature profiles across a narrow vertical range has sufficient thermal impact on the mass of all the oceans, such as to claim global cooling or not?

c. Willis argues that the advent of precise ARGO readings around year 2003 vs. the earlier record of warm biased XBT triggered the apparent ocean cooling onset. However, this XBT warm bias was well known at that time. Could he not have accounted for this bias when comparing the before-after ARGO rise to prominence?

d. Why does the stated cold bias of -0.5 degree C given by Willis differ significantly from the 0.15 degree differential that can be seen in his graph?

Observation #4:

The subject Willis et al research appears to be an example of inappropriate mixing two different generic types of data (XBT and ARGO) and it concludes, surprisingly

a. the prior to 2003 record should be discounted for apparent cooling upset and

b. this prior to 2003 record should still be a valid one for determining the trend line of ocean heat content.

Willis states ”… surface cooling from 2003 to 2005 is consistent with global SST products” (SST = sea surface temperature). This statement contradicts the later conclusion that the cool-down was invalidated by the findings of his 2007 corrections.

Further, Willis’manipulation of float meta data together with XBT data is confusing enough to make one question his conclusions in the correction paper of 2007.

Summary observations:

  • It appears that the historic record of ‘bucket’ and ‘engine inlet’ temperature record should be regarded as anecdotal, historic and overly coarse, rather than to serve the scientific search for ocean warming trends. With the advent of XBT and ARGO probes the trend lines read more accurately, but they are often obscured by instrument systems error.
  • An attempt of establishing the ocean temperature trend must consider the magnitude of random errors vs. known system errors. If one tries to find a trend line in a high random error field the average value may find itself at the extreme of the error band, not at its center.
  • Ocean temperature should be discernable to around 0.03 degrees C precision. However, system errors often exceed this precision by up to three orders of magnitude!
  • If NASA’s Willis cited research is symptomatic for the oceanic science community in general, the supposed scientific due diligence in conducting analysis is not to be trusted.
  • With the intense focus on statistical manipulation of meta data and of merely what’s on the computer display many scientists appear to avoid exercising due prudence in appropriately factoring in data origin for it accuracy and relevance. Often there is simply not enough background about the fidelity of raw data to make realistic estimates of error, and neither for drawing any conclusions as to whether the data is appropriate for what it is being used.
  • Further, the basis of statistical averaging means averaging the same thing. Ocean temperature data averaging over time cannot combine averages from a record of widely varying data origin, instruments and methods. Their individual pedigree must be known and accounted for!

Lastly, a proposal:

Thompson, when identifying the WWII era temperature blip between bucket and engine inlet records, had correlated them to NMAT, i.e. the night time temperatures for each of the two collection methods. NMATs may be a way – probably to a limited degree – to validate and tie together the disparate record all the way from the 19th century to future satellite surveys.

This could be accomplished by research ship cruises into cold, temperate and hot ocean zones, measuring simultaneously, i.e. re. time and location, representative bucket and engine inlet temperatures and deploying a handful of XBT and ARGO sondes, while CBT probing at the same time. And all these processes are to be correlated under similar night time conditions and with localized satellite measurements. With this cross-calibration one could back trace the historical records and determine the delta temperatures to their NMATs, where such a match can be found. That way NMATs could be made the Rosetta Stone to validating old, recent and future ocean recordings. Thereby past and future trends can be more accurately assessed. Surely funding this project should be easy, since it would correlate and cement the validity of much of ocean temperature readings, past and future.

Advertisements

101
Leave a Reply

36 Comment threads
65 Thread replies
1 Followers

Most reacted comment
Hottest comment thread
56 Comment authors

  Subscribe
newest oldest most voted
Notify of

I wrote a similar article back in 2011

https://judithcurry.com/2011/06/27/unknown-and-uncertain-sea-surface-temperatures/

The comments are also interesting as dr John Kennedy from the met office who compiles the SST “s for that organisation joined the discussion.

After looking at the history and going out in a boat to take samples and see how they were affected by the various bad practices, I came to the conclusion that prior to 1960 or so, they were largely a work of fantasy and were not accurate to several degrees let alone tenths of a degree.

This was confirmed by an old sailor who confirmed the bad practices .the data collected by the British survey ship the challenger from 150 Years ago probably had good accuracy as did ones consistently collected by scientific expeditions but the day to day readings collected by a motley selection of ships are unlikely to have much bearing on reality

Tonyb

Sorry, I meant to start off by saying the article was very good, well laid out and informative.

Why we place so much faith in this very sparse data I don’t know

Tonyb

Clyde Spencer

What I find interesting is that the climatology community accepts historical ocean temperature data, yet dismisses out-of-hand pH data, and uses a model to estimate what the past average pH value was. Yet, pH and temperature share similar problems with respect to historical data. Actually, pH measurements performed by oceanographers were probably more accurate than temperatures measured by swabbies.

prjindigo

The pH readings of the predominance of the samples were done after transporting the samples in stoppered phials through cold and hot regions for more than four months.

A simple minor loss of moisture content will drive the pH up.

Clyde Spencer

Obviously, the vials were stoppered to prevent loss of water, or contamination. Do you have any evidence that you can cite that this speculated loss of water actually occurred? Also, you say “up.” If you have an acidic solution and add water, the dilute solution will have a higher pH than the concentrated solution. That is, if some of the water evaporates, the hydrogen ion concentration should be increased, driving the pH down, the opposite of what you claim. Can you shed some light on these apparent contradictions>

Crispin in Waterloo

The problem is pH can vary by 1.0 unit over a distance of 2 metres. Suppose it only varied by 0.1 units over 2 metres. What then? It is still nearly meaningless. Temperature claims are “less meaningless”.

ripshin

Crispin,

Then I would say the point is that ph is a local phenomenon, and is therefore not a relevant item to be measured…

rip

Greg

I also did an article at Judith Curry’s site about had SST “adjustments”.
https://judithcurry.com/2012/03/15/on-the-adjustments-to-the-hadsst3-data-set-2/

Wikipedia, sourced from NASA Goddard, has an illustrative graph of global temperatures with an overlay of five-year averaging.

Two things wrong with this claim.

Firstly there is no “cooling period”. There is a sudden drop in the space of 2 or 3 years and all of that is “corrections” . After that then is a flat period with a very slight rise. That is pure revision of the climate record since this cooling period was well established and was the basis
of the new ice age scare of the 70s adn 80s.

The other frig is that the so-called five-year averaging goes right up to the end of the annual data, so it can not be an average. It suffices to look at the graph to find out it is not an average but a lowess “smoothing”. This is a kind of low pass fitler which has a variable response at both ends in order to produce a result . This is a deceptive frig which is doing different things at the end to what it does in the bulk of the data. This is not obvious and this is misleading.

Come back in 5 years ant the red line will be showing something different for those same years. Cool “science”.

Komrade Kuma

As it happens I am a naval architect by profession and have designed engine cooling systems. Very early on you learn that the expected ‘raw water’ ( i.e. sea water) temperature is a critical consideration as it is a driver of the temperature differential that the heat exchanger utilises to function.

The engine manufacturers are quite OCD about getting this stuff correct because poor cooling manifests as engine wear and tear and then warranty claims. They have a bias towards assuming lower differentials, i.e. higher sea water temperatures as a risk management tool from their perspective.

Ship operators however have a quite different bias. They tend to push engines harder than is ‘prudent’ when in a hurry. Commercial ships are often in a hurry in order to make a berth slot in their destination port (rather than end up in a queue at anchor in the roads waiting for every other so and so to unload and load). Bad weather causes delays so some catch up is required -> push the engine harder to get more speed etc.

The way it works is that the ship’s Master ( the ‘captain’) orders his Chief Engineer to give him more speed which requires more power ( in a highly non linear relationship, typically speed to a power of between 2 and 4), i.e. often much more power. The Master outranks the Chief Engineer to start with but even if the ‘Chief defends his patch’ as is his right and refuses to flog the crap out of the engine his reputation with the owner/charterer is very much at risk in an aggressively commercial environment.

So what happens? The Chief flogs the crap out of the engine, the ship makes port on time, the owner/charterer is happy and makes $$$ and the Master and the Chief have a dirty little secret to hide from the owner and his engine supplier / manufacturer.

The chief, being a survivor simply understates the sea water temperature readings he records daily so he can say in faux innocence when the state of the piston rings, bearings etc are revealed in due course that ‘surely you don’t think I was overexerting my darling engine do you? Its like a child to me…’

How much understatement? 1˚ would be neither here nor there, 2˚ very doable and say 3˚ hard to disprove. Who really knows but all you need to know is that there is a motive, a means and opportunity to pass the buck to a warranty claim. And by the way, rorting the insurance system is another one of the favourites of the commercial maritime industry.

Having dealt with engine manufacturers on this you soon find out how fierce they are in making susre cooloing systems are robust and that was 30 years or so ago. These days engines are leased at some agreed rate and all engine data including raw water temperature is uploaded via satellite in real time so the manufacturer has a crystal clear idea of just how the engine is being operated. Saved them a fortune I imagine.

So there you have it folks, how the SST has a large cool bias historically which creates an apparent ‘warming trend’ going forward in time and disappears with the Argo buoy system but gives the scientifically illiterate and incompetent ‘climate science’ apparatchiks an angle for their polemic drivel.

Komrade Kuma
Thank you for a valuable contribution
to this article and website.
Please comment more often !

Komrade Kuma

Thankyou Richard.

The ultimate conclusion of course is that, just like Anthony has campaigned about regarding the land based thermometer data and its UHI data pollution, these data records are completely and utterly unfit for the purpose of determining a global temperature let alone a trend over time. These so called climate scientists present themselves and their work as the science equivalent of Michelin 3 Star restaurants but source their raw inputs from the equivelent of dumpster diving. Talk about cooking the books.

I probably should have added that apart from the deliberate understatement of temperature, as vessel got larger and larger and senbsors were fitted to sea water intakes down at the ‘turn of bilge’, they were now sampling temperature at depths of 10 to 12 metres below surface. Another reason to have to fiddle the data.

MarkW

Reminds me of reports from Siberia in the waning days of the Soviet Union.
In the Soviet days, the amount of money your village was given to buy fuel oil was determined by how cold the previous winters were.
As a result many readings were, how shall I put this, rounded down a little more aggressively than they should have been.
With the ending of the Soviet Union, these subsidies also stopped, eliminating the incentive to adjust the temperatures.

I can’t help but wonder how much of the arctic warming that everyone talks about comes from this change.

Komrade Kuma

Similar stories from outback Australia where teachers or public servants could knock off for the day if the temperature got above some figure, say 100˚F. Hey presto, a warming trend!

Bill_W_1984

They record a lower intake temperature to the engines? This is so they can
show that the engines were not subjected to temperatures that were too high?
Just want to be sure I am following you.

Darrin

I spent quite a few years logging sea water intake temps in the USN, I can tell you that an unknown amount of those logs are pure works of fantasy. Watch standers have been known to go entire watches without looking at a single reading, they just copied what the previous watch stander had wrote down and that person may or may not of done the same thing. Not to say everyone did this, some people were quite diligent in their logs. How bad was it? Lets put it this way, I know for a fact that we would change load and 24 hrs later sea water outlet temps were still indicating the previous load level. If you actually do take the logs like you’re suppose to you get to know what to expect when things change…

I can also second that our gages were never calibrated but there is one other snag not brought up. When one failed we just called up stores and had them send us another one to install and installed whatever showed up. We had a mix of gages that typical were one, two or 5 degree increments. Going from 1 degree increment to 5 will certainly change the average showing up in logs. Perfectly fine for their intended use but not so much for trying to build a historical record of ocean temps.

MarkW

As I’ve been saying for many years.
The biggest single problem with most of the data that is being used by climate scientists is that it was never gathered with climate science in mind.

steve case

Here’s the NPR story on Willis and the Argo floats:

Correcting Ocean Cooling

Steve Case ==> Pee’ing overboard from a large vessel is a rare practice for several reasons. 1) Most overboards sail boat’s result from that every practice, thus most Captains strictly forbid it. 2) On larger vessels, the deck is surrounded by a solid gunnel topped with a wood or metal rail — can’t be pee’d through — the purpose of this is to prevent sailors from being washed overboard in high, deck-sweeping seas. 3) Wind — regardless of actual wind direction, one’s stream of urine inevitably ends up hitting ones trouser legs and shows.

(Personal experience on all points — especially #3 — though I have never fallen off any boat on which I served personally — have witnessed others doing it.)

rbabcock

Pee into a cup and throw it overboard. The only issue is when the wind is roaring and you have to carefully pick your spot to chuck it.

Craig Austin

Ships are easy, try canoes! Urgency breeds ingenuity, I have seen a friend pee while water skiing in a cold lake, Canadians are different.

steve case

Kip

You maybe meant to reply to daveandrews723

MarkW

Another point is that in order to give the bucket time to sink before it is drawn up, it’s tossed overboard at the bow, and the sailor walks the rope back towards the stern, hopefully at the same rate the ship is moving forward through the water.
A bucket that is being dragged through the water, doesn’t sink much.

This could be another source of bias. As ships got faster over time, the ability of a walking sailor to keep the bucket from being dragged decreases resulting in the bucket not sinking as far as in earlier decades.

daveandrews723

A lot of those old sailors probably relieved themselves overboard as they were collecting samples. Talk about contaminating the data.

MarkW

Drop in the ocean. So to speak.

WXcycles

You’re snookered when fish are doing it too.

All that lovely coral ‘sand’ comes out of parrot fish bum holes—no such thing as a ‘pristine’ coral reef … jus sayin.

MarkW

I’m guessing that fish pee would be same temperature as the water the fish is found in.

Not necessarily so. A swimming fish produces metabolic heat. The core of a fish will be warmer than its skin. The difference between “cold” blooded and “warm” blooded is the amount of differential and the ability to maintain it.

Greg

according to Thompson, “might increase the century-long trends by raising recent SSTs as much as ~0.1 deg. C”.

Rubbish.

The circa 1945 frigging of the data reduced the century long temp rise, it did not increase it. What it did was make the late 20th .c warming look more significant, which fitted the political agenda of AGW.

Tom Halla

I don’t see how changes of fractional degrees are meaningful in a system with an inherent error of more than a whole degree.

commieBob

If I have a ton of data, and if the noise is truly random, and I accurately know the carrier frequency, I can reconstruct a low bandwidth signal with remarkable fidelity. I used to do an experiment with my students that demonstrated that noise can actually improve measurement accuracy. We used to pull a sinewave out from under 20 db of noise using a comparator for a detector.

Look at the requirements though.
– ton of data
– random noise
– knowledge of the signal’s characteristics
– low bandwidth
If you’re missing any of those requirements, you can’t accomplish the feat.

If you have a thousand samples of the same water at the same temperature taken at the same time, I will agree that averaging will produce a more accurate result. Otherwise, their purported 0.1° accuracy is pure bunk.

p.s. I agree with everyone else: Thank you Hartmut for an excellent article.

Crispin in Waterloo

commieB

I support your assertion that noise can increase signal precision. I am presently supervising many experiments in which the mass of an object is tracked by computer using a digital mass balance. The mass is never constant. It is always decreasing. We get a higher quality result than the normal readout provided by the manufacturer, by using the following technique:

1. Read the device more than 100 times per second.
2. Record all numbers for 10 seconds and average them, tossing out oddballs or incompletes.
3. If the source can only send whole digits (grams for example) the number will change in 1 g steps, however it does this inexactly as it nears a transition from a solid 10 to a solid 9 g.
4. Nearing transition it will send a few 9’s, mixed with a lot of 10’s, then more and more 9’s until it settles on a solid stream of 9’s.
5. Using the average of a ten second interval one can get another digit: 0.1 g, easily, and repeatedly, and plot the result to confirm that there really is another digit of precision present.

This method does not work when the mass in unchanging. It is not generating noise, not really, but it is exploiting the noise created at transition points. At present I am using a unit that happily permits reprogramming to give 0.2g precision in 600 kg and this perfectly suits such an accumulated-average output for a changing mass.

commieBob

Usually you try to isolate a scale from vibration. In this case you could add vibration. You could place a piece of plywood on a piece of foam. The scale would sit on the plywood. Cable tie a variable speed electric drill to the plywood. Create an out of balance load that you can chuck into the drill. It doesn’t have to be much heavier than a gram. Run the drill quite slowly. If your scale can measure 600 kg, the above setup shouldn’t harm it.

One problem is that the vibration isn’t random. There’s a chance that the drill’s speed will (by chance) be synced with the sample frequency. If you’re sampling 100 times per second it shouldn’t be a problem. However I’ve been blindsided by things that shouldn’t have been a problem. Try running the drill at a couple of speeds until you’re confident that the process works.

Robert B

Are you sure that this will work with a large collection of scales and masses, being swapped over time (even if no one pees on them)?

Kneel

I don’t see how they can say that the errors are LESS than their adjustments!
In a proper error report, adjustments ADD to the uncertainty, not reduce it.

bit chilly

when we have a string of top to bottom sensors far say every km 2 of ocean that are cleaned daily then people can start talking about meaningful numbers. at the moment we have a few data sets that are virtually meaningless in the context of warmist claims.

Stephen Rasey

Good article, but gives far too little attention to biased and wholly inadequate spaceal sampling of all methods prior to ARGO.

XBT data is particularly galling spaceal sampling for use in global temp distributors. XBT were done as part of anti-submarine warfare research. So it is no wonder the XBT samples concentrate in the North Atlantic and North Pacific submarine patrol areas.

I think too much is made of the unknown systemic error of the ARGO fleet. But there seems to me a simple test: Break the dataset into three subsets based on manufacturing data of the floats. What differences do we see in the data from the three subsets?

HDHoese

XBTs were used by more than submarines, but not sure how much. I was trained (before 1960) with (soon to become extinct) non-expendable BT s measuring pen marked T on smoked glass slides and reversing thermometers. I still have some XBT wire from shallow cruises, thin but strong, as my sons found out wiring our whole house for shortwave radio.

Precision in oceanography has long been important, but I have to wonder how many making strong assertions have made measurements at sea under difficult conditions. A good test would be to have them do the bucket collections for a study. Bring lots along. Good article.

HenryP

It is just as I measured it. It is already globally cooling.

Steve Richards

It would seem that the bucket method should have the least variability when compared to the main engine seawater inlet temperature sensor.

The inlet temperature sensor will be at a variable depth below sea level. Ten’s of metres on some vessels.

A link here: https://www.vos.noaa.gov/ObsHB-508/ObservingHandbook1_2010_508_compliant.pdf
to the US version of the observers handbook lists on page 2-76 how the measuring technique is indicated to the MET office ashore. There is no facility to record the underwater depth of the sensor.

The bucket method is at first glance – haphazard but it will collect sea water from approximately the same depth each time.

That said, the whole concept of merging data collected using different methods, times and locations is very poor. If the data is to be amalgamated in this way, instead of creating ‘clever’ adjustments, just increase the error bars significantly.

The problem then is that any indicated change in temperature or trend will be well and truly within the error bars and not relevant.

knr

Think the data is collected by ships following routes to and from somewhere , for a very long time these are fixed points and a limited amount of routes. In short much of the ocean would have had no measurements as there would be no ship in the area in the first place. It would be interesting to plot these locations and see just how of the ocean was really covered , and how much simply got left out , for what is claimed to be a ‘world-wide ‘ measurement .

tty

Has been done. Coverage was lousy before ARGO:

http://i47.tinypic.com/15ygr3m.png

MarkW

It’s only slightly less lousy even after ARGO.

MarkW

The bucket only sinks to the same depth if the procedure is followed exactly every time.

Robert B

The bigger issue might be the introduction of the bulbous bow from the 60s to reduce drag. It also churns up the water differently.

Tom Dayton

Hartmut, you expressed confusion about several topics. You might alleviate some of your confusion by reading the excellent recent post by Irek Zawadzki. Only Part 1 has been posted so far, but if any of your questions are unanswered by Part 1 you could ask them in the comments.

Joe - the non climate scientists

If you take enough measurements, then all the measurement errors average out, so that the can get an accurate net temp –

Or so say the climate experts

But wait – its impossible to statistically correct for systemic errors.

ossqss

Nice job Hartmut! Very thorough. Thanks you

Greg in Houston

6 / 2 equals 3, not 3.0000000000000000000000000.

steve case

Climate science is lucky to get two place accuracy – Uh, in my opinion.

knr

Science 101 your data is only ever as good as the means you collect it or measure it .
But we are back to the old ‘better than nothing problem ‘ we see so often , from magic tree rings to airport based temperature measurements in this area.
No a amount of modelling or ‘adjustments’ can make up for the issue or errors seen in data collect , especially when those ‘adjustments’ are intended to provide the results ‘needed’

Steve O

My practice is financial analysis. Something I learned early in my career was how correcting estimation errors can lead to an overall failure of a financial forecast. When you’re trying to stay under budget, you tend to look harder for corrections that will help than you look for corrections that will hurt you. By correcting random errors, you can introduce a systematic error.

If someone says “Your forecast came in a smidge over budget” are you more likely to come back with numbers more in line with expectations than with revisions that are further away? If you want your forecast to be unbiased, you need to be very careful. But if you want to hit some expected level, you can often do that instead.

Coeur de Lion

Wawwawa. (Sound powered telephone)
“Bridge here, engine room. Seawater temp , please “
“Same as last time, sit”
“Thanks “

MarkW

Even 4000 ARGO floats is still inadequate by 1 to 2 orders of magnitude.

Thomas Court

I’m a little confused on how any data transmission errors can occur with the ARGO floats. Aren’t the transmitted signals digital and using a robust two way protocol? CRC’s, resends and all of that.

Doesn’t the float store and transmit multiple dive profiles if it can’t send back the last dive profile? If it doesn’t, I could imagine a bias against transmitting a profile after surfacing in heavy weather and that weather having a sea temperature bias.

But before assuming any such bias I’d like to know what percentages of dives don’t result in data being returned.

Wallaby Geoff

As I understand it, mostly, the temperature in the upper layers of the ocean is due to the Sun’s radiation. So what has it to do with AGW anyway?

tty

The ocean absorbs the vast majority of the suns heat, and the oceans huge heat capacity completely dominates the atmosphere.

Climatically the ocean is the the dog that wags the atmosperic tail.

tty

One factor nobody seems to have thought of in connection with the WW2 “blip”: 1939-45 most ships travelled in convoys, typically formed into a number of columns of 5 ships each. Therefore during these years 80% of all measurements were taken in water that had been churned up by one or more ships and were therefore not representative of surface temperature.

Naval vessels of course often travel in line ahead even in peacetime.

richard verney

This is a point I made to Nick Stokes some time last week.

Komrade Kuma

VG point. WW2 ship hulls typically 5 to 10 metres draft and with screw propellers for extra churniness. To much inconvenient reality for climate ‘scientists’ I imagine.

Pauly

Convoy system doesn’t provide the answer.
1) Most navy ships are ‘escort’ class, Destroyers, Destroyer Escorts, Corvettes et al. In a convoy these ships are the screen around the convoy and are operating in clean water. Of the close escorts, some lead columns, some are flank guards and only a few a rearguards. So the majority of these readings will be from clean water.
2) By 1942 military convoys were usually deployed in air defence formations (concentric circles around the most valuable ships) only closing into columns when facing surface action. So again most of the readings will come from clean water.
3) spacing in convoys was usually very generous, not as tight as depicted in movies and ary, because of the mix of ship types in any one convoy.

Roy

Surely the main threat to ships in trans-Atlantic convoys came from submarines not planes? The convoys on the Arctic Sea route to Murmansk faced threats from both submarines and planes.

Pauly

The Murmansk convoys were merchant convoys, mainly merchant ships with a mikitary escort, so my point 1 applies there. By ‘military convoy’ I’m referring to formations made only of military ships, such as a fast carrier group.

tty

2) Only applies to (some) military Task Forces (particularly carrier-centric US ones in the Pacific (and even in these there was at least one “plane guard” destoyer closely trailing the carrier)), not to convoys.

3)

http://ww2today.com/wp-content/uploads/2013/05/Convoy-at-sea.jpg

Taken from an escorting Coastal Command aircraft.

Pauly

4) Peacetime navies often practice operating together in formations anyway.

If the readings were primarily from merchant vessels then the convoy system could explain the difference.

I just compared CRUTEM 4 (land) and HADSST 3 (sea). No big difference in blip after WWII. Runs parallel within 1/10th of a Degree by using a three years mean.

http://www.woodfortrees.org/plot/crutem4vgl/mean:37/plot/hadsst3gl/mean:37/plot/hadsst3gl/from:1950/trend

Information sufficient for that purpose.

All the talk about thermometer accuracy is in vain. If you take the average of thousands of data even with only one degree accuracy, you will get an accuracy of some decimal points by combining to an monthly average.

Note: From 1990 the two data graphs diverge. Possibly more warming of the Northern Hemisphere Land through the North-South seesaw? – or UHT?

Warming of the sea surface temp from 1950 (when we started to add CO2) until today one half of a degree Celsius.

Catastrophe dismissed.

Clyde Spencer

Herbst,
You said, “If you take the average of thousands of data even with only one degree accuracy, you will get an accuracy of some decimal points by combining to an monthly average.”

Please see here,
https://wattsupwiththat.com/2017/04/12/are-claimed-global-record-temperatures-valid/

and here,
https://wattsupwiththat.com/2017/04/23/the-meaning-and-utility-of-averages-as-it-applies-to-climate/

Crispin in Waterloo

Herbst

Please see my comment above on exactly this point. Averaging a large number of readings increases the uncertainty about the answer because of the propagation of the individual uncertainties for each reading, and only provides a better guess at where the centre of the uncertainty lies, not in the value of the calculated result. This conceptual error is so common that it dominates many discussions: claims for an accuracy and precision which simply do not exist.

The failure to understand how averages of uncertain measurements are to be read, stems from the failure to educate high school students in the basics of the science of numbers.

tty

” If you take the average of thousands of data even with only one degree accuracy, you will get an accuracy of some decimal points by combining to an monthly average.”

A lot of people honestly believe this. But it only applies to random (i e not systematic) errors in independent and identically distributed measurements.

Hartmut Hoecht

a point about sea level rise being pumped up the CO2 generation, recognizing the rise being significantly driven by temperature: Jevrejeva et al (2014) created a revealing graph which shows a near linear sea level rise starting in 1860 vs. near linear increase in CO2 starting in 1960. So, where is the causal relationship between the two with a century of separation? May be there is a new scientific phenomenon, called anticipatory drag.

ATheoK

Delusional in many aspects.

A) it is not land-ocean anomalies!
It is a mainly sparse land record combined with an extremely sparse sea surface temperature record; not oceanic anomalies.

B) Use of a graph with a squashed annual X index creates an irresponsible false impression of the data.

C) This is NASA’s current global land-ocean temperature index. N.B. The difference the X axis makes versus the preferred alarming graph.
comment image

D) It is absurd to expect 0.1 °C resolution from a wide variety of hand held thermometers on board a ship. An assumption that ignores stated accuracies for thermometers of ±1° or worse.
Nor the fact that once deployed, ocean buoys rarely have their accuracy verified or certified. Accuracy is assumed.

E) Again, there is a loose expectation that averaging temperatures from thousands of thermometers ranging over a very wide variety of thermsters/thermometers provide extreme precision measurements that laboratory thermometers have difficulty matching.

F) Again, GISS and NOAA’s constant manipulation of temperatures, including their willful cooling of the past, is also ignored.

G) Satellite temperatures, which include temperatures over oceans that the GISS Land-Ocean temperature is supposed to show, do not show any similar recent spike of temperatures.
Indeed, from 1979 to present, satellite temperatures show a +0.58°C temperature that accurately represent temperatures taken during a cooling 1979 period to current temperatures declining after a recent extreme El Nino.
http://www.drroyspencer.com/wp-content/uploads/UAH_LT_1979_thru_January_2018_v6.jpg

Many of the summary observations are correct, if softly stated. I am not sure if Hartmut Hoecht summarized the observations or they’re Willis’s.

Pauly

I do notice that the tears 1940 to 1945 read hotter than the surrounding years. I also note that most of these readings came from Navy (RN/USN) ships.

I wonder if there was any world event occurring that would cause ships normally stationed in the North Atlantic to spend more time in the Meditteranean Sea or Pacific Ocean than they normally would have?

Very thorough — the point is that actual “original measurement error” and “original measurement uncertainty” are simply thrown out the window entirely at the end of the day — taking refuge in the false idea that averaging a large enough number of data points disappears all errors and provides “errorless precision results” (to which we can just attach Standard Deviation bars — pretending they represent the uncertainty).

Clyde Spencer

Kip,

You remarked, “…taking refuge in the false idea that averaging a large enough number of data points disappears all errors and provides “errorless precision results”” This misconception is like an urban legend that won’t do away.

You and I tried to address this previously, but it doesn’t seem to have sunk in. First off, the PDF of global temperatures is NOT normally distributed, which is a requirement for improving an estimate with many measurements of the SAME, unvarying property. As I demonstrated, temperatures have a fat cold-tail. However, for the sake of argument, let’s assume that the temps are normally distributed. The range of all temps should fall within about +/- 4 SD; uncertainty is usually stated as +/- 2 SD. The range of global temps is approximately -150 deg F to 130 deg F,or a maximum range of 280 deg F. To account for the fat tail, let’s assume the range is closer to 240 for a ‘pseudo’ normal distribution. Dividing by 8 (+/- 4 SD) gives an estimate of 30.0 deg F for the SD. That is, the average Earth temp is bar-T +/- 60 deg F. There is NO way that one can claim they know the average global temp to 0.01 deg when the uncertainty is +/- 60! Anything after the decimal point is meaningless; anything in the units position is meaningless! It is like giving a child a calculator and asking them what pi divided by 2.0 is. The child will naively recite as many digits as the calculator is capable of. However, the correct answer is 1.6, not a long string of digits beyond the decimal point.

https://wattsupwiththat.com/2017/04/12/are-claimed-global-record-temperatures-valid/

https://wattsupwiththat.com/2017/04/23/the-meaning-and-utility-of-averages-as-it-applies-to-climate/

MarkW

“It is difficult to get a man to understand something, when his salary depends on his not understanding it.”

Upton Sinclair

Ivor Ward

The real truth of bucket sea temperatures is that the data collection method differs within the same ship never mind across Nationalities, Merchant, Military or research ships.
We did 6 hourly weather reporting to the Met Office on our ships. Nice sunny day…..Two cadets on the main deck with a bucket and a mercury thermometer. The bucket would be a plastic deck wash bucket as some silly sod would have lost the Met Office dipper overboard by the third day out. At night the bucket would get swung out off the bridge wing by the Secunny and carried in to the mate on watch who would dip the thermometer in or alternatively the chota malim Sahib would copy the reading from the 6pm report as it “would not have changed much”. In cold and rough weather a call to the Chief for the engine seawater temperature was enough effort. In ballast…16 feet below the waterline, fully loaded …40 feet below sea surface. Thermometer graded to 0.5C, eyeball reading it calibrated to “I don’t really give a shit as it’s effing cold out here”.
We never failed to send four r/t messages a day though.

So perhaps you can see why I think the reported sea temps to two decimal places is a load of crock, hence the basis of Climate Science is a load of crock.

When we dropped in to Tristan Da Cunha with some supplies and then great circled East past kerguelan our reports were on the weather fax and we were the only ship reporting in the entire Southern Ocean round the entire Globe. The Whalers and the Japanese “research” ships used to keep very quiet.
In the North Atlantic before Sable Island the sea temperature would drop 10 degrees in the growler fields overnight. Not 10.2375 degrees.
Climate claptrap is Bullshit spread on unicorn hide with fairy dust topping and eaten with relish by the Journos.

Nigel Sherratt

‘chota malim Sahib’ great stuff! Here’s to the good old days, chota pegs on the verandah of the KL ‘Dog’ Club.

Edwin

A data set that is missing is from the Japanese pelagic fish longline fleet. MacArthur got the Japanese back into tuna fishing in the late 1940s. By 1956 they were fishing every five degree square in the world’s oceans. Longline gear set per day range from 30 to over 50 miles. They recorded surface temperature and other hydrological data every mile along their gear both while setting out and hauling back. Would be an interesting data set to review if someone could pry it out of the High Seas Fisheries Laboratory.

jeanparisot

Another data source would be from the various SOSUS nets run by several nations. Not sure if an open source paper exists on the direct or indirect temperature data those networks can produce.

NW Sage

Hartmut – excellent analysis and discussion.
One useful way to handle the errors and imprecision of any measurement or set of measurements is to properly assign error bands. Uncertainty expressed as error (plus or minus X or Y) then can be used to evaluate the usefulness – or not – of the data.
When I first read about the need to figure out what the earth’s ocean temperature is/was/could be I realized that the first world wide measurements (Cook’s circumnavigation) provided the first data [earlier navigators from Europe/Asia tended to hug the coastlines because their navigation methods were VERY imprecise and if they wandered too far offshore they were likely to never make it back home]. After giving it much thought I finally concluded that assigning a precision of much greater than + – 2 degrees C cannot be generally justified. [It is hard to believe that a seaman or midshipman helping with the noon sighting in rough weather really gives much care to “correctly” dipping the bucket or making absolutely sure the thermometer is immersed long enough but not too long and I am certain that even the best thermometers were calibrated not more than once (at the factory).
The scientific community is deceiving itself if it thinks there is precision any where near a tenth of a degree C for any of this old ship collected data. There may be a few pieces of data which are ‘good’ from that point of view but the problem becomes trying to figure out which pieces of data they are!

MarkW

In addition to potential errors taking the sample and then reading the sample, you also have to worry about whether the areas that you aren’t sampling are the same as the areas you are.
Because if they are different, even if your sampling and reading are 100% perfect and accurate, you still don’t know what the actual temperature of the entire ocean is.

prjindigo

This is literally the first problem I describe when I tell people how absurd the whole “science” of global warming is.

That trying to find a year-on-year change of less than a tenth of a degree Celsius is statistically impossible when the margin of error is more than 20 times the value you’re looking for.

Kristi Silber

I don’t quite understand your definitions.

‘They and bimetal based ones have typical accuracy of +/-1 to 2 percent and are no more accurate than to 0.5 degree C.” Should this not read “precise” rather than “accurate”? If you measure the same water 25 times using the same thermometer, the average will be close to the true value. If the thermometer is inaccurate, the average will be different from the true value, and that would be a systematic error.

“Air cooling 0.50 degrees (random)

Deckside transfer 0.05 degrees (random)

Thermometer accuracy 1.0 degrees (fixed)

Read-out and parallax 0.2 degrees (random)

Error e = 1.0 + (0.52 + 0.052 + 0.22)1/2 = 1.54 degrees or 51 times the desired accuracy of 0.03 degrees (see also section 2.0).”

What is a “fixed” error?

A thermometer with 1 degree increments has an uncertainty of +/- 0.5 degree: if the temperature is 55.5, the observer will record either 55 or 56; otherwise it’s observer error, and not a function of thermometer precision. Unless observers always round up or down, that error is random. If the thermometer is inaccurate, you would have to show that in order to estimate the error; it’s not something you can assume. You’d have to demonstrate bias (direction as well as quantity) in order for any of your errors to be systematic. Does that make sense to others, or am I way off-base?

I don’t understand where you are getting the values for most of your errors.

Hartmut Hoecht

fixed errors are the known ones, which include the calibrated value. Please refer to the paragraph listing thermometer errors for their definition. Observer bias is a random error. As mentioned in all the error calculations, the values are assumed as occurring in a typical measurement scenario.

Crispin in Waterloo

“If you measure the same water 25 times using the same thermometer, the average will be close to the true value.”

No, it will be some value. That ‘some value’ is the likely centre of the range of uncertainty. This is fundamental to the discussion about how to average numbers. If the device is mis-calibrated, reading is a thousand times will not improve its accuracy. The average of those thousands readings is probably the centre of the range of uncertainty. The confidence one can have that it is the actual centre of the uncertainty range can be calculated using standard formulas. The more readings, the more confidence it is the middle, not the more accuracy.

Of course taking 25 readings using 25 instruments in 25 places improves nothing at all. They all stand alone, each with their respective precisions and uncertainties.

RACookPE1978

Crispin in Waterloo, quoting Kristi Silber.

“If you measure the same water 25 times using the same thermometer, the average will be close to the true value.”

No, if you measure the same water 25 times using the same thermometer, the average will change each time you measure, because the water in the bucket will be changing to the air temperature of the room, while losing heat energy by evaporation and convection from the open water at the top of the bucket; while the bucket itself will be changing temperature to the temperature of the floor by conduction, while exchanging heat to the room walls and floor by LW radiation, and from the sides of the bucket by convection.

You cannot even in general claim that the water in the bucket will heating up or cooling down, even IF the room temperature and relative humidity are (artificially) kept the same.

In the real world, the “same water” is NOT being measured many times.
The “same thermometer” is NOT being used many times.
The “same person” is NOT measuring the “same temperature” the “same way” many times.

Hundreds of thousands of different water samples at hundreds of thousands of different temperatures are being measured in tens of different ways by many tens of thousands of different thermometers at of thousands of different times by many tens of thousands of different people with many thousands of different skill levels and many tens of thousands of different experimental ethics.

Clyde Spencer

Yes, measuring a VARIABLE over a period of time is different from measuring a CONSTANT over a period of time. All sequential measurements are inherently a time series. If what one is measuring is actually constant over time, then the fact that the measurements are sequential is inconsequential. However, measuring something that varies over time, with sequential measurements, can be a whole different ball game!

Kristi Silber

Right, sorry. I should have specified that the thermometer was accurate.

Brian R

Since the cooling started late 1945 I’m surprise the Ecoweenies haven’t tried claiming a “mini nuclear winter” from the A-bombs the US detonated.

tty

I’ve actually thought about that. Ordinarily even very large fires only affect the troposphere and quickly rain out. However there were quite a few firestorms in both Germany and Japan in 1945 which may have been violent enough to inject significant particulate matter and water into the stratosphere. Hiroshima was the last of these (there was no fire storm in Nagasaki).

Amber

And I’m sure the biggest genius on the boat got the bucket job .
Relatively minuscule sample size at limited locations does not make
a credible scientific average earth sea temperature .

Nigel Sherratt

My experience of chucking a bucket overboard to swab the decks is that it’s hard not to lose the bucket or even join it overboard at 5 knots. Quite how an accurate sample is obtained from a Corvette zig-zagging at full speed in action against U-boats is a mystery.

Mike McMillan

… There would not be a reason to install thermometers directly next to the hull without data skewing engine room heat-up, a location which would otherwise be more useful for research purposes.

I looked into this a few years ago (no links, sorry), and found that Norwegian Cruise Lines and some university had done a study on temperature measurement. They were using electronic hull sensors, attached to the steel hull and insulated from the interior air temperature. Hull steel is typically an inch to an inch and a half thick, and since the steel is reasonably thermally conductive and in broad contact with the water, it gives a well homogenized reading. You get a good reading whether the engines are running or not, which is not the case with cooling inlet readings. They also had simultaneous cooling inlet readings, and I think they found the hull readings more reliable. Could be wrong, it was a while ago.

zazove

“Total error 0.12 degrees”

So the question remains – how accurate is this?
comment image

Is it + or – 0.12?

Bloke down the pub

‘e. Moored Ocean Buoys

Long term moored buoys have shortcomings in vertical range, which is limited by their need to be anchored, as well as in timeliness of readings and recordings. Further, they are subject to fouling and disrupted sensor function from marine biological flora. Their distribution is tied to near shore anchorage. This makes them of limited value for general ocean temperature surveying.’

I wouldn’t describe the Taotriton buoy array as being ‘near shore’.

https://wattsupwiththat.com/category/taotriton-buoys/

Tony

Given that until recently, air temperature data had a RECORDING accuracy to the nearest whole degree, I find it hard to believe that water temperature data would be any different. This makes claims of any data to a greater accuracy than +/- 1 degree, ridiculous.

Crispin in Waterloo

“Surprisingly, the only accuracy data given by ARGO manufacturers is the high precision of 0.001 degree C of their calibrated thermistor.”

Author, you have used the terms “precision” and “accuracy” in two different statements as if the terms mean the same thing. Such terms are defined and must not be substituted.

Personally, I doubt the claims for the ARGO floats reading to a precision of 0.001 C. First, such a reading would be pointless because it would be changing every second. Second, it uses a matched pair of Pt-100’s (a variable resistor) and they are readable with a suitable instrument to 0.001 C but that reflects the reading instrument’s ability, not the precision of the PT-100 signal. The noise on the Pt-100 is about 0.002 showing that you can waste money on precision.

Next, the accuracy of the Pt-100 is a different matter altogether. Accuracy implies calibration, and it also must recognise drift. The drift on a matched pair of Pt-100’s is about 0.02 per year, up, down, or neither, or a fraction of it, unless they are recalibrated, which they are not. This undermines any claim for accurate measurements at a resolution of 0.001 C.

Let’s be really clear how these things work.

1. There is a device which changes something (like electrical resistance) with temperature. A Platinum thread is such a device. Its resistance changes with temperature in an almost linear manner.

2. The “Pt-100” means the platinum wire has a resistance of 100 Ohms at 0 degrees C. It can be calibrated and that offset programmed into the instrument that will read the resistance and convert it to a temperature.

3. The device which measures the resistance, typically a Wheatstone Bridge or similar, has an inherent ability to detect a change in resistance that is a characteristic of its design. The logic circuit can be programmed to give a non-linear result so that a non-linear “sender” signal can be converted accurately into a temperature output. A good device can discriminate a change of 0.067 microvolts which corresponds to a temperature change of about 0.001 C, or 0.0005 C. At very small values, transistor noise causes a problem (etc).

4. Being able to read the “sender” to such a precision does not make the sender “quiet” as all senders will have some level of “noise” when the change is miniscule. There are a number of causes of signal noise. If the signal is in the mud, you cannot detect it. If the inherent uncertainty in the sender is 0.002 C, reading it to five more significant digits does not solve the noise problem. There are ways to tease out an extra digit from a noisy instrument, and indeed these are routinely used in physics experiments where hundreds or thousands of readings are taken and plotted, showing a general concentration of data points around some spot on a chart. Does an Argo float work that way? Not that I have read.

5. Taking thousands of readings using thousands of instruments at thousands of different points in the ocean does not increase the accuracy of the result when averaged. The claim that it does, is a misapplication of the experimental technique described in (4) above. Averaging more readings can give (not always) a better indication of where the centre of the uncertainty range is, but does not give a ‘more accurate’ result. The larger the number of readings, the larger the uncertainty. That is just how it is.

My position:

Ocean temperatures reported in 0.001 C are unbelievable unless accompanied by a large uncertainty, rendering the false precision pointless. 0.001 ±0.02 is not “more accurate” than 0.01 ±0.02. Precision means nothing if the reading is not accurate.

Argo temperatures are believable when new at 0.01 C ±0.02. Averaging them quickly brings the result to 0.1 C ±0.1 because of the propagation of uncertainty. The formulas for propagation of uncertainty are fully described in Wikipedia.

Everyone: learn today about precision, false precision, accuracy and error propagation. This will protect you from false beliefs and pointless claims such as, “2015 was 0.001 C warmer than 2014”. Gavin, asked what the confidence was that the claim was true, answered, “38%,” which is to say, “The claim is untrue with a confidence of 62%.”

Each one, teach one.

MarkW

Taking thousands of readings would require the float to be powered up most of the time, which would dramatically limit battery life.
More than likely, the probe is designed to wake up at set intervals, take and record measurements, then go back to sleep as quickly as possible.

tty

It normally takes a profile from 2,000 meters to the surface once a week.

Kristi Silber

“Gavin, asked what the confidence was that the claim was true, answered, ‘38%,’ which is to say, ‘The claim is untrue with a confidence of 62%.'”

Not sure about this logic. What if I’m 38% confident that claim A is true, and I’m 62% confident that claim A or B or C is true?

Kristi Silber

“5. Taking thousands of readings using thousands of instruments at thousands of different points in the ocean does not increase the accuracy of the result when averaged. The claim that it does, is a misapplication of the experimental technique described in (4) above. Averaging more readings can give (not always) a better indication of where the centre of the uncertainty range is, but does not give a ‘more accurate’ result. The larger the number of readings, the larger the uncertainty. That is just how it is.”

Say you have different thermometers taking the temperature of healthy people (with no fever). The accuracy of the thermometers and observers combined is +/- 0.25 F, normally distributed, and with no drift (i.e. the uncertainty is random, not systematic). The more readings you take of different people’s temps, the nearer the average will be to the “normal” 98.6, no?

This doesn’t apply to the oceans since they have a geographic range of temperatures. Therefore, SST are plotted according to their location on a gridded map of the world. The higher the resolution, the lower the range of temps within a given section (on average); each point measurement has an associated uncertainty proportional to the size of the grid it represents. Imagine you have buoys (this is hypothetical, remember) scattered randomly throughout the oceans, all transmitting their data simultaneously every day. Their accuracy is, again, +/- 0.25 K, randomly distributed. I agree, you would not get a more accurate average SST temp with more buoys because each buoy is measuring a different site with its own mean, range and uncertainty.

It’s especially useless if the purpose of taking SSTs is to record evidence of climate change since the range of temps across the grid would act as noise, swamping a signal. There could also be regional differences in the response of oceans to climate change. Instead, the data for each section of the grid are kept separate. After 30 years, the average is taken for each section and the temperatures are converted to anomalies (differences from the mean). Plotting the anomalies, some areas of the grid may show a downward trend, some no trend and some a positive trend. But if you average the anomalies across all grid sections for a given day (or month or season) each year, and THEN plot the averages, wouldn’t a positive trend tell you something? Wouldn’t you become more confident that your trend was accurately measured with more measurements in more grid sections? This assumes no systematic bias, which isn’t a safe assumption. However, what if you could identify and estimate systematic bias (with a low uncertainty relative to the size of the bias), for instance through calculation of the effects of satellite drift? Systematic error is what scientists are constantly looking for, and it’s why temperature records are adjusted. NOT adjusting the record when systematic biases are known would be inappropriate and scientifically unjustifiable.

Please, anyone and everyone – go through this and identify my errors!

Robert B

The results of the reconstruction highlight how bad the reconstruction from the poor data is.
From the HadSST3 NH (or is it southern?)
http://woodfortrees.org/graph/hadsst3nh/from:1900
Its hard to see with the naked eye but 12 month smoothing and zooming in on the past 20 year highlights the problem. The plot below also highlights it.
comment image
I’ve plotted the difference in temperature anomalies 6 months apart. I also got the labels the wrong way around. The blue is for the months xxxx.5 and xxxx.58 minus xxxx.0 and xxxx.08, reespectively. The orange is for the other way around. You can see an oscillation starts to appear around 2000. Not completely random before but close and hardly likely to be natural. The modern data might be OK but with the data in the baseline period being rubbish so that you see a seasonal oscillation start to appear (these are differences from the mean for the month in the base period). These are over a half of the temperature increase since 1940.
We are basing policy on reconstructions, of CO2 levels as well as global temperatures, made from measurements not fit for purpose by people who get paid good money to make sure that they aren’t telling porkies. Even if unintentional, that they still have their jobs shows that there is a conspiracy.
