by Jim Steele
There are 2 narratives claiming to explain most of the observed ocean warming. One suggests recent ocean warming has been totally driven by human emissions that amplified the greenhouse effect. That narrative is supported the correlation with rising CO2 that blankets the globe. The second suggests the El Niño-Southern Oscillation (ENSO) and solar heating have conspired to warm the oceans. This 2nd narrative is supported by data illustrated in NOAA’s graphic (A) of ocean heat flux, with more heat entering into the eastern tropical Pacific and Atlantic (yellow) than is released. That high heat flux region is moderated by ENSO and Pacific Decadal Oscillation (Graphic E). The white regions show no net heat flux into a quarter of the ocean surfaces. Such observations do not support the first narrative of homogeneous warming from a thickening CO2 blanket.

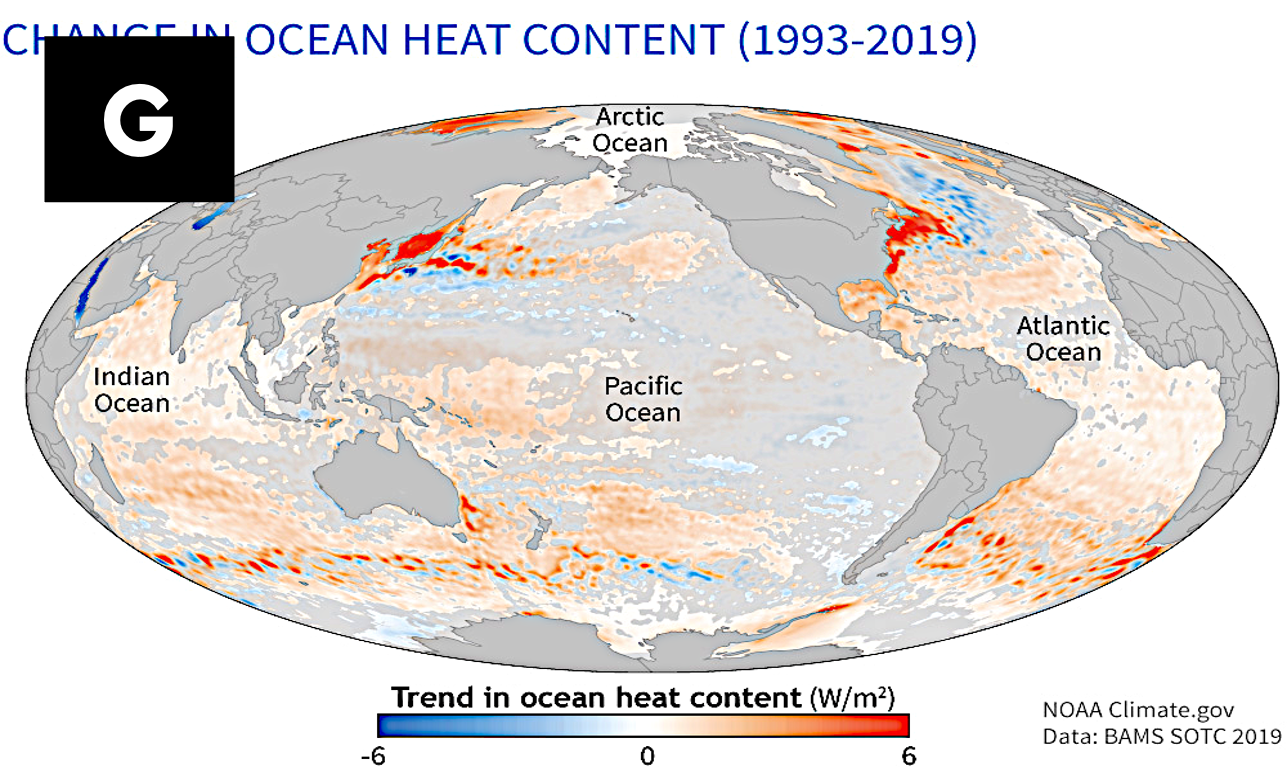

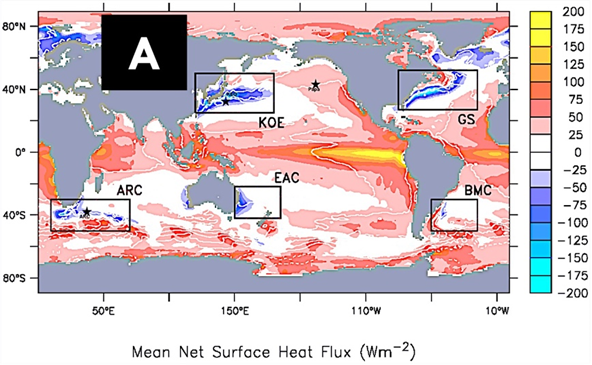

Wherever there is a greater flux of heat into the ocean than ventilates out, the oceans will warm. All scientists agree that any absorbed heat can only be ventilated away through the ocean’s cool skin surface which is just 2-10 microns thick.

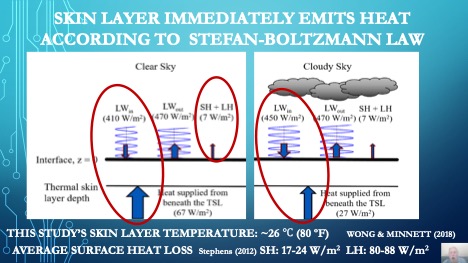

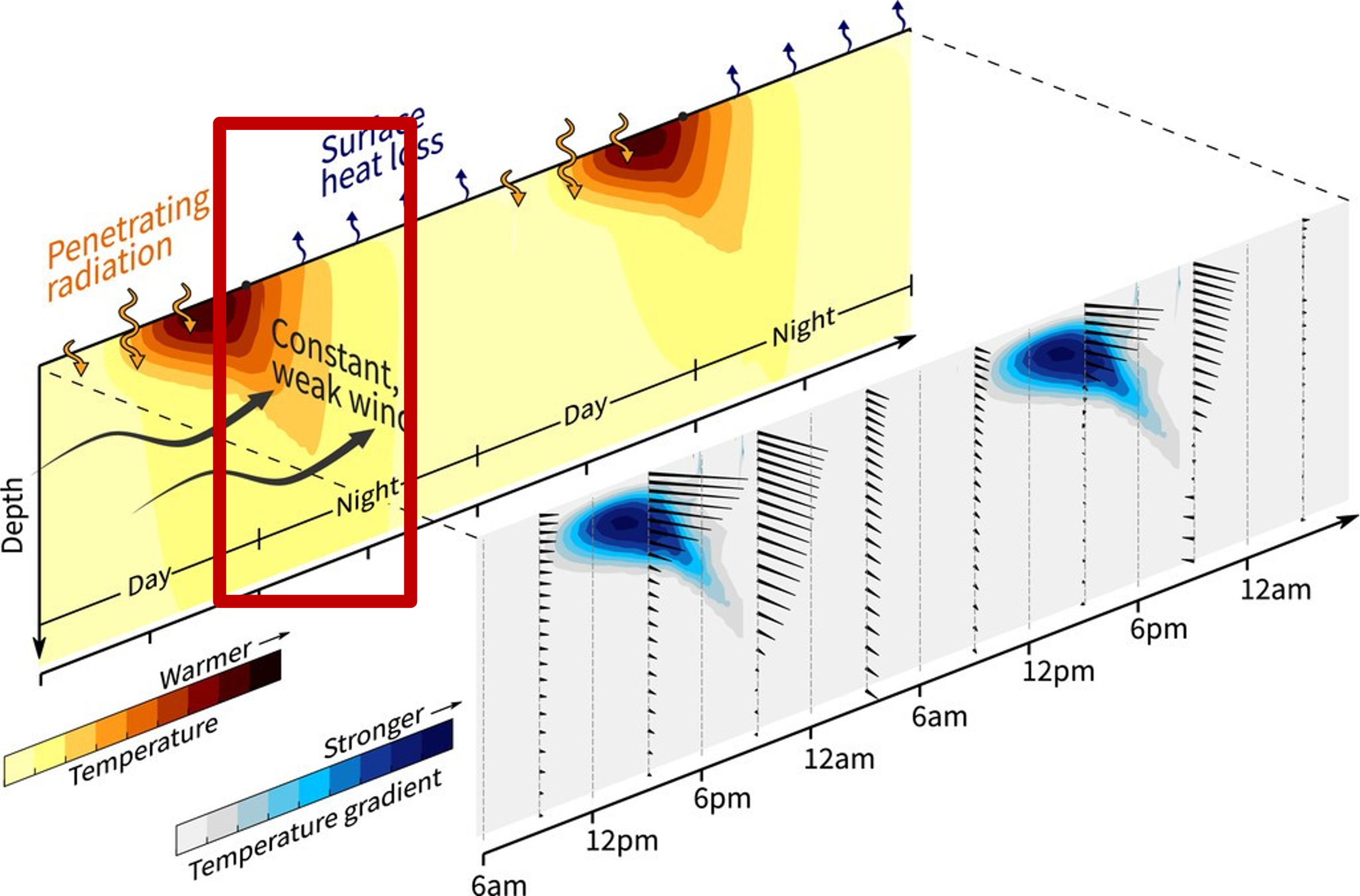

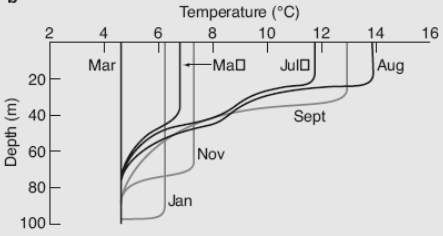

Coincidentally, greenhouse infrared heat only penetrates a few microns into that skin surface. Thus, any infrared warming of the skin surface can be quickly radiated back to space. Any warming of the skin surface also increases evaporation which further cools the ocean. Finally, 99% of the time the skin surface is warmer than the layer of air immediately above and so warms the air. Those 3 dynamics make ocean warming by greenhouse gases relatively insignificant. In contrast, because solar heat penetrates the subsurface where it cannot radiate away, solar heating is more capable of heating the ocean.

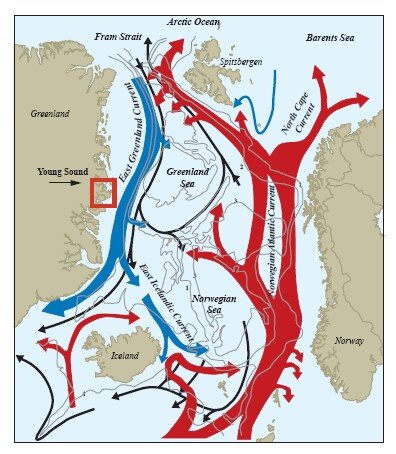

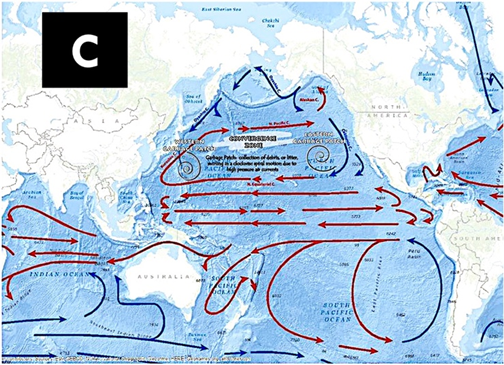

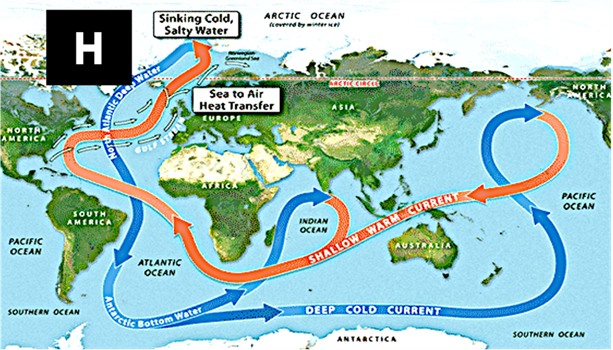

Oceans can store heat for longer periods of time wherever saltier water is overlaid by fresh water. That condition creates what is known as a subsurface barrier layer that inhibits normal upwards convection of heated water to the skin layer for ventilation. Because a salty barrier layer is more dense it doesn’t rise with limited subsurface heating.

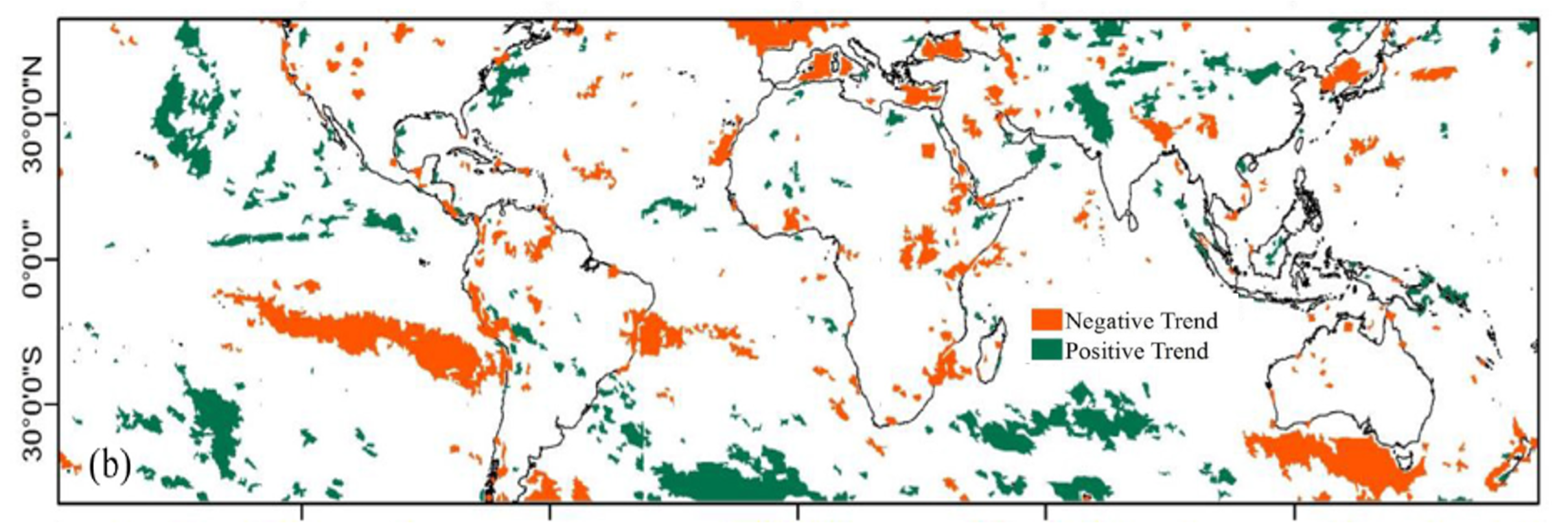

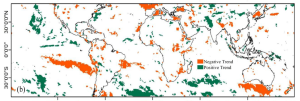

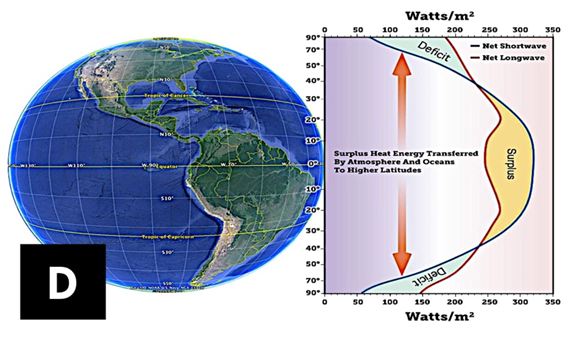

The natural Hadley circulation causes rising moist air around the equator and sinking dry air in latitudes north and south of the equator. That causes high rates of evaporation but reduced precipitation in those latitudes (yellow regions in graphic B) which causes relatively saltier ocean water. As the Trade Winds are pulled towards the equator, they also curl westward driving the saltier ocean water and atmospheric water vapor towards the equator and westward. Where the northern and southern trade winds converge, the Intertropical Convergence Zone forms (blue equatorial region) creating a zone of concentrated water vapor and the greatest rainfall. The freshwater rainfall caps the saltier subsurface water resulting in tropical barrier layers that trap heat which then is redistributed around the globe (graphic C).
The tropics register cooler temperatures than solar heating predicts, while temperatures outside the tropics are warmer than predicted (Graphic D) Although the tropics receive the greatest amount of solar heating, they gain a “surplus” of heat that does not increase air temperatures while stored in the subsurface layers. Ocean currents carry that surplus heat pole-wards into cooler waters. There, it’s easier for heated subsurface waters to rise to the skin surface and ventilate any stored heat (blue regions in graphic A). That ventilation allows air temperatures outside the tropics to be warmer than predicted.
Still, for narrative 2 to best explain the observed ocean warming trend, there must be an increase in absorbed solar heat in the eastern Pacific and eastern Atlantic. Believers in the CO2 narrative dismiss such increased solar heating by simply pointing to the sun’s decreasing solar irradiance. However, observed decreases in cloud cover increase solar heating. A La Nina event and the 20 to 30-years of a La Nina-like (negative) Pacific Decadal Oscillation (Graphic E) create a cooler eastern Pacific that reduces cloud cover and increases solar flux into the ocean.
Furthermore, the increased east-west temperature difference during La Nina-like conditions amplifies the Trade Winds’ intensity. The stronger winds increase the transport of warm surface and subsurface water into the western Pacific where it can be stored down to 200-meter-depths (Graphic F) until ventilated by an El Nino event, as well as supplying heat to the Indian Ocean (Sprintall 2014) or into poleward currents. More warm water transport raises global temperatures. This is why Jones (2022) refers to these dynamics as the Pacific Ocean Heat Engine.

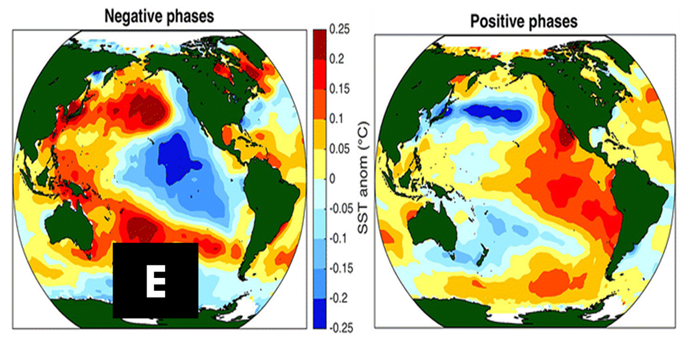

During El Nino events and a positive Decadal Oscillation, a cloudier eastern Pacific and weaker Trade Winds results in ocean cooling. El Nino-like conditions dominated during the Little Ice Age. The switch to more La Nina-like conditions since 1850 increased heat flux and heat redistribution that has contributed to modern warming. La Nina-like redistribution of heat also explains why NOAA doesn’t observe an increase in heat content in the eastern Pacific (gray regions Graphic G) but observes increased heat content in the western Pacific.

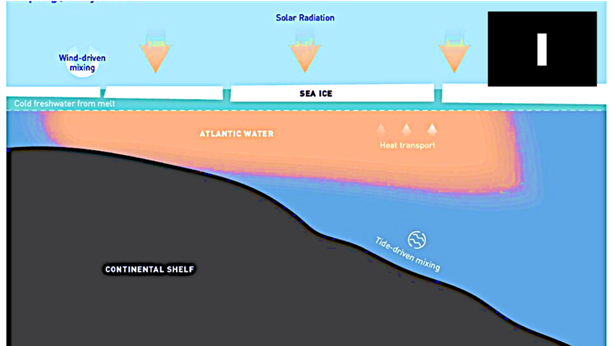

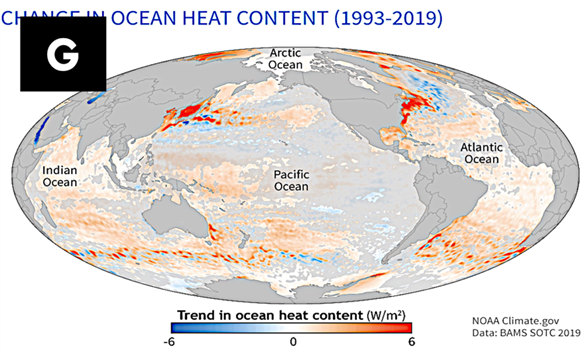

Finally, scientists integrating heat and salt transport from all ocean currents construct an Ocean Conveyor Belt that carries warm water from the Pacific, through the Indonesian Island passages into the Indian Ocean, around southern Africa into the Atlantic and northward into the Arctic (Graphic H). The Ocean Conveyor Belt explains why the Atlantic is warmer and saltier. The Conveyor Belt also explains reduced Arctic sea-ice. Where warm Atlantic water first enters the Arctic accounts for most of the observed lost sea ice inside the Arctic Circle. A thick layer of warm Atlantic water exists 100 to 900-meter depths (Graphic I). It slowly ventilates its heat through the insulating sea ice, but open water ventilates 35 times more heat than greenhouse warming, causing the Arctic temperature to be 3 times warmer than the global average.
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
Interesting timing of the article as I have a question about why would the water off the New jersey coast be so cold in July. I live in California but I am from New Jersey. This past week we were visiting NJ and spent a day at the Beach. The Atlantic water was California pacific cold.:)
I saw this article saying The cooling is caused by the upwelling process. From what i read it seems to fit what you are saying. Does that make sense?
Don’t know about New Jersey but upwelling is a, as they say so much now, more common than thought event. Lots of smaller currents, eddies with peculiar diffusions, some with “salt fingers.”
When you blow warmer surface waters offshore they have to be replaced and the water below is usually cooler as happens in the Gulf off Louisiana and south Texas rarely in the summer. (Amos, T. Swimmers feel chill as water temperature hits a rare 78 degrees. Corpus Christi Caller-Times, July 17, 1998.) Another occurs off Florida. (Green, C. K, 1944. Summer upwelling northeast coast of Florida, Science. 100(2607): 546-547.)
According the National Data Buoy Center which doesn’t have many shown in the Gulf Beryl cooled off part of it by a few degrees. I had a physical oceanography course when they had actual measurements and did a fair amount of ship time helping such. They need now to go back to sea not only for data but to experience the magnitude of the ocean.
As someone who has fished off the N Jersey shore for many years I can explain it. When we have sustained Southerly winds the warm inshore surface water is blown off shore to be replaced by cooler offshore water from deeper. We always knew that when we had southerly winds it wasn’t worth going fishing! We had those conditions last week.
I’m curious why fishing is worse with southerly winds that woul cause upwelling of colder water. Indeed in NH, the winds from the north pump water to the west causing California’s prolific upwelling and rich marine life. Winds from the south pump water eastward and resulting upwelling as you have observed off NJ. But upwelling usually brings nutrients that sparks more photosynthesis and I would expect that to bring in the fish.
In the summer it’s a general observation that the S wind ‘kills the bite’, particularly the fluke fishing. Whether it’s the bait moving offshore or the fish just shutting down their activity I don’t know but particularly in June/July that’s what happens. The worst example I remember was when my brother visited and wanted to go fishing, it had been a S wind for a few days but I had no choice. That day of the four party boats that left from that dock (about 200 anglers) only one fish was caught!
I don’t know what the situation there is now but the New York Bight as it is called was the victim of a serious oxygen free zone from dumping garbage. These might have something relevant, but jubilees as they are called from low oxygen upwelling generally force fish and crabs to shore and cause mortality. Flukes as bottom fishes might be expected to be the most affected. One should expect someone there could explain it, but in most cases I know about not much is known. Fishermen see more of these than biologists nowadays.
Boesch, D. F. and N. N. Rabalais. 1991. Effects of hypoxia on continental shelf benthos: Comparisons between the New York Bight and the Northern Gulf of Mexico. Spec. Publ. London Geol. Soc. 58:27-34. https://doi.org/10.1144/GSL.SP.1991.058.01.02
Swanson, L. and C. J. Sindermann. (Eds.)1979. Oxygen depletion and associated benthic mortalities in New York Bight, 1976 . NOAA Prof. Paper. 11:345pp
Yes I remember that there was a dumping area way off shore from NYC . As I recall that was stopped in 1988, I do remember seeing the ships going off-shore in the mid 80s.
“That narrative is supported the correlation with rising CO2 that blankets the globe.”
CO2 changes lag ocean changes by five months, so both natural and anthropogenic CO2 are significantly controlled in part by the ocean temperature via CO2 outgassing and sinking.
“The second suggests the El Niño-Southern Oscillation (ENSO) and solar heating have conspired to warm the oceans.”
I vote for the second option, and let’s not leave out the solar cycle influence on ocean warming, where it warms after solar activity exceeds the decadal warming TSI level, as it did since 2022, again. TSI accumulated 19 W/m^2 more in SC#25 than in SC#24 by the 54th month.
“Believers in the CO2 narrative dismiss such increased solar heating by simply pointing to the sun’s decreasing solar irradiance.”
The sun has returned to high levels of solar irradiance. Besides, it only matters how long & how high it goes above the warming threshold that measured TSI has exceeded in every cycle since 1978.

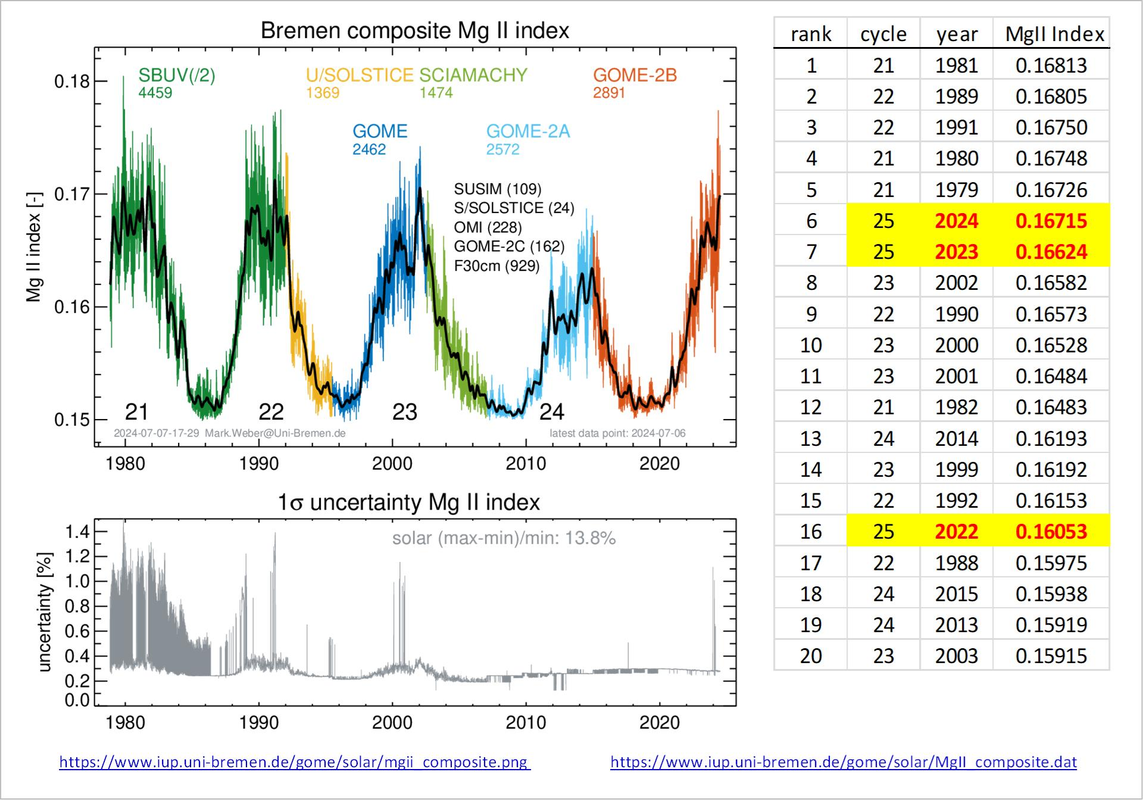

The Mg II Index correlates with solar activity very well, this year it is statistically tied* with 1979-80 and 1991 (*within the 0.0005 margin of error), so activity (TSI) has hardly “declined” in SC#25.
Nor should we forget the contribution of increased solar input from sulphur free marine fuels. The recent paper may have been presumptive in attributing the bulk of recent increase in ocean heat content to it, but it has to have an effect.
Should have included sulfur free diesel fuel for trucks and cars.
https://youtu.be/ibSyTyuLpuw?si=q5hTHM6SaB74YdTY
I’m sure that this is accurate but got to say that a TSI variation of 1 W doesn’t seem like too much. No clue what MgII index is, maybe some magnesium spectral line. I’ll just accept that maybe I don’t need to understand everything on climate change.
David,
The word to describe the use of that tiny 1 w/sqm as meaningful is “scandalous”.
Geoff S
Geoff
There are three meaningful features of that 1W/m^2:
One is that is that it applies globally albeit reduced to 0.25W/m^2 as area average.
Two is that it is part of a persistent increase over the last 4 centuries due to gravitation transfer of mechanical energy through the gravitational field into the sun.
Three is that it is real and actually measurable rather than imagined.
There is possibly a 4th that is related to the higher frequency radiation that comes at the peak of the cycles that is likely to alter high level cloud formation.
I have been looking at the interchange of mechanical power between the sun and planets and the cycle has a period of 1683years (give or take a few decades). The present climate optimum aligns with the Roman climate optimum from the perspective of solar system gravitational power transfer.
The Medieval optimum aligns with the peak power transfer from sun back to planets. The absolute power curve has a period of 840years.
Title of a book comes to mind as I read your post…
“Global Warming -Every 1500 Years.”
Good story and well-illustrated, nice to see the EL Nino (EN) warming effects also in the tropical Indian and Atlantic oceans making it a more global effect as indicated in the satellite air temperature data.
I gather from Humlum’s annual climate reports that the warmer tropical oceans are degassing CO2 at a higher rate during EL Nino’s, but the higher gas levels don’t show up in the atmosphere until 6-9 months later. Might this extra CO2 cause minor GHG warming peaks after the EN peaks?
How does the movement of water around the oceans explain a long-term statistically significant ocean warming trend, both surface and at depth? What is the heat input?
Re:
See NOAA:

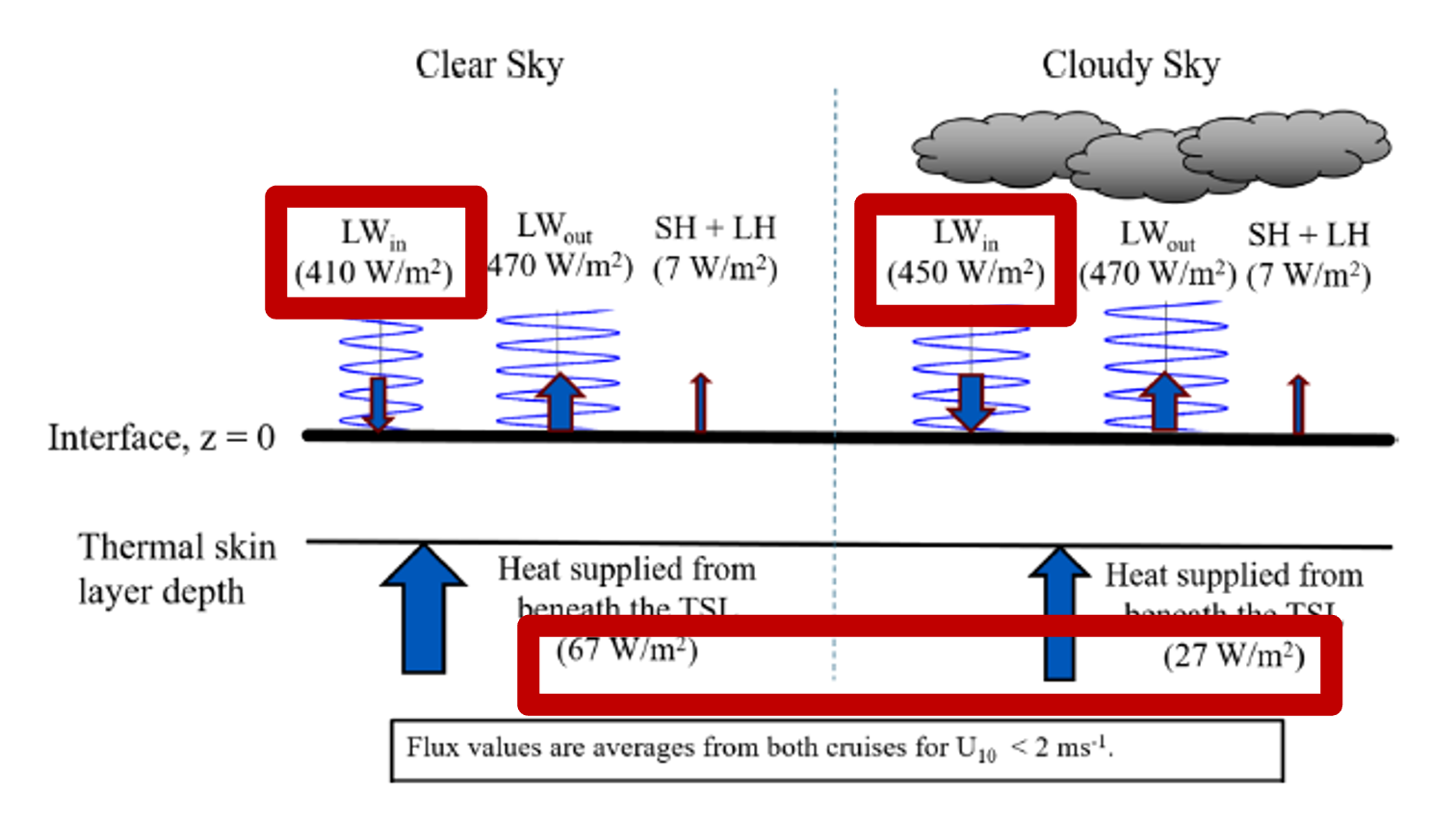

See also Wong & Minnett, 2018
