How Satellite Maps Help Prevent Another ‘Great Grain Robbery’

From NASA

Aug 20, 2021

Mid-June in Utah usually marks the tail end of the most fertile time of year for crops. In a typical year, snowmelt in April and May wets the soil, resulting in a burst of blooming flowers and crop growth.

“Usually we have a beautiful, green landscape right now,” said Dr. Jon Meyer, a research climatologist with the Utah Climate Center. “It’s one of my favorite times of year because we get green for six weeks — and then we go back to brown for the rest of the year.”

Not so this year. Drought has gripped the American West, and in Utah, more than 92 percent of the state meets the criteria for “extreme drought,” fueled by what Dr. Meyer described as “a deadly combination of record heat and record dry.” In a recent presentation on drought in the Southwest, Meyer showed a collection of grim indicators: high temperatures, little rainfall, low soil moisture, and finally, poor vegetative health.

This last indicator has become an important metric for climate scientists and meteorologists trying to understand how weather and temperature impact the health of crops, and as an extension, food security, food prices and the global agricultural market.

Tracking Crop Health

This week in the U.S., 216 million acres of crops are experiencing drought conditions and 76 million people are affected by drought, according to the National Integrated Drought Information System.  Globally, more than 1 billion people, nearly one-sixth of the world’s population, suffer from chronic hunger and malnutrition, and drought is a major factor.

NASA and National Oceanic and Atmospheric Administration (NOAA) scientists have spent decades developing tools to help state and government officials plan for drought and food shortages. One of them is the Vegetation Health Index, or VHI. Using data from the JPSS program’s VIIRS instrument, first on the joint NASA-NOAA Suomi-NPP satellite and now on NOAA-20, the product shows crop health across the globe represented in color-coded maps. Green and blue indicate lush, healthy growth; red shows areas that are dry and sparse.

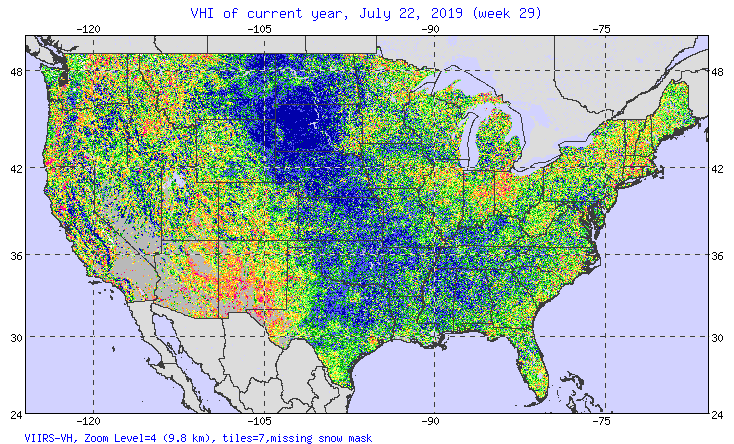

Left: The Vegetation Health Index map shows crop health in the Western United States from July 22, 2019.

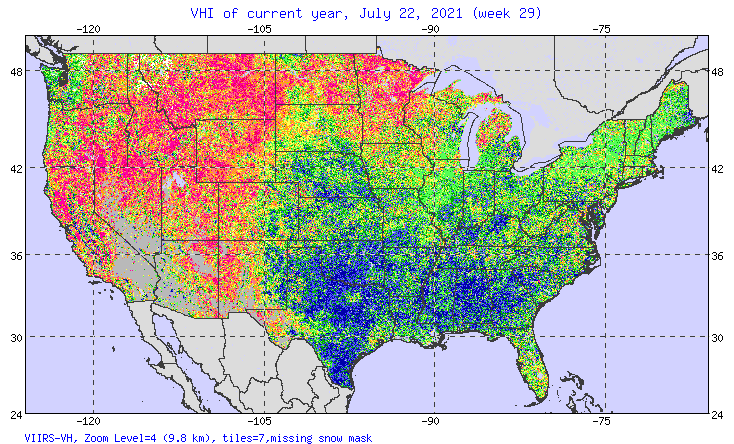

Right: This is the same product from July 22, 2021. Credits: NOAA STAR

The Vegetation Health Index was created in the mid-1990s by a research scientist in NOAA’s meteorology and climatology division named Dr. Felix Kogan. In the past decade, the number of people using this product has jumped from about 2,400 in 2010 to about 69,000 in 2020, Kogan said.

Laura Haskell of the Utah Division of Water Resources coordinates the state of Utah’s official recommendation to the U.S. Drought Monitor map, which shows the drought status for each region of the United States, and plays an important role in decision-making involving agricultural reimbursements and other government assistance. Data from the Vegetation Health Index informs that recommendation, she said.

And it has a bigger role to play in what Eric Luebehusen, a meteorologist at the U.S. Department of Agriculture, calls “crop intelligence.” The USDA has a small but mighty team of meteorologists engaged in a major effort to develop estimates of crop production in more than 120 growing regions, covering 35 countries. They do this for major row crops, such as corn, wheat, sunflowers, soybeans, barley, cotton and rapeseed—and they rely on the VHI to help create these yield estimates.

What’s more, the research the VHI informs just might be protecting the price of your groceries. Knowing how crops are faring in other countries informs decisions about planting, food prices and foreign market exports, said Mark Brusberg, chief meteorologist for the USDA.

For example, said Brusberg, who monitors crops in Brazil, “if an area of the Southern Hemisphere is experiencing drought and there’s going to be a shortage of corn, it might impact prices in the U.S. as well, and farmers might decide to plant more corn here.”

VHI map thermal stress

This Vegetation Health Index map from mid-August, 2021 shows how regions globally are being impacted by thermal, or heat stress. Credits: NOAA STAR Vegetation Health Index

These estimates go into a monthly report that forecasts supply and demand for major crops called the World Agricultural Supply and Demand Estimates.

“The balance sheets maintained by the USDA that track production and trade not only help the market establish prices,” Brusberg said, “but they also provide valuable information to U.S. producers for decision making at the farm and ranch level.”

The Great Grain Robbery

The need for crop intelligence dates back to 1972. In July of that year, the Soviet Union purchased 15 million tons of wheat, corn, soybeans and barley from the United States at low subsidized prices. Russia was experiencing severe drought and needed foreign grain. But the massive purchase, which took the United States by surprise, depleted the country’s grain stocks and caused wheat prices to soar, resulting in a domestic food crisis.

Later nicknamed The Great Grain Robbery by congressional leaders, the event highlighted the need for global agricultural monitoring, and it just happened to coincide with a satellite that could provide just that: NASA’s Landsat 1.

Landsat 1 launched into space that same month, allowing for the first-ever view of drought and crop conditions from space. This convergence of events prompted NASA to team up with the U.S. Department of Agriculture (USDA) and NOAA to develop, in 1974, the first satellite crop production forecast: The Large Area Crop Inventory Experiment, or LACIE.

Dr. Forrest Hall was a project scientist for LACIE at NASA’s Johnson Space Center, and one of LACIE’s creators.

In the early days of Landsat 1, Hall’s team would print out gray-scale satellite maps of the world, tape them as a mosaic to the wall of the conference room and study them, drawing squares to locate fields. They trained algorithms to distinguish between the radiometric signatures of individual crops in the satellite data. Then they validated the maps themselves, tromping through corn, wheat and soybean fields in Ohio and Indiana to see if the crops were indeed growing as the models said.

It was a couple of years later that the LACIE program, an effort to provide global estimates of crop yields, began. This was considered a high-priority project by the U.S. government and the data highly sensitive. When they overestimated or underestimated, it showed up in the markets.

“We briefed President Ford at one point on the Russian wheat crop,” Hall said.

It was an exciting time, Hall added, and a lot of work. “We spent a lot of hours away from our families.”

Dr. Kogan was also well suited to the task of monitoring vegetation from space. He had been making crop predictions in the Soviet Union, using precipitation and temperature models. In fact, he correctly predicted in 1972 that the grain yield would be well under the amount needed to meet consumption needs. He moved to the United States because he wanted to do similar work, but globally, and incorporate data from satellites.

As the years passed and more satellites launched, the ability to do this kind of agricultural monitoring became increasingly important and vegetation health products increasingly advanced.

Observing Crops as They Grow

Like other vegetation maps, Kogan’s Vegetation Health Index uses a formula called Normalized Difference Vegetation Index, or NDVI. NDVI is calculated by measuring both the visible and near-infrared light that bounces off vegetation. Chlorophyll in a plant absorbs visible light but reflects near-infrared light. If the reflected radiation is greater in the near-infrared wavelengths than in the visible, then the vegetation in that particular pixel is likely to be greener and more lush.

But the VHI is unique in that it combines NDVI with temperature. Temperature gives insight into extreme heat or freezes that might damage crops. Because of this, VHI and other satellite-based indices also allow scientists to monitor different stages of the crops as they grow, which makes the resulting crop yield predictions more accurate.

Crops need certain ambient air temperatures for growth. Spring wheat, for example, needs a daily average temperature of at least 41 degrees Fahrenheit to grow, corn needs at least 50 degrees Fahrenheit, and cotton won’t grow until the daily average is closer to 60 degrees.

Winter wheat in Russia from May 2021

In Russia, lingering impacts from the Autumn drought on the winter wheat crop were evident in early Spring. This map shows the Vegetation Health Index in Russia on May 1, 2021. Credits: Agricultural Weather Assessments Group (USDA/OCE/World Agricultural Outlook Board)

In 2017, Luebehusen found that he could apply the VHI formula to the crop stage for a particular area in order to model the yield: corn in the silking stage in the Ukraine, for example. It was a game changer, he said.

“As long as you know when the crop was put in the ground, roughly, you can now estimate with a good degree of accuracy when the crop enters the key stages of development where weather matters the most,” Luebehusen said.

From the early days of the LACIE program, these global yield estimates grew out of an important interagency partnership between NASA, NOAA and the USDA. This partnership continues with the VHI product, as NOAA and NASA work together to launch and build the next satellite that will carry the VIIRS instrument, JPSS-2, which is slated to launch in 2022.

“If we didn’t have the VHI data, we’d be hosed,” Luebehusen said. “It’s become an integral part of our operations.”

Banner image: Left: Dr. Forrest Hall accepts a medal in 1978 for outstanding scientific achievement.

By Jenny Marder

NASA’s Goddard Space Flight Center, Greenbelt, Md. Last Updated: Aug 20, 2021Editor: Jennifer Fadoul

3.9 9 votes
Article Rating
40 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Tom Halla
August 22, 2021 6:07 pm

The maps will not download

Reply to  Tom Halla
August 22, 2021 6:36 pm

Disable your ad-blocker and then refresh the page.

Pat from kerbob
Reply to  Dave Burton
August 22, 2021 7:37 pm

My adblocker never affected the maps and graphs before?

Tom Abbott
Reply to  Dave Burton
August 22, 2021 7:40 pm

I looked at this page with this computer, and using an iPad and there is nothing about a map on either one of them.

Alexy Scherbakoff
Reply to  Dave Burton
August 22, 2021 7:43 pm

It’s not an ad-blocker problem. Same result either way.

Leo Smith
Reply to  Dave Burton
August 23, 2021 1:26 am

I’ve had a look at the page source and it aint HTML or even Javascript.

Needs to be rewritten and translared from whatever it was coided in to a public standard

dk_
August 22, 2021 6:11 pm

Revisionist history: the purchase of subsidized crops cast as a robbery and reinvented with a NASA twist.

Economic recession and inflation of the early 1970s (and since) had more to do with the elimination of the gold standard, OPEC, and the (often Soviet-sponsored) political unrest in Europe and the Americas. NASA was more concerned with the Apollo program and fending off budgetary attacks from pro-agricultural subsidy, quasi-socialist congress critters than watching worldwide crop health.

Gerard Flood
August 22, 2021 6:50 pm

[O/T historical note: Hitler’s specialist grains economist, Edgars Dunsdorf, escaped the NAZI state and later taught in Melbourne Uni, Australia. Grains economics and planning was, like many factors, critical to Hitler’s plans. In 1975, he published “The Baltic Dilemma” which describes the despicable decision of the leftist “Labor” Australian Government to give de jure recognition to the malign Soviet Union’s conquest of the Baltic countries.]

commieBob
Reply to  Gerard Flood
August 22, 2021 8:26 pm

A study of WW2 gives one a deep appreciation of what is, and is not, important. In this case it lends support to NASA’s contention that the work, described in the story above, is actually important.

August 22, 2021 6:53 pm

Interesting article. Refreshingly, they didn’t blame climate change and emissions of the precious air fertilizer for bad weather, not even once.

Too bad they didn’t mention how elevated CO2 is making crops more water-efficient and drought-resilient, helping to mitigate drought impacts.

Here’re a few rules of thumb to put global warming into perspective:

+0.5°C is about the temperature change you get from:

● an altitude / elevation decrease of 250 feet,

● or (at mid-latitudes), a latitude decrease of 30 miles.

In the American heartland, farmers can compensate for that much warming by planting about 3 days earlier in springtime.
comment image

Peter Fraser
Reply to  Dave Burton
August 23, 2021 3:10 pm

I thought the American wheat belt had delays planting last spring because of cold weather.

Kevin kilty
August 22, 2021 6:53 pm

It was an exciting time, Hall added, and a lot of work. “We spent a lot of hours away from our families.”

A sensible man would not place these two thoughts in immediate juxtaposition.

Kevin kilty
August 22, 2021 6:56 pm

The sale of wheat to the Soviet Union took the price of wheat in a loaf of bread from 3 cents to 4 cents. Rising union wages in the 1970s inflation made this insignificant in comparison. Oh, and most famine is the result of politics — rarely weather.

Reply to  Kevin kilty
August 28, 2021 12:00 pm

Kevin wrote, “most famine is the result of politics — rarely weather.”

That’s true now. But it did not use to be true.

Throughout human history, until very recently, catastrophic famines were common. Depending on your age, you might be old enough to remember when major famines were often in the news, in places like Africa and Bangladesh.

Anything that caused crop failures could cause famine, but the most common cause was drought.

But famines are rare, now, and the rising CO2 level is one of the reasons.

https://ourworldindata.org/famines

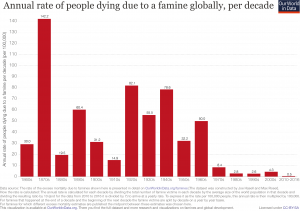

Famine used to be one of the great scourges of mankind, along with war and pestilence, the “Third Horseman of the Apocalypse.” But, for the first time in human history, major famines are fading from memory.
comment image

The importance is almost impossible to overstate. Compare:

● Covid-19 killed ≈0.05% of world population, so far.

● 1918 flu pandemic killed ≈2%.

● WWII killed ≈2.7%.

● The near-global drought & famine of 1876-78 killed an estimated 3.7% of the world population, when CO2 level (determined from ice cores) was ≈289 ppmv.

There are several reasons for the improvement, but one of the reasons is CO2 emissions. They’ve raised average atmospheric CO2 concentration by about 47%. That higher atmospheric CO2 concentration has increased global crop yields by an average of about 20%, and helped mitigate drought impacts, by making plants more water-efficient and drought-resistant, by reducing stomatal conductance. Here’s a paper:

http://www.sciencedirect.com/science/article/pii/S0168192310003163

Excerpt:

“There have been many studies on the interaction of CO2 and water on plant growth. Under elevated CO2, less water is used to produce each unit of dry matter by reducing stomatal conductance.”

Last edited 21 days ago by Dave Burton
Spetzer86
August 22, 2021 7:13 pm

There’s a good chance the mid-West farmers will do really well this year. A lot of good looking corn and beans out there. We’ll find out in just a few weeks when harvest gets underway.

Tim Gorman
Reply to  Spetzer86
August 23, 2021 4:59 am

That is what we are seeing here in east central Kansas. Bumper corn crop and the soybeans are lush and green. Unless disaster hits it’ll be a bumper soybean crop as well.

Pat from kerbob
August 22, 2021 7:36 pm

Imagine how bad the vegetative index would look without higher CO2 making the plants more resilient.

And of course, if AGW is affecting droughts then it’s making them shorter and less severe, the actual trend.

Way to go AGW, high five.

August 23, 2021 12:11 am

This is a most interesting post.

Peta of Newark
August 23, 2021 12:55 am

Cause and Effect completely the wrong way roundism
Big Willyism
Big Sputnikism
Big Computerism
Wilful Blindness, Ignorance and Denialism
Self Importance-ism

These people have Got The Lot-ism and should be in jail
They are watching and allowing the entire US get turned into a new Sahara and are doing All The Wrong Things to stop it

If you want one figure-head, one name, one reason:
= The thoughts words and actions of Jim Steele – who we heard from recently.
I cried reading that self-promoting narcissism and perfectly deranged thinking.
How could anybody get anything So Wrong ##

silly question.
NASA do on a daily basis
Watching a bonfire burn, creating pretty pictures and self-importance out of it as they tacitly approve the throwing of petrol into it.

Is the work of people hell-bent on suicide.
Sometimes, I have No sympathy

## Hint/clue
Forests with closed canopies, despite daily thunderstorms with lightning strikes, Do Not Burn
Forests with holes in them do burn.
It is That Simple

How the he11 can Steele, how can anybody, not see that?
What is wrong with that guy, this place, the world?

Climate believer
August 23, 2021 3:03 am

What are we making a mountain out of a molehill with this week?

Drought in Utah….probably unprecedented.

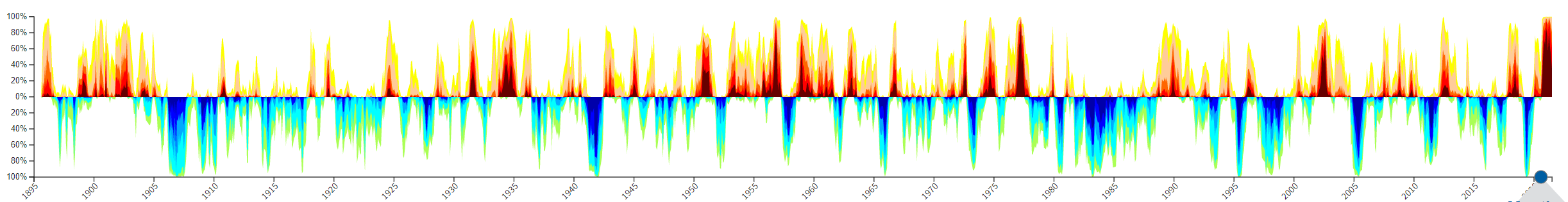

Utah drought history.png
Climate believer
August 23, 2021 3:05 am

Drought in the US looks kinda natural to me…

Duane
Reply to  Climate believer
August 23, 2021 4:10 am

Drought isn’t something that occurs nationwide in the US .. it is highly regionalized, localized, actually. Within a given state, one county might be experiencing lower than normal precipitation, while the county next door is experiencing higher than normal precip, all the way from extreme drought to extreme wet.

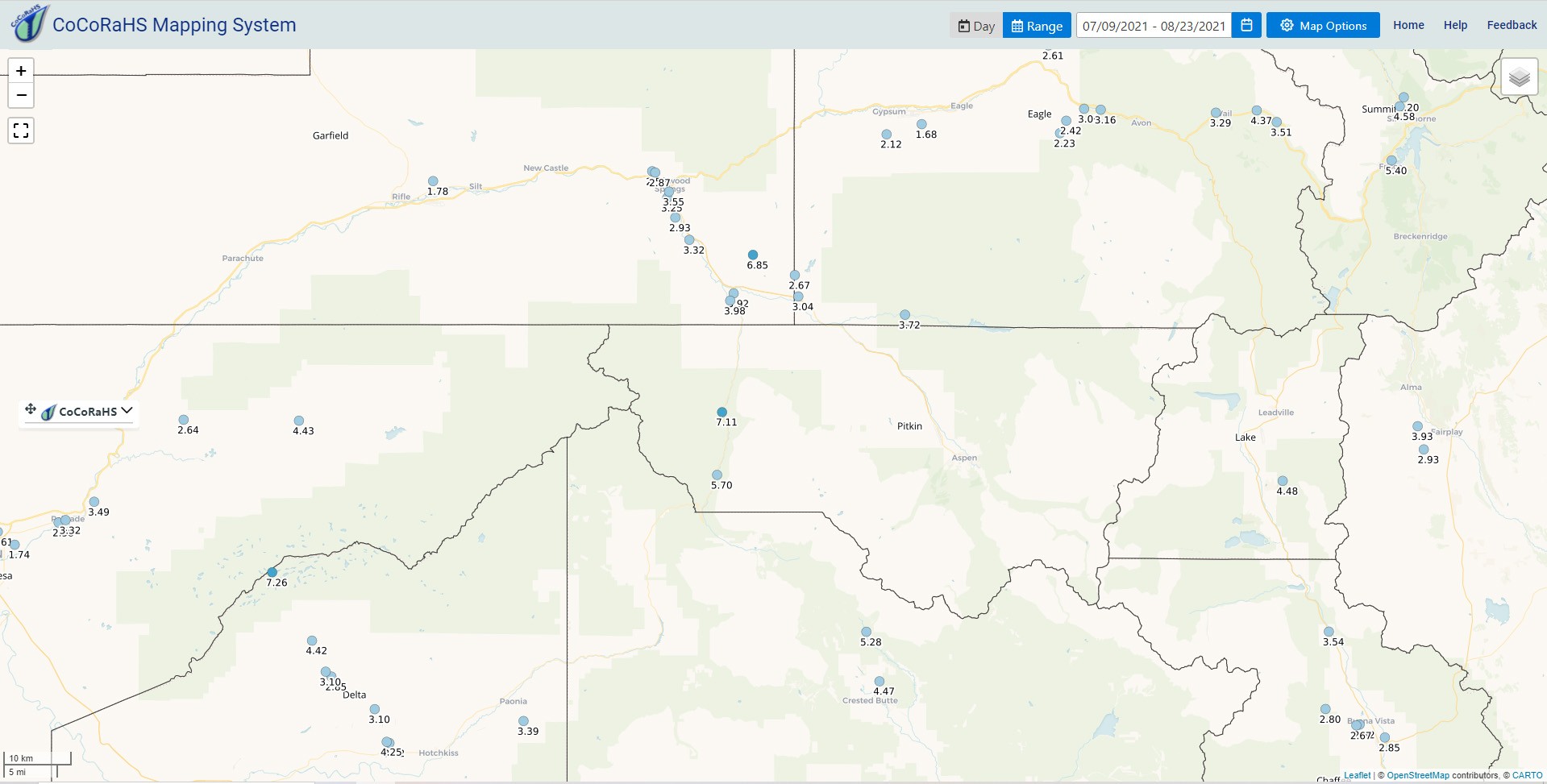

Check out the updated precipitation map for the State of Colorado, produced by the “Colorado Climate Center” and you’ll see exactly that:

https://climate.colostate.edu/maps/precip_map_int.php?len=7days

Climate believer
Reply to  Duane
August 23, 2021 5:41 am

Drought isn’t something that occurs nationwide in the US”

It isn’t something that occurs nationwide in any country, with maybe some exceptions on the African continent.

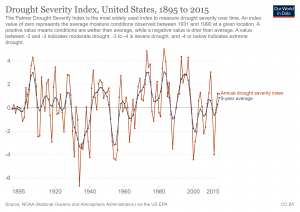

This chart shows annual values of the Palmer Drought Severity Index, averaged over the entire area of the contiguous 48 states.
