By David Wojick
New York City will soon be home to the world’s biggest utility-scale battery system, designed to back up its growing reliance on intermittent renewables. At 400 MWh this batch of batteries will be more than triple the 129 MWh world leader in Australia.
The City of New York’s director of sustainability (I am not making this title up), Mark Chambers, is ecstatic, bragging: “Expanding battery storage is a critical part of how we advance momentum to confront the climate emergency while meeting the energy needs of all New Yorkers. Today’s announcement demonstrates how we can deliver this need at significant scale.” (Emphasis added)
In reality the scale here is incredibly insignificant.
In the same nonsensical way, Tim Cawley, the president of Con Edison, New York’s power utility, gushes thus: “Utility scale battery storage will play a vital role in New York’s clean energy future, especially in New York City where it will help to maximize the benefit of the wind power being developed offshore.”
This puts the Con in Con Edison.
Here is the reality when it comes to the scale needed to reliably back up intermittent renewables. For simplicity let us suppose New York City is 100% wind powered. Including solar in the generating mix makes it more complicated but does not change the unhappy outcome very much.
NYC presently peaks at around 32,000 MW needed to keep the lights on. If Mr. Biden makes all the cars and trucks electric it might be closer to 50,000 MW but let’s stick to reality.
This peak occurs during summer heat waves which are caused by stagnant high pressure systems called Bermuda highs. These highs often last for a week and because they are stagnant there is no wind power generation. Wind turbines require something like sustained winds of 10 mph to move the blades and more like a whistling 30 mph to generate full power. During a Bermuda high folks are happy to get the occasional 5 mph breeze. These huge highs cover many states so it is not like we can get the juice from next door.
So for reliability we need, say, seven days of backup, which is 168 hours. Here’s the math:
32,000 MW x 168 hours = 5,376,000 MWh of stored juice needed to just make it. Mind you for normal reliability we usually add 20% or so. Did I mention electric cars?
It is easy to see that a trivial 400 MWh is not “significant scale.” It is infinitesimal scale. Nothing. Nada. Might as well not exist.
[I estimate 45 seconds of backup power from the facility. Someone correct me if I’m wrong~CR]
More specifically, 5,376,000 divided by 400 = 13,440 so only 13,439 more to go.
On the other hand, this measly 400 MWh battery array may well cost half a billion dollars, which is significant, especially to the New Yorkers who will pay for it. No cost figures are given because the system is privately owned, but EIA reports that the average utility scale battery system runs around $1.5 million a MWh of storage capacity. That works out to $600 million for this insignificant toy.
So what would it cost to reliably back up wind power, at this MWh cost and NYC’s scale? Just over $8,000,000,000,000 or EIGHT TRILLION DOLLARS. I have not seen this stupendous sum mentioned in the media. Perhaps Con Ed has not mentioned it.
Then too, New York State has the same problem. Only much bigger if New York City is included, which it often is.
But hey, maybe the cost will come down a few trillion. Not if we create a seller’s market by rushing into intermittent renewables, which is certainly where we are headed. After all, this is just New York City. Imagine what backing up America with batteries might cost. Don’t bother because it is impossible.
I should also add that we have no idea how to make 5 million MWh of batteries work together. The tiny 400 will be a challenge. It may not be possible.
Maybe fracked geothermal, the reliable renewable, is the answer. Or how about coal, oil, gas and nuclear power? Too bad they are all out of fashion.
All of this battery backup hype is a scam, and not just in New York either. The papers are full of this con, from coast to coast. The utilities know perfectly well that these loudly touted battery buys are a hoax, but they are getting rich building the wind and solar systems the politicians are calling for.
The voters are oblivious to these impossible numbers, since they are told that intermittent wind and solar are cheaper than reliable coal, gas and nuclear. Only when the sun shines bright and the wind blows hard, which is not all that often.
Reality is just sitting there, waiting. It can’t work so it won’t work. At this point it is just a question of how and when we find out the hard way
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
Nobody in NY state has read Tucker Carlson comparison between Fla and NY??? stupid is who ….
Why worry about the cost? Defund police ..
What does defund the police have to do with climate?
My guess is the fraudsters and shucksters wouldn’t want any police around when the climate scam breaks.
Backups? Try pickups! $1.5 million a MWh? At 200 KWh each, just five new GMC Hummer electric pickup trucks would provide a MWh of storage for less than $600.000. Or just buy their batteries for a fraction of that.
Battery is about 1/2 the cost, plus construction connection etc
What has John left out:
building
racks for the batteries
wiring for all the batteries
lighting for the building, plus wiring for the lighting
A/C for the building. Getting too hot shortens the life span of the batteries.
Heating for the building. This is New York after all. Getting to cold reduces how much energy you can get from the batteries
As for operation, you are going to need a couple of electricians on hand 24/7, plus the electricians supervisor.
You are going to need offices for all those workers, plus bathrooms and break rooms.
Only someone hasn’t stopped to think at all, would try to directly compare the price of an automobile battery, by itself, with these grid scale batteries.
Dear Mr. MarkW,
another very important cost factor has not been considered yet: How much PLACE would be required for such a big battery capacity? What would cost the necessary land/real estate? As far as I now, the real estate price would not be low in NY. And of course the final question: Who would pay the bill at the end of the day? Would like the citizens of NY similar (or higher) electricity prices than in Germany? Another cost factor: The costs of the day-to-day operation of such a big battery pack.
Remember that with the “COVID RELIEF” package, Pelosi establishing what I think will be a future practice of having the Federal government (i.e. all the OTHER states and thus tax payers) bail out the mistakes of the virtue signaling Progressive cities.
The could place them in the vacant land made available by shutting down the Nuclear power Plants. Oh, wait, there would only be enough room for about 10 percent of the needed capacity for about 1 hour.
Theses dead wind spells would also affect CT and NJ, aggravating the problem even more. Worse, all transmission lines in the PJM and New England ISO will be overloaded trying to get power to NYC and causing blackouts from Boston to Chicago as they fail.
You also need to include the static inverters. They will cost more than the batteries.
No, the inverters are not nearly as expensive as the batteries. A pure sine wave inverter costs about $100 / kW (you don’t need to worry about hours, but do need to worry about peak demand).
Not sure how GMC is paying for their batteries, even $40K for a 200 kWH Li battery is dirt cheap. I recently bought some LiFePO4 batteries for a solar setup and while I got a great price, it was still $416/kWh of storage ($1,000 for a 200Ah 12V battery), so 200 kWh would cost $83,000, or the cost of the entire vehicle. There must be some subsidy in there somewhere.
Of course for a backup system you also need converters, inverters, lots of wiring, heating/cooling systems, maintenance crew, etc.
Different batteries have different requirements which requires different construction which means costs are not directly comparable. For one thing grid batteries are going to need to charge and discharge faster.
Exactly John – what we’re seeing there is Cynical Flat-Out Cronyism in action.
Hopefully this link will work…
https://www.aliexpress.com/item/1005001600081274.html
It points to 16 pieces of LiFePO4 batteries = 3.2V at 120Ah
Priced at US$1,292 plus delivery but if you want a container-full – some sort of discount might be worked out
I get 6.1kWh for that money giving $212K per mega-watt-hour
Must include Depth-of-Discharge – it says 7000 cycles at 70% or 5000 at 80%
Take yer pick
A factor of over 7 (seven) compared to the Utility Scale
That’s why you needed Mr Trump to kick some ass and get a better deal – but I suspect even he would have walked away at ‘just’ US$212K
And Joe will do what – Snap Their Hands Off at a 10 fold multiplier??!!!
sigh
Other People’s Money eh………
Just think of how much investors will make before they realize that batteries are not the answer. Worse even more, possibly half, of the existing Nuclear power plants will be put out of service before they realize their stupidity.
That one doesn’t even have a battery management system, but it still costs $1,000+ for 6 kWh. You have to wait 5 months for delivery and imagine what the warranty is worth.
Try to find a battery that has someone standing behind it and you’ll see the price goes up dramatically. That’s why Tesla makes their own batteries.
A good price comparison is for a home backup system. A 13.5 kWh Tesla powerwall costs $7,000 and that’s without another $4,000 for the gateway (sharable among several powerwalls) and installation. That works out to about $106,000 for a 200kWh system, like the GM Hummer.
Terminations of the battery packs is radically different. Grid-level storage like this will need to be able to dump nearly the entire charge in a matter of a few minutes; the cars/trucks that are EV are designed to supply – at most – 1/10th of their charge over an few minutes.
The current capacity of the terminations is radically different, and leads to a massive reworking of the connections of the individual cells – and that drives costs much, much higher.
Same situation as when wiring a few huge group 31D batteries together to start a diesel semi – and a dozen, smaller group 24 batteries together to power a high-power SPL car. The former needs to support a few hundred amps of pull; the latter needs to support a few thousand amps of pull. BIG difference in how you connect up!
New York imports a significant amount of power from coal-fired power plants in surrounding states. About half of the 2.9 GW John Amos power plant went to NY when I lived near it. The cost of the battery could build another power plant with the capacity of the battery, but reliable.
At a recent nuclear energy conference a manager at Darlington Nuclear Generating Station told me that the power from at least one of the NPPs at Darlington and often two are produced exclusively for NYC. A HV Transmission line was built exclusively for providing this power to NYC.
That would be an energy myth. There is not enough transmission capacity now from Upstate NY much less Ontario to the city. There is a big power line from the Saint Lawrence but that is for the hydro power from the Seaway.The big problem for New York City is that it is a load pocket and cannot rely too much on power from outside the city. They learned that lesson the hard way with a blackout.
I doubt seriously they can draw down the batteries in 45 seconds…so it’s more like 15 minutes or so for a small area of NYC. It is enough, if connected correctly, to overcome brief dips in power that sometimes throw the entire system into chaos. So this project may not be as worthless as you expect. Just very expensive for so little use.
I doubt anyone in NY government understand anything about this project, so they make grandoise claims that are ridiculous. Any home owner knows if you want to fix a reliability issue with grid electricity you add some batteries to get you through just long enough to start up the gas powered generator.
Unless Biden and the AOC Dumbocrats makes use of gas (fossil fuel) illegal due to the climate crisis.
Another use for gas that isn’t mentioned in the energy requirements is Gas for cooking, water and home/apartment heating
https://catallaxyfiles.com/?s=Big+batteries
I think a more realistic and likely scenario is load exceeding generation by 5 to 10%.
Thus a massive 7.5 to 15 minutes of backup power.
Admin & Rob of TX, you are right. Batteries can offset the frequent, large, sudden, unpredictable, brief dips characteristic of wind turbine output. They can probably also be used to smooth out the amount of wind power fed into the grid (Discharge batteries when wind turbine output dips. Recharge batteries when wind turbine output surges.) Doing one or both helps cope with wind’s threat to grid reliability.
Yes, battery back up is costly–as are wind turbine & solar electricity. But, because watermelons are jamming turbines & panels into electricity grids, operators MUST implement coping mechanisms.
If they are seriously going to attempt to supply 100% of electricity from renewables then the loss of wind power due to multi day calm winds is going to cause a huge loss of power, much greater than 10%. Would a loss ranging from 40% during peak sunshine to 90% at night be a reasonable estimate?
New York State has shut down one nuclear power station (Shoreham) and is in the process of shutting down a second (Indian Point). This is prima facie evidence that NY does not give two shits about carbon emissions. It is all hysteria.
NY should put a Thorium Nuclear plant where Indian Point is located. The LFTR plant can use all of Indian Point’s spent fuel rods as fuel once the (non-weapons grade) plant is in operation.
No Bombs – just pure emission-free power (although we could use some more CO2 to re-green the Earth)!!!
I’m a strong proponent of nuclear power but the claim that you can’t weaponize the materials used in the Thorium cycle is false. Thorium becomes U-233 by capuring neutrons. U-233 is weapons usuable, the Indians have detonated a small nuclear weapon made from U-233 and the US has detonated a weapon made with a composite U-233/Plutonium core. U-233 produces a more penetrating gamma ray than Plutonium and is thus harder to handle but that difficulty can be overcome.
They can use out of state COAL to charge the thing !!
Did New Yorkers vote for a “clean energy future”? Or do they want the trains to be clean and punctual, the streets safe and buildingds clean from grafitti?
While it does not change the conclusions there are some issues with the numbers. New York State peaks around 32,000 MW but the New York City summer peak is around 11,000 MW. New York’s Climate Leadership and Community Protection Act is supposed to go to a zero-emission electric generating sector by 2040 and has a goal for net zero by 2050. That means everything has to be electrified (heating and transportation in particular) and it is accepted that the peak load will shift to winter. In the summer you might be able to get a lot of solar to help meet the load but in the winter, you can count on zero. Now throw in a stagnant high pressure system for multiple days and 400 MWh will be infinitesimal. Worse the battery they build today will have to be replaced by 2040 if not sooner.
The idea that New York City where four of the five boroughs are islands and the entire city is a load pocket can produce enough renewable energy within the City to store in these battery systems is absurd. Throw in a Governor who is shutting down 2,000 MW of nuclear generation within the load pocket and you have a prescription for a reliability and affordability crisis. The possibility of people freezing to death in the dark is not that far fetched.
As far north as NYC is, the amount of energy you get from sun light, even in the summer is dramatically reduced. NYC itself is heavily developed, so there is no place to put the solar panels in the city. To the east and south is mostly ocean. To the west it’s also pretty heavily developed. Most of these proposed panels with have to be even further north than the city itself is.
Dear Mr. Caiazza,
Another point after mentioning winter. I drive also an electric (battery) car. At temperature about 0 Grad Celsius drops the effective capacity of the car battery about by 15%. It can easily happen that at lower temperatures the effective capacity of the battery will be even further reduced for simple physical reasons….
Extension: The charging loss of the battery of my car is 17-19%. Yesterday there was an article from the “official supporters” (propagandists paid by the government pushing e-cars) that during winter the capacity of the e-car batteries could be reduced by 1/3 depending on te temperature (in Germany you can expect max -5 Grad Celsius: What happens for example at -10-20 Grad Celsius?) but this could not be a problem at all… (oh yes, what would happen if 1/3 of the money of the authors would disappear regularly depending on the temperature). Their proposal: To heat the battery before loading. Of course the energy to heat the battery will not be counted as a loss.
Also don’t forget, even at 11,000 MW solar and wind only operate at 22% -33% capacity factor.
Replacing 11,000 MW generation with solar or wind requires 52,000 MW capacity for solar and 34,000 MW capacity for wind, just to replace existing electric usage. Then while that power is being used to power society, it can’t be used to recharge batteries so additional capacity is required for that. A 400 MW battery would require 1,200 – 1,800 MW of dedicated wind or solar to recharge
Perhaps they could put all those MW’s of DC storage in Battery Park
The round trip losses on the battery system is 20-25%, so the extra energy it uses is 80-100MWh per charge cycle. If you look at how these batteries are really used, you will see that they tend to run a daily cycle, charging up at night and discharging at peak demand. There is overlaid on top of that shorter oscillations that are to help with grid balancing. Think of it as compensating for wind gusts.

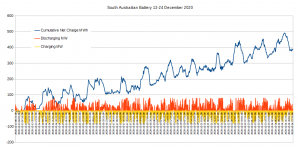

Here’s the South Australian battery in action in recent days, based on data with 5 minute resolution. You can see the wider oscillations of deeper charge and dischargeof the the order of 100MWh+ that are basically based on daily patterns, and some of the shorter term fluctuations. Charging and discharging rates are kept within -/+80MW, so the effect on the grid is limited to this. The battery system steadily eats power in round trip losses through the inverters and for air conditioning use, which is why the cumulative net charge slopes upwards.Over the period shown the total charge is 3,785MWh and the total discharge is 3,399MWh, based on the 5 minute readings.
Yes, my numbers are for NYS not NYC. My source just said New York which I mistakenly took together city. NYC peaks at about 13,000 MW so the cost is more like 3 trillion, not 8. Still impossibly expensive, especially with all the “electrification” coming. Cars, trucks, building heat, etc.
You nailed it: impossibly expensive and probably would not work even if the money magically appeared
“The ‘con’ in Con Edison”. Brilliant! And so, so sad at the same time.
Once this is installed I hope for the people of NY they never have to test it because the reality check will bounce. This isn’t backup, it’s for a burp.
If the battery was fully charged up, it could replace the Indian Point 2000 MWe nuclear reactors for 12 minutes.
Have all electrical engineers abandoned New York to its fate? Are any competent engineers talking to these “sustainability” people?
The Battery Park could house the world’s tallest building “The Battery” 150 stories tall
Well, in ‘political’ circles, the ‘technical’ people tend to be ignored. South Africa had an example of this some time ago in Pretoria, where the city engineer was fired for preferring competent engineers over political assignees.
I guess they don’t call it Con Ed for nothing
400 MWh, in an industry that regularly overrates and overstates their products and run times…
Use a 1.55 volt rechargeable battery and the circuits it is in drop using the battery when the charge level drops 31%-33%.
Does that also apply to these large batteries?
That is, when the charge drops 33% then the system shuts the battery down to avoid fully draining the battery or attempting to run appliances in incorrect voltage.
One thing of which we are sure is that the government and private battery owners/manufacturers are not going to give honest answers.
You can build deep discharge batteries. The voltage they feed to the grid is controlled by the inverter.
The problem is that batteries wear out. They’re only good for so many charge-discharge cycles. That said, it looks like Tesla batteries last way longer than I thought they did.
link: https://evcharging.enelx.com/news/blog/580-how-long-does-a-tesla-battery-last
Notwithstanding Tesla’s surprising longevity, any grid scale backup batteries will eventually need to be replaced.
I’m not certain how reliable a magazine who’s whole reason for being is pump the industry is going to be.
You have to consider the source for sure. What I have noticed is that there aren’t a pile of Teslas with half dead batteries for sale cheap.
True, but most Teslas go though a charge/ discharge cycle once per week. If you use the same batteries to back up solar, they have to charge and discharge once per day. Depending on the depth of charge/dicharge, the batteries can actually wear out faster. Potentially a lot faster.
They are too expensive to sale cheap. Rich man’s toy, but to risky for ordinary people
It seems that the Lithium-Iron Phosphate battery should be significantly cheaper than the current Lithium-ion battery because it doesn’t require the use of the very expensive Cobalt. The Lithium-Iron Phosphate battery is also safer and longer-lasting. The following article provides more details
https://www.cnbc.com/2020/06/30/tesla-and-the-science-of-low-cost-next-gen-ev-million-mile-battery.html
“In the laboratory it is becoming clear that it is possible to make a battery that is a long-lived asset, and the next-generation battery technology can achieve the million-mile potential in the next five years, Meng said. That would not only be a game changer for EVs, but for the energy grid storage market, which lithium iron phosphate technology was originally designed to supply. A major ramp in production would benefit the cost equation for both markets.”
Dear Mr. Vincent,
Every week will be announced a new “super battery” solution. However, all these “super batteries” work under lab conditions and on nice ppt-slides. The very first question: How long time does it take to develop an industry grade “super battery” from a lab model? 5-10-20 years or more? Additionally, no any announcement on successfully operated “super batteries” on a mass scale are available only nice marketing materials to collect more money for further experiments (and to generate extrapofit for the “investors”).
This million miles doesn’t mean much at all without specifics like speed and temperature range, and what happens outside them.
I can’t lay my hands on the specifics, but I recall someone forced Nissan to divulge, via a FOIA request, how the “range” for the Leaf was calculated.
If my memory serves me correctly, the calculation was based on
Flat Road;
NO wind;
No accessory use (no radio, no HVAC, etc)
Dry pavement
THIRTEEN miles per hour
LMFAO
It’s not just the voltage that gets fed to the grid. As the batteries discharge they draw more current from the batteries to keep the voltage constant. This is on top of the current draw on the batteries to feed the needed current out to the grid. It’s VA (volt-ampere) capacity that is the controlling factor. With inverters the battery discharge rate is constantly increasing. I’m not sure these figures quoted by the government and Con Ed consider this when describing battery capacity.
All true.
Those problems are small potatoes compared with the eye watering cost of a battery system that would actually be useful.
It seems to me that a good education makes a lot of people forget the simple truths they learned in childhood. In the case of wind and solar, the one that applies would be: Penny Wise and Pound Foolish.
True enough. There is also the issue of these massive battery packs tending to catch on fire. Teslas have something like 18000 individual cells. A fault in just one or an interconnection can start a fire – not unheard of with EVs. (I would not consider charging one in my attached garage while my family slept.) A grid scale battery would have close to 100 million cells. What are the odds it would last 10 years or more without some catastrophic fault?
The primary function of grid-scale batteries is frequency stabilisation of the non-synchronous generation – wind and solar, so the cost of grid-scale batteries should properly be considered as part of the capital, and operational cost of those systems, and not part of grid infrastructure. Reliable synchronous generators use their inherent inertia for frequency stabilisation, and as demonstrated for a century, do not require that additional costly solution for grid stability, and should not be required to contribute to those costs.
As has been pointed out by other commenters on earlier threads on this topic, a fully charged mega battery has potential to be a bomb if it short circuits all of a sudden.
It is interesting that engineers have been replaced by social scientists heading up “sustainability” bureaucracies. If anyone had gone to an engineer and said “Do you take responsibility for this plan?” I wonder what he would reply. Oh you can get a company to make you what you want for a trillion bucks. They won’t be responsible for disaster because the (wrong) specifications will be provided to the company because of hubris of sustainability boffins.
In Canada an engineer in the employ of government or private industry IS responsible for the protection of society in his endeavours an IS responsible for telling his bosses what the consequences are. I thought this was true in all countries, but now I’m not sure. We let “how-hard-can-it-be” scientists and social scientists take over what the options are.
Super capacitors, in the right circumstances could resemble a bomb. Batteries on the other hand can’t. They might make like flame throwers, but you don’t have to worry about them exploding. Internal resistances are just too high for that to happen.
How do you put out the flamethrowers? Can’t use water, it just exacerbates the short-circuit problems in a battery complex. Not sure how well Halon (or similar) would penetrate sealed batteries units to extinguish any fire. As long as the short-circuit remains the fire would probably self-start again once the Halon runs out. You might just have to wait till the short-circuit is burned out and self-extinguishes or until the entire complex is burned to a crisp. HUGE replacement costs!
Halon should work just fine to control a battery fire such as this. The fire starts when on or more cells melts its casing and starts burning some of its parts. Halon gets released by the fire protection system and displaces oxygen by blocking free radicals, the guts of a fire, from reacting. The fire needs high temps- circa 3000K to continue generating free radicals. The halon works by very briefly “soaking up” the free electrons and preventing any fire from continuing.
But wasn’t Halon banned because of the ‘ozone hole’?
How long can you maintain the Halon atmosphere? Once it’s gone the heat from the short-circuits will re-ignite the surrounding materials. They used to use Halon in telephone company central offices but its effectiveness was dependent on being able to kill the power to the affected area in the central office. How do you kill the power to a battery?
“Example is the school of mankind, and they will learn at no other.”
Edmund Burke, Letter i. On a Regicide Peace. Vol. v. p. 331.
We live in interesting times. Unfortunately.
That setup is going to save some time though. With under a minute of illumination to get to the door, at least the last one leaving NYC won’t need to bother turning out the lights!
This should keep construction unions happy until the next municipal election.
If Gavin Newsom could use battery power to put even the tiniest Band-Aid on the green energy fiasco that he admitted was the true cause of the 2020 California summer blackouts, then we would have batteries as back up YESTERDAY. But I am sure that’ll be the next boondoggle as we seem to have a bottomless appetite for throwing money away for no good purpose…
“These highs often last for a week”. That tells you that they will somtimes last more than a week. So if you have 7 days battery backup, you have no power at all on the 8th day. An entire city powerless for a day or more? How crazy is that.
Batteries make a lot of sense if they can cut in super-fast while a reliable backup supply is started up. Batteries being the backup makes no sense at all.
How much copper ? https://www.suncable.sg/
Same situation in the UK.
We consume about 50 gw on average, and so I made a conservative estimation that we need at least 3,500 gwh of backup to keep the lights on.
However, the UK presently only has 10 gwh. This storage is at Dinorwig, but Dinorwig was the most expensive power station in the world, because they built it inside a mountain. And we need 250 new Dinorwigs…
Building backup supplies like this would bankrupt the nation. And again, this does not allow for electric transport, nor for electric space-heating. That would quadruple the generation and storage requirements.
Ralph
