Guest Post by Willis Eschenbach
[OK, had to start over, had bad numbers for the areas. Graphics have been replaced. I was using “core area” but I should have been using “greater metropolitan area”. All conclusions are unchanged.]

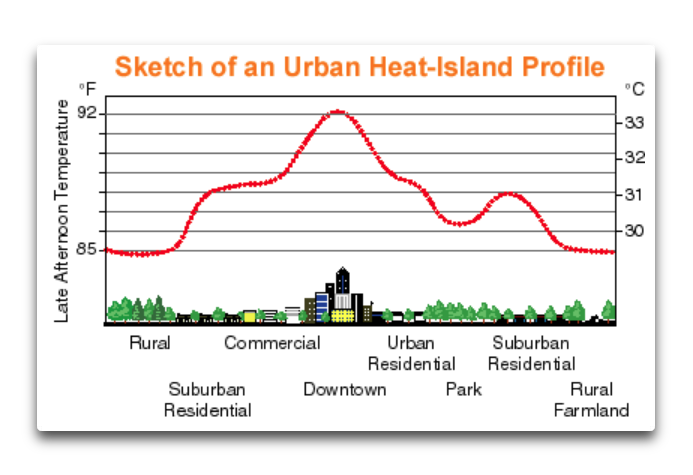

I got to thinking about the phenomenon known as the “Urban Heat Island” effect, or UHI. Cities tend to trap heat due to the amount of black pavement and concrete sidewalks, the narrow canyons between buildings that slow down the wind, and the sides of the buildings reflecting sunlight downwards.
As a result, cities are often warmer than the surrounding countryside. In some cities, it’s hot enough that it affects the local weather. Here’s a simplified diagram:

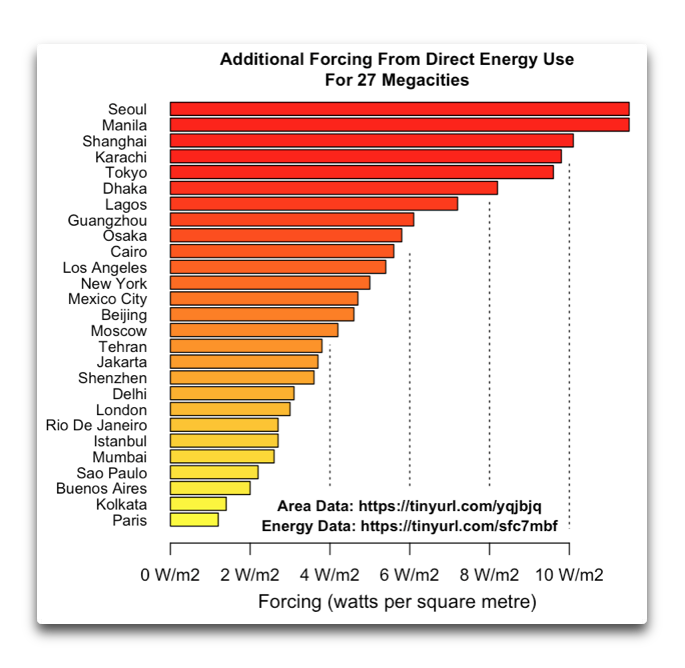

What I was curious about, however, was another kind of urban heat effect. This is the heat from all of the energy used within the city—electricity, fuel for transport, fuel for heating buildings, all of it. Eventually, almost all energy ends up as heat. So I went and got the energy usage for 27 huge “megacities”, along with the area of the city itself. I then combined the two to give me a measure of citywide energy usage in watts per square metre (W/m2). As a measure for comparison with Figure 2 below, a doubling of CO2 is said to increase the “forcing”, the total radiant energy impinging on the surface, by 3.7 W/m2.
This was surprising to me. I hadn’t expected the effect to be so large.

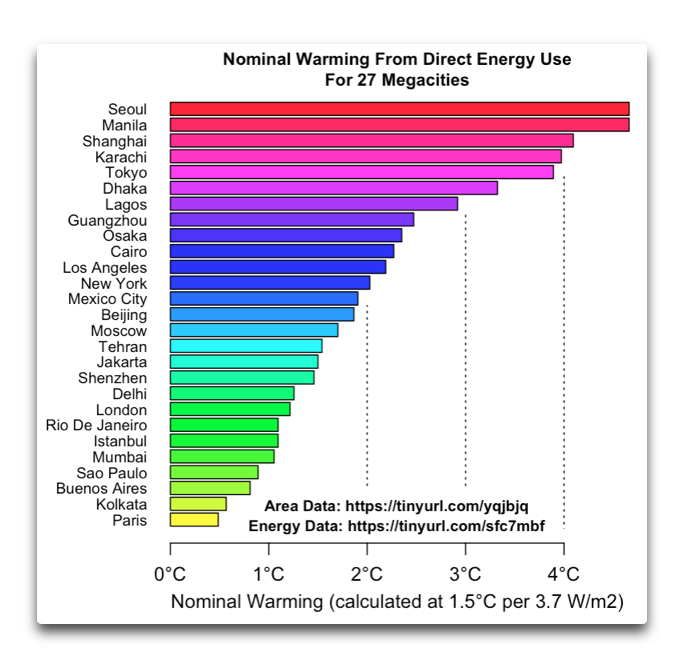

Finally, I converted the forcing to an equivalent warming. The Intergovernmental Panel on Climate Change (IPCC) fifth assessment report, completed in 2014, gave a likely “Transient Climate Response” of about 1°C to 2.5°C for each additional 3.7 W/m2 of forcing. I’ve used 1.5°C because the heat generation persists over time. As a result, the cities have had time to equilibrate to the additional heating. Figure 3 shows that result.
Not much more to say about all of that. Note that this is a “first cut” analysis, I make no overarching claims about the accuracy of the results. I’ve used conservative assumptions and the best data I could find. It looks to be a significant additional heating source due to direct energy usage in the densest of the largest cities, one that is not generally included in the calculations of the Urban Heat Island.
Here, I’m in the Forest Cool Island, life is good. I spent my morning crawling around under my house successfully putting a new “generator” into my floor furnace so we now have a warm house again, a less than pleasant job that came complete with a veritable plethora of bad words. Then I got out the pumice stone and scrubbed a toilet bowl until it sparkled, and this has been my afternoon project … do I know how to have fun, or what?
My very best wishes to each of you,
w.
[UPDATE] In the comments below, someone asked about human body heat and how that affects the forcing in megacities. Humans on average put out on the order of 120 watts continuously. Here’s how that plays out.
You can see how densely populated Seoul, South Korea is …
DATA: I’ve appended the data below, in comma-delimited form. PJ is petajoules, 10^15 joules.
City, PJ, km2,Population Beijing, 952, 6562, 21516000 Buenos Aires, 702, 10888, 3054000 Cairo, 282, 1600, 10230000 Delhi, 316, 3182, 11034000 Dhaka, 350, 1353, 8906000 Guangzhou, 1474, 7711, 14043000 Istanbul, 464, 5500, 14025000 Jakarta, 589, 5100, 10075000 Karachi, 339, 1100, 14910000 Kolkata, 78, 1785, 4486000 Lagos, 350, 1535, 861000 London, 1065, 11391, 8825000 Los Angeles, 1848, 10780, 3884000 Manila, 918, 2521, 1780000 Mexico City, 1099, 7346, 9041000 Moscow, 1984, 14925, 12197000 Mumbai, 191, 2350, 12478000 New York, 2824, 17884, 8622000 Osaka, 1258, 6930, 2691000 Paris, 657, 17174, 2229000 Rio De Janeiro, 384, 4540, 6718000 Sao Paulo, 589, 8479, 12252000 Seoul, 1848, 5076, 10197000 Shanghai, 1644, 5177, 24256000 Shenzhen, 350, 3051, 8378000 Tehran, 1145, 9500, 8154000 Tokyo, 2438, 8014, 13839000
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
Nice work, Willis,
This fits comfortably with a boring, lengthy review of UHI that I posted on WUWT a year or so ago. My strong conclusion was that UHI is an effect that probably distorts land surface records unacceptably, but those in paid research that should research and correct it at trying to avoid it. Mostly, Though I did reference a few papers worth reading. Geoff S
Auckland city is the largest in NZ. Assuming that it is powered by NZ’s largest hydro power plant, I have always assumed that the city is warmed by the amount of power used. I have asked a number of people what would happen if the power to Auckland was cut and the water was allowed to run down the spillway. Would the river heat up? I reckon it would, and electrical engineers agree with me. Everybody else disagreed. Everybody else is wrong!
“As a measure for comparison with Figure 2 below, a doubling of CO2 is said to increase the “forcing”, the total radiant energy impinging on the surface, by 3.7 W/m2.”
err no. That’s TOA
As for anthropogenic heating?
why guess when there is science?
data I have discussed before
http://www.cgd.ucar.edu/tss/ahf/
other stuff
https://www.nature.com/articles/sdata2017116
one of my favorite authors
https://www.sciencedirect.com/science/article/pii/S1352231015302156
The great thing is the vast vast major of GHCNV4 stations are not in urban areas.
There is large literature on this issue. No envelope backs required.
In fact if you read the primary literature on UHI, as any good researcher should do, you will find references in things called footnotes!
The temperature meters don’t have to be *in* the urban areas, just down wind of them, in order to suffer from UHI.
“It looks to be a significant additional heating source due to direct energy usage in the densest of the largest cities, one that is not generally included in the calculations of the Urban Heat Island.”
huh
The urban heat island is typically measured in one of two ways.
1. A comparison of an urban station with a nearby rural station.
2. A transect run across the city.
The Difficult job is ACCOUNTING FOR THE SOURCES OF THE EXCESS HEAT.
http://meteora.ucsd.edu/cap/docs/sailorandlu.pdf
One of the sources is from Anthropogenic heating.
So you want to know about Seoul? Well go study the science!!
https://link.springer.com/article/10.1007/s13143-015-0065-6
Willis: “It looks to be a significant additional heating source due to direct energy usage in the densest of the largest cities, one that is not generally included in the calculations of the Urban Heat Island.”
Science: “Anthropogenic heating by human activity is one of the key contributing factors in forming urban heat islands, thus inclusion of the heat source plays an important role in urban meteorological and environmental modeling. In this study, gridded anthropogenic heat flux (AHF) with high spatial (1-km) and temporal (1-hr) resolution is estimated for the whole South Korea region in year 2010 using a statistical regression method which derives based on similarity of anthropogenic air pollutant emissions and AHF in their emission inventories. The bottom-up anthropogenic pollutant emissions required for the regression method are produced using the intensive Korean air pollutants emission inventories. The calculated regression-based AHF compares well with the inventory-based AHF estimation for the Gyeong-In region, demonstrating that the statistical regression method can reasonably represent spatio-temporal variation of the AHF within the region. The estimated AHF shows that for major Korean cities (Seoul, Busan, Daegu, Gwangju, Daejeon, and Ulsan) the annual mean AHF range 10–50 Wm−2 on a grid scale and 20–30W m−2 on a city-scale. The winter AHF are larger by about 22% than that in summer, while the weekday AHF are larger by 4–5% than the weekend AHF in the major Korean cities. The gridded AHF data estimated in this study can be used in mesoscale meteorological and environmental modeling for the South Korea region.”
Willis: “It looks to be a significant additional heating source due to direct energy usage in the densest of the largest cities, one that is not generally included in the calculations of the Urban Heat Island.”
the science
http://www.meteo.fr/icuc9/LongAbstracts/gd5-1-2961311_a.pdf
“All cities emit heat into the planetary boundary layer. A small but important source of this heat is human
activity and its associated burning of fossil fuels for urban transport, industrial processing, and domestic
heating and cooling (Oke, 1982). Combustion processes in cities set the anthropogenic heat flux, which is
an important forcing term in models of the urban heat island effect and global climate change (Allen et al.,
2011; Flanner, 2009). In perhaps the earliest study to quantify the thermal effects of human activity on
urban climate, Eaton (1877) calculated the heat released from coal combustion in the Metropolitan District
of London in the late nineteenth century. Accounting also for the ‘vital heat’ of the city’s 3.5 million
inhabitants, Eaton predicted these sources to raise the air temperature in London by 1.4 K (cited in Garnett
and Bach, 1965). In a more detailed study, Ichinose et al. (1999) used numerical models to simulate air
temperature changes of > 2 K by these same effects during winter nights in central Tokyo.
Published estimates of anthropogenic heat release originate mostly from wealthy, mid-latitude cities such
as Tokyo and London, with few comparable estimates from cities of tropical or low-income regions. The
literature could therefore profit from a universal set of anthropogenic heat flux densities representing cities
of diverse geography, and having consistent methods of derivation. Herewith, we initiate the development
of such a dataset. Using an inventory approach, we calculate heat flux densities at metropolitan scale for
the world’s 27 megacities, i.e., urban agglomerations of more than 10 million people. The global distribution
of these cities—and our use of a common methodology—allows for regional insight into the economic,
climatic, and demographic influences on anthropogenic heat release in urban environments.”
“The urban heat island is typically measured in one of two ways.
1. A comparison of an urban station with a nearby rural station.”
It’s not just sufficient to use a nearby rural station. The rural station has to be located outside the impact zone of the UHI.
Tim
You said, “The rural station has to be located outside the impact zone of the UHI.” That means it has to be upwind, or orthogonal to the wind direction.
Thanks, Mosh. You keep saying that you know all about UHI, and how Berkeley Earth has removed the UHI from their data. Perhaps you’d explain this, then.

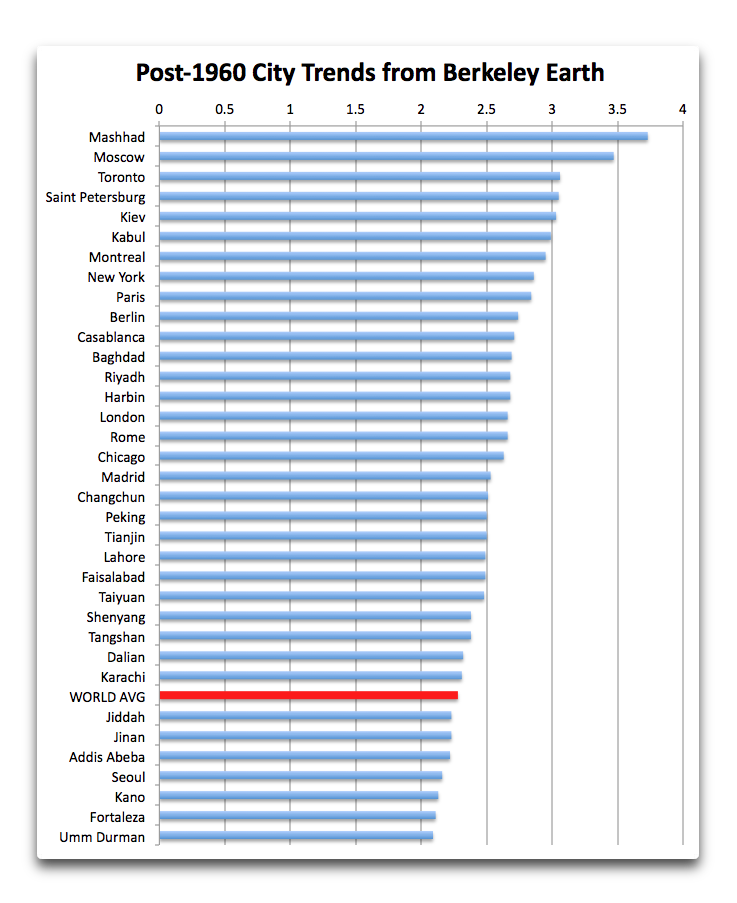

The “WORLD AVG” is the global average temperature trend per Berkeley Earth … and of all of the datasets, Berkeley Earth has the highest trend.
