ENSO predictions based on solar activity

From Dr. Judith Curry’s Climate Etc.

Posted on September 1, 2019 by curryja

by Javier

By knowing or estimating where in the solar cycle we are we can get an estimate of the chances of a particular outcome even years ahead.

El Niño Southern Oscillation (ENSO) is the main source of interannual tropical climate variability with an important effect on global temperature and precipitation. Paleoclimatic evidence supports a relationship between ENSO and solar forcing. Moy et al. (2002) attribute the long-term increasing trend in ENSO frequency to orbitally induced changes in insolation (figure 1). The ENSO proxy record described by Moy et al. (2002) displays a millennial-scale oscillation that in the middle Holocene shifts its variance from a 1000-1500-yr period to a 2000-2500-yr period (Moy et al. 2002, their figure 1c). Both frequencies correspond to known solar periodicities, the Eddy and Bray solar cycles. As it has been shown previously (see “Centennial to millennial solar cycles“) the 1000-yr Eddy solar cycle became weaker at the Mid-Holocene Transition regaining strength in the last 2000 years. This 14C-deduced solar behavior corresponds to the ENSO behavior described by Moy et al. (2002).

Figure 1. a) Inverted global average temperature anomaly reconstruction (black line, right scale) from the 73 proxies used by Marcott et al. 2013. The temperature scale has been rescaled to produce a difference of 1.2 °C between the Holocene Climatic Optimum (HCO) and the Little Ice Age, supported on a consilience of glaciological, biological and marine sedimentary evidence that supports a 1-1.5 °C difference. b) Inverted obliquity (purple line, left scale). c) ENSO frequency (black, left scale) measure as the number of strong El Niño events in a 100-yr sliding window, from Moy et al. 2002. ENSO activity was very low during the HCO and has been increasing as the planet cooled during the Neoglacial, following changes in insolation caused by orbital changes in precession and obliquity.

In 2000 Theodore Landscheidt published an article in the proceedings from a meeting presenting his hypothesis of a solar forcing of El Niño and La Niña. He was not the first to defend such hypothesis, as 10 years earlier Roger Anderson (1990) had published some evidence for a solar cycle modulation of ENSO as a possible source of climatic change. Landscheidt’s (2000) article contains two observations and two predictions. The first observation is that most extreme ENSO events correlate with the ascending or descending phase of the solar cycle. He predicted the following El Niño based on the sun’s orbital angular momentum for 2002.9 (± 0.4). It was a 2-year ahead accurate prediction, as the next El Niño started in 2002.67. The second observation was the alternating preponderance of El Niño and La Niña following the 22-year Hale magnetic solar cycle. The 1954-76 Hale cycle showed Niña preponderance, and was followed by the 1976-96 that presented Niño dominance. While this is based only on two complete Hale cycles for which there is instrumental ENSO data it is interesting to read Landscheidt other prediction:

“If the pattern holds a preponderance of La Niña is to be expected during the Hale cycle that began in 1996.”

The Hale cycle-ENSO association is unclear to me due to insufficient data but it is undeniable that both of Landscheidt predictions were correct. Anderson’s and Landscheidt’s articles were completely ignored by the scientific community and they are rarely cited even by authors studying the same subject.

In 2008 van Loon & Meehl showed that the Pacific Ocean displayed a response to peak solar activity years similar to La Niña event years in the Southern Oscillation, but with a different stratospheric response. Haam & Tung (2012), however, failed to find an association between solar peak and La Niña years and warned that two autocorrelated time series might present a spurious correlation by chance. As I will show the problem is in the assumption that ENSO must display a linear response to solar activity with ENSO extremes at maximal and minimal solar activity. This assumption turns out to be false and the analysis of Haam & Tung (2012) using peak-solar years is misleading.

ENSO is usually described as a 2-7-year oscillation, while the Schwabe solar cycle is an 11 ± 2-year oscillation, so no linear relationship is obvious. White & Liu (2008) defend that most El Niño and La Niña episodes from 1900–2005 are grouped into non-commuting pairs that repeat every ~ 11 years, aligned with rising and falling transition phases of the solar cycle as Landscheidt (2000) described (they don’t cite him). These alignments arise from non-linear phase locking between an 11-year solar forced first harmonic and the 3rd and 5th 3.6 and 2.2-year harmonics in ENSO. These solar-forced 3rd and 5th harmonics explain ~ 52% of inter-annual variance in the Nino-3 temperature index. White & Liu (2008) propose “a new paradigm for ENSO, with El Niño and La Niña driven by the solar-forced quasi-decadal oscillation via non-linear processes in the tropical Pacific delayed action/recharge oscillator.”

Despite the evidence for a solar forcing of ENSO the accepted paradigm from model studies is that ENSO is self-excited or driven by internal variability random noise.

More recently two solar physicists, Leamon & McIntosh (2017), reported on the coincidence of the termination of the solar magnetic activity bands at the solar equator every ~ 11 years since the 1960s with a shift from El Niño to La Niña conditions in the Pacific. Their report prompted me to examine the issue, observing a pattern repetition since 1956 (figure 2). The solar minimum is preceded by Niña conditions, followed by Niño conditions, and afterwards Niña conditions accompany the rapid increase in solar activity.

Figure 2. Top: Six-month smoothed monthly sunspot number from SILSO. Bottom: Oceanic El Niño Index from NOAA. Red and blue boxes mark the El Niño and La Niña periods in the repeating pattern. This figure was published in July 2018 in an article at WUWT. Since then the Niño prediction has been confirmed.

If we assign 50% probability for seasonal positive or negative ONI (Oceanic Niño Index) values, the probability that the solar minimum will be preceded by Niña conditions, and followed by Niño conditions for six consecutive solar minima by chance is of only 0.024% (1 in 4000). The probability of the entire pattern (Niña-Niño-Niña) repeating six times at a specific time is even lower, indicating that the association between solar activity and ENSO is not due to chance. Solar control of ENSO has led to the prediction of El Niño conditions in 2018-19 by me, and to La Niña conditions in 2020-21 by Leamon & McIntosh (2017). The 2018-19 Niño prediction has been correct.

To perform a no-assumptions analysis of solar activity-ENSO correlation it is necessary to correct for the irregularities in the solar cycle, that can last from less than 9 years to more than 13. Since the sunspot dataset is very noisy I have chosen the 13-month smoothed monthly total sunspot number from SILSO.

The smoothed monthly number results from an averaging of monthly mean values over 13 months, from 6 months before to 6 months after a base month. All months are weighted equal except for the extreme ones, which are weighted by 1/2. This smoothing has been used since the early 20th century to define the times of maximum and minimum for each cycle.

Since solar minima have different levels of activity and different length, the starting and ending months for each solar cycle are defined for the purpose of this study not from the solar minimum, but from the first month that presents >30 smoothed monthly sunspots. This point in the cycle, at the beginning of the rapid ascending phase is more unambiguously defined to a single month that the solar minimum allowing for more confidence in a proper alignment of the solar cycles.

Defined in this way the last six complete solar cycles (SC18-23) have durations between 121 and 159 months. To correct for this variable length each solar cycle is divided into 22 bins that for a regular 11-year solar cycle would contain 6 months, but depending on the cycle length they can have from 5 to 8 months. After the procedure the variable solar cycle length has been normalized into a solar cycle unit (Figure 3).

figure-3

Figure 3. Thin lines, solar cycles 18-24 with their respective durations normalized in terms of a full cycle and divided in 22 bins. The average monthly smoothed sunspot number for each bin is represented as a point. Thick line, average solar activity for the normalized solar cycles. Grey area standard deviation.

The analysis is restricted to the period 1950-2018, when ONI data and the smoothed monthly sunspot number were available.

ONI values are also grouped into bins corresponding to the solar activity bins. For each 1/22 fraction of the solar cycle we have six 5-8 month sunspot bins from the six solar cycles considered, and the corresponding six 5-8 month ONI bins for the same dates. The values in each bin are averaged and the mean and standard deviation for the six bins corresponding to the same solar cycle fraction obtained. The ONI dataset has a near-normal distribution with a mean very close to zero (figure 4).

Figure 4. Distribution of the 816 twelve-month periods in the 1950-2018 ONI database according to their average ONI value. The distribution follows a near-normal distribution with a mean of 0.025.

The numerical treatment of ONI values is not expected to produce values significantly different from zero if solar activity has no significant effect on ENSO. Also ONI values are expected to deviate randomly from zero at each solar cycle fraction without presenting an 11-year pattern if solar activity has no effect on ENSO. By contrast what we find is clear departures from zero, whose statistical significance will be analyzed later, and an 11-year pattern. The 22 ONI averaged values organize in two periods of more probable El Niño and two periods of more probable La Niña (figure 5). This is likely a reflection of the non-commuting El Niño and La Niña pairs that repeat every ~ 11 years found by White & Liu (2008).

Figure 5. a) Average (black line) and standard deviation (grey area) solar activity in monthly smoothed sunspot number (left scale) for the solar cycles between 1950-2018 divided in 22 fractions of a solar cycle. b) Average (dark red and blue areas) and standard deviation (pink and light blue areas) ONI values (right scale) for the same periods. The plot has been divided in five phases (dashed vertical lines) labeled in roman numbers (see text).

Attending to ONI zero-line crossing and variability I have divided the solar cycle into five ENSO phases. Phase I starts when the peak in solar activity is reached (c. 2.5 years into the cycle as defined on average), and lasts around two and a half years during which El Niño conditions are more probable, following the peak in solar activity. Phase II, of another two and a half years length, coincides with declining solar activity. This is a highly variable period when strong La Niña conditions might take place, but during most cycles it has presented strong El Niño conditions. This might be related to the string of very active solar cycles that between 1935 and 2004 have constituted the Modern Solar Maximum, and might represent a delayed response to above average insolation. This phase corresponds to Landscheidt’s observation of strong events during the declining phase of the solar cycle that would correspond preferentially to Niña or Niño depending on the Hale cycle. Phase III, of around three years, coincides with the final decline in solar activity towards the solar minimum, and usually presents La Niña conditions. Particularly frequent is a La Niña right before the solar minimum (figure 2). Phases I to III correlate in general terms with solar activity and might represent a response to solar irradiance. The last two phases display anti-correlation to solar activity. Phase IV, a short period of about 1.5 years, starts around the time of minimal solar activity, but it results in El Niño conditions that can be considerably strong at times, like in 1998. Afterwards, phase V coincides with the period of rapidly rising solar activity, that very reproducibly presents La Niña conditions. Phase IV and V do not appear to follow changes in TSI, so the suggestion by Leamon & McIntosh (2017) that they could depend on other solar parameters or galactic cosmic rays appears reasonable. Certain solar wind properties change trend at the solar minimum, like its electric field strength, or the Alfvén Mach number that reflects plasma wave speed, that peaks at the minimum. Solar wind effects on the magnetosphere have been known for long, and solar-wind-induced changes in the global electric circuit affect weather parameters at the troposphere (Lam & Tinsley 2016).

Now we can see why Haam & Tung (2012) could not find a correlation between solar peak years and La Niña, as this condition takes place preferentially during the 1.5-2 years prior to the solar peak.

To analyze how statistically significant is the solar effect on ENSO I chose Phase V that presents the biggest ONI departure from zero and even its standard deviation range does not include the zero value. A specific procedure was followed for the statistical test. The smoothed monthly sunspot number was set to zero at the solar minimum and 100 at the solar maximum for each cycle. The months when the sunspot number increased from 35% to 80% of the maximum for each cycle were selected as they define the rapid ascent in solar activity that on average lasts one year. The 76 ONI values corresponding to those months from six solar cycles (SC19-24) have an average ONI value of -0.65. Consider this: six periods of ~ 1 year selected on a solar activity criterion display an average full fledged Niña condition. What are the chances of that? To find out I made a dataset with all the 12 consecutive months averages in the ONI database (816 instances, figure 4) and then randomly picked six of them and averaged them. I did that 100,000 times in a Monte Carlo analysis and only in 0.7% of the tests I obtained an equal or lower ONI average. The La Niña -0.65 ONI value at 35 to 80% solar activity has a 99.3% probability of not being due to chance. ENSO is under solar control.

Of course ENSO is not exclusively under solar control as it is a very complex phenomenon, and thus we shouldn’t expect that the patterns are always reproduced. However it is clear from paleoclimatic data (Moy et al., 2002), solar physics (Leamon & McIntosh 2017), Modeling and reanalysis (van Loon & Meehl 2008), frequency analysis (White & Liu 2008), and the present analysis, that solar activity has a clear strong effect on ENSO, probably being its main forcing. The reported 2-7-year ENSO periodicity appears to be an 11-year periodicity with several occurrences. The present (mid-2019) position in the solar cycle is at the transition between phases III-IV, close to the solar minimum. With some uncertainty due to the irregularity of the 11-yr solar cycle, a La Niña can be projected for phase V, by mid-2020 (Leamon & McIntosh 2017). The failed El Niño projection from February 2017 by ENSO models (figure 6) took place at the transition between phases II and III in figure 5, a time when the solar cycle favors La Niña conditions that finally developed a few months later. This is an instance when ENSO prediction from solar activity would have been superior to models.

Figure 6. ECMWF ENSO forecast for February 2017 indicating Niño conditions for late summer at a time solar activity favored Niña conditions due to the transition from phase II to III. Finally Niña conditions developed.

The solar effect on ENSO could be responsible for the detected global temperature variation of 0.1-0.2 °C between solar cycle maximum and minimum (Tung and Camp, 2008), attributed to tropical evaporative feedback (Zhou and Tung, 2013). ENSO is the leading mode of interannual variability in the tropical climate system, with a global impact on surface temperature and precipitation. Its frequency has been implicated in interdecadal shifts in the tropical Pacific climate (Kumar and Hu 2013). The latest shift in 2000 has been related to the subsequent reduced rate of warming observed during the pause, a period characterized by a higher frequency of La Niña, until the 2015 El Niño put an apparent end to it. Given the clear association between solar activity and ENSO, an interesting question is if long-term changes in solar activity could be responsible for long-term changes in ENSO frequency. To compare them, 10.7 cm solar flux data, and ONI data were smoothed with a Gaussian filter equivalent to an 11-year moving average (figure 7).

Figure 7. Gaussian smoothed 1950-2018 Oceanic Niño Index (black line delimiting red and blue areas, right scale), and Gaussian smoothed 1950-2018 10.7 cm solar flux, a proxy for solar activity (thick dashed line, left scale). A 4-year lagged 10.7 cm solar flux (thick continuous line) shows that periods of high solar activity tend to coincide with periods of predominant Niño conditions, and periods of low solar activity tend to coincide with periods of predominant Niña conditions.

Long-term changes in ENSO frequency are compatible with long-term changes in solar activity. Peaks and troughs in ENSO frequency follow with a ~ 4-year lag peaks and troughs in long-term solar activity. Since ENSO activity is clearly directed by solar activity (figure 2), it is likely that the long-term correlation between both has a physical basis. If the effect of long-term changes in solar activity has to account for this lagged long-term effect on ENSO, its effect on global temperature must be much higher that the effect detected over a single solar cycle. By altering ENSO frequencies, solar activity might alter the decadal rates of warming, leading to periods of increased warming and periods of reduced warming (pauses). The 2015 El Niño has put an apparent end to the La Niña-predominant period since 2000, and to the period of reduced warming. However, if the relation between solar activity and ENSO frequency is maintained, we can project that both should continue until long-term solar activity increases again in the future.

How can we use solar activity to improve our ENSO predictions?

Figure 5 shows a probabilistic plot of ENSO in terms of solar activity. By knowing or estimating where in the solar cycle we are we can get an estimate of the chances of a particular outcome even years ahead. This can then be compared to models output when they become available. If they disagree like it happened in February 2017 we should reduce our confidence on the model prediction, and increase it when there is agreement. Landscheidt method also deserves closer attention to examine how well it has performed since 2000. Leamon & McIntosh (2017) have predicted a Niña for 2020, and over a year ago I predicted the 2018-19 Niño based on solar activity at an article at WUWT.

It is clear that even in a crude form solar activity is useful for ENSO prediction and no doubt the method can be improved enormously as Landscheidt suggested: “these problems can only be solved by a joint interdisciplinary effort of open-minded scientists.”

Data sources and bibliography [ link]

Advertisements

103 thoughts on “ENSO predictions based on solar activity

    • Are you kidding? Most scientists, including some that regularly contribute to WUWT, do not accept any solar variability effect on climate beyond a small effect of ~ 0.1°C from the solar cycle.

      • Climate is a very complex interaction of atmospheric and oceanic fluid flow which we are just beginning to decipher the interdependencies, however since the primary (if not only) energy source is the sun, one would be foolish to assume it had little affect on the atmosphere or oceans and hence climate.

        • The Science is settled. The sun has absolutely nothing to do with the climate. Anybody who says otherwise is a science hater and a denialist.

        • There is no truth to the video’s opening premise. The statements made by Ben Davidson regarding “TSI failures” were wrong on so many levels, and as he is not a scientist he doesn’t know how to interpret data properly, so he promotes alternative fantasy theories.

          The TSI story is one of the best in modern science.

          So what if some scientists say there is a ~ 0.1°C effect. The average net change from a solar cycle measured over four full cycles in the TSI record might be construed that way by someone but ignores that the strongest cycles had the largest net temperature gain, more than 0.1°C. The ocean responds to the TSI impulse at the start of a solar cycle, and thereafter the climb up to the maximum and down again following year-year TSI changes at a nominal rate of 0.5°C/Wm-2.

          https://i.postimg.cc/zB8x1cmX/98-ENSO-and-TSI-SC23-Cycle-Onset-El-Nino.jpg

          https://i.postimg.cc/zGDsFjh1/Solar-Cycle-Influence-on-SST.jpg

          If there’s anything I’ve noticed over the years is Ben is never challenged by his following, and I remember him only showing up here twice, once where he only said “I am the Suspicious Observer’, and some time years later commenting to Leif, calling Willis, ‘Willy’.

          Today, unless the facts change there is only a slim chance there will be a grand solar minimum. It’s just another solar minimum right now, and as long as Leif S. is right that the next cycle will be as strong as SC24, the GSM can be safely ignored past 2030, as the top of the next cycle will be warm again, with more El Nino(s), just like we’ve been talking about here on this blog.

          https://i.postimg.cc/KvWBXQCS/No-GSM-Now-SC25-Predictions-13.jpg

          That means our future is certainly not all cold bad news like many youtube alarmists say.

          Extended low solar activity, low TSI, is going to be responsible for another very hard winter in much of the NH, not low solar wind or high cosmic rays or low clouds, no – extended low incoming energy – electromagnetic energy.

          https://i.postimg.cc/hjkKvS21/Lo-TSI-Hard-Winters.jpg

          It’s a joke that Ben Davidson talks such a big game for years about electromagnetic climate forcing when he can’t even see the biggest such effect to save his life. What is going on is he is forcing his wrong ideas on people through people like you who will post the link, yet I seriously doubt he would show up here himself to argue his case, or care if you got chided like this.

          Just because he says some things that are true doesn’t mean everything he says is true, and I find his audience is not very discerning and you all do not challenge him, mainly because you’re lacking data, so really, he’s just another cult-of personality figure self-promoter. He carefully controls the environment he works in so no one can challenge him in his arena.

          Tiburon, I can’t stop you from promoting his pseudo-science, but if you keep posting this link here whenever I see it expect more of the same. Please consider it is junk science mixed with just enough truth for most to swallow.

  1. What a delight it is to read this fascinating posting by Judith Curry? This is what science is all about: observing the wonders of Nature and trying to understand her better. It is most helpful to have this indication that the underlying cause of the El Nino Southern Oscillation is solar.

    • Hello Lord Monckton,

      As you requested, on August 30, 2019 I sent you two emails on Civil RICO matters.

      If you did not receive these, please contact me through my website.

      Thank you.

    • This is what the Enlightenment is about. Bringing ideas to the table and have a discussion about them. When they attack the people behind the idea instead of the idea your are most probably facing an absolute and totalitarian human made idea(religious or ideology) ?

      • Based on my background in the earth sciences, I knew by 1985 that the catastrophic global warming hypothesis was false – the global cooling period from ~1940 to 1977 was sufficient evidence, since fossil fuel combustion strongly accelerated circa 1940 at the onset of WW2.

        When the Mann hokey stick paper was published in 1998 (MBH98) and enthusiastically promoted by the IPCC, I knew it was fraud, because MBH98 eliminated from the historic record both the Medieval Warm Period and the Little Ice Age.

        Many trillions of dollars and millions of lives have been squandered since then on global warming alarmism – the most costly and destructive fraud in the history of humanity.

        • I agree and the logical scientific response to that conclusion is something else caused the warming, CO2 is not a driver of climate, and so on.

          As opposed to calling everyone a denier that points out the basic observational facts and there logical consequences. The Paleo record shows both hemispheres are changing cyclically at the same time which rules out solar insolation at 65N being the driver as the two hemispheres are out of phase in terms of summer solar insolation.

          There are a dozen independent observations that disprove the summer solar insolation at 65N theory which is all we have plus super amplification of any forcing which is also a dead theory to explain the glacial/interglacial cycle.

          What is missing, scientifically is a list and understanding of the solar mechanisms that change climate directly and indirectly, particularly for the large cyclic climate changes such as the Younger Dryas (YD is an abrupt cooling event; interglacial warm back to glacial cold for 1200 years with 70% of the cooling occurring in less than 10 years and the cooling occurred when solar summer insolation at 65N was at a maximum).

          We discussed this paper at Wattsup as the editor was fired for considering publishing a paper that provide ice core data that shows there is cyclic warming in the southern hemisphere, same periodicity as the northern hemisphere, which of course has a cause and the cause is not CO2 change.

          http://wattsupwiththat.files.wordpress.com/2012/09/davis-and-taylor-wuwt-submission.pdf

          Davis and Taylor: “Does the current global warming signal reflect a natural cycle”

          …We found 342 natural warming events (NWEs) corresponding to this definition, distributed over the past 250,000 years ….

          …. The 342 NWEs contained in the Vostok ice core record are divided into low-rate warming events (LRWEs; < 0.74oC/century) and high rate warming events (HRWEs; ≥ 0.74oC /century) (Figure). …

          …. "Recent Antarctic Peninsula warming relative to Holocene climate and ice – shelf history" and authored by Robert Mulvaney and colleagues of the British Antarctic Survey ( Nature , 2012, doi:10.1038/nature11391),reports two recent natural warming cycles, one around 1500 AD and another around 400 AD, measured from isotope (deuterium) concentrations in ice cores bored adjacent to recent breaks in the ice shelf in northeast Antarctica. ….

          Greenland ice temperature, last 11,000 years determined from ice core analysis, Richard Alley’s paper. William: As this graph indicates the Greenland Ice data shows that have been 9 warming and cooling periods in the last 11,000 years.

          http://www.climate4you.com/images/GISP2%20TemperatureSince10700%20BP%20with%20CO2%20from%20EPICA%20DomeC.gif

    • It is not a post by Judith Curry. It is a post by the person whose uses the nom du blog of Javier. He first posted this material at Judith Curry’s website JudithCurry.com.

  2. Best article I’ve read here on WUWT in a long time. I’m happy that T. L finally gets an honorable mention after so many years of being ridiculed for his views.

  3. “these problems can only be solved by a joint interdisciplinary effort of open-minded scientists.”

    It should be obvious to everyone, most of all scientists, that Dr. Theodore Landscheidt really got royally screwed over by the scientific community for his work on predictive analysis of how the Sun contributes to changing variability of weather on Earth by the change of the rotary force driving the sun’s oscillatory motion about the centre of mass of the solar system. Of course, he was dismissed as an astrologer, just as today skeptics are dismissed as deniers. I predict he will be exonerated by time.

    The day I got my first 486 computer in Dec/93, the first scientific type interest papers that I downloaded was that of an obscure meteorologist who had just made an observation about the change of latex paint to oil based paint on the standard white weather box slightly changing the recorded temperatures. The other was some work by a Dr. Theodore Landscheidt (below) with his work leading up to his papers predicting a serious cooling by 2030. That was the day I became a true skeptic, since it was a lightbulb moment for me.

    http://www.landscheidt.info/?q=node/302
    http://bourabai.kz/landscheidt/new-e.htm

    • Ted received many honors from the scientific community, being cited for “outstanding achievements in the field of Solar Cycle Research.”

      Sourde

      Further he was member of the American Geophysical Union, New York Academy of Sciences, of the European Science and Environment Forum, the European Environmental Academy and Wittheit zu Bremen. He was Director of the International Research Committee on Environmental Impacts of the University of Brussels.
      In 1992, he received the award of the Dewey Institute in California in the research of the cycles for “outstanding merits in the field of research of the solar cycles”, and for “the great contribution to the research of the Sun-Earth cycles.”

      Source (German, google translation

      • When I tried to find out more about Dr. T. Landscheidt on Wikipedia, there was no mention of his qualifications, only a disparaging description that he was “an author, an astrologer and an amateur climatologist”. To which was added the warning:

        This article is being considered for deletion in accordance with Wikipedia’s deletion policy.
        Please share your thoughts on the matter at this article’s entry on the Articles for deletion page.
        Feel free to improve the article, but the article must not be blanked, and this notice must not be removed, until the discussion is closed. For more information, particularly on merging or moving the article during the discussion, read the guide to deletion.
        Find sources: “Theodor Landscheidt” – news · newspapers · books · scholar · JSTOR

        This article relies too much on references to primary sources. Please improve this by adding secondary or tertiary sources. (August 2019) (Learn how and when to remove this template message)”

        Looks as if Dr. Landscheidt’s observations and predictions were too close to being correct for the “true believers”.

        Perhaps someone knows more about him will take up Wikipedia’s challenge.

  4. I liked your calculation of odds. So much of this is familiar but you found a unique way to describe it.

    A few years ago I independently confirmed Landscheidt’s observations by identifying a ‘solar cycle onset’ El Nino (ascending) and El Nino(s) after monthly F10.7 surpasses 120sfu for a sufficient time towards/after the cycle maximum (TL’s descending), and used my finding in 2014 to predict that the pending El Nino was contingent upon the return of higher solar activity, described in my 2018 AGU poster, with a clear TSI solar cycle influence on equatorial heat content and ENSO indices. [Correlations aren’t very high because TSI is very aperiodic over 12 years.]

    Since ENSO activity is clearly directed by solar activity (figure 2), it is likely that the long-term correlation between both has a physical basis. If the effect of long-term changes in solar activity has to account for this lagged long-term effect on ENSO, its effect on global temperature must be much higher that the effect detected over a single solar cycle. By altering ENSO frequencies, solar activity might alter the decadal rates of warming, leading to periods of increased warming and periods of reduced warming (pauses).

    This is precisely true. Long-term sunspot activity controls Nino1234 to a very high correlation, and 30-year integrated MEI drives a very strong linear correlation to 30-year HadSST3. It’s absolutely deterministic via solar activity.

    These relationships together with the others I independently developed are the core of a reliable sun-climate prediction system that is ENSO-centered. I also predicted since last year the impending Nino34 drop we are finally seeing now from very low solar activity, then onto the next cycle, where solar cycle strength models based on my F10.7cm 120sfu solar-ocean warming threshold show the expected possible top of cycle and descending phase cycle warm pulse outcomes.

    The goal 5-6 years ago was to make it into a practical solar-based data-driven climate science. We’re there!

    The new cycle climate response should cement all these learnings of everyone’s here for everyone else. I hope SC25 is at least as strong if not stronger than SC24, as Leif forecasts, so we can see it more clearly. SC24 has provided so many examples of solar forcing; the next one will have similar analogs to compare.

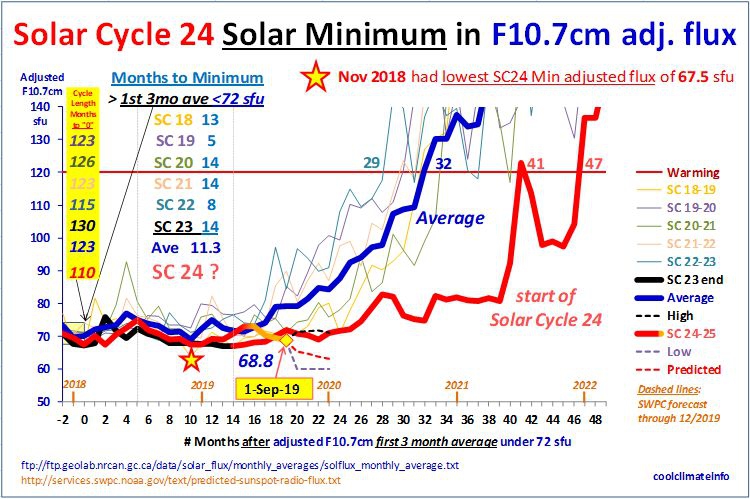

    Speaking of the solar minimum and the next cycle if we haven’t reached the minimum, this cycle is now 129 months long, one month shy of the SC23 length. It’s evident SC24 slowed down very early, a record early low level.
