Peak Oil, Abiotic Oil & EROEI: Real(ish) Things That Don’t Matter, Part One: Peak Oil

Guest Seinfeld routine by David Middleton

The plots of the Seinfeld TV show often revolved around trivializing important things and blowing trivial things out of proportion. While not a Seinfeld fanatic (I’m more of a Frasier fanatic), I thought the comedy routines were generally brilliant and quite effective.

Peak Oil, abiotic oil and EROEI (energy returned on energy invested) are largely academic concepts. They are the subject of books, academic publications and Internet “debates” The “debates” about Peak Oil, abiotic oil and EROEI are a lot like the Seinfeld show. They magnify the trivial and trivialize things that actually matter. The “debates” often divide into two camps:

  1. It’s the end of the world (Peak Oil, EROEI).
  2. It’s our salvation from the end of the world (Abiotic oil).

While all three of these energy-related topics are, at least to some extent, real, none of them have the slightest relevance to energy production… except for Peak Oil… But the relevance is generally missed by both sides in Internet “debates.”

I had originally intended on combining Peak Oil, abiotic oil and EROEI into one post; but realized that it would have been longer than Tolstoy’s War and Peace. So, this post will be limited to Peak Oil. Part Deux will deal briefly with abiotic oil and Part Trois will deal more extensively with EROEI.

Peak Oil: A Real Thing That Doesn’t Matter

What is Peak Oil?

In its simplest form, “Peak Oil” is the point at which petroleum production reaches its maximum rate. It is based on the work of Shell geologist M. King Hubbert (Hubbert, 1956). It’s simply a mathematical approximation of how the production rate of oil, gas or any other depleting resource will change as the resource is recovered. Hubbert’s logistic function yields a maximum production rate at the time half of the resource has been produced. Reality is messier than this; but Hubbert’s logistic function is a decent approximation, particularly for regional analyses. In its most common form, “Peak Oil” is applied to oil producing regions, nations and the world.

This was Hubbert’s 1956 “forecast” for Peak Oil in the US:

Figure 1. Hubbert’s 1956 Peak Oil forecast for the US. (Hubbert 1956).

Peak Oil is highly dependent on the total volume of a resource that will be recovered. Note how the “peak” moves forward in time as the total volume of recoverable oil is increased. Hubbert’s forecast wasn’t looking too bad as recently as recently as 2008. However, the recoverable resource was much larger than 150 or 200 billion bbl.

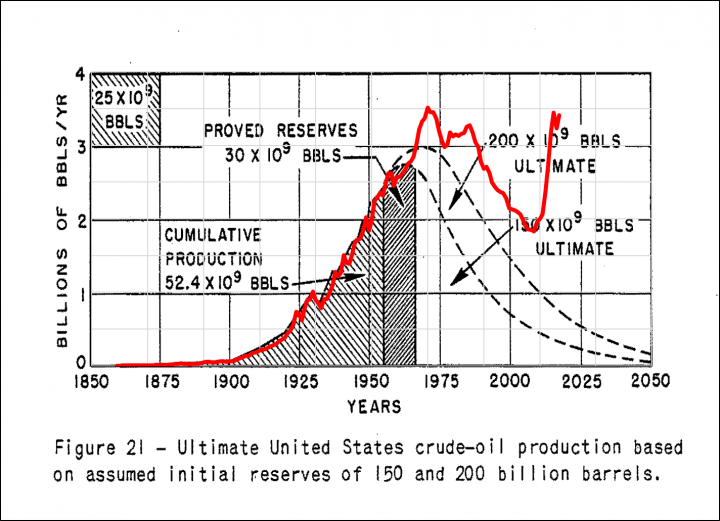

Figure 2. Hubbert 1956 with US oil production through 2017.

Through 2017, cumulative production totaled over 222 billion bbl and proved reserves stood at just under 40 billion bbl.

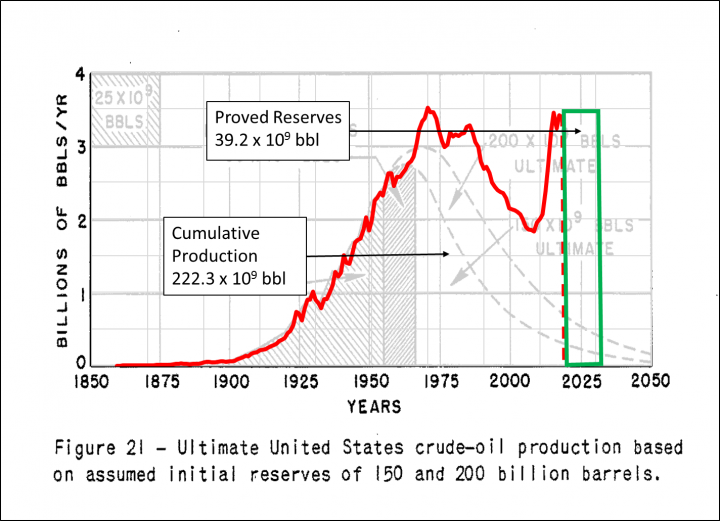

Figure 3. Figure 2 with US proved oil reserves.

In order to estimate when US Peak Oil will occur (or has occurred), we would need to know how much of the oil resources, not classified as proved oil reserves, will be recovered. At best, this is a SWAG. The Bureau of Ocean Energy Management (BOEM) estimates that there are about 90 billion bbl of technically recoverable oil remaining on the US Outer Continental Shelf (OCS). Until proved reserves and the estimated undiscovered resource begin to decline, it will be impossible to forecast Peak Oil.

How do we know that Peak Oil is real?

Let’s start out with a simple, generalized depiction of an oil reservoir.

Figure 4. Generalized oil & gas reservoir. (Petropedia)

Every oil well, every reservoir and every oilfield has or will reach a peak oil production rate, followed by a steady decline. The rate of decline and recovery rate are generally functions of the reservoir drive mechanism.

The reservoir drive mechanism supplies the energy that moves the hydrocarbon located in a reservoir container toward the wellbore as fluid is removed near the wellbore. There are five common drive mechanisms:

Water drive

Gas expansion

Solution gas

Rock or compaction drive

Gravity drainage

One type usually dominates, but drive types can occur in combination. Depending on the drive mechanism, characteristic recovery efficiencies can be expected for a given reservoir.

AAPG Wiki

When an oil and/or gas well is completed, the production casing is perforated at the level of the reservoir. The virgin reservoir pressure is considerably higher than the pressure in the wellbore. This causes the oil and/or gas to flow into the wellbore and to the surface. As the oil and/or gas are removed (voided) from the reservoir a combination of two things generally occurs.

  1. The reservoir pressure begins to decline.
  2. Formation water begins to move up-dip.

Water drive and gas expansion (pressure depletion) drives are the most common drive mechanisms.  One feature shared by all drive mechanisms is that the maximum production rate occurs early in a well completion’s life cycle.

Figure 5. Oil reservoir drive mechanisms. (AAPG Wiki)


A water drive reservoir will exhibit increasing water production as oil production declines. The oil is “swept” up-dip as the water table rises to accommodate voidage of the oil. Strong water drives are the best oil reservoirs; but not very good gas reservoirs.

Figure 6. Water drive reservoir. (AAPG Wiki)

Gas solution (pressure depletion) drive reservoirs will exhibit a drop in reservoir pressure and an increase in the gas:oil ratio (GOR) as the oil production rate declines. These are poor-performing oil reservoirs; but the best performing gas reservoirs.

Figure 7. Solution gas drive reservoir. (Schlumberger)

The drive mechanism determines how much of the original oil in place (OOIP) can be recovered:

Drive
Mechanism
Energy SourceRecovery (% OOIP)
Solution gas
drive
Evolved solution gas expansion5–30
Gas cap driveGas cap and evolved solution gas
expansion
20–40
Water driveAquifer expansion35–75
Gravity
drainage
Gravity5–30 (incremental)

Table 1. AAPG Wiki

These percentages can be increased through secondary (water flood) and tertiary (carbon dioxide injection) methods. Future technological advances will probably lead to improved recovery rates. However, 100% recovery rates are highly improbable.

Oifields are groups of well completions in reservoirs. They behave much like the individual reservoirs do. All oifields eventually peak, as will global oil production. When will this happen? I have no idea.

Eugene Island 330 was once the largest field in the US Gulf of Mexico in total oil & gas production (BOE). Although it has been surpassed by Shell’s deepwater Mars field, it is still one of the biggest oilfields in the Gulf and the largest (BOE) field on the shelf (<1,000′ water depth).

Figure 8. Eugene Island 330 Field, oil production rate vs cumulative oil production (David Middleton, data from BOEM).

Eugene Island 330 field has produced almost 500 million bbl of oil and 1.9 TCF (trillion cubic feet) of gas from September 1972 through January 2019. The field averaged 8,200 bbl/d in 2018. Note how the production ramped up quickly, peaked and then tailed off slowly.

When we look at the aggregate oil production from US Gulf of Mexico shelf, we can see a Hubbert-like pattern:

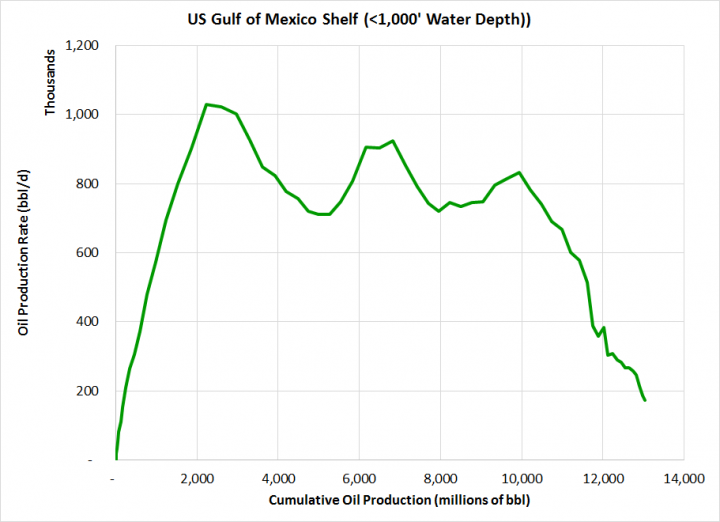

Figure 9. US Gulf of Mexico shelf (water depth <1,000′)
oil production rate vs cumulative oil production (David Middleton, data from BOEM).

The US Gulf of Mexico shelf has passed “Peak Oil.” An opening of the Eastern Gulf of Mexico to E&P operations would probably yield a short resurgence in oil production; but in terms of oil production, the shelf is in permanent decline. There is still a lot of potential for gas on the shelf; but much of this is uneconomic at today’s natural gas prices. Fortunately, the Gulf of Mexico doesn’t stop at a water depth of 1,000′.

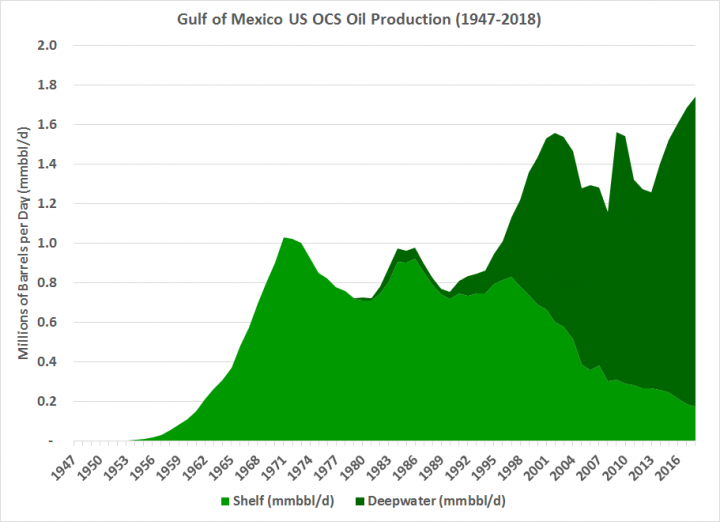

Figure 10. US Gulf of Mexico oil production, including deepwater. (David Middleton, data from BOEM)

The thing about “Peak Oil” is that there are many different types of peaks.

Ingenuity/economic peaks

Peak Oil in the Williston Basin of North Dakota appears to have occurred in 1985:

Figure 11. “Total annual oil production in North Dakota” millions of barrels per year. North Dakota Geological Survey.

Then the oil industry, largely led by Continental Resources, figured out how to economically produce oil from one of the basin’s most prolific source rocks, the Bakken formation.

Figure 12. Figure 9. merged with North Dakota crude oil production. EIA

The Bakken was a key factor in the “shale revolution.” Hubbert’s 1956 Peak Oil forecast for the US looked pretty good before the “shale revolution.”

Political peaks

Figure 13. North Slope exploitation scenario if all areas were open to E&P (exploration and production). (Thomas et al., 2009)

Oil production from the North Slope of Alaska peaked in 1990, due to the fact that ANWR Area 1002 and the Beaufort & Chukchi Sea OCS (outer continental shelf) areas have been generally inaccessible for political reasons.


How do we know that Peak Oil doesn’t matter?

Oilfields, like individual reservoirs, generally exhibit exponential decline curves. The decline curve flattens out over time. The average decline rate for mature oilfields is about 5%. Giant oilfields average about 3% decline rates.


Figure 14. Average decline rates of giant oilfields. (Höök et al., 2009)

However, this is not the only reason for the slow tail off. Most of the capital expenditures occur early in the life of an oil discovery. Once the field is online, the cash flow from the oil & gas production only needs to cover the costs of operating the field. Furthermore, the cost to plug and abandon (P&A) a field can be quite expensive, particularly for offshore fields. Continuing to operate a cash flow-negative oilfield is economically preferable to incurring the P&A costs.

The North Slope of Alaska is an example of this. Production from the giant Prudhoe Bay oilfield ramped up very quickly, peaked in 1990 and tailed off.

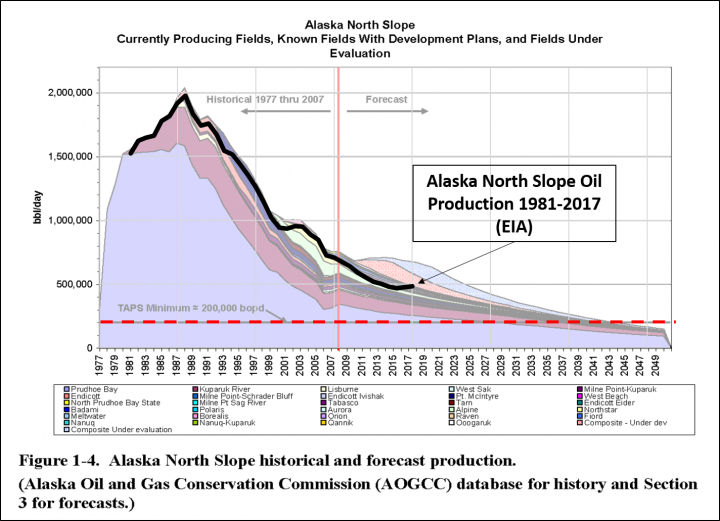

Figure 15. North Slope oil production, historical through 2007, forecast 2008-2050 (Thomas et al., 2009), updated with historical production through 2017.

The Trans-Alaska Pipeline System (TAPS) can’t function below a rate of 200,000 bbl/d. Operators of North Slope oilfields have a very powerful incentive to maintain production rates well-above 200,000 bbl/d.

When global Peak Oil actually occurs, it will probably be driven by demand, rather than supply. The supply is ample and diverse. Note the impact that the decline of the largest oilfield in the world, Saudi Arabia’s Ghawar, and the collapse of Venezuela’s oil production have had on global oil production:

Figure 16. Petroleum liquids production (includes crude, condensate, oil shale, oil sands and NGL). USA in red, Venezuela in yellow.

Dean Wormer would describe the impact as…

Figure 17. “Zero-point-zero!”

Inflation-adjusted oil prices have exhibited no statistically significant trend over the past 50 years.

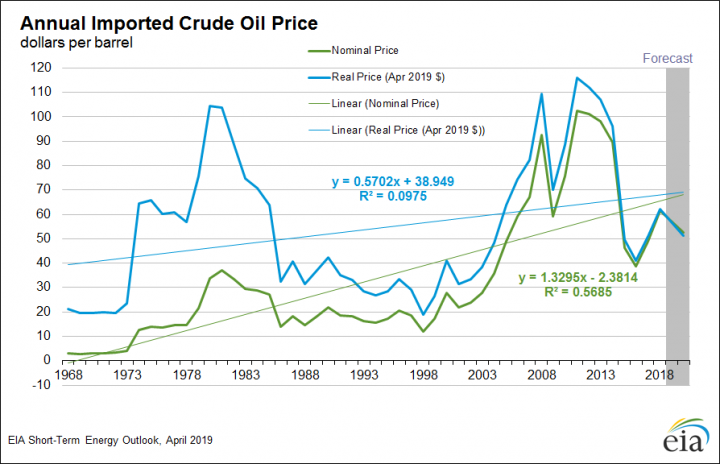

Figure 18. Annual average imported crude oil price. EIA Short-Term Energy Outlook, April 2019.

The “shale revolution” coincided with the 2006-2014 period of generally high oil prices. It’s often said that $100/bbl oil was a bigger factor than horizontal drilling and frac’ing. This is true to a point. However, the collapse in oil prices since 2014 forced the shale players and the rest of the oil industry to reduce costs… And the industry did this “with a vengeance.”

Figure 19. Shale play breakeven prices. (World Oil)

Continental Resources, the leading Bakken player, has generated positive operating cash flow every year since 2014 and three straight years of positive free cash flow 2016-2018.

EOG Resources, the leading shale player nationwide, has generated positive operating cash flow every year since 2014 and positive free cash flow in 2014 and 2017-2018.

Chevron, the top US oil producer and major Permian Basin player has generated positive operating cash flow every year since 2014 and positive free cash flow 2017-2018.

It was actually more difficult for shale players to generate free cash flow with $100+ oil prices than it has been at $50-60/bbl. $100+ oil made it almost impossible to control spending. The drop from $100-$30/bbl made it worse. However, the drop in prices created leverage to reduce costs, particularly rig rates and service company expenses. Everyone, conventional and unconventional players alike, ratcheted down spending from 2015-2017. Breakeven prices for the shale plays plummeted over this period.

Note: Unconventional oil is often no different than conventional oil. The Bakken shale was the source rock for many conventional migrated oil accumulations trapped in porous and permeable sandstone and carbonate reservoirs in the Williston Basin. The “unconventional” aspect is in the use of horizontal wells and massive frac jobs to enable oil production directly from the low permeability source rock.

When oil prices go up, costs go up. Everything from rig day rates, to frac fluids & sand, to offshore workboats, to motel rooms in the Permian Basin. $100 oil kicked off the “shale revolution”… But wasn’t necessary to sustain it.


Over the last couple of years, E&P companies have become more efficient, forced to create investor returns at $40 – $50/barrel oil. Well productivity has improved as companies drilled longer laterals and used less proppant. After the crash in oil prices, oilfield services companies lowered their prices to compete for limited work. As oil prices recovered, the price of oilfield services was slow to catch up. Additionally, companies have more capital discipline than they ever did at $100/barrel oil prices.

Even as oil prices have started to recover, companies are showing lower breakeven costs than ever before. As shown in the chart below, breakeven prices in the Midland Basin fell by 50% from $87 in January 2014 to $44 in September 2018.

Mercer Capital

The cost-cutting was industry-wide:

Figure 20. Breakeven prices for major oil companies and shale players. (Oil Price)

Breakeven prices have been reduced onshore and offshore, conventional and unconventional.

Figure 21. Breakeven prices have been reduced in a broad range of plays. (FT)

Industry has no control over prices; but can always reduce costs by doing things more efficiently. This is why deepwater Gulf of Mexico E&P is booming at $50-60/bbl oil prices:

Figure 22. US GOM deepwater breakeven costs for greenfield (new discoveries) projects. (Offshore)

Most oil companies make final investment decisions (FID) based on the current price of oil, adjusted for the expected inflation rate over the anticipated project duration. High oil prices drew the industry to shale plays like the Bakken and Eagle Ford and out into deepwater. The industry’s “learning curve” made those plays even more economically viable at $60/bbl than they were at $100+/bbl. Peak Oil, as real as it is, simply doesn’t matter.

As long as oil prices continue to climb at least as fast as the inflation rate, the industry will be able to meet the demand for refinery and petrochemical feedstocks for a long time to come… And North America is well-positioned to dominate the 21st Century.

Figure 23. Global petroleum cumulative production, proved reserves and resource potential. (Jude Clemente).

Bear in mind that I did not factor in natural gas and most of the production data I used did not include natural gas liquids (NGL). Natural gas resources are even more abundant than crude oil and can, to some extent, serve as a replacement… Rendering Peak Oil even more irrelevant.

To Be Continued

Part Deux will address the real(ish) nature of abiotic oil and its irrelevance.

Part Trois will address the real(ish) nature of EROEI and its Seinfeldian position among irrelevant things.

About the Author

I have a B.S. degree in Earth Science (1980) from “that fine oil school,” Southern Connecticut State University. I have been employed in the US oil & gas industry as a geophysicist/geologist since 1981, mostly working the Gulf of Mexico for companies you probably never heard of.

References

AAPG Wiki.  “Drive mechanisms and recovery”.  AAPG Wiki, An Encyclopedia of Subsurface Science. https://wiki.aapg.org/Drive_mechanisms_and_recovery

AAPG Wiki.  “Reservoir Drive Mechanisms”.  AAPG Wiki, An Encyclopedia of Subsurface Science.  https://wiki.aapg.org/Reservoir_drive_mechanisms

Berman, Arthur. “Why Breakeven Prices Are Plunging Across The Oil Industry.” OilPrice.com, 10 Apr. 2017, oilprice.com/Energy/Oil-Prices/Why-Breakeven-Prices-Are-Plunging-Across-The-Oil-Industry.html.

Clemente, Jude. “How Much Oil Does the World Have Left?” Forbes, Forbes Magazine, 25 June 2015, www.forbes.com/sites/judeclemente/2015/06/25/how-much-oil-does-the-world-have-left/#3689cc6a5b1f.

Hargrave, Marshall. “Analyzing a Company’s Liquidity Using the Operating Cash Flow Ratio.” Investopedia, Investopedia, 9 Apr. 2019, www.investopedia.com/terms/o/ocfratio.asp.

Höök, Mikael & Hirsch, Robert & Aleklett, Kjell. (2009). “Giant oil field decline rates and their influence on world oil production”. Energy Policy. 37. 2262-2272. 10.1016/j.enpol.2009.02.020.

“How to Interpret Breakeven Prices.” Mercer Capital, 23 Oct. 2018, mercercapital.com/energyvaluationinsights/how-to-interpret-breakeven-prices/.

Hubbert, M. King. “Nuclear Energy and the Fossil Fuels. Presented before the Spring Meeting of the Southern District, Division of Production, American Petroleum Institute, San Antonio, Texas, March 7-8-9, 1956.” Nuclear Energy and the Fossil Fuels. Presented before the Spring Meeting of the Southern District, Division of Production, American Petroleum Institute, San Antonio, Texas, March 7-8-9, 1956, 1956. https://debunkhouse.files.wordpress.com/2017/03/1956_hubbert.pdf

Kenton, Will. “Free Cash Flow (FCF).” Investopedia, Investopedia, 13 Apr. 2019, www.investopedia.com/terms/f/freecashflow.asp.

“New Concepts, Approaches Help Bring Deepwater Projects to FID.” Offshore, 12 July 2017, www.offshore-mag.com/articles/print/volume-77/issue-7/engineering-construction-installation/new-concepts-approaches-help-bring-deepwater-projects-to-fid.html.

North Dakota Geological Survey. “Overview of the Petroleum Geology of the North Dakota Williston Basin”.

Petro Wiki.  “Solution Gas Drive Reservoirs”.  SPE Petro Wiki.  https://petrowiki.org/Solution_gas_drive_reservoirs

Raval, Anjli. “Oil Majors Return to Deepwater Drilling.” Financial Times, Financial Times, 25 July 2018, www.ft.com/content/caca46c2-8e61-11e8-bb8f-a6a2f7bca546.

“Rystad Examines What to Expect from U.S. Shale Break-Even Prices in 2017.” Rystad Examines What to Expect from U.S. Shale Break-Even Prices in 2017, www.worldoil.com/news/2017/2/28/rystad-examines-what-to-expect-from-us-shale-break-even-prices-in-2017.

Smithson, Tony.  “Reservoir Drive Mechanisms”.  Schlumberger Oilfield Review, The Defining Series.  https://www.slb.com/resources/oilfield_review/or_en_intro_article.aspx

Staff, Petropedia. “Understanding Reservoir Drive Mechanisms.” Petropedia.com, 15 Feb. 2018, www.petropedia.com/understanding-reservoir-drive-mechanisms/2/9856.

“Statistical Review of World Energy | Energy Economics | Home.” BP Global, www.bp.com/en/global/corporate/energy-economics/statistical-review-of-world-energy.html.

Thomas, Charles & B. North, Walter & C. Doughty, Tom & M. Hite, David & Sheets, Brent. (2009). “Alaska North Slope Oil and Gas A Promising Future or an Area in Decline?”.

“U.S. Energy Information Administration – EIA – Independent Statistics and Analysis.” U.S. Crude Oil, Natural Gas, and Natural Gas Proved Reserves, Year-End 2017, www.eia.gov/naturalgas/crudeoilreserves/.

“U.S. Energy Information Administration – EIA – Independent Statistics and Analysis.” Short-Term Energy Outlook – U.S. Energy Information Administration (EIA), www.eia.gov/outlooks/steo/realprices/.

Wormer, Vernon. “Zero Point Zero.” YouTube, 14 May 2009, youtu.be/2V3CfD8TPac.
