In Part A of the Great Debate series (see here) we discussed Dr. David Karoly’s and Dr. William Happer’s arguments regarding how unusual recent global warming is and how we know the recent observed increase in CO2 is due to human activities. In Part B we examined their thoughts on questions three and four. Number 3 is “How do we know that the increase in CO2 and other greenhouse gases in the atmosphere have caused most of the recent global warming?” Number 4 is “Climate models have been used to compute the amount of warming caused by human activities, how accurate are they?”
For an introduction to the debate and links to the original documents see Part A. In Part C we will examine the predictions that global warming and more CO2 are dangerous and that we (as a global society) need to do something about it.
5. How do we know global warming and more CO2 will have substantial adverse impacts on humans and the planet?
Karoly writes that we are already seeing adverse impacts from global warming and that these will continue in the future.
“Global warming has led to increases in hot extremes and heatwaves, affecting human health and leading to crop and animal losses, as well as increases in the occurrence and intensity of wild fires in some regions.
Increases in global temperature have led to global sea level rise, flooding coastal areas and causing coastal erosion and pollution of coastal freshwater systems with seawater. The impacts of storm surges, combined with global and regional sea level rise, were clearly demonstrated by the storm surge impacts of Hurricane Sandy on New York City and the east coast of the United States. Expected sea level rise by the end of this century for even the smallest projected global warming will lead to the annual flooding of many hundreds of millions of people and the complete loss of some low-lying island countries.
One of the other major impacts of climate change due to increasing carbon dioxide concentrations is the increase in carbon dioxide dissolved in the oceans. As shown below, the dissolved carbon dioxide in the upper waters of the ocean has increased in parallel with the increase in atmospheric concentration. As the oceans absorb more carbon dioxide, they become less basic (or more acidic), with a higher concentration of carbonic acid. This can be seen in the decrease in pH of ocean water by about 0.1 units over the last 30 years.” Karoly’s major statement.
Karoly acknowledges that there are some possible benefits from higher CO2 and warming, but these benefits are only for “moderate levels of global warming.” Thus, the magnitude of expected warming is important.
“The increase in carbon dioxide concentrations in the atmosphere has some potential benefits for plants because carbon dioxide is essential for photosynthesis. Plants grown in an atmosphere with higher carbon dioxide have faster growth rates and lower water use, assuming there are no other limits on growth.” From Karoly’s statement.
Happer writes in his statement:
“If increasing CO2 causes very large warming, harm can indeed be done. But most studies suggest that warmings of up to 2 K will be good for the planet [ (Tol 2009)] extending growing seasons, cutting winter heating bills, etc.” From Happer’s statement.
“More CO2 in the atmosphere will be good for life on planet Earth. Few realize that the world has been in a CO2famine for millions of years — a long time for us, but a passing moment in geological history. Over the past 550 million years since the Cambrian, when abundant fossils first appeared in the sedimentary record, CO2 levels have averaged many thousands of parts per million (ppm), not today’s few hundred ppm, which is not that far above the minimum level, around 150 ppm, when many plants die of CO2 starvation [(Dippery, et al. 1995)]. An example of how plants respond to low and high levels of CO2 is shown in Fig.  from the review by Gerhart and Ward.” (Gerhart and Ward 2010) From Happer’s statement.
Figure 7, source (Gerhart and Ward 2010)
From Tamblyn’s detailed reply:
“Temperature — specifically leaf temperature — is a critical factor in photosynthesis and crop yields. Photosynthesis is temperature-dependent: the productivity of photosynthesis is poor at low temperatures, rising to a peak around 30° C for C3 photosynthesizers, slightly higher for C4 plants. Beyond this peak, photosynthesis efficiency declines markedly, dropping to very low by around 40° C.”
This is true and well known, but Happer was careful to say that warming of up to two degrees will be beneficial and Karoly agrees (assuming “moderate” means about 2°). The average temperature of the Earth’s surface today is about 15°, well below the optimum temperature of 30°. Tamblyn also speculates that the nutritional value of plants may be less, but this is controversial. Tamblyn’s comment is irrelevant to this discussion and a red herring, the debate is not about what happens at 40°, but what has happened and will happen at moderate temperature increases.
From Happer’s interview:
“I believe that more CO2 is good for the world, that the world has been in a CO2 famine for many tens of millions of years and that one or two thousand ppm would be ideal for the biosphere. I am baffled at hysterical attempts to drive CO2 levels below 350 ppm, or some other value, apparently chosen by Kabbalah numerology, not science.” Happer’s interview.
From Happer’s final reply:
“Over most of the geological history of the Earth, CO2 levels have been much higher than now. There were no tipping points: ocean acidification was not a problem; corals flourished, leaving extensive fossil reefs for us to study today; and evolution continued its steady course on land and in the oceans, punctuated by real catastrophes, including giant meteor strikes, massive volcanic eruptions leading to vast areas of flood basalts, etc. These events probably released CO2, CH4, SO2, and other gases that significantly affected the oceans and atmosphere, but the catastrophes were not directly caused by greenhouse gases.
The only undisputed effect of more atmospheric CO2 over the past century has been a pronounced greening of the earth …” Happer’s final reply.
Happer provides an excellent discussion of the benefits of more CO2 in both his interview and his statement, they are well worth reading.
Happer disagrees with Karoly and Tamblyn’s assertions that extreme weather events, excessive sea level rise, and ocean acidification will increase and cause problems.
“One of the bogeymen is that more CO2 will lead to, and already has led to, more extreme weather, including tornadoes, hurricanes, droughts, floods, blizzards, or snowless winters. But … the world has continued to produce extreme events at the same rate it always has, both long before and after there was much increase of CO2 in the atmosphere. In short, extreme weather is not increasing. [Original reference (Pielke Jr. 2017)]
We also hear that more CO2 will cause rising sea levels to flood coastal cities, large parts of Florida, tropical island paradises, etc. The facts, from the IPCC’s Fifth Annual Report (2013), are shown in Fig. 19 [not reproduced here]. A representative sea level rise of about 2 mm/year would give about 20 cm or 8 in of sea level rise over a century. For comparison, at Coney Island, Brooklyn, NY, the sea level at high tide is typically 4 feet higher than that at low tide...
In biologically productive areas, photosynthesizing organisms remove so much CO2 during the day that the pH can increase by 0.2 to 0.3 units, with similar decreases at night when respiring organisms return CO2 to the water.” Happer’s major statement.
Thus, Happer does not believe the estimated average decrease in pH of 0.1 unit cited by Karoly is significant. After all, if the daily local range of pH is over 0.2, how can this be a problem?
Tamblyn takes issue with a graph, from Rutgers University that Happer used to show Northern Hemisphere snowfall is increasing, which it is. He shows more data that shows the yearly variation in snow fall and snow cover is increasing, although it isn’t clear what this means in terms of climate and his attempt to make it meaningful is not convincing, at least to this author. Tamblyn also claims the rate of sea level rise is going up in recent decades, but acknowledges the current rate he quotes is 3.4 mm/year or just over a foot in 100 years. We should also point out that the last few years, since 2010, the rise in sea level has slowed considerably to about 1.6 mm/year according to CSIRO. The starting and ending points matter a great deal, the record is short, measurements inaccurate and difficult, and the accuracy desired, millimeters, very small.
Tamblyn acknowledges that a small decrease in pH will have little impact, if any, on the biosphere. But, he speculates that in the future there may be some adverse impacts based on studies of areas where conditions are very unusual, such as the Southern Ocean.
The debate over extreme weather events and how man-made climate change affects them will not be settled here or by Tamblyn, Happer and Karoly. The interested reader can read the various arguments in the original documents and Dr. Roger Pielke Jr.’s congressional testimony (R. Pielke Jr. 2017) and book (R. Pielke Jr. 2010) or this summary of the discussion of extreme weather and climate change. The only rational conclusion one can come to is that we do not know if the strength or frequency of extreme weather events are affected by climate change.
Economic losses from extreme weather events have increased, but this is largely due to inflation and increases in wealth and the number of people living in areas exposed to extreme weather events, the connection to climate change is very weak, as stated by the IPCC in AR5:
“Economic losses due to extreme weather events have increased globally, mostly due to increase in wealth and exposure, with a possible influence of climate change (low confidence in attribution to climate change).” IPCC AR5, Technical Summary, page 49.
In his final reply, Tamblyn includes a laundry list of potential dangers of climate change, but these are all speculative and based on models that use an assumed climate sensitivity to CO2 that is probably too high and depend upon large potential temperature increases that may or may not happen. They are largely irrelevant to the discussion because Karoly and Happer, and presumably Tamblyn, all believe that a geologically rapid temperature increase of two-degrees C or less is benign and may be beneficial. The key argument here is will we reach two degrees or more anytime soon? Or the equivalent question, is the climate sensitivity to CO2 around one or three or more? Listing hypothetical dangers to a temperature we may not reach is a waste of our time. The issue is how fast and how much.
6. Should anything be done to combat global warming?
Karoly thinks that “limiting global warming to any level requires stabilizing greenhouse gas concentrations in the atmosphere.” Due to the unmeasured but computed “CS” (climate sensitivity to doubling the CO2 concentration in the atmosphere) Karoly believes “rapid, substantial and sustained reductions in greenhouse gas emissions from human activity” are required. He continues:
“The net emissions (sources minus sinks) of greenhouse gases into the atmosphere from human activity need to fall from present levels to near zero as quickly as possible.” Karoly’s major statement.
Karoly provides our Figure 8 below as an illustration of the impact of human CO2 emissions on climate.

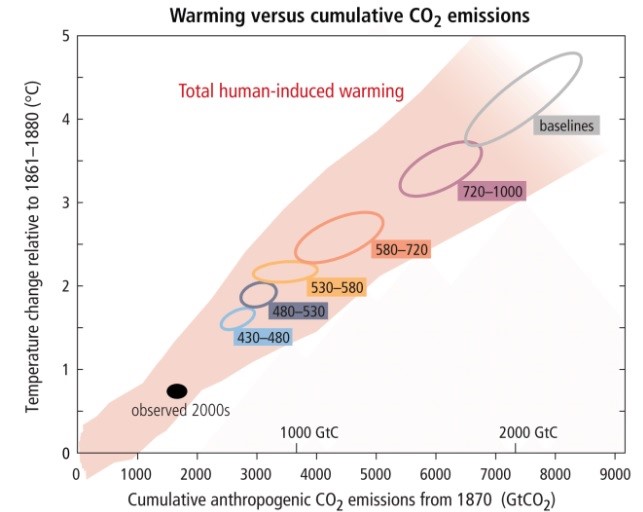

Figure 8. The IPCC estimated impact of human CO2 emissions on global average temperature. From IPCC AR5, Synthesis Report page 9 (IPCC core writing team 2014). The ellipses show the temperature change location of various IPCC emission scenarios, the numeric labels are ranges of CO2concentration in 2100 in ppm. The position of the ellipses suggests an approximate assumed CS (climate sensitivity to CO2) of just under 3.0°C/2xCO2. The plot in Figure 8 is model-based and assumes a range of CO2 emissions scenarios
that cover the shaded region. The warming shown is the warming at 2100. An unstated assumption, used to make the graph, is the expected CS, or climate sensitivity to a doubling of CO2 abbreviated “°C/2xCO2.” The 2100 CO2 concentrations on the plot imply a CS of approximately 3.0°C/2xCO2. If the CS is lower than assumed by the IPCC or Karoly, the slope of the ellipses and the shaded region will be lower than illustrated and the resulting temperatures in 2100 will be lower at each level of CO2 emissions.
The ECS or Equilibrium Climate Sensitivity is the temperature-rise reached after the oceans have equilibrated with a new surface temperature. It is unknown, but the IPCC estimates the true ECS to be between 1.5° and 4.5°C/2xCO2, which is the same range given in the Charney report in 1979. Quoting the AR5 report:
“Equilibrium climate sensitivity is likely in the range 1.5°C to 4.5°C (high confidence), extremely unlikely less than 1°C (high confidence), and very unlikely greater than 6°C (medium confidence).”
The above quote, on page 14 of the “Summary for Policymakers” has a footnote that reads as follows:
“No best estimate for equilibrium climate sensitivity can now be given because of a lack of agreement on values across assessed lines of evidence and studies.”
What they mean by the footnote is that the model results and observation-based estimates of ECS do not agree with one another, the model results are higher by a factor of almost 2 times. To reach the ECS temperature, the oceans must equilibrate to the surface temperature, the length of time required is not known, but probably many hundreds of years or more. We, as humans, are more interested in the climate sensitivity, a smaller number, the rapid (70 years or so) temperature response of the surface to a change in CO2. Happer calls this the climate sensitivity or “CS” or “S.” Generally, it is assumed that CS (or TCR as it is also sometimes called) is about 70-80% of ECS (Lewis and Curry 2015), but it varies depending upon the assumed ocean response to surface warming.
Happer estimates a feedback-free, pre-equilibrium climate sensitivity (CS) of about one-degree C/2xCO2 in his statement and explains his calculation in some detail. The final calculation, for Princeton, New Jersey is given in his equation 19. How feedbacks affect the climate sensitivity is unknown, the IPCC believes the net feedback is positive, thus Figure 6 (see Part B) shows the result of a CS near 3°C/2xCO2. As Happer notes, observations suggest the total CS, including all feedbacks, is closer to his theoretical value of one. Recent work by Nic Lewis and Judith Curry, using historical temperature and CO2 data (Lewis and Curry 2018), suggest the overall ECS is likely 1.6°C/2xCO2, with CS around 1.3°C/2xCO2. Richard Lindzen, using satellite data, has computed an ECS of 0.7°C/2xCO2 and believes the net feedbacks on CO2-based warming are negative (Lindzen and Choi 2011).
Tamblyn claims that as atmospheric temperature rises, the total water vapor in the atmosphere will rise. Water vapor is a powerful greenhouse gas, so if CO2 causes temperature to rise and temperature causes water vapor to rise, the temperature increase will accelerate – positive feedback. He supports this claim with a reference to (Soden, et al. 2002). Soden et al. base their conclusion on data from 1991-1996 and data from IPCC AR5 from 1988-2012 over the oceans. Other data on the relationship between atmospheric temperature and total water vapor content is more ambiguous and various datasets do not agree with one another very well (Benestad 2016) (Miskolczi 2010). See this review for a discussion of the ambiguity in this data. Not considered in this assumption is the unknown relationship between increased water vapor and clouds or the unknown relationship between clouds and CS. Too many unknowns to take this speculation about water vapor seriously.
With the various proposed values of CS in mind, Happer provides us with an interesting graph, shown in Figure 7. The IPCC, and most climate scientists, believe that warming of two degrees is unlikely to cause problems. In Figure 9, Dr. Happer has noted how many years it will take to reach this milestone at CS values (called S in the graph) of 0.5° to 4°C/2xCO2, the true value of CS is generally thought to lie between these two extremes. A CS of 2°/2xCO2 takes 200 years and an CS of one-degree takes 600 years. In Happer’s opinion, the truth probably lies between these two values, with values less than one possible. The value of CS, inclusive of feedbacks, is probably the most important unknown in the whole climate debate, yet we know little more about it today than we did when the Charney Report was published in 1979 (Charney, et al. 1979) (Curry 2017).
Figure 9. A plot of warming (ΔT) versus CO2 concentration in ppm, each line is a different CS (“S” or sensitivity). The feedback-free sensitivity computed by Happer is the green line and it takes 600 years to increase the Earth’s temperature two-degrees.
The recent mismatch between observed temperatures and climate model predicted temperatures is easily seen in Figure 6a in Part B, as well as in Dr. John Christy’s plot of the model average and observations in Figure 10 from Happer’s major statement.

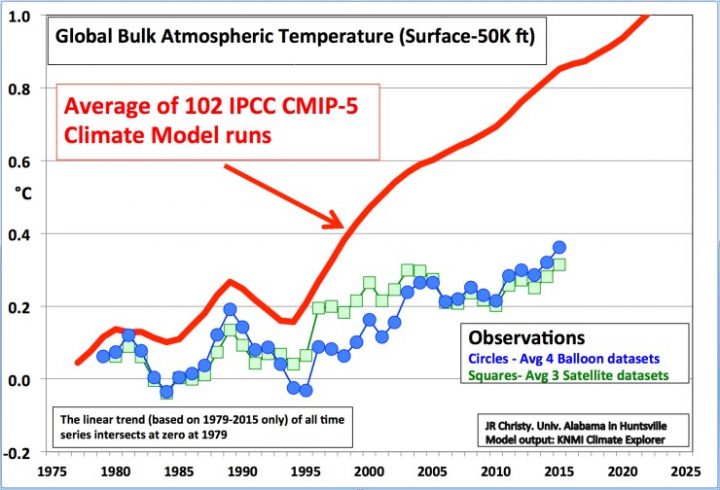

Figure 10. The model predicted temperatures are averaged and shown with the red line, the observed temperatures from weather balloons and satellite measurements are shown in blue and green respectively. The points plotted are all five-year averages to remove some of the year-to-year variability.
Happer points out that climate researchers have proposed more than 50 mechanisms for the poor model performance illustrated in Figure 10. However, in his opinion, the simplest reason for the discrepancy is that the doubling sensitivity (CS) assumed by the models (~3°C/2xCO2) is much too large. He closes the discussion of sensitivity to CO2 with this:
“The simplest interpretation of the discrepancy of [Figure 10] is that the net feedback is small and possibly even negative. Recent work by Harde indicates a doubling sensitivity of S = 0.6 K.” (Harde 2014)
So, Happer’s contention is that the “doom and gloom” predictions of the IPCC community are the result of overestimating the sensitivity of climate to CO2 concentration (CS). If they correct their sensitivity, they will find that no government intervention is needed. This is the answer to Tamblyn’s laundry list of potential man-made climate hazards. He writes:
“Is concerted governmental action at the global level desirable? No. More CO2 will be good for the world, not bad. Concerted government action may take place anyway, as has so often happened in the sad history of human folly. The Happer Interview.
Tamblyn does not believe that the period of time shown in Figure 10 (and in other figures shown in Happer’s statement) is long enough to draw any conclusions. Tamblyn also presents more estimates of ECS and they range from less than one to over five. He acknowledges that no one knows what ECS is but suggests that the estimates “cluster around 3.” Not very precise when so much hangs in the balance. Far too many conclusions in climate science seem to have their roots in “guesstimates” like this one.
From Happer’s final reply:
“It is immoral to deprive most of mankind of the benefits of affordable, reliable energy from fossil fuels on the basis of computer models that do not work.” Happer’s final reply.
What is coming next?
The answers the scientists give to these two questions show that their difference of opinion on how much warming will occur in the next few hundred years leads them to different conclusions. Both agree warming could be a problem if the warming is large, perhaps more than two-degrees, perhaps the limit is larger, but both agree that warming will be a problem if it is large enough and happens very rapidly. Karoly believes the more radical model projections are possible, Happer does not.
Both agree that modest warming will benefit humankind and green the planet. Their differences center around the value of CS.
In Part D of this series I will discuss my thoughts and opinions after reading the debate documents.
Charney, J., A. Arakawa, D. Baker, B. Bolin, R. Dickinson, R. Goody, C. Leith, H. Stommel, and C. Wunsch. 1979. Carbon Dioxide and Climate: A Scientific Assessment. National Research Council, Washington DC: National Academy of Sciences. http://www.ecd.bnl.gov/steve/charney_report1979.pdf.
Soden, Brian J., Richard Wetherald, Georgiy Stenchikov, and Alan Robock. 2002. “Global Cooling After the Eruption of Mount Pinatubo: A Test of Climate Feedback by Water Vapor.” Science 296 (5568): 727-730. http://science.sciencemag.org/content/296/5568/727.
