Guest Post by Willis Eschenbach
I’ve been investigating the use of the “complete ensemble empirical mode decomposition” (CEEMD) analysis method, which I discussed in a previous post entitled Noise-Assisted Data Analysis.
One of the big insights leading to modern signal analysis was the brilliant idea of Joseph Fourier. He realized that any given waveform can be expressed as a combination of sine and cosine waves. However, there are other ways besides Fourier’s method to decompose a signal, including periodicity analysis, principal component analysis, and CEEMD.
Let me give you an example of a CEEMD analysis. Here are the intrinsic modes for the annual average number of sunspots from 1700 to 2014. The top row is the sunspot data itself. For intercomparison with other signals, it is standardized to a mean of zero and a standard deviation of one.
Figure 1. CEEMD analysis of the mean annual sunspot numbers. Top panel shows the sunspot data, standardized to a mean of zero and a standard deviation of one. Panels marked C1 – C7 show the intrinsic modes of the signal. The bottom line shows the residual, meaning what remains after the removal of modes C1 – C7 from the signal. Note that all intrinsic modes are displayed at their true size, with all scales being the same.
This is a “complete decomposition” of the raw data signal, meaning that if we add the intrinsic modes C1-C7 together plus the residual, it will faithfully and exactly reconstruct the original signal.
One thing I like a lot about the CEEMD analysis is that I can actually see how the underlying intrinsic modes vary over time. I’ve said before that ascribing an inherent cyclical mechanism to natural observations is fraught with problems. Figure 1 is a good example of these problems. Look at intrinsic mode C4. It has a small signal at about 22 years … but not all of the time. For most of the first century of the record there is little signal at all. Then there’s an intermittent small ~ 22-year signal from about 1780 to 1850 ,,, which fades out and after a few year hiatus is replaced by a single ~ 25-year cycle, and that in turn is replaced with a ~ 22-year cycle out to the end of the data.
Or we can consider intrinsic mode C6, which varies in a similar irregular fashion. Mode C6 has a couple of strong cycles with a period of around 90 years at about 1800, and it then kind of tails off to nothingness. This makes it obvious why it has been so hard to discuss the existence or non-existence of the so-called “Gleissberg Cycle”, which Gleissberg claimed was ~ 80 – 100 years. When cycles come and go like that, it is hard to draw any firm conclusions. I mean, the ~ 80 – 100 year cycle is definitely there … but it’s only there when it is there, and the rest of the time, well, it’s simply not there.
Unfortunately, these kinds of appearing and disappearing cycles are far too common in natural datasets. There is a great temptation to think that they can be used for forecasting purposes … and they could if we ignore Murphy’s Law, which says that as soon as you start prophesying, the cycle will die out. For example, if we looked at the sunspot data in the year 1900, we’d think that there was a strong, statistically significant hundred-year cycle in the data … but after 1900 the cycle simply fades out to nothing.
Having seen the actual waveforms of the intrinsic modes in Figure 2, we can look at the periodograms of the various intrinsic modes to see what kind of signals exist in each of the intrinsic modes C1 to C7.
Figure 2. Periodograms of each of the intrinsic modes C1 through C7 of the annual mean sunspot number, 1700-2014. These show the strength of waves of the various periods in each on the intrinsic modes.
Figure 2 shows that most of the energy is in the ~11 year cycle, which is in intrinsic mode C3. Because the sunspot cycle varies between ten and thirteen years, the energy is not a sharp spike, but has energy across that range.
As discussed above, intrinsic mode C4 can be seen to have a very small bit of energy in the 22 year range, but as we saw in Figure 1, there’s nothing regular enough in the data to give a strong signal.
Again as discussed above, intrinsic mode C6 seems to have some energy in the 90-100 year range … but as Figure 1 shows, the ~100 year signal in C6, while strong, is mostly visible in the first half of the data. This greatly increases the odds that it is a spurious signal that could disappear in a longer record.
So that is an example of a CEEMD analysis of a signal. It gives us a picture of the intrinsic modes (Figure 1) and the periodograms of those same intrinsic modes (Figure 2). It shows the strength and the ebb and flow of the underlying cycles in the data.
Now, how else can this kind of analysis be useful? Well, it can show whether and how two distinct observational datasets might be related. As an example, here is the CEEMD analysis of both the Nino3.4 Index and the Southern Ocean Index (SOI). The Nino3.4 Index is a detrended sea surface temperature dataset for an area in the tropical central Pacific covering 5° North to 5° South and 120° West to 170° West. The SOI, on the other hand, is an index of the atmospheric pressure difference between Tahiti and Darwin, Australia. The two indexes seem to be measures of the El Nino/La Nina pumping action. The SOI and the Nino3.4 move in opposite directions, so the SOI is usually displayed inverted so that peaks in the SOI correspond with peaks in temperature. The next two figures show the CEEMD analysis of the two datasets:
Figures 3 and 4. Upper figure shows the intrinsic modes resulting from the CEEMD analysis of the Southern Ocean Index (SOI, red) and the Nino3.4 Index (black). These two datasets cover the same period as the sunspot data shown in Figure 1, 1870 – 2011.
Again, we see that there are various cycles which are strong in part of the record, but disappear or are greatly diminished in other parts of the record.
Note the close correspondence of the decomposition of the two signals, both in terms of the strength and shape of the intrinsic modes, and in their periodograms. It is clear that regardless of the fact that the Nino3.4 Index and the Southern Ocean Index are measuring different variables, they are both a measure of the same phenomenon.
And it is equally clear that there is no significant sunspot signal in either the SOI or the Nino3.4 data—the CEEMD analysis shows little commonality. Unlike the sunspot data, in the SOI and Nino3.4 data there is little strength at 11 years, and little strength at around 90 years. And again unlike the sunspots data, the majority of the energy is in the short-cycle (2-6 year) part of the spectrum.
Anyhow, that’s why I’ve grown fond of the CEEMD analysis … it shows when datasets have related cycles, and when they are unrelated.
Pushing towards full moon tonight, with Jupiter and Arcturus vying for the moon’s attention … what a world …
My best to everyone,
w.
My Usual Request: Misunderstandings bring communication to a halt, so if you disagree with me or anyone, please quote the exact words you disagree with so we can all understand your objections. I can defend my own words. I cannot defend someone else’s interpretation of some unidentified words of mine.
My Other Request: If you believe that e.g. I’m using the wrong method or the wrong dataset, please educate me and others by demonstrating the proper use of the right method or the right dataset. Simply claiming I’m doing something wrong doesn’t advance the discussion unless you can tell us how to do it right.
Yearly Sunspot Data: SILSO
SOI Data: Here
Nino3.4 Data: NOAA
Code: I’m using the “CEEMD” function in the R package “hht” for the analysis.
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
Signals could behave this way if they were harmonics of an elliptic fundamental.
Low frequency and high amplitude at aphelion, high frequency and low amplitude at perihelion.
The apparent ignorance of even undergraduate orthogonal function decomposition and the overall amateurish understanding of math and physics pervasive in the “climate science” global warming debates was a strong factor in getting me involved . Specifically it was the trivial case of getting people to understand the importance of the orthogonality of flat spectrum gray body temperature to which are added any non-flat spectral , ie : greenhouse effects . This continues to be the case when people mislabel a 255K value as some sort of fundamental “black body” temperature in our orbit when it is the result of a hypothetical step function spectrum . This causes them to fail to understand that the actual value of any computational significance is the flat spectrum value of , from Anthony’s recent post on TSI , about 278.3 . And it causes people to fail to understand the 180 year old observation this is the temperature of any gray , no matter how dark or light , body in our orbit , not just black .
If at some level in the upper atmosphere the absorption=emission spectra of the gases causes the temperature to decline from the gray body temperature to the 250s neighborhood , then that must be explained . But the “neutral” temperature which must be converged to as one leaves the atmosphere is the ~ 278 value .
NASA is complicit in promoting this ignorance by listing their step function calculated temperatures in their tables of planetary properties ( some absurdly irrelevant number in the 200s for Venus ) but not the computationally use gray body temperatures calculated simply by summing the total energy impinging on a point .
As I say , this is really trivial stuff . But until these fundamentals are settled understandings , you’re not talking physics .
I’d like to understand the history around Fourier’s insight . I have the impression that he was the first to realize that any pattern could be decomposed into , expressed in , other arbitrary orthogonal bases . I think it perhaps the next great leap after Descartes . But clearly the notion of decomposition into many other function sets rapidly evolved around the same time .
The earth is nothing like a grey body. It is a non-grey body that constantly changes reflectance in a semi-random fashion. Clouds make the whole situation even more complex.
You MUST understand the basics before you can understand the nuances . ALL real branches of applied physics follow this analytical approach . And it is the only way to start constructing a computational model providing an audit trail from the Sun’s output to our observed temperature .
And the gray body calculation explains 97% of our estimated surface temperature . So , in fact , we are very much like a gray body .
Furthermore , you give me a spectral map of the planet as seen from space , and I’ll give you back the additional couple of APL expressions to compute the equilibrium temperature for that map . But they will build on the computations for a gray sphere .
The basics are that if you observe earth ‘temperature’ over the equatorial pacific and do the same over the poles, you will find a difference. Earth does not have a uniform temperature. An average or mean temperature is a fictitious number. Neither the incoming energy from the sun is uniform on the surface and neither is the ‘blackbody’ radiation coming from the earth.
I feel you would have a problem looking at the spectral images centred on the two locations I mentioned.
Wein’s Law of Black Body Radiation.
Studied this 30 years ago as a CCNY Meteorology major undergraduate.
The “neutral” temperature was defined as 277K.
Not sure why NASA would use anything else. Odd.
Switching the wires on a speaker doesn’t seem to effect the sound volume.
Well Wien’s law is well known to give the wrong answer. Only the Planck Law gives the correct answer.
But in fairness Wien’s Displacement Law IS perfectly valid. lambdamax T is constant.
Black body radiation is a function of the single variable T x lambda (wavelength)
In my opinion, this analysis on sunspots is not relevant to any discussion on sun-climate relations. TSI is equally useless, as if there is any sun-climate relationship, it will be due to an interaction. Thus, you could hold TSI constant, and still see fluctuations related to some cycle etc.
It would seem to me the more relevant metric would be short-wave rad received at the surface. Only then can you begin to compare any cycles in the sun’s energy output, magnetic output, etc with what is happening at the surface of the earth.
So there ya go Willis …. just gave you another fun project. Run your CEEMD on surface short wave data, or some proxy of short wave received at the surface, and get back to us with what you find! 🙂
just a foot note, Solarham is used by ham radio operators on a regular bases for many obvious reasons. And of course the short waves movement should have a variable heat effect. if my brain functions correctly here.
Short wave radiation as in under 1 micron wavelength or short wave radio?
The term “shortwave” as used in climate references, almost invariably means SOLAR SPECTRUM radiation, which contains 98% of its energy between 250 nm and 4.0 microns wavelength which is between 0.5 and 8 times the peak spectrum wavelength of 500 nm (for a roughly 6,000 K black body spectrum.
I wish people would say solar spectrum instead of short wave. LWIR of course usually refers to the BB like radiant emission from an earthlike body at about 288 K (for earth surface mean)
Earth’s surface Temperature can be found anywhere between about -94 deg. C in the midnight Antarctic highlands, to +60 deg. C in the hottest tropical northern deserts (all at the very same time, so maybe 150 deg. C range
And TSI cycling might be able to change that by about 0.07 deg. C. based on a simple BB based calculation, and neglecting cloud modulation which will wipe most of that out completely.
G
Well sunspot data is known to be periodic with an 11 year period. That’s why Willis’s analysis works. If you want to add all of the as yet not accurately modeled earth climate variations to that, you should take on that task yourself.
Given that the biggest terrafloputers are incapable of modeling that, you should hardly expect Willis’s X-box to do it for you.
G
It seems that the majority of the discussion on this post has devolved into various arguments about the what and how of the sun’s contributions to our planet’s _______ (fill in the blank with weather, climate, earthquakes, clouds, cycles and their attributions, etc.)
I, on the other hand, am a lot more interested in the mathematical analytical technique (that I had never heard of before) rather than the solar and ocean temp. applications that Willis has chosen to apply it too. That has got me wondering whether this analytical technique could be applied to some more practical things in life like:
Rapidly Identifying someones speaking, singing, or phone voice based on the timbre created by how their vocal chords propagate sound through various oral and nasal physical cavities.
Rapidly identifying spoken phonemes based on the changes in sound frequency spectra.
Rapidly identifying someone by using this analytical technique on the pattern of changes in intensity and color of one’s iris when scanned circumferentially around the pupil.
And more . . . .
Wish I had the time to learn the mathematical technique and then try some of these ideas out.
10 years ago I bought a DVD with on it a “multimedia” database containing text, graphics, photos and acoustic records about over 500 birds. You can select a bird name and get all of it. That’s top-down search.
What I nevertheless miss since beginning is the inverse path! A cheap but good directional microphone together with a software working like you seem to describe would so prettily help in finding bottom-up the corresponding bird’s description 🙂
Are you living under a haystack ?? such analytical methods have been in use for eons, for all kinds of practical and impractical uses.
g
And you can actually buy text books that show you how to do it yourself.
george e. smith –
Although EMD and EEMD were available earlier, CEEMD was only published as a novel enhancement to the technique in 2011.
Torres, M. E., Colominas, M. A., Schlotthauer, G., Flandrin, P. (2011). A complete ensemble empirical
mode decomposition with adaptive noise. 2011 IEEE International Conference on Acoustics,
Speech, and Signal Processing, pp.4144-4147, doi: 10.1109/ICASSP.2011.5947265.
An eon is a billion years. 5 years ago is not an eon.
No, I do not live under a haystack although I have mucked cow and sheep barns in my youth. Was that meant as some kind of an insult? I did not wish for a textbook. I wished for the free time to explore this.
Well, that settles it. The Sun has absolutely nothing to do with the earth’s climate except in the fevered imagination of true believers.
‘Absolutely nothing’ is not correct either. There is a 0.1 degree solar cycle variation of global temperature, but this effect is so small that it drowns in the noise and is very difficult to dig out.
I think about 70 mDeg. C, from a dumb BB calculation assuming 0.1% TSI cycle amplitude.
G
Leif,
I have read in the past that temperature is not the main effect of the ~11 year cycle, but that the effect is mostly on regional cloud/rain patterns.
The main effect in the cycle is in the UV range – ozone production in the lower stratosphere – increased temperature (~1°C) in the tropical stratosphere at high solar activity – jet stream position pushed towards the poles, including the accompanying rain patterns.
The link to the scientific report about the effect of the sun cycle on the lower stratosphere is gone now, but another alludes to that research, without mentioning the jet streams:
https://www.sciencedaily.com/releases/1999/04/990412075538.htm
http://onlinelibrary.wiley.com/doi/10.1029/2005GL024393/abstract stratosphere – troposphere interaction
And a few reports on clouds/rain/wind patterns still do exist:
http://onlinelibrary.wiley.com/doi/10.1029/2005GL023787/abstract rainfall Portugal
http://ks.water.usgs.gov/pubs/reports/paclim99.html stream flow Mississippi delta
http://venus.unive.it/rubino/paper/JGR08.pdf river Po discharge (Italy)
https://ams.confex.com/ams/96Annual/webprogram/Manuscript/Paper282153/Gachari_Research%20Article.pdf
rainfall in Kenya
And some more here:
https://wattsupwiththat.com/2010/07/22/solar-to-river-flow-and-lake-level-correlations/
Still the global effect of the ~11 year cycle may be small (even less on longer term), but the regional effect may be quite important.
may is a weasel word.
As Tweedledee said:
“if it was so, it might be; and if it were so, it would be; but as it isn’t, it ain’t”
Leif,
OK let’s reformulate:
Still the global effect of the ~11 year cycle probably is small (even less on longer term), but the regional effect is confirmed as quite important. including implied “AFAIK” as always in science…
That goes for you too…
So whatever you claim is only as far as YOU know.
Hi Ferdinand,
It is appalling that a serious response as yours based on a lot of published research is brushed aside with the excuse of your words choice.
I respect your efforts to educate others on atmospheric CO2 changes and the carbon budget. I want you to know that the effort you put on writing a serious response to Leif Svaalgard has not been a complete waste of time.
The link to that publication that you were looking for could be this one:
Crooks, S. A., & Gray, L. J. (2005). Characterization of the 11-year solar signal using a multiple regression analysis of the ERA-40 dataset. Journal of Climate, 18(7), 996-1015.
http://www.homogenisation.org/files/private/WG1/Bibliography/Applications/Applications%20%28C-E%29/coroks_and_gray_2005.pdf
That was later updated here:
Frame, T. H., & Gray, L. J. (2010). The 11-yr solar cycle in ERA-40 data: An update to 2008. Journal of Climate, 23(8), 2213-2222.
http://journals.ametsoc.org/doi/pdf/10.1175/2009JCLI3150.1
You are corrected that the solar variability influence on climate appears linked to atmospheric changes that drive changes in cloud cover and precipitations, and only secondarily on temperatures. The link of cosmogenic isotope variation to speleothem records in the monsoon area has been highlighted multiple times, and can be seen clearly in the figure in my previous post:
https://wattsupwiththat.com/2016/04/20/ceemd-and-sunspots/comment-page-1/#comment-2195306 (green curve in A)

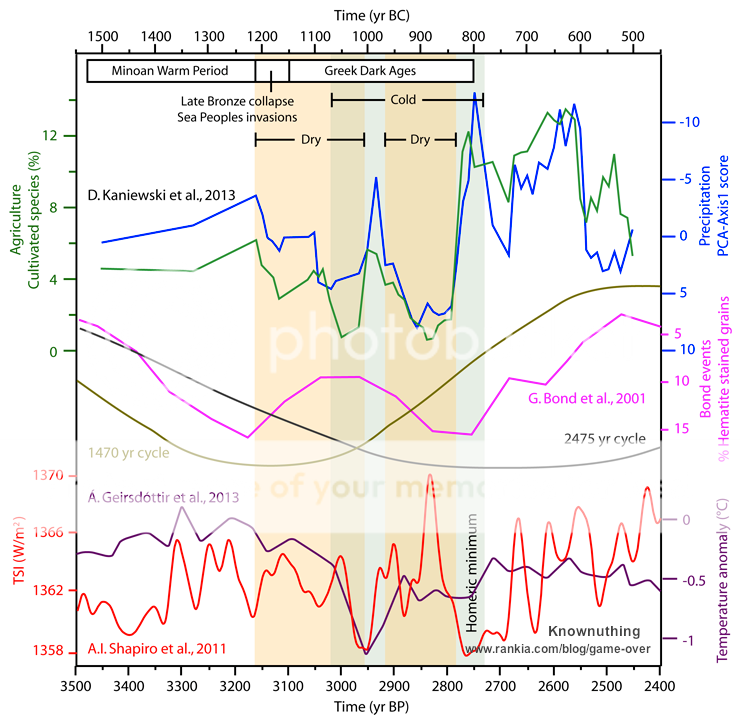

We find the fingerprints of the solar effect on climate all over the Holocene. For example the 2.8 Kyr BP event, that coincides with Bond event 2, shows very clear correspondence between solar activity, precipitations and temperatures. This was probably one of the worst periods for mankind of which we have evidence, that plunged the Mediterranean world into the Greek Dark Ages.
