Cosmic Disconnections

I read yesterday that someone had supposedly provided evidence in support of Svensmark’s hypothesis that cosmic rays affect the weather. So I went to look it up. The study is called Cloud cover anomalies at middle latitudes: links to troposphere dynamics and solar variability, by S. Veretenenkoa and M. Ogurtsova, paywalled here. Let’s look at this one backwards, first the data and then their explanation of the data. Here’s their money graph, showing the relationship between the low cloud anomaly (LCA) and the galactic cosmic rays (GCR) for the period June 1983 – December 2009:

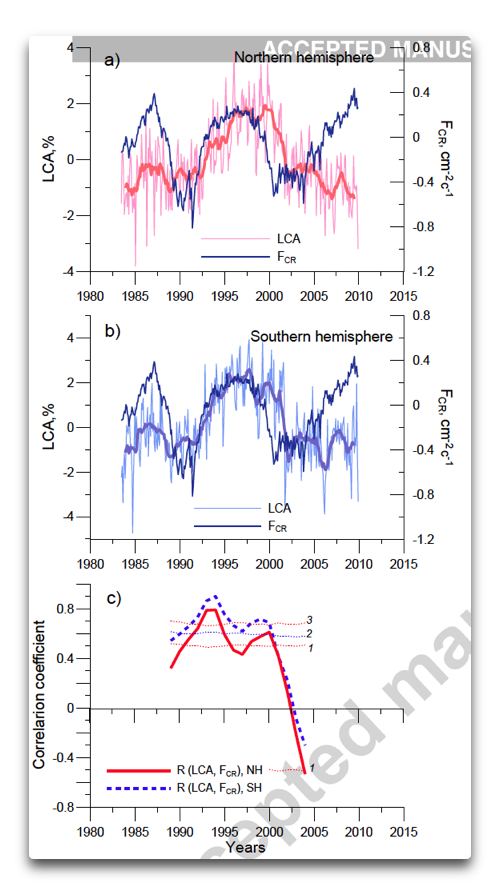

low cloud cover and cosmic raysFigure 1. ORIGINAL CAPTION: Time variations of LCA [low cloud anomaly] and GCR [galactic cosmic ray] fluxes (detrended monthly values) in the Northern (a) and Southern (b) hemispheres. Thick lines show 12-month running averages of LCA; c) correlation coefficients between yearly values of LCA and GCR fluxes for sliding 11-yr intervals in the Northern (solid line) and Southern (dashed line) hemispheres. Dotted lines show the significance levels: 0.95 (curves 1) and 0.99 (curve 3) for the Northern hemisphere; 0.99 (curve 2) for the Southern hemisphere.

Now, my interpretation of this data is that we see very little correlation between the two datasets. There is a period of common increase from about 1990 to 1997, but other than that the correlation is poor.

In addition, galactic cosmic rays vary basically in synchrony with the solar magnetic field, which like sunspots has an approximately 11 year cycle. Their data is 26.5 years long, a bit more than two cycles. This is far, far, far too short to establish any kind of correlation.

So looking at their data, I wouldn’t even begin to make any claims of anything. The data is too short, the correlations are too sketchy, and there are no common cycles in the two datasets.

Having seen that, here is their interpretation of the results as given in their abstract, from the above link:

Highlights

• Cloud cover at extratropical latitudes is closely related to cyclonic processes.

• Links between cloud cover and solar activity phenomena/galactic cosmic rays observed on the decadal tome scale are indirect and realized through changes in cyclonic activity.

• Effects of solar activity phenomena/galactic cosmic rays on troposphere dynamics at middle latitudes may vary depending on the state of the polar vortex.

Abstract

In this work we study links between low cloud anomalies (LCA) at middle latitudes of the Northern and Southern hemispheres and galactic cosmic ray (GCR) variations used as a proxy of solar variability on the decadal time scale. It was shown that these links are not direct, but realized through GCR/solar activity phenomena influence on the development of extratropical baric systems (cyclones and troughs) which form cloud field.

Let me stop here and discuss the first problem with the study, which is bad statistics. They have divided the clouds into low, middle and high clouds. These occur in low, middle and high latitudes in both the Northern and Southern Hemispheres. This gives us no less than eighteen possible places to look for the putative effect.

The problem is that the more places you look, the more likely you are to find oddities. For example, they say regarding mid-latitude low clouds:

It is seen that a rather high positive correlation significant at the levels 0.95 (the Northern hemisphere) and 0.99 (the Southern hemisphere) was observed from the middle 1980s to the late 1990s.

Now, that would be meaningful IF they only looked in one place. But if you are looking in eighteen places (three cloud levels times three latitude zones time two hemispheres), your chances of finding something “significant” at the 0.95 level are better than fifty-fifty, meaning their finding is neither unusual nor significant in any manner.

To handle this you can use the “Bonferroni Correction”. For this we need the “p-value” they are using, which is one minus their significance level of 0.95, or 0.05. The Bonferroni Correction states that you divide that p-value by the number of trials, and the result is the p-value you need to find in order to actually be statistically significant at the 0.95 level. This means that for any of their findings to be significant, they need to have a p-value of 0.05 / 18 = 0.003. This is a significance level of 0.997, and none of their results have that level of significance.

Anyhow, that’s their bad statistics … moving on, you remember how over the short 26-year length of the record the two datasets were in agreement for only a brief period, and went totally out of phase after that? Here is their description of that same situation:

The violation of a positive correlation between LCA and GCR intensity which was observed in the 1980s–1990s occurred simultaneously in the Northern and Southern hemispheres in the early 2000s and coincided with the sign reversal of GCR effects on troposphere circulation.

I gotta confess, that is one stupendous piece of writing. Me, I would say something like “the two records agreed for a short while, but after that they diverged badly”.

Not the authors. They say that there is a pre-existing “positive correlation” that is “violated” in the early 2000s, followed by a “sign reversal of GCR effects”  … say what? Sign reversal? Positive correlation violation? It is a ridiculously short record and even in that time the two datasets (LCA and GCR) diverge badly. You cannot draw any conclusions from that. Must say, though, I particularly admired their describing when the correlation totally falls apart as a time of “sign reversal of effects”

Anyhow, the data is far too short, the two datasets disagree, their description is special pleading, and their statistics are bad. I cannot justify going any further than that, I try not to dig in dry holes.

Finally, do cosmic rays affect the weather? That’s a good question. I started out thinking they did, but I’ve been unable to find any significant 11-year cycles in any surface datasets. However, cosmic rays certainly might have some effect somewhere/ All I can say is despite looking in a lot of places, I’ve not seen any data to support that claim. The studies are like this one, they fall apart when examined closely.

Now, if you think differently, if you think there are valid studies showing that cosmic rays DO affect weather down here at the surface, then send me TWO LINKS, one to what in your opinion is the most solid study you know of, and one to the data used in that study. Don’t bother sending one link. I can’t analyze the purported claims without a link to both the study AND the data. And please don’t send me a data dump of fifty studies, I’m only one guy, no assistants, I can’t examine them all.  I only want to know what you think is the one best shining example of a study that shows that GCRs are affecting surface weather, AND the data underlying that study.

My best to everyone. Here the rains have returned, and outside my window clouds thread themselves between the redwood trees on the far hillside, while a lethargic cat and I regard them through the glass … and I wish for all of you whatever in your world corresponds to watching it storm outside from a warm dry place.

w.

My Usual Request: Confusion is a huge stumbling block in written communication, so if you disagree with me or anyone, please quote the exact words you disagree with so we can all understand your objections. I can defend my own words. I cannot defend someone else’s interpretation of some unidentified words of mine.

My Other Request: If you believe that e.g. I’m using the wrong method or the wrong dataset, please educate me and others by demonstrating the proper use of the right method or the right dataset. Simply claiming I’m wrong doesn’t advance the discussion.

Previous Posts Looking For The 11-Year Cycle:

I actually wrote about looking for the 11-year sunspots / solar magnetic field / solar wind / cosmic ray cycle in cloud data some time ago, viz:

Splicing Clouds 2014-11-01

So once again, I have donned my Don Quijote armor and continued my quest for a ~11-year sunspot-related solar signal in some surface weather dataset. My plan for the quest has been simple. It is based on the fact that all of the phenomena commonly credited with affecting the temperature …

I also have posted a number of analyses of other solar studies and solar claims:

Congenital Cyclomania Redux 2013-07-23

Well, I wasn’t going to mention this paper, but it seems to be getting some play in the blogosphere. Our friend Nicola Scafetta is back again, this time with a paper called “Solar and planetary oscillation control on climate change: hind-cast, forecast and a comparison with the CMIP5 GCMs”. He’s…

Cycles Without The Mania 2013-07-29

Are there cycles in the sun and its associated electromagnetic phenomena? Assuredly. What are the lengths of the cycles? Well, there’s the question. In the process of writing my recent post about cyclomania, I came across a very interesting paper entitled “Correlation Between the Sunspot Number, the Total Solar Irradiance,…

Sunspots and Sea Level 2014-01-21

I came across a curious graph and claim today in a peer-reviewed scientific paper. Here’s the graph relating sunspots and the change in sea level: And here is the claim about the graph: Sea level change and solar activity A stronger effect related to solar cycles is seen in Fig.…

Riding A Mathemagical Solarcycle 2014-01-22

Among the papers in the Copernicus Special Issue of Pattern Recognition in Physics we find a paper from R. J. Salvador in which he says he has developed A mathematical model of the sunspot cycle for the past 1000 yr. Setting aside the difficulties of verification of sunspot numbers for…

Sunny Spots Along the Parana River 2014-01-25

In a comment on a recent post, I was pointed to a study making the following surprising claim: Here, we analyze the stream flow of one of the largest rivers in the world, the Parana ́ in southeastern South America. For the last century, we find a strong correlation with…

Usoskin Et Al. Discover A New Class of Sunspots 2014-02-22

There’s a new post up by Usoskin et al. entitled “Evidence for distinct modes of solar activity”. To their credit, they’ve archived their data, it’s available here. Figure 1 shows their reconstructed decadal averages of sunspot numbers for the last three thousand years, from their paper: Figure 1. The results…

Solar Periodicity 2014-04-10

I was pointed to a 2010 post by Dr. Roy Spencer over at his always interesting blog. In it, he says that he can show a relationship between total solar irradiance (TSI) and the HadCRUT3 global surface temperature anomalies. TSI is the strength of the sun’s energy at a specified distance…

Cosmic Rays, Sunspots, and Beryllium 2014-04-13

In investigations of the past history of cosmic rays, the deposition rates (flux rates) of the beryllium isotope 10Be are often used as a proxy for the amount of cosmic rays. This is because 10Be is produced, inter alia, by cosmic rays in the atmosphere. Being a congenitally inquisitive type…

The Tip of the Gleissberg 2014-05-17

A look at Gleissberg’s famous solar cycle reveals that it is constructed from some dubious signal analysis methods. This purported 80-year “Gleissberg cycle” in the sunspot numbers has excited much interest since Gleissberg’s original work. However, the claimed length of the cycle has varied widely.

The Effect of Gleissberg’s “Secular Smoothing” 2014-05-19

ABSTRACT: Slow Fourier Transform (SFT) periodograms reveal the strength of the cycles in the full sunspot dataset (n=314), in the sunspot cycle maxima data alone (n=28), and the sunspot cycle maxima after they have been “secularly smoothed” using the method of Gleissberg (n = 24). In all three datasets, there…

It’s The Evidence, Stupid! 2014-05-24

I hear a lot of folks give the following explanation for the vagaries of the climate, viz: It’s the sun, stupid. And in fact, when I first started looking at the climate I thought the very same thing. How could it not be the sun, I reasoned, since obviously that’s…

Sunspots and Sea Surface Temperature 2014-06-06

I thought I was done with sunspots … but as the well-known climate scientist Michael Corleone once remarked, “Just when I thought I was out … they pull me back in”. In this case Marcel Crok, the well-known Dutch climate writer, asked me if I’d seen the paper from Nir…

Maunder and Dalton Sunspot Minima 2014-06-23

In a recent interchange over at Joanne Nova’s always interesting blog, I’d said that the slow changes in the sun have little effect on temperature. Someone asked me, well, what about the cold temperatures during the Maunder and Dalton sunspot minima? And I thought … hey, what about them? I…

Volcanoes and Sunspots 2015-02-09

I keep reading how sunspots are supposed to affect volcanoes. In the comments to my last post, Tides, Earthquakes, and Volcanoes, someone approvingly quoted a volcano researcher who had looked at eleven eruptions of a particular type and stated: …. Nine of the 11 events occurred during the solar inactive phase…

Early Sunspots and Volcanoes 2015-02-10

Well, as often happens I started out in one direction and then I got sidetractored … I wanted to respond to Michele Casati’s claim in the comments of my last post. His claim was that if we include the Maunder Minimum in the 1600’s, it’s clear that volcanoes with a…

Sunspots and Norwegian Child Mortality 2015-03-07

In January there was a study published by The Royal Society entitled “Solar activity at birth predicted infant survival and women’s fertility in historical Norway”, available here. It claimed that in Norway in the 1700s and 1800s the solar activity at birth affected a child’s survival chances. As you might imagine, this…

Changes in Total Solar Irradiance 2014-10-25

Total solar irradiance, also called “TSI”, is the total amount of energy coming from the sun at all frequencies. It is measured in watts per square metre (W/m2). Lots of folks claim that the small ~ 11-year variations in TSI are amplified by some unspecified mechanism, and thus these small changes in TSI make an…

The New Sunspot Data And Satellite Sea Levels 2015-08-13

[UPDATE:”Upon reading Dr. Shaviv’s reply to this post, I have withdrawn any mention of “deceptive” from this post. This term was over the top, as it ascribed motive to the authors. I have replaced the term with “misleading”. This is more accurate…

My Thanks Apologies And Reply To Dr Nir Shaviv 2015-08-17

Dr. Nir Shaviv has kindly replied in the comments to my previous post. There, he says: Nir Shaviv” August 15, 2015 at 2:51 pm There is very little truth about any of the points raised by Eschenbach in this article. In particular, his analysis excludes the fact that the o…

The Missing 11 Year Signal 2015-08-19

Dr. Nir Shaviv and others strongly believe that there is an ~ 11-year solar signal visible in the sea level height data. I don’t think such a signal is visible. So I decided to look for it another way, one I’d not seen used before. One of the more sensitive …

Is The Signal Detectable 2015-08-19

[UPDATE] In the comments, Nick Stokes pointed out that although I thought that Dr. Shaviv’s harmonic solar component was a 12.6 year sine wave with a standard deviation of 1.7 centimetres, it is actually a 12.6 year sine wave with a standard deviation of 1.7 millime…

23 New Papers 2015-09-22

Over at Pierre Gosselin’s site, NoTricksZone, he’s trumpeting the fact that there are a bunch of new papers showing a solar effect on the climate. The headline is Already 23 Papers Supporting Sun As Major Climate Factor In 2015 “Burgeoning Evidence No Longer Dismissible!…
