Guest post by Erl Happ
The Southern Oscillation Index is a reference point for the strength of the Trade winds. It represents the difference in atmospheric pressure between Tahiti and Darwin. In figure 1 the SOI is the red line with its values on the right axis. A negative SOI reflects slack trade winds and a warming ocean. A positive index relates to a cooling globe. Note that the right axis in figure 1 is inverted.
How is it that change in surface atmospheric pressure is so closely associated with a change in the temperature of the tropical ocean? This is the major unsolved riddle in climate science. If temperature is so obviously associated with pressure on an inter-annual basis why not in the long-term? In this article I show that pressure and temperature are intimately related on all time scales. In other words, ENSO is not an ‘internal oscillation of the climate system‘ that can be considered to be climate neutral. ENSO is climate change in action. You can’t rule it out. You must rule it in. Once you do so, the IPCC assertion that the recent increase in surface temperature is more than likely due to the works of man is not just ‘in doubt’, it is insupportable.
If the IPPC can’t explain ENSO it can not explain climate change. It is not in a position to predict surface temperature. Its efforts to quantify the rise in temperature must be seen to be nothing more than wild imaginings. Its prescriptions for ‘saving the planet’ must be viewed as ridiculous.
Surface pressure data: http://www.longpaddock.qld.gov.au/seasonalclimateoutlook/southernoscillationindex/soidatafiles/index.php. Monthly temperature data: http://www.esrl.noaa.gov/psd/cgi-bin/data/timeseries/timeseries1.pl
Temperature change is linked to change in surface atmospheric pressure
Figure 1 Left axis Temperature in °C. Right axis three month moving average of the monthly southern Oscillation Index
The Southern Oscillation Index leads surface temperature on the upswing and also on the downswing. Some factor associated with change in surface pressure is plainly responsible for temperature change.
How and why does atmospheric pressure change?
The evolution of surface pressure throughout the globe depends upon the activity of the coupled circulation of the stratosphere and the troposphere in Antarctica and in the Arctic. These circulations have become more aggressive over time resulting in a loss of atmospheric mass in high latitudes and gain at low latitudes. The gain at low latitudes reflects the seasonal pattern of increased intensity in the respective polar circulations. The stratosphere and the troposphere couple most intensely in February in the Arctic and in June through to September in the Antarctic. The pattern of enhanced activity at particular times of the year is reflected in the timing of the increase in sea surface pressure in equatorial latitudes, as seen in figure 2.
Figure 2 Gain in average monthly sea level pressure between the decade 1948-1957 and the decade 2001-2010. hPa
The coupled circulation in the southern hemisphere produces a deep zone of low pressure on the margins of Antarctica that encircles the entire globe as is clearly evident in figures 3 and 4. In previous posts I have documented the change in high latitude pressure since 1948 and the associated change in wind strength, sea surface temperature and by inference, since the atmosphere is warmed by the descent of ozone into the troposphere, a change in cloud cover.
Figure 3 Mean sea level pressure January
The pressure deficit on margins of Antarctica is deepest in July (winter).
Figure 4 Mean sea level pressure July
It is of interest therefore to look at the evolution of the pressure relationship between Tahiti and Darwin (that is the essence of the SOI) over time.
Bear in mind that as atmospheric mass moves from high latitudes to the equator atmospheric pressure increases at Darwin more than it does at Tahiti and the trade winds slacken. The increase in pressure at Darwin is well correlated with the increase in atmospheric pressure in equatorial latitudes globally. The plunge is atmospheric pressure at high latitudes that enables the increase in pressure at the equator is associated with cloud loss and increased sea surface temperature in mid and low latitudes. The most abbreviated explanation of mechanism behind the loss of cloud can be found here: http://wattsupwiththat.com/2011/08/20/the-character-of-climate-change-part-3/
Figure 5 Thirty day moving average of the difference in daily sea level pressure between Tahiti and Darwin hPa.
The excess of pressure in Tahiti with respect to Darwin over the period 1999-2011 is shown in figure 5. The differential plainly evolves over time and an indication of the direction of change is given by the fitted polynomial curve.
Secondly, we can see that the pressure differential exhibits a pattern of seasonal variation. In general the pressure differential is high at the turn of the year and low in mid year.
The pattern of the average daily differential for the entire period for which daily data is available (1992 -2011) is shown in figure 6.
Figure 6 Average daily sea level pressure differential between Tahiti and Darwin over period 1992-2011. hPa
We observe that the pressure differential between Tahiti and Darwin:
• Reflects strong variability even when averaged over a period of twenty years.
• Is greatest between late December and the end of February (strong Trade winds)
• Is least between April and September (weak Trade winds).
• Shows a pattern of enhancement in February- March and also in September- October that plainly relates to the pattern of pressure increase in near equatorial latitudes evident in figure 2. The shift in the atmosphere away from Antarctica tends to enhance the pressure differential driving the trade winds all year, but in particular in September and October. So far as the Arctic is concerned the pressure loss is centered on February and March.
Why do the trades tend to fail in mid year?
Figure 7 Sea level pressure hPa. Seasonal pattern in Tahiti and Darwin.
The erosion of the pressure differential in southern winter relates to the establishment of a high pressure zone over the Australian continent. Compare figures 3 and 4 noting the difference in atmospheric pressure over Australia in summer and winter.
Change in the pressure differential (and the trade winds) over time.
In figures 8-11 the evolution of the pressure differential between 1997 and 2000 is compared with its evolution between the years 2009-2011.
Figure 8 Daily pressure differential. Tahiti less Darwin. hPa
The first and largest El Nino of solar cycle 23 began in early 1997. The first El Nino in Cycle 24 started in late 2009. The pattern of the differential is shown in figure 8. Plainly, the reduction in the pressure differential was more extreme in 1997 than in 2009.
Figure 9 Daily pressure differential. Tahiti less Darwin. hPa
The reduced differential persisted till March in 2010 and May in 1998. The last half of the year saw a strong recovery.
Figure 10 Daily pressure differential. Tahiti less Darwin. hPa
In 1999 and 2011 we see a strong pressure differential (La Nina) in the early part of the year, and in the case of 1999 this enhanced differential persisted through to the end of the year. The differential in early 2011 was much stronger than it had been in 1999.
It is noticeable that week to week variability is enhanced in 2011. I suggest that this relates to increased plasma density in an atmosphere due to reduced ionizing short wave radiation in solar cycle 24 by comparison with 23. Under these circumstances El Nino and La Nina produce a relatively ‘wild ride’.
We note the extension of La Nina into a second year.
Figure 11 Daily pressure differential. Tahiti less Darwin. hPa
2000 was a La Nina year coinciding with solar maximum. A coincidence of La Nina with solar maximum is more usual than not. On that basis one expects the current La Nina to continue into 2012. However, given the relative deficiency in short wave ionizing radiation in cycle 24 with respect to cycle 23 this time around might be different. The likely lack of a well-defined peak in cycle 24 will make a difference. If the cycle goes in fits and starts, so to will the ENSO experience.
Is the climate swinging towards El Nino as it warms?
It is a favorite meme of those who suggest that the globe is warming ‘due to change in trace gas composition’ that the climate is likely to progress towards a more of less permanent El Nino existence. Does recent history support this assetion? Is a warming globe associated with increased incidence of El Nino?
Figure 12 Average daily pressure differential Tahiti less Darwin hPa
In the six year period 1992-1997 the average daily pressure differential reveals an El Nino bias in relation to average for the entire period 1992-2011. In this period the globe warmed, but the degree of warming was subdued by the eruption of Pinatub0 in 1991.
Figure 12 Average daily pressure differential Tahiti less Darwin hPa
A cooling bias is evident over the last seven years from 2005 through to 2011.
Figure 13 Average daily pressure differential. Tahiti less Darwin. hPa
Plainly there has been a progression away from an El Nino towards a La Nina state over the twenty years since 1992. In the period to 1998 the globe plainly warmed. In the period since 1998 warming seems to have ceased. There have been a suggestion that some heat that ‘should be there’ has gone missing. Can this be read as an admission that warming has either slowed down or has actually ceased?
Conclusion:
ENSO is not climate neutral. ENSO is the reality of climate change in action. The progression towards cooling that is evident in the increasing pressure differential between Tahiti and Darwin shows no sign of abating. The ENSO state changes not only on an inter-annual time scale but on very much longer time scales. ENSO is plainly not ‘climate neutral’.
If we look back at figure 1 we will see that the Southern Oscillation Index leads the change in tropical sea surface temperature on the upswing and the downswing. The SOI is more positive (cooling) in 2011 than it has been at any time over the last sixty years.
Until the IPPC can properly account for ENSO cycles they can not attribute climate change to ‘change in trace gas composition due to the works of man’. We see an excellent correlation between surface pressure and surface temperature and no correlation at all between trace gas concentration and surface temperature.
Where is Science?
Well, this certainly gives support to those who think that lapse rate determines the temperature of a planet with an atmosphere, like Harry Dale Huffman,
http://theendofthemystery.blogspot.com/2010/11/venus-no-greenhouse-effect.html#comments
and why the average calculated temperature of Earth should be high in the atmosphere where there is a layer that does just that without a ‘greenhouse effect to be looked for to justify near ground temperatures, as in,
Understanding the atmosphere, PDF by Postma
I look forward to reading Bob Tisdale´s comments on this.
IPCC, surely (on 2 occasions)
Don’t want to attack the folks at the International Plant Protection Convention …..
Where is Science?
The “Team” has gagged it, and locked it in a basement changed to a wall. When asked if they would ever release it, the teams answer was that they would destroy it first, before they let any of those darn skeptics set it free.
And what does it all mean? Really? Nice analysis. Interesting correlations. Cause and effect? I doubt we are ready for that. It’s nice to see there isn’t a computer model involved. I guess we keep an eye on this behavior for the next 20 or 30 years and see if it hangs together.
Any predictions?
I’m not clear on a proposed mechanism other than wind shifts and pressure changes that vary with the seasons. How do these produce the temperature effects and other features of changing climate? Are these sufficient on their own? I don’t think so. It seems the seasonal pressure maps are a consequence of the average weather pattern, but I suppose that would be climate when averaged over some period of time we think is enough.
Nothing wrong with collecting observations and performing some analysis sans hypothesis. Far, far better than lying with pretty pictures produced by computer models. It seems like we still have a bunch of puzzle pieces that need to be fit together. With this post, perhaps we can say a little more of the picture is emerging.
I compare ENSO to a grandfather’s clock with a mouse running up and down the pendulum. It’s a cyclical device, but the period is variable and unpredictable, since we don’t know where the mouse is. If the mouse is most often near the bottom of the pendulum, the period is long (more ElNinos, increasing global T); if it’s staying near the top, the period is short (more LaNinas, decreasing global T). There is no reason to assume the mouse will, on average, be dead center on the pendulum!
Dead right, Erl!
Hmm… International Planet Plonckers Crowd.
Excellent post. If I got the gist of it correct:
For some reason the kinetic energy of the circulating gas at the poles increases.
As the energy of rotation increases, the atmosphere is shifted out to the equator zone by centrifugal force.
This causes an increase in atmospheric pressure in the mid band of the globe and the heat transfer coefficient (some kind of generalized coeff.) is changed.
Energy transfer for the earth is changed as temp. and pressure in the mid band of the globe changes.
Thank you Earl, that confirms what I have suspected for a while. Do you see any longer term (decadal) connection between SOI and temperature?
Julian Braggins,
I have also seen that analysis by Dr Huffman and agree that it shows that atmospheric temperature is driven by energy output from the sun, distance from the sun and air pressure. Also, I did a “back of the envelope” calculation of these factors for Titan and got a number (in K) that agreed with the NASA and Wikipedia information I found regarding Titan.
Erl,
If we accept this basic relationship between the energy output from the sun, distance from the sun and air pressure dictating temperature, then as far as seasonal variations go, the Earth is at the closest point to the Sun in January and the furthest point in July. The temperature difference at these times to the average distance at sea level is about +2.5K and -2.3K respectively.
How is it that change in surface atmospheric pressure is so closely associated with a change in the temperature of the tropical ocean?
I assume you mean Sea Surface Temperature, not temperature of the tropical ocean.
Similarly, when you say temperature, It’s not clear whether you are refering to atmospheric or sea surface temperatures.
It is indeed interesting that surface pressure leads SSTs. Can you suggest a physical mechanism for this?
And as for increased frequency of El Nino in a warming climate. The Forcing model predicts that the oceans will warm due to a warmer atmosphere impeding heat flow out of the oceans. I see no reason why it would predict El Nino frequency to increase except to the extent SSTs overall rise. IMO more El Ninos is just baseless alarmism on a par with Polar Bears drowning.
Erl, once again I find your discussion on atmospheric pressures and circulations very interesting.
As always, I will reread a few times as you present interesting theories and topics for discussion. I look forward to greater minds than myself to weigh in on the topic.
The oceans cool mainly by evaporation, which depends on surface temperature, humidity and wind speed. The ENSO oscillation is a dynamic balance between solar driven subsurface ocean heating and wind driven evaporation.
There is a lot of information on ocean evaporation available at:
http://oaflux.whoi.edu/publications.html
The basic idea is that the total daily (‘cloud free’) solar flux in the tropics is about 25MJ.m-2. The wind driven evaporation (latent heat flux) in the warm pool can easily vary from 15 to 35 MJ.m-2 per day as the average wind speed goes from about 2 to 8 m.s-1. The tropical Pacific Ocean can heat or cool depending on the wind speed and this drives the ENSO oscillation. This is also part of the N. and S. Pacific Gyre circulation – the N. and S. equatorial currents. The wind speed also controls the transit time of the ocean flow across the Pacific. This also influences the ocean heating. The wind and evaporation may also change the cloud cover. This then changes the solar heating. The details get complicated and it becomes an interactive chicken and egg problem.
However, the total daily increase in downward LWIR flux from a 100 ppm increase in atmospheric CO2 concentration is only 0.15 MJ.m-2 per day – over 200 years. This flux is absorbed right at the surface. The wind can easily do +/- 10 MJ.m-2 per day.
Sun, wind and water need no help from CO2 to change the Earth’s climate.
jorgekafkazar says:
September 22, 2011 at 11:40 pm
I compare ENSO to a grandfather’s clock with a mouse running up and down the pendulum. It’s a cyclical device, but the period is variable and unpredictable, since we don’t know where the mouse is.
You can calculate, where the mouse is and where it will be in the near future.
http://www.john-daly.com/sun-enso/sun-enso.htm
There is more documentation referring to this. Just google for Theodor Landscheidt.
Trade winds this way, trade winds that way, altering pressures between Darwin and Tahiti,etc.,etc.,….I can see how this can alter prospects for anchovy fishing in Peru,etc., etc., but I cannot see how the planets total thermal budget can be influenced by this local blowing around of temperature changes in the Pacific. Surely what counts is how the planet as a whole warms or cools. I dont see how El Nino vs La Nina can affect the planets temperature AS A WHOLE. can some cleverer than me please explain.
Philip Bradley,
My theory with regard to air pressure and SST is that the closer the molecules are together, the more photon to air molecule interaction, the more air molecule collisions and the more molecules in a given area to hold that heat energy. Pardon me if anyone thinks I am stating the bleeding obvious, but I do not come from a physics background.
but I cannot see how the planets total thermal budget can be influenced by this local blowing around of temperature changes in the Pacific.
Its not local, its global scale changes in winds.
The Earth’s heat budget is in large part driven by how fast heat accumulating in the oceans is released to the atmosphere then transits the atmosphere and is lost to space. El Nino/La Nina and winds play important roles in the speed of this process.
Truthseeker, I’m not sure what your point is, but if you compress a gas it gets warmer because energy is released. Not because it gains energy.
Hoser says: September 22, 2011 at 11:39 pm
I’m not clear on a proposed mechanism Did you read this?
“Bear in mind that as atmospheric mass moves from high latitudes to the equator atmospheric pressure increases at Darwin more than it does at Tahiti and the trade winds slacken. The increase in pressure at Darwin is well correlated with the increase in atmospheric pressure in equatorial latitudes globally. The plunge is atmospheric pressure at high latitudes that enables the increase in pressure at the equator is associated with cloud loss and increased sea surface temperature in mid and low latitudes. The most abbreviated explanation of mechanism behind the loss of cloud can be found here: http://wattsupwiththat.com/2011/08/20/the-character-of-climate-change-part-3/”
It’s actually a complex phenomenon. The current post is one of the bricks in the wall. Rome was not built in a day. The point of this post is that ENSO is not climate neutral. The change in pressure relativities over time explains surface temperature change quite adequately thanks very much. No need to invoke AGW.
Doug S says: September 22, 2011 at 11:47 pm
Sorry Doug not even close.
Ken Stewart says: September 22, 2011 at 11:49 pm
Do you see any longer term (decadal) connection between SOI and temperature?
Yep, it’s documented in figures 8-13
Truthseeker says: September 23, 2011 at 12:01 am
Do you realize that the Earth is cooler when it is closest to the sun in January?
Philip Bradley says: September 23, 2011 at 12:07 am
At the bottom of figure 1 there is this notation SST 20°N-20°S.
It is indeed interesting that surface pressure leads SSTs. Can you suggest a physical mechanism for this?
Yes. It’s encapsulated in my reply to Hoser.
eyesonu says: September 23, 2011 at 12:17 am
Thank you. Your humility is engaging. But please don’t be backward if you have a question.
Roy Clark says: September 23, 2011 at 12:22 am

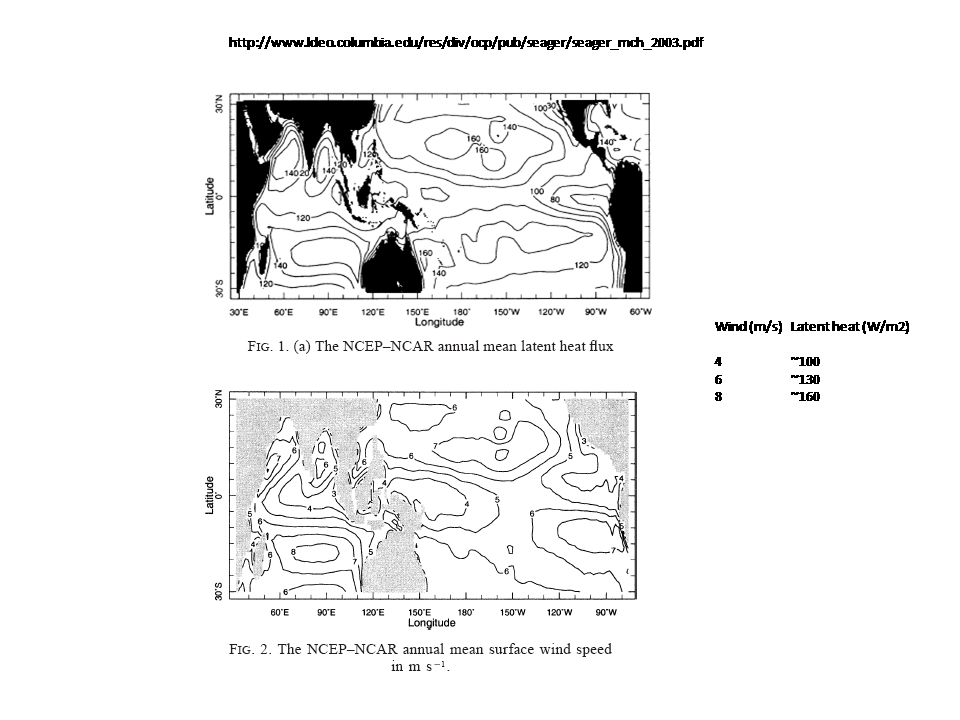

The tropical Pacific Ocean can heat or cool depending on the wind speed and this drives the ENSO oscillation.
