By Andy May
The IPCC and the climate “consensus” believe that essentially all warming since 1750 is due to man’s emissions of CO2 and other greenhouse gases as shown in figure 1 here or in (IPCC, 2021, p. 961). This has led to a 45-year search for the value of the Equilibrium Climate Sensitivity to the doubling of CO2 (“ECS” in °C per 2xCO2). Yet, after spending 45 years trying to calculate the sensitivity of climate to man-made greenhouse gases, the “consensus” has been unable to narrow the uncertainty in their estimates and, if anything, the climate model uncertainty is now larger than in earlier reports(IPCC, 2021, p. 927). It is now clear, at least to me, that modern climate models make many critical assumptions that are poorly supported and sometimes conflict with observations. This is an attempt to explain some of these problems and how they developed over time. It is long past time for the “consensus” to stop ignoring the obvious weaknesses in their 60-year old conceptual model of climate.
The Early Models
Syukuro Manabe built the first general circulation climate model with several colleagues in the 1960s (Manabe & Bryan, 1969) and (Manabe & Wetherald, 1967). He started with a one-dimensional radiative equilibrium model of horizontally averaged temperature but realized that the troposphere was not in radiative equilibrium because of convection. The lower atmosphere is nearly opaque to most surface emitted infrared radiation or Outgoing Longwave Radiation (OLR) because of greenhouse gases. As a result, Earth’s surface is not cooled much by emitting radiation but instead mostly by the evaporation of surface water that carries surface heat into the atmosphere as latent heat inside water vapor. Water vapor is less dense than dry air, so it rises. Once the water vapor is high enough, it cools as the surrounding air pressure drops allowing air parcels to expand, causing the water vapor to condense which releases its latent heat. If this is done at a high enough altitude, some of the latent heat can make it to space as radiation or make it to surrounding greenhouse gas molecules higher in the atmosphere. The rest of the released heat simply warms the neighborhood. This process is called the “moist adiabat.”
This process works because temperature declines with altitude in the troposphere according to a ”lapse rate.” The lapse rate varies a lot around the Earth, but the average gradient stays fairly constant at about 5.08 °C/km (Benestad, 2017, pp. 24-26, supp. mat.). The lapse rate is usually given as a positive number, but it is the decrease in temperature with height. The value we most often hear is 6.5 °C/km, even though the true average rate is lower. The actual lapse rate at any given location and time of day varies a lot, it also varies with humidity, and by season. The lapse rate can be negative, a state called a temperature inversion.
For Manabe’s early models he added a constraint on the lapse rate so that it could not rise above a fixed and assumed value so the model correctly predicted the position of the tropopause. The tropopause is the altitude where the temperature gradient stops being controlled by convection. Above the tropopause, the atmosphere is closer to thermal equilibrium and temperature rises with altitude. In Manabe’s early models the tropospheric lapse rate was assumed to be linear and fixed (Held & Soden, 2000).
Manabe also assumed fixed relative humidity and fixed cloud cover. As Held writes, it is an oversimplification to assume the lapse rate does not change with temperature, but it was a convenient assumption (Held & Soden, 2000). The assumption of fixed relative humidity results in an implausibly high sensitivity to CO2. In the tropics the temperature profile is similar to a moist adiabat (described above). The condensation of water vapor at altitude is the process that forms clouds (Held & Soden, 2000). Climate models have a very tough time reproducing the tropospheric temperature profile in the critical tropical regions because they predict too much warming due to greenhouse gases (IPCC, 2021, p. 443).
In the higher latitudes the moist adiabat does not work, since sensible and latent heat horizontal transport by mid- and high-latitude storms play a significant role in the overall climate (Held & Soden, 2000).
The Fixed Lapse Rate Assumption
A fixed lapse rate means that the global average emission temperature never changes, thus the outgoing longwave radiation doesn’t change, except briefly as the surface temperature changes. A common description of the greenhouse effect (GHE) includes a diagram of the lapse rate shown in figure 1 from (Held & Soden, 2000).

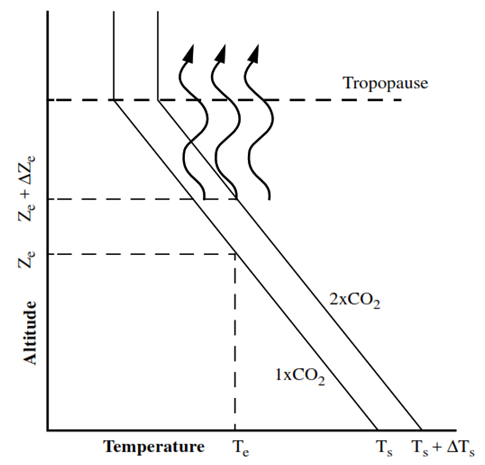

Figure 1 illustrates what doubling CO2 does with a fixed and linear lapse rate in Held’s simplified model. The additional CO2 warms the lower atmosphere with additional back-radiation, then the assumption of a fixed lapse rate kicks in, forcing the emission level up to a higher altitude, which means it has a lower temperature, causing it to emit less to space. Since it is emitting less radiation (aka “heat”), after a short period, the new emission level warms to the temperature of the old emission level and the effective emission temperature remains unchanged, as does the OLR (Held & Soden, 2000).
This simple model of the GHE has many problems. It is really only appropriate in perfect conditions in the tropics, and even there the lapse rate at night is different than the lapse rate during the day. In addition, the model predicts way too much warming in the tropics. In the middle latitudes, with persistent horizontal circulation and many storms, it makes no sense at all. In the polar regions, especially in the long dark winters, the atmosphere is frequently warmer than the surface, completely invalidating the model. Further, currently global average OLR is increasing as the globe warms. It is not remaining the same as predicted by the model, although the total incoming solar radiation has changed very little.
OLR is increasing

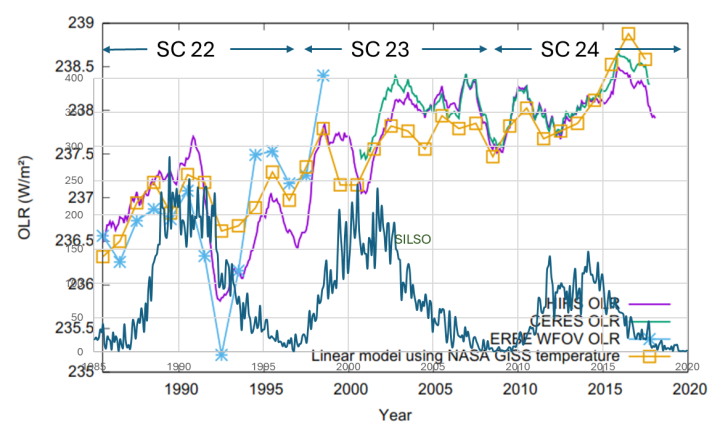

Figure 2 suggests that Held and Soden’s model of how the greenhouse effect works is incorrect or CO2 is not the reason for the recent warming, as explained by Javier Vinós here. Notice the qualitative pattern in OLR matches each solar cycle in shape. This suggests that the solar cycles contribute to the OLR pattern. So, while the increase in CO2 might influence recent warming, the variations throughout a solar cycle also likely contribute.
ENSO and the AMO

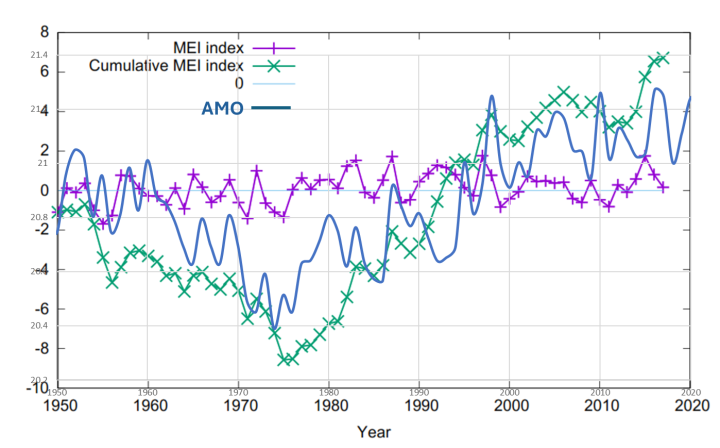

From 1950-1975 Dewitte’s cumulative MEI (the Multivariate ENSO Index) was decreasing, suggesting a period of strong Las Niñas. From 1975 to 1998 it was increasing, suggesting a period strong Los Niños. From 1998-2014 it was flat and Los Niños and Las Niñas were more or less equal. This is illustrated in figure 3.
The deep blue line in figure 3, with no marks, is the AMO or Atlantic Multidecadal Oscillation. Notice that it roughly corresponds with the cumulative MEI index. This suggests that the North Atlantic sea surface temperatures are related to the frequency of Los Niños and Las Niñas in some fashion (An, Wu, Zhou, & Liu, 2021), or they both follow some other influence, like solar variability. Again, it looks less likely that CO2 is the “climate control knob” (IPCC, 2021, p. 179).
Clouds and ECS
From (Loeb, et al., 2021):
“Climate is determined by how much of the sun’s energy the Earth absorbs and how much energy Earth sheds through emission of thermal infrared radiation. Their sum determines whether Earth heats up or cools down.”
This is a vast oversimplification, as it ignores the impact of energy residence time which varies continuously. Energy residence time varies as a function of atmospheric and oceanic circulation trends, which are influenced by solar variability (see figures 5.3, 5.4, and 5.5 here).
Loeb, 2021 notes that an increase in absorbed energy by the Earth from 2005 to 2019 is accompanied by a decrease in cloud cover (see figure 4). The decrease in cloud cover reduces reflection of incoming solar energy, but also decreases absorption of outgoing surface IR by clouds. Dewitte (see above) reports an increase in outgoing longwave radiation at the same time.
Kauppinen & Malmi, 2019 report that low cloud cover has decreased, as shown in their figure 2.
As explained in Kauppinen & Malmi, 2019 low cloud cover (as well as total cloud cover) decreases as the “pause” in global warming starts around the year 2000. Overall, as low cloud cover increases 1%, global average surface temperature decreases 0.11°C on average. As a function of EUMETSAT global cloud fraction, the HadCRUT4 global surface temperature decreases 0.15°C per one percent total cloud cover, as illustrated in figure 5.
The data displayed in figures 2 through 5 cannot be explained as a function of the monotonically increasing atmospheric CO2 and other greenhouse gases and their so-called “heat trapping” or “OLR delaying” capabilities. While additional greenhouse gases may have some influence on increasing surface temperatures, we cannot see any sign of this influence in these data.
Ceppi & Nowack, 2021 try to show that cloud cover responds to surface temperature and figure 5 appears to support that idea. However, they and the IPCC believe that changes in cloud cover due to a warming surface increase warming on net, that is cloud cover changes due to surface warming are a net positive feedback (IPCC, 2021, p. 95). They are vague in their language and do not claim that increasing cloud cover increases warming, rather they say the net change in cloud cover due to surface warming is a positive feedback. Thus, they break clouds up into types, some are net warming, and some are net cooling, with the overall change being positive.

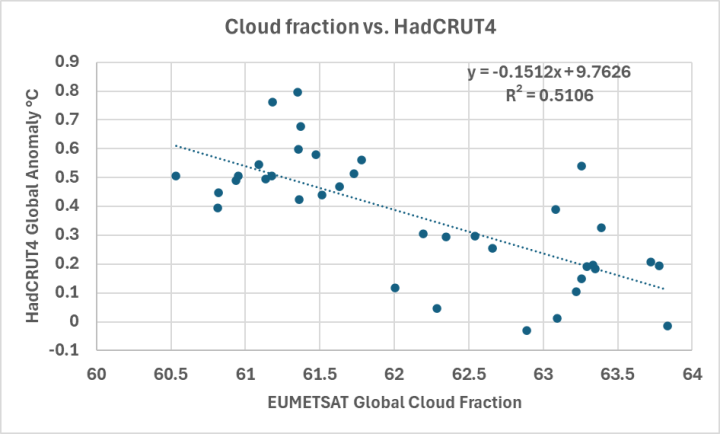

Figures 4 and 5, and the work of Kauppinen & Malmi suggest that an increase in clouds, as the world warms, decreases warming. Figure 2 suggests that OLR increases as the world warms and cloud cover decreases, this is not what one would expect if cloud cover changes are a net positive feedback to surface warming. However, the two ideas are not necessarily incompatible as neither the IPCC, nor Ceppi & Nowack say increasing cloud cover increases warming, they say “cloud cover changes” increase warming on net. Time will tell if their complex hypothesis is correct.
Ceppi & Nowack explicitly assume that greenhouse gases are causing global warming according to the RCP4.5 scenario. They do not consider the possibility that variations in solar activity (figure 2) or ocean oscillations (like the AMO plotted in figure 3) have an impact. Loeb, 2021 does discuss changes in the PDO, but not as a driver in climate change, just a type of internal natural variability.
As Ceppi & Nowak report, ECS correlates very well with cloud cover, see figure 2 here. It is also true that cloud cover is the most uncertain feedback in greenhouse gas climate models and climate modelers have reported fiddling with their cloud parameters (Koonin, 2021, p. 93) to achieve a pre-determined ECS. It lessens our confidence in climate models when the most uncertain and poorly understood component of them (clouds) is used to create a desired result. Further, as AR6 WGI reports on page 927, the ECS calculated by climate models is becoming more uncertain and the reason given is that the modelers are fiddling more with their cloud parameters to try and match cloud observations. Something is clearly amiss in modern climate models, and the problem is getting worse with time.
EEI (Earth Energy Imbalance)
The net radiation in or out is the Earth Energy Imbalance or EEI. When it is positive the Earth is warming and collecting heat and when it is negative the Earth is cooling. Because most solar energy absorbed on Earth’s surface is stored in the oceans (~90%) the ocean heat content is a sensitive indicator of long-term EEI and can be used as a check and calibration point for satellite radiation measurements which are not accurate enough on their own to directly measure EEI (Loeb, et al., 2022).
Table 1 in (Loeb, et al., 2022) lists the absorbed solar radiation (ASR), the outgoing longwave radiation (OLR), and the net radiation in (positive) and out (negative) for various satellite instrument analyses. The trends vary from 0.026 to 0.42 W/m2/decade ±~.24. This is a fairly large and uncertain difference. The numbers are positive since the world is warming.
The actual EEI and the trend in the EEI are unknown, but ocean heat content estimates from 2005 to 2019 suggest it is small and between 0.24 and 0.98 (±~0.7) W/m2/decade according to Table 4 in (Loeb, et al., 2022). ARGO has greatly increased our knowledge of ocean temperature to a depth of 2,000 meters, but trends in temperature below 2,000 meters and under sea ice are still largely unknown. It seems safe to conclude that the trend, since 2000, is somewhere between ~-0.7 and ~1.5 W/m2/decade and more likely positive than negative, because the Earth is warming, but beyond that it is hard to say. The total incoming solar radiation and the total outgoing longwave radiation are large numbers, with large uncertainty, and the difference between the two is very small and below the accuracy of current measurements.
The change in ocean heat content is useful as a check, but we don’t have a good handle on ocean temperatures, either aerially or at depth. ARGO improves things, but the coverage is still poor. As for measuring incoming and outgoing radiation, there are problems in the eastern Pacific, the Arctic, and in many other areas. For a complete discussion of the problems estimating the EEI trend the interested reader is referred to (Loeb, et al., 2022).
Conclusions
As I’ve written before the current group of IPCC/CMIP climate models do not compare well with observations, and unfortunately, in the tropics they do better if the man-made portion of the enhanced greenhouse effect is removed. It seems that the conceptual model they have pursued since 1990 (the first IPCC report) that CO2 is the “control knob” for global warming is flawed. There is abundant evidence that climate has many drivers, and man-made CO2 is only one, and one that may not be that significant. It is way past time that the IPCC quit pushing this man-made climate change idea and go back to the drawing board and develop a new conceptual model that makes sense with the data presented in this post.
Download the bibliography here.
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
The IPCC models seem to be an exercise in question begging, assuming global warming due to GHGs, then purporting to prove global warming by the models.
Yes, the guts of their argument is circular reasoning. This is why they write 10,000-page reports. If they succinctly reported what they did, everyone would figure it out.
The IPCC would never give up the trace gas CO2, which has been dubbed an evil control knob, etc., for scare-mongering purposes, unless better banners can be waved around.
For the IPCC, it is not about science, but command/control.
It would be like asking the Church to give up the Holy Cross, the Virgin Mary, and Rituals.
The hapless people are trapped in a web of verbal nonsense!
In the tropics and subtropics, CO2 a weak photon absorber, plays no measurable role, because, near the surface, it is outnumbered by at least seventy to one by water vapor, a strong photon absorber,
plus water vapor, 18, is lighter than CO2, 44, and air, 29, so it condenses into clouds at about 2000 meter elevation, which, with prevailing winds, are transported to northern latitudes, to areas underserved by the sun, especially during winter.
That means the water vapor and clouds we see up north comes from faraway places, because up north there is not enough energy to evaporate the water, which often lies on the ground as snow and ice.
But, even up north, near the surface, CO2 plays no measurable role, because water vapor outnumbers it at least 20 to one.
CO2 begins to play a measurable role when the presence of water vapor is lower, say 3 to 1, which is above the clouds.
However, above the clouds it is colder, and any photons emitted there would have longer wavelengths beyond the CO2 15 micrometer absorption window, but water vapor would absorb these photons, because it has a much wider window starting at about 15 micrometer.
No liberal arts journalists would ever write this, because it is way above their heads. That is the reason they stick to talking points provided by self-serving $stakeholders and their associates

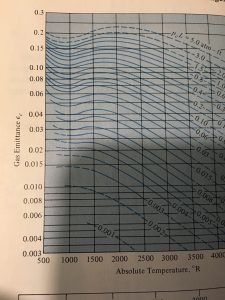

One nit. Black body calculations do not work with widely dispersed molecules.
One nit. It is colder, not because each molecule has less kinetic energy, but rather due to a much lower density.
Good comments
At abot what density would BB calls no longer apply?
At lower temperatures at higher elevations, the speed (kinetic energy) of molecules decreases, per gas laws.
At higher elevations, density is less. There are fewer collisions, because molecules are further apart.
No matter what the temperature, photons (packages of energy with a wavelength) move at the speed of light, which is many orders of magnitude greater than the speed of molecules.
They owe their existence to their favorite gas that is why they will NEVER let go of the bullcrap they have built around it.
It is WHY I stopped reading the IPCC reports as it is an exercise of regurgitating that same bullcrap narrative from day one of something that was essentially solved 30 years ago.
They are adhering to their charter which narrows their focus to AGW.
If you tell a “scientist” what the answer is before he starts it is so much easier.
The bloke in the white coat is one of Richard Green’s 99.999% who he says we should believe.
Obama is getting the faux result he wants, with our money, for scare-mongering purposes. Who is more evil?
Did you vote for Obama, who speaks okie dokey woke honey with forked tongue?
The problem with that mandate is that if one focuses on just one aspect of the problem it is easy to overlook that things don’t balance. Whereas, if they deal with the ‘Big Picture,’ they are more apt to discover that things don’t work as assumed.
It’s worse than that. The IPCC’s “proof” that CO2 is the cause of warming is the fact that their models don’t show warming if they remove human CO2 emissions. This “proof” assumes the models are correct, but they have never been validated and probably can’t be.
The IPCC’s claim is not different from saying, “We know CO2 causes warming because we assume it does.”
That is exactly what they are saying but they may very well be too stupid to even realize it.
They are not stupid. They are paid to NOT understand it.
change from “we assume” to “we say”
This argument is muddled – are you suggesting that modern GCMs assume a fixed relative humidity? Because that is decidedly untrue.
Models forced with CO2 yield increasing OLR:
No, as I say in the report, and you quote, “Manabe also assumed,” past tense.
I realize that modern models predict an increase in OLR, I was mainly criticizing Held’s definition of the GHE. Also, remember both the AR5 and AR6 models predict too much warming in the oceans and too much warming in the tropics. Both errors are reduced if they reduce (or eliminate) the human-enhanced CO2 greenhouse effect. Further, the errors in AR6 are larger than the errors in AR5. To me this screams a bad conceptual model, as I say in the post.
I think it goes without saying that conceptual models used to illustrate a single idea or concept are going to fall short of describing everything about the phenomena under question. This shouldn’t be used to say that large scale GCMs are wrong, or that the physics underpinning GHE theory are wrong. The simple models are just… simple.
Well, yes, if you have a warm bias and you remove something producing warming, the warm bias is reduced. That doesn’t mean you’ve removed the thing causing the bias. The bias in the tropics is mainly due to how models represent clouds and ocean mixing, not that they consider the role of GHGs in driving long term warming.
What tells us the models are wrong is that they do not match observations. That their worst match is in the tropics, which have the strongest greenhouse effect (GHE) in the world, tells us the problem is with the human-enhanced GHE.
The models are getting SAT right:
And the primary driver of warming in the models is anthropogenic forcing. So the issue is almost certainly some poorly resolved cloud/ocean dynamics in the tropics as opposed to getting the basic physics of the GHE wrong.
It’s also important to recognize that it isn’t a binary – the models are neither wholly right nor wholly wrong. They do some things well and do other things poorly, and those things differ across different models.
If you call that right, take off your rose-colored glasses and look again. Here is a better assessment.
https://andymaypetrophysicist.com/2022/03/13/comparing-ar5-to-ar6/

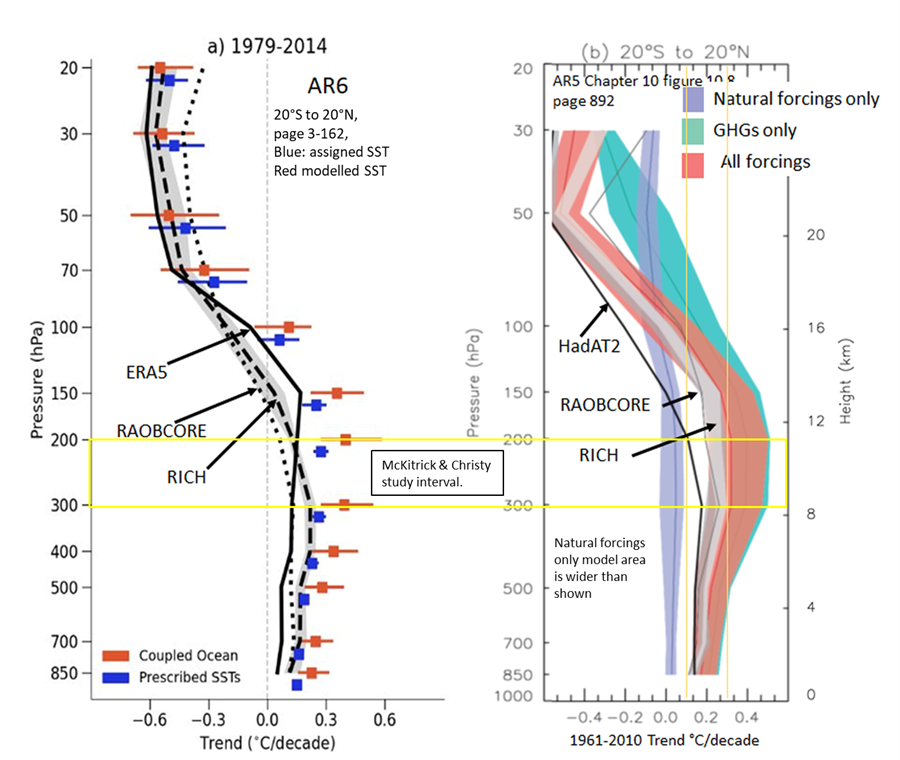

This is not a “better” assessment, it is an assessment of tropical mid-tropospheric warming, the plots I provided show global SAT. Importantly, the tropospheric warm bias is present in the models whether forced with CO2 or forced with solar (I’ll leave you to guess which is which):
So the issue cannot possibly be that the CO2 hypothesis is yielding the bias.
That is cheating! You use different color scales. Shame on you.
The point is that the pattern of warming yielded by the models is the same whether forced by CO2 or the sun. This invalidates the claim that the tropical mid-tropospheric warm spot can be the result of an incorrect GHE hypothesis and points to the fact that the bias is almost certainly the result of some other dynamics like ocean mixing or clouds.
It shows absolutely NOTHING, nor does it invalidate anything.
It is just GARBAGE output from irrelevant models..
In what sense does it do that? If the hypothesis is that GHE produces x amount of tropical mid-tropospheric warm spot warming and reality has it as y then was the hypothesis incorrect?
Maybe if you use different scales and colours to hide the difference then “incorrectness” can be swept under the mat.
The models indicate that any surface warming, from any cause, produces the tropical mid-tropospheric warm spot. It is not specific to CO2. Thus the presence or absence of the tropical mid-tropospheric warm spot is not a test of CO2-driven warming in the models.
There is something missing – either owing to some deficiency in the way the models are handling local dynamics in this region or to some structural uncertainty in the observations (likely some mix of both), but there is zero evidence that the issue is the physics of an enhanced GHE.
The thing that’s missing is physics. What is there is, is a fit. You’ll not see it of course but that’s what a tuned, non physical solution is.
But you are going to have to prove that the GHE and specifically CO2 causes x not simply by showing a model that is based on a hypothetical assumption and correlation and play Occam’s razor and make attribution statements. A neutral observer might as well shrug his shoulders and say: whatever..
Proper science needs to state harder claims. All goes to show how slippery the climate system is. I have for some time come to the conclusion you cannot equate your way out of it simply because of the uncertainties of the corrolation between the multiple factors. It is enough for me ( and others) to witness that more intrinsic models cannot make it better. Throw in politics and money et voila: lots of opinions and assumptions.
Yep, a PETTY and insipid attempt at propaganda.
No more than ever expected from AJ.
“models forced with”
So more total computer game BS either way. !
Yeah, from those scales it looks like the models are out by a factor of 2. The fact you present this as evidence “the issue cannot possibly be that the CO2 hypothesis is yielding the bias” is telling.
The issue is that the GCMs are fitted to expected warming at the global level but get none of the actual climate components correct. The issue is that they’re not modelling climate at all and so have no true capability to project.
ROFLMAO.
Using FAKED URBAN SURFACE DATA again. Seriously DUMB.
There is no evidence of human “forcing” in the UAH atmospheric data.. none, nada, zip !!
The models are little more than pre-assigned computer games.
They have very little scientific validation.
Putting them against concocted URBAN surface data is and pretending validation. …
HILARIOUS. !

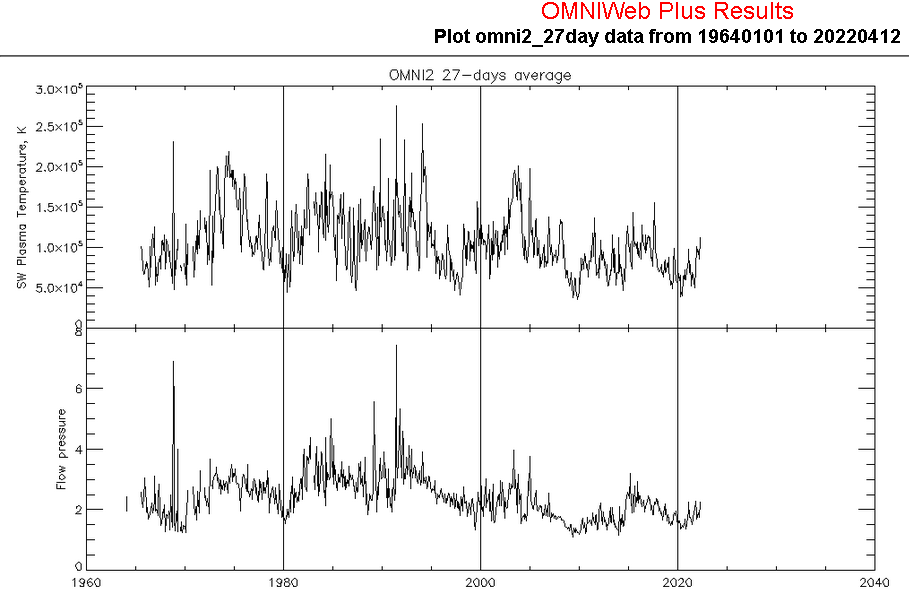

The GCM models will always be wrong until solar forcing is properly accounted for. The earth has a minimal response to the 11-year cycle which is why I filter it out in my models. Also, the sunspot signal as shown in Figure 2 is a proxy for solar activity. It’s not solar activity.
