Guest Post By Bob Tisdale
This is the last in a series of ten posts that present graphs of NOAA precipitation, drought (Palmer Drought Severity Index, PDSI), and temperature (TMIN, TAVG, and TMAX) data for the contiguous United States (and the 9 NOAA Climate Regions thereof) for the most-recent 100 years (1919 to 2018) of data that were available at the time that I prepared my paperback book Extremes and Averages in Contiguous U.S. Climate, which is the source of the graphs. That book was first published in May 2019. The subtitle of the book is Graphs of 100 Years of NOAA Contiguous U.S. Climate Data (2018 Edition) – A Book That NOAA Should Have Published. Links to the nine earlier posts in this series can be found toward the end of this one.
With the 2020 U.S. elections rapidly approaching, I’ve prepared this series of 10 blog posts that present graphs of NOAA data for the Contiguous United States in an effort to combat the constant misinformation and disinformation being spewed by politicians. This series of posts is not intended to try to change the beliefs of the brainwashed devotees of human-induced global warming/climate change; it is intended to support and strengthen the understandings of those who are not among the indoctrinated masses.
IMPORTANT NOTE
For an overview and discussion of the graphs that follow, see the post New Book: Extremes and Averages in Contiguous U.S. Climate. Subtitle: Graphs of 100 Years of NOAA Contiguous U.S. Climate Data (2018 Edition) – A Book That NOAA Should Have Published. (WattsUpWithThat cross post is here.) It also includes parts of the Introduction of the book. That post should answer any questions you might have.
[End Note.]
The source of the primary data is the NOAA National Data Center Climate Data Online (NNDC CDO) website. The source of the older (pre-adjustments) near-surface average air temperature (TAVG) data is the 1984 Karl and Koss paper Regional and National Monthly, Seasonal, and Annual Temperature Weighted by Area. The Karl and Koss 1984 paper is available from NOAA here.
The numbering of the illustrations is from the book Extremes and Averages in Contiguous U.S. Climate, and that numbering coincides with those used by NOAA at their NNDC CDO website. I also added lettering to the graphs to maintain a standard sequence throughout the book.
Comparison of Annual TAVG Data Before and After NOAA Adjustments
The following is the introductory text from the book Extremes and Averages in Contiguous U.S. Climate that explains the before and after graph that begins the data (in graph form) presentation of this post.
NOAA is very open about the adjustments they’ve made to the U.S. temperature records. In fact, the adjustments to the temperature records for the United States are discussed as part of the Q&A on the NOAA webpage titled Monitoring Global and U.S. Temperatures at NOAA’s National Centers for Environmental Information: (https://www.ncdc.noaa.gov/monitoring-references/faq/temperature-monitoring.php)
There they begin:
There are several factors that are important in monitoring global or U.S. temperature: quality of raw observations, length of record of observations, and the analysis methods used to transform raw data into reliable climate data records by removing existing biases from the data. An additional process takes the multiple climate data records and creates U.S. or global average temperatures.
On that NOAA webpage, there are links to more-detailed descriptions of the adjustments and their reasoning behind them, including scientific studies.
While preparing this series of books, I came across a paper NOAA published in 1984 that lists the monthly and average temperatures for the contiguous United States and its nine climate regions. The authors of the 1984 NOAA paper are Thomas R. Karl and Walter James Koss, and the paper’s title is (their caps) REGIONAL AND NATIONAL MONTHLY, SEASONAL, AND ANNUAL TEMPERATURE WEIGHTED BY AREA. The paper can be found here: (https://repository.library.noaa.gov/view/noaa/10238).
I then compared the curves and linear trends of the 1984 and current editions of those temperature data for the period of 1919 to 1983 (the start year of the graphs in this book and the last year of the “old” data).
United States (Contiguous) Old vs Current TAVG Temperature Data
Figure Old v Current TAVG Data-10
Note: Sadly, the Karl and Koss 1984 paper only included the TAVG data. It would have been interesting to see which metric, TMIN or TMAX, NOAA has adjusted more.
# # #
NOAA CLIMATE DATA FOR CONTIGUOUS U.S.
The following are the six graphs of the precipitation, PDSI, and temperature data for the Contiguous U.S. from the book Extremes and Averages in Contiguous U.S. Climate. They were published without comment from me in the book. Again, refer to the post here for more information about the graphs. Also, once more, the data presented in the next six graphs were extracted from the data available at the NOAA National Data Center Climate Data Online (NNDC CDO) website.

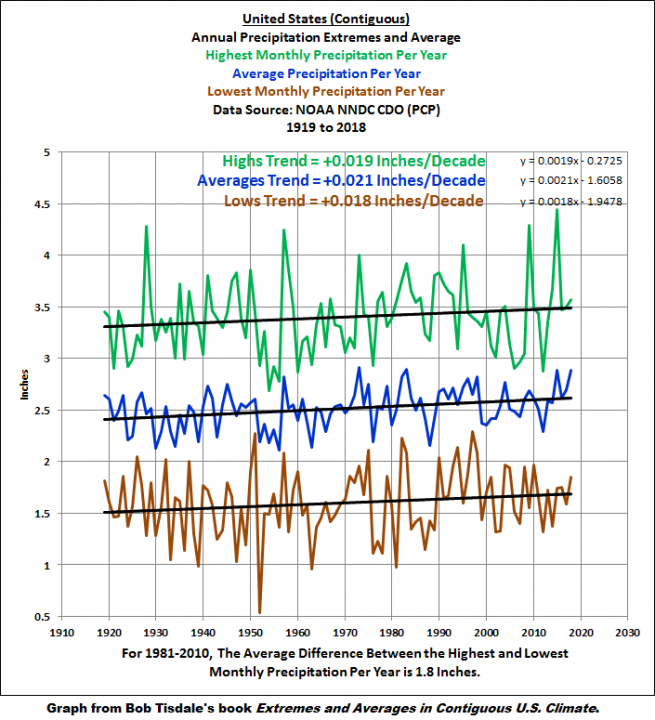

United States (Contiguous) Precipitation Data
Figure 110a
# # #
United States (Contiguous) Palmer Drought Severity Index Data
Figure 110b
# # #

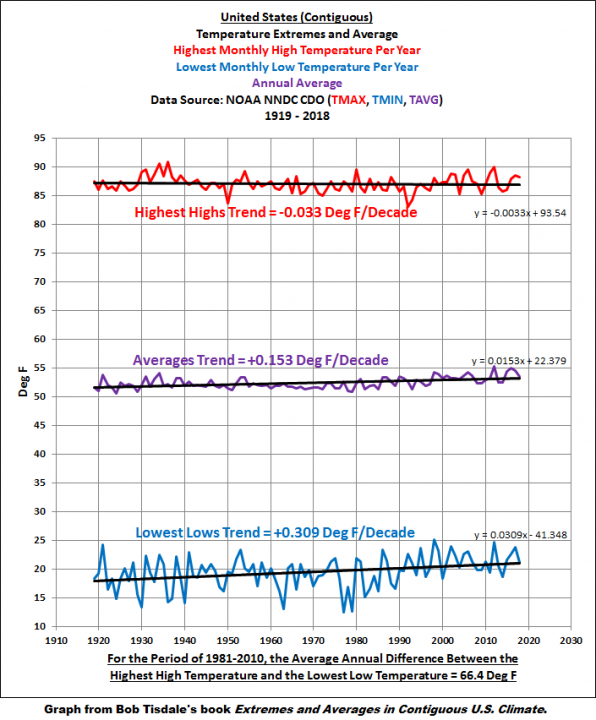

United States (Contiguous) Temperature Indices Data
Figure 110c
# # #

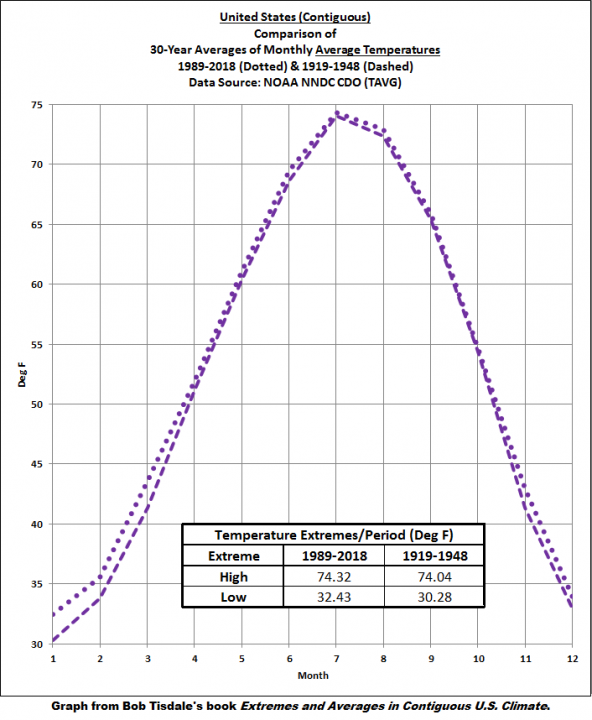

United States (Contiguous) 30-Year Monthly Temperature (TAVG) Averages Comparison
Figure 110d
# # #
United States (Contiguous) 30-Year Monthly Temperature (TMIN) Averages Comparison
Figure 110e
# # #
United States (Contiguous) 30-Year Monthly Temperature (TMAX) Averages Comparison
Figure 110f
# # #
ARCHIVED DATA PAGE
As noted earlier, the source of the data presented above in this post was the NOAA National Data Center Climate Data Online (NNDC CDO) website. I archived the NOAA data pages as I downloaded the data. The archived NOAA NNDC CDO data page for the Contiguous United States (from 1900-January 2019) is here.
THE REST OF THIS SERIES OF POSTS
Note: Much of the text in each post is boilerplate. Of course, the graphs are different for each region, and hyperlinks to the archived NOAA data pages are different for each post. [End note.]
ALREADY POSTED
- 101 Northeast Region (includes the statesof Connecticut, Delaware, Maine, Maryland, Massachusetts, New Hampshire, New Jersey, New York, Pennsylvania, Rhode Island, and Vermont).
- 102 East North Southeast Region (includes the states of Iowa, Michigan, Minnesota, and Wisconsin).
- 103 Central Region (includes the states of Illinois, Indiana, Kentucky, Missouri, Ohio, Tennessee, and West Virginia.)
- 104 Southeast Region (includes the states of Alabama, Florida, Georgia, North Carolina, South Carolina, and Virginia.)
- 105 West North Central Region (includes the states of Montana, Nebraska, North Dakota, South Dakota, and Wyoming.)
- (includes the states of Arkansas, Kansas, Louisiana, Mississippi, Oklahoma, and Texas.)
- 107 Southwest Climate Region (includes the states of Arizona, Colorado, New Mexico, and Utah.)
- 108 Northwest Climate Region (includes the states of Idaho, Oregon, and Washington.)
- 109 West Climate Region (includes the states of California and Nevada.)
# # #
A REMINDER
Again, please see the post New Book: Extremes and Averages in Contiguous U.S. Climate. Subtitle: Graphs of 100 Years of NOAA Contiguous U.S. Climate Data (2018 Edition) – A Book That NOAA Should Have Published. (WattsUpWithThat cross post is here.) It should answer any questions you have about the graphs.
# # #
A FEW MORE METRICS
To close this post, I’m reproducing the CLOSING from Extremes and Averages in Contiguous U.S. Climate. I’ve added a couple of hyperlinks that could not appear in the text of that paperback.
I suspect some of you are also interested in the number of hurricanes that make landfall here in the continental United States, in the number of tornados that touchdown in the Contiguous U.S., in flood data for the states, and in wildfire data, too. I made those data presentations in my Kindle ebook short story titled Dad, Is Climate Getting Worse in the United States?. The subtitle of that short story is Book 2 in the DAD, WHY ARE YOU A GLOBAL WARMING DENIER? Series. Figures Closing-1 through -3 are examples of the graphs included in Dad, Is Climate Getting Worse in the United States?. Data sources for these graphs are linked in that ebook, in addition to being listed below the graphs.
Figure Closing-1
# # #
Figure Closing-2
# # #
Figure Closing-3
# # #
Again, please see the post New Book: Extremes and Averages in Contiguous U.S. Climate. Subtitle: Graphs of 100 Years of NOAA Contiguous U.S. Climate Data (2018 Edition) – A Book That NOAA Should Have Published. (WattsUpWithThat cross post is here.) It should answer any questions you have about the graphs.
I have no plans to prepare blog posts for the data for the individual states. For those, you’ll either have to download the data from NOAA and prepare your own spreadsheet-based graphs, or you can buy my paperback book Extremes and Averages in Contiguous U.S. Climate, – Graphs of 100 Years of NOAA Contiguous U.S. Climate Data (2018 Edition) – A Book That NOAA Should Have Published.
Regards,
PS: Just in case you didn’t notice or you have trouble reading graphs, as NOAA data confirms, climate for the Contiguous U.S. as a whole has improved over the past 100 years.
