Guest Post by Willis Eschenbach
It’s been a while since I played “Spot The Volcano”. The premise of the game is that the decrease in temperatures from volcanic eruptions is nowhere near as large as people claim. So I ask people to see if they can identify when a volcano erupted based on the temperature records of the time.
Now, I say that the main reason the temperature drop from volcanic eruptions is so small is that when we get a reduction in downwelling radiation from any cause, the equatorial oceans start to cool. When that happens the clouds form later in the day, allowing in more sunshine. And the net result is that any cooling from the volcanic eruption is mostly offset by the increase in incoming solar energy.
With that in mind, I thought I’d take a look to see what records we have for the largest volcanic eruption in modern times. This was the eruption of the Indonesian island of Tambora in April of 1815. To my surprise, I found that we have no less than forty-two temperature records from that time. As you might imagine, most of these are from Europe. The list of the forty-two stations is appended in the end-notes.
So I took the records for the period during which the Tambora eruption occurred, and I “standardized” them so that they all had an average value of zero and a standard deviation of one. Then I plotted them all on one graph. Here is that result.
Figure 1. Temperature records of forty-two temperature stations for a period during which the Tambora eruption occurred. Seasonal variations have been removed from the data, leaving only anomalies. DATA SOURCE
As you can see, there is good agreement between the various records, with the cold and warm years affecting most if not all of the records. And if that’s too fuzzy for you, here is the same data with the average of all forty-two of the stations overlaid in red on the individual station records.
Figure 2. As in Figure 1, but with the average overlaid in red.
You can see the problem. The largest eruption in modern times, and it is absolutely not obvious when it happened …
So when was the eruption? Well, it’s not where you’d expect, which would be just before one of the two biggest drops in temperature, shown on the left-hand side of the graph. Nor is it where the big temperature drop is on the far right of the graph. Nope. It’s in a very generic area where you’d never expect it to be found …
Figure 3. As in Figure 1, but with the years added.
Now, there are a couple things of note here. First, there are a number of temperature drops even in only this short record which are much larger than the temperature drop after the Tambora eruption.
Second, there are a number of cold temperature excursions even in this short record, some of which are much colder than during the period after the eruption.
My conclusion from this? Yes, there were likely areas in Europe and the US which were somewhat colder than usual after the Tambora eruption. But temperatures somewhat colder than usual occur every few years …
And overall, despite the size of the eruption, despite the megatonnes of sulfur dioxide that the eruption sent up into the stratosphere, despite the reduction in sunlight from that stratospheric dimming … despite all of that, the effect on temperature was indistinguishable from natural fluctuations in other parts of the record.
My very best to everyone,
w.
PS—As is my custom, I ask that when you comment you quote the exact words you are discussing, so that we can avoid at least some of the misunderstandings that plague the intarwebs.
DATA NOTES:
The following records were used in this analysis:
Basel Binningen, Switzerland
Berlin-Dahlem, Germany
Berlin-Tempel, Germany
Bologna Borgo, Italy
Budapest, Hungary
Chalons, France
De Bilt, Netherlands
Edinburgh Royal Obs., UK
Gdansk-Wrzeszcz, Poland
Geneve-Cointr, Switzerland
Gordon Castle, UK
Greenwich Maritime Muk, UK
Hohenpeissenb, Germany
Innsbruck University, Austria
Karlsruhe, Germany
Kobenhavn, Denmark
Kremsmuenster, Austria
Leobschutz, Czech Republic
Madras Minamb, India
Manchester Ai, UK
Milano Linate, Italy
Montdidier, France
Munchen Riem, Germany
New Haven Tweed, United States
Nice, France
Palermo, Italy
Paris Le Bourget, France
Praha Ruzyne, Czech Republic
Regensburg, Germany
St.Peterburg, Russia
Stockholm, Sweden
Strasbourg, France
Stuttgart, Germany
Torino Casell, Italy
Torneo, Finland
Trondheim Tyholt, Norway
Udine Campoformido, Italy
Vilnius, Lithuania
Warszawa-Okec, Poland
Wien Hohe War, Austria
Woro, Finland
Wroclaw Ii, Poland
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
Willis if all human co2 emissions stopped today when would we see an impact on temps and co2 levels?
Your NAS and the Royal Society joint report tells us that temps would take a thousand years to decrease and co2 levels wouldn’t drop much for thousands of years.
Nic Lewis thinks that temps wouldn’t take a thousand years to respond, but co2 levels would be much slower. Just asking?
We wouldn’t see any difference ever, temperature wise, because there is no forcing, theres nothing there excepting conjecture.
Sorry OT, but I just saw this and wanted to park it somewhere (’cause I’ll lose track of it).
Spot the landscape containing 2 #shale drilling pads, 16 wells & a #natgas pipeline…
https://twitter.com/DWBerkley/status/641443786695045120
Apparently you’re no sorry you posted it anyway.
Well I am sorry, but not terribly sorry. Well, not even that sorry, really. Just formally sorry in a sorry kind of way. Sorry if I’m being sorry for not being really and truly sorry. I’m just sorry, I guess.
I’m sorry. “Sorry if I’m being sorry” should be “Sorry if I’m not being sorry enough”
Willis, I’m agreed with your basic position that volcanoes are over rated. Feedbacks in climate, quite possibly the ones you suggest, react to ensure increase solar input which compensates for the lost energy. The degree-days of lost input get made up in the following 4-5 years.
Following Bob Tisdale’s recent article on NODC ‘averaged temperature’ of the ocean depths, I decided to look at top 100m vs 100-700m by subtracting the datasets provide. By inverting the 100m data we can see the heat flowing in and out of the thermocline and general see-sawing of the two reservoirs.
Here is a ‘spot the correction’ challenge , in the same spirit as your article.
I suspect someone has had their finger on the scales at one point , see if you can spot it.
There were quite a few VEI 4 or greater leading up to Tambora:
“Mystery eruption” somewhere in the South Pacific, 1808 or 1809 estimated at VEI-6
La Soufrière St. Vincent (in the Caribbean) 1812
Mount Awu Indonesia 1812
Suwanose-jima Japan volcano eruptions 1813-1814
Mayon Phililpines eruption Feb 1 1814
As tty pointed out the mystery eruption left a sulfate signature in glacier cores. It is similar to the signature of Tambora, with the same peak but narrower width. Tambora was a VEI-7. With all of that activity, I’m not sure you could single out one extra volcano.
the efolding time is on the order of 2 years
Eyeball observation.
After Tambora there is a slope down in temperature and it looks like the joint slowest drop.
That is: the rate of fall is slower than all other periods where the temperature falls (except possibly one other like it).
It may be that volcanoes cause a different cooling effect with a different signature. A lesser signature, sure, but still real.
There is an initial dip but within few years it recovers. This implies that volcanoes do not induce a permanent cooling effect, just a temporary one.
How can it be temporary? Well, the climate modellers would have AGW causing warming which counters the volcanic cooling and this kinda fits the late 20th c. , if you don’t look too closely.
The problem with that is Tambora does just the same thing and there was no significant AGW back then ! This would imply that there are climate feedbacks which compensate for changes in downward radiation and that the models attempting to balance AGW and volcanic forcing are doing the wrong thing.
This is why they are over sensitive post Y2K since they no longer have volcanoes to counter the exaggerated AGW.
Willis,
I am a big fan of your thunderstorm thermostat model!
You said: “Ben, I suspect that the main effect of volcanic eruptions is not a cold spike, but a lack of hot spikes …”
Is this what you meant Willis?
The large equatorial eruptions of the second half of the 20th Century were:
Mount Agung – March 17th (VEI 5) + second weak eruption May 16th, 1963.
El Chichon – March 28th (VEI 5) + 2nd weaker eruption March 30th and 3rd stronger eruption April 4th, 1982.
Mount Pinatubo – June 15th (VEI 6), 1991
Which just happened to closely followed by the onset of moderate to strong El Nino events:
1963/64 – moderate El Nino – starting around August 1963
1982/83 – very strong El Nino – starting in May 1982
1991/92 – strong El Nino – starting in Jun 1991
Normally, you would expect a noticeable increase in the world temperatures in the year following these El Nino events.
According to the Quinn El Nino index, there were:
a strong (index 4) El Nino event in 1814
and moderate+ (index 3) events in 1812 and 1817.
The expected post-warmings following the 1812 and 1817 El Nino events are evident in your temperature data, however, the post-warming expected after the 1814 El Nino event should have occurred in 1815. Maybe the volcanic cooling of the 1814 eruption was just counterbalanced by the El Nino post-warming just like the three large eruptions in the late 20th century.
[N.B.: The 1819 warming in your temperature record occurs just before a moderate (index 3) El Nino event in 1820, so it is not explained by this hypothesis].
Hi Ian, there is such a warming in the extra-tropical SH oceans:
Part of a full article on tropical feedbacks :
https://climategrog.wordpress.com/2015/01/17/on-determination-of-tropical-feedbacks/
It’s not an easy because of the natural noise in temperature series. It’s like in finance to try and find if a particular indicator can predict the future of stock prices. Lots and lots of if history is needed to find the relationship due to all the noise.
Of course there’s a lot of noise, but it’s hard to stop people shouting on the floor of a stock exchange.
It would be so much easier to just model this stuff.
modelling it is hard because the effect is also a function of the size of the aerosols
That’s not a problem, it means you have a few more unconstrained variable you can play with to ensure you get an exaggerated climate sensitivity from the model.
This is exactly the problem with the whole game. We do not have “basic physics” for some of the key phenomena that drive climate. Thanks for pointing that out.
Willis,

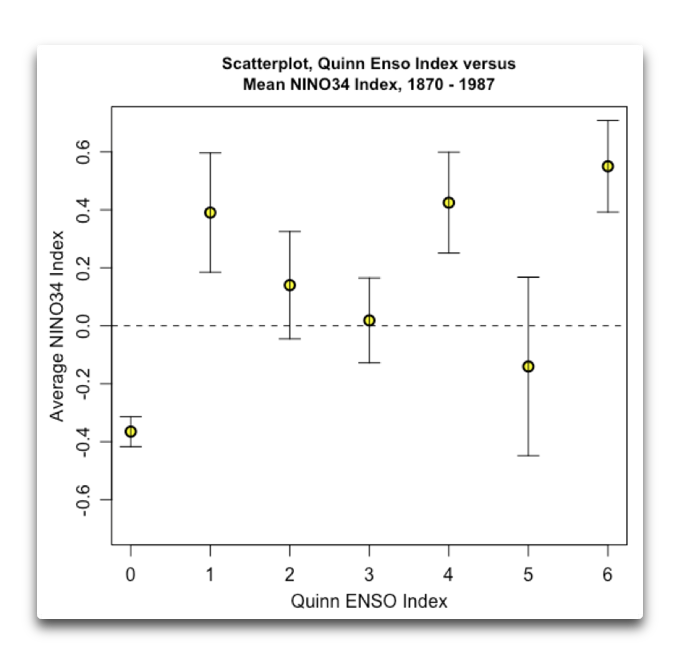

Sorry, but I misread Quinn El Nino index table at:
