Do Doomsters Know How Much Global Surface Temperatures Cycle Annually

Alternate Title: The Annual Cycle in Global Land+Ocean Surface Temperature IS Far Greater Than 1.5 Deg C, AND Much-Much-MUCH Greater Than 1.5 Deg C Annually for Global Land Air Surface Temperatures

We all were taught early in school that the Earth orbits the Sun…that its path is elliptical…that because of the tilt in Earth’s axis of rotation, we have seasons as the Earth orbits our star annually. Because of the elliptical orbit, and because the ratios of land to ocean are different between the Northern and Southern Hemispheres, we might expect that global average surface temperatures would vary over the course of a year.

Later in life we’ve been brow beaten with alarmism about human-induced global warming and climate change…that the Earth will become a literal—not figurative—hell if global surface temperatures rise—formerly 2-deg C—now 1.5 deg C above pre-industrial levels. But does the average person know much global surface temperatures vary annually as it orbits the Sun? It’s unlikely, because I’ve never before seen graphs that are similar to what’s presented in this post or seen it discussed in any of the global warming literature. Am I expecting most persons to find this information to be of any interest? Nope. I simply find it noteworthy that, as I mentioned before, I’ve never seen it presented anywhere. In fact, I just Googled, in quotes, “How Much Do Global Surface Temperatures Cycle Annually?” and Google replied (their boldface), “No results found for “How Much Do Global Surface Temperatures Cycle Annually?”.

Remarkable, is it not, in these times of global warming interest?

Enough with the preamble and on to the meat of the post:

The mainstream media and blogosphere went berserk with the release of the most recent propaganda-overloaded Special Report (SR15) by the UN’s global-politics-driven Intergovernmental Panel on Climate Change (IPCC). Their stories about the report were filled with all sorts of nonsensical gloom and doom prognostications about life on Earth should the rise in global surface temperatures exceed 1.5 deg C above “pre-industrial times”, which has also been redefined with SR15.

It wasn’t long ago, the gloom-and-doomsters focused on a 2-deg C change in global surface temperatures from pre-industrial times, but the point in time at which we were predicted to reach that 2-deg C threshold of all-nasty-things-to-come must have been too far in the future for them, so they revised their focus to a 1.5 deg C change in global surface temperatures to bring it nearer in time. In other words, as is characteristic of gloom-and-doomsters, the future gloom and doom is always a moving target.


As the title of the post asks, do doomsters know how much global surface temperatures cycle annually?

DATA SOURCES: The sources of much of the monthly global surface temperature data in absolute form are the following webpages at the Berkeley Earth website:

There, each listing is preceded by “Estimated Jan 1951-Dec 1980 monthly absolute temperature (C):”

For the 1951-1980 averages in absolute global (90S-90N) sea surface temperatures, I used NOAA’s much-adjusted ERSST.v5 sea surface temperature data, which is available through the KNMI Climate Explorer. Berkeley Earth uses the period of 1951-1980 for their anomalies. The KNMI Climate Explorer is also the source of the climate model outputs. As usual, I’m presenting the average (the consensus) of the outputs of the climate models stored the CMIP5 archive, which were used by the IPCC for the 5th Assessment Report. The models for this post are those driven by the historical forcings that precede the RCP8.5 forcings used for climate projections.


Now, we all have an idea of how much surface temperatures vary in our home towns. And we’ve all seen or heard the argument that goes like:

1.5 deg C? Where I live, temperatures can easily drop below -10 deg C (14 deg F) in winter and rise to about 35 deg C (95 deg F) for a few days in summer. We’re used to 45 deg C (81 deg F) swings in temperature each and every year. So who cares about 1.5 deg C (2.7 deg F)?

BTW, those truly are the conditions for where I live…and have been as far back as I can remember.

But few people realize that global surface temperatures vary noticeably as the Earth orbits the Sun and that the annual change in global Land+Ocean Surface Temperature is more than twice the gloom-and-doomsters’ 1.5 Deg C, and much-much-MUCH greater that 1.5 deg C for the annual cycle in Global Land Air Surface Temperatures.

As shown in Figure 1, depending on which of the Berkeley Earth Global Surface Temperature (BEST) datasets are referenced—with air over sea ice or with water under sea ice—the average annual cycle in global surface temperatures for their base period of 1951-1980 is estimated to be somewhere between 3.4 deg C or 3.7 deg C.

Figure 1

Even persons (climate scientists) who live in the politics-driven fantasy worlds of climate models have witnessed in their virtual worlds, on average for the period of 1951-1980, an annual change in global surface temperatures of 3.8 deg C.

Referring to Figure 2 below, according to Berkeley Earth, the average annual cycle (for the Berkeley Earth base period of 1951-1980) in global land-air surface temperatures is 11.8 deg C (almost 12 deg C) and that, of course, is much greater than the annual cycle in global sea surface temperatures (0.4 deg C) based on NOAA’s ERSST.v5 sea surface temperature data. In other words, the annual change in global land surface air temperatures is almost 8 times higher than the 1.5 deg C long-term change that agenda-hungry, unelected UN politicians from around the globe are telling us we need to avoid.

Figure 2

Thank you, oceans, for tempering Earth’s climate.


If you have spreadsheets prepared that convert data from column form to table form and back from table to column again—as I do—it’s easy to take the monthly Berkeley Earth surface temperature data and add to it the monthly average absolute temperatures for their base years of 1951 to 1980, so that the global surface temperature data can be presented in absolute form. See Figure 3 for the Berkeley Earth (BEST) monthly global land+ocean surface temperatures and linear trend, from September 1850 to September 2018, presented in absolute, not anomaly, form.

Figure 3

Figure 4 presents the monthly global Berkeley Earth land surface air temperature data and trend in absolute form, again from September 1850 to September 2018. In other words, there’s no ocean-based data to soften the annual cycles.

Figure 4

[Sarc on.] Hmmmm, maybe the doomsters do know, and the examples above in Figures 3 and 4 are the real reasons why NASA GISS, NOAA NCEI, and the Met Office’s Hadley Centre will only furnish their global land-plus-ocean surface temperature data and global land-air surface temperature data in anomaly form. Oops, it appears that NASA GISS, NOAA NCEI, and the Met Office’s Hadley Centre forgot to tell Berkeley Earth, and Berkeley Earth spoiled it for them all. Oh well, back to the old drawing board! [Sarc off.]

Again, thank you, oceans, for tempering Earth’s climate.

That’s it for this post.

Have fun, and enjoy your Monday!


Please purchase my recently published ebooks. As many of you know, this year I published 2 ebooks that are available through Amazon in Kindle format:

Just like you may have learned something new today with this post, you might learn much more from the books.

To those of you who have purchased them, thank you. To those of you who will purchase them, thank you, too.



0 0 vote
Article Rating
Newest Most Voted
Inline Feedbacks
View all comments
rhoda klapp
November 5, 2018 4:33 am

But, but, DOOM!!!!!

November 5, 2018 4:42 am

Thanks Bob. Here is another way showing the annual fluctuations.

comment image

Reply to  Ron Clutz
November 5, 2018 6:54 am

A followup comment. The different behavior of the two hemispheres came to my attention via a comment by EM Smith:
“I’d actually assert that there are only two measurements needed to show the existence or absence of global warming. Highs in the hottest month must get hotter and lows in the coldest month must get warmer. BOTH must happen, and no other months matter as they are just transitional.”
The data on summers and winters in the two hemispheres is readily available from the BEST dataset.
Bottom line: The results show winter minimums have warmed, while summer maximums have not. That pattern is consistent with Urban Heat Island Effect. But even if less cold winters are due to CO2, how is that a bad thing? How much should we spend to prevent slightly less cold winters?

Details at

Roger Knights
Reply to  Ron Clutz
November 5, 2018 8:37 am

+1 I miss E.M. Smith.

Reply to  Roger Knights
November 5, 2018 11:38 am

I agree Roger; but, did E.M. get tired of us?

Tom Abbott
Reply to  Ron Clutz
November 6, 2018 6:10 am

“The data on summers and winters in the two hemispheres is readily available from the BEST dataset.
Bottom line: The results show winter minimums have warmed, while summer maximums have not. That pattern is consistent with Urban Heat Island Effect.”

I don’t think it is an Urban Heat Island effect. The milder winters and milder summers are just what I have been experiencing for the last few years and I live in a rural area. The last few years have been some of the best weather in my lifetime. I hope this kind of weather continues. May “the Pause” go on forever! 🙂

D Cage
Reply to  Ron Clutz
November 6, 2018 8:19 am

My daughter’s old boss, now a rail manager is certain the fact he was trying to research this more fully got him black listed from any government funding in the UK and led to his now very significantly more lucrative employment in his current job. His view was that it while distressing at the time ended up highly beneficial for him but makes him despair about the future of research with such total lack of integrity in the controllers.

Reply to  Ron Clutz
November 5, 2018 8:36 am

And here’s another, courtesy of the National Weather Service:

A specific place has a climate, characterized by its annual temperature range (the difference between the highest highs and the lowest lows) and the amount of precipitation. For SLC Utah the range is between -20 F and + 100 F, with average precip of ~ 16 inches per year.

120 degree F annual range. Typically a 40 degree, and up to 60 degree daily range.

Now that’s Climate!

Loren Wilson
Reply to  WBWilson
November 5, 2018 2:57 pm

I am also a Wilson. Are you related to Deliverance Wilson?

November 5, 2018 4:56 am

Less cool winter in Arctic and less cool nights.
That is the result of more water in the air and more asphalt on the ground.
It is like the sea. It gives heat distribution.

Robert of Ottawa
Reply to  Lasse
November 5, 2018 5:19 am


Make Canada Warmer Again

And our federal government wants to make it colder! Not sure who’s side they’re on.

Reply to  Robert of Ottawa
November 5, 2018 5:36 am

Some people think they should have the right to be cold. link

Reply to  commieBob
November 5, 2018 6:02 am


Yet more of the tail wagging the dog. Minority groups determining the future of mankind whilst masquerading as democratic participants.

November 5, 2018 5:05 am

Try some of the colder places like Canada. Summer temperatures over 30C, winter temperatures of -30C.

Reply to  poitsplace
November 5, 2018 8:09 am

Same here in Finland. Difficult to care about another 0.5C, really. Although, when said publicly, everyone starts telling me how climate change is not about climate getting warmer, but how storms will increase and how the Golf stream will stop and we will freeze (and how the titans will rise from the earth and trample us to dust and the gods will weep), and… I roll my eyes. Every other year the same people are yelling “see, record heat during summer/winter, climate change!”, “see, record cold during summer/winter, climate change!”

Steven Mosher
Reply to  poitsplace
November 5, 2018 8:40 pm

Biggest swings are in Siberia

Reply to  poitsplace
November 6, 2018 12:49 pm

In Calgary this year we had a low of -31°C (twice) and a high of 37°C. That’s 68°C variation (122°F). It’s possible that we get colder yet this year. We will see.

November 5, 2018 5:07 am

The temperatures in northern Vermont range 60-73C every year. Last year temperatures at our local county airport (Island Pond, Vermont – grass strip no asphalt) were -36C in January and reached a high of +33C in July. In 2003 the temperatures dropped to -40C and the high was +33C. In a mild year like 2006 temperatures ranged from -27C to a high of 32C. A +/-1.5C change is unremarkable.

Reply to  Keith
November 5, 2018 5:18 am

There are places in Yakutia with an annual range approaching 100 C.

Robert of Ottawa
November 5, 2018 5:17 am

Hah! That’s apiddling variaiton. We had +40C one day this summer and bracing for our usual -30C winter.

Ottawa +30C to -30C in 6 months

Gordon in Calgary
Reply to  Robert of Ottawa
November 5, 2018 1:26 pm

Ditto for Calgary. And you can make a similar argument for sea level rise. Daily, Monthly and yearly tide fluctuations are greater than the past 2000 years of sea level rise.

Reply to  Gordon in Calgary
November 5, 2018 8:09 pm

H***, the wave-wave fluctuations are greater than the last 2,000 of alleged SLR!

Phil Rae
November 5, 2018 5:20 am

Another informative post, Bob – thank you! However, we need this kind of information to be shouted from the mountain tops. We risk losing this fight if we don’t do something to counter the propaganda of the BBC, CNN & the vast majority of MSM broadcasters & newspapers, both print & online. Our schools are busy raising a generation of youngsters spoon-fed on catastrophist propaganda.

I realise that isn’t a revelation to most denizens of WUWT but we ignore it at our peril. We need to find better ways to put real information in the hands of those who will make decisions in the future…..and we need to find ways to stop governmental complicity in this scam across much of the free world.

November 5, 2018 5:26 am

Is not the fact that GMST fluctuates cyclically with such magnitude in our data records proof that our temperature sensors are biased toward one hemisphere (presumably the Northern)? If we had a truly uniform distribution of thermometers, the only variation would be due to orbital eccentricity, which should be much smaller. Eh?

Reply to  Ike Kiefer
November 6, 2018 9:39 am

Not necessarily. Note that the widest variations are in the land temperatures, and the sea temperature varies very little, as shown in one of the charts above. The Northern Hemisphere has a lot more land than the Southern Hemisphere, so the annual variation in the SH will be less than that in the NH.

I’m not suggesting that there isn’t an inherent bias in that the NH has a lot more temperature sensors than the SH, but that isn’t the sole issue.

John McLean
Reply to  Retired_Engineer_Jim
November 6, 2018 8:24 pm

When you consider that sea temperatures range from about -2C to 34C (i.e. about 36C in total) and land temperatures range from about -40C up to 55C (95C in total) it’s not surprising that the larger land area in the Northern Hemisphere gives it a wider temperature range than in the SH.

November 5, 2018 5:35 am

Do Doomsters Know How Much Global Surface Temperatures Cycle Annually?

No, they do not know and they do not want to know. They want their personal thermostats set at 74F, no higher, no lower and no interference with the availability of whipped soy latte half-caff arabica bean coffee.*

You are/will/have been inconveniencing them when you tell the truth and put it in front of them. They live on a flat planet which the Sun circles and they don’t want to hear or know about anything else.

Can I have my peanut butter and grape jam sandwich now?

*No coffee beans were injured or embarrassed by my statement.

steve case
November 5, 2018 5:37 am

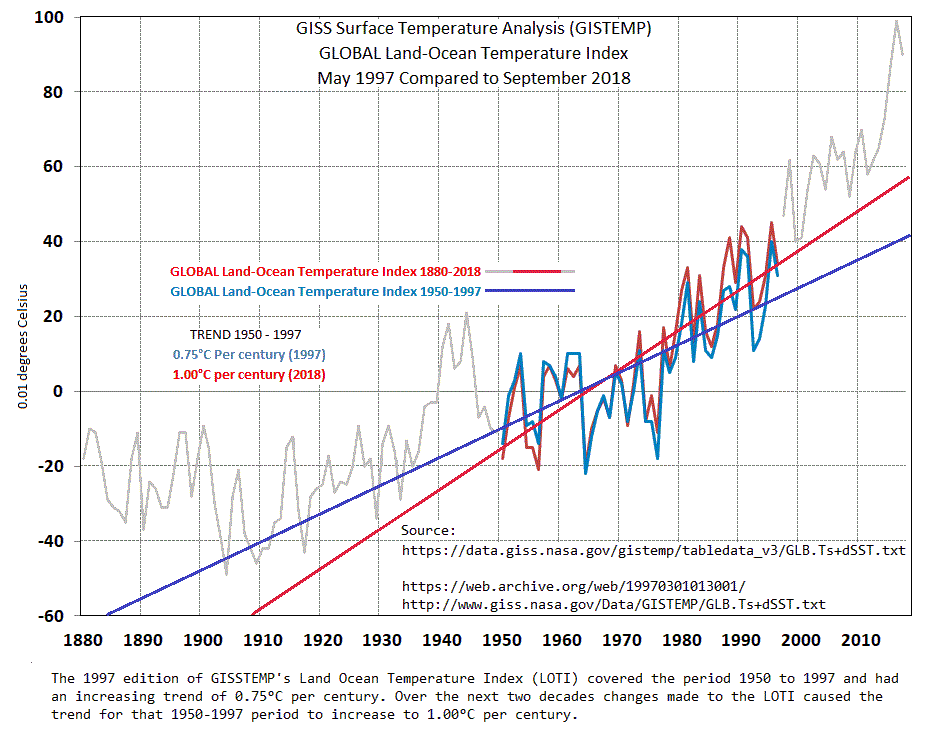

Yes, and the anomaly data is constantly changed. So once again here’s GISSTEMP’s Land Ocean Temperature Index (LOTI) as it was in 1997 compared to the 2018 version
