Sea Ice News #27

This week we continue to see strong gains in Arctic Sea Ice. JAXA’s extent paused briefly, but has resumed a strong upwards climb, now exceeding 2005 for this date.

JAXA AMSR-E Sea Ice Extent -15% or greater – click to enlarge

In other news, NSIDC released an interesting video using Google Earth.

Here’s the NSIDC animation showing the entire satellite Arctic sea ice record.

According to the Google Earth Blog:

==========================================================

They’ve recently updated their files to show data from 2010, and the results are quite stunning:


According to their site, the 2010 low (reached on September 19) was the third lowest on satellite record:

Average ice extent for September 2010 was 4.90 million square kilometers (1.89 million square miles), 2.14 million square kilometers (830,000 square miles) below the 1979 to 2000 average, but 600,000 square kilometers (230,00 square miles) above the average for September 2007, the lowest monthly extent in the satellite record. Ice extent was below the 1979 to 2000 average everywhere except in the East Greenland Sea near Svalbard.

The U.S. National Ice Center declared both the Northwest Passage and the Northern Sea Route open for a period during September. Stephen Howell of Environment Canada reported a record early melt-out and low extent in the western Parry Channel region of the Northwest Passage, based on analyses of the Canadian Ice Service. Two sailing expeditions, one Norwegian and one Russian, successfully navigated both passages and are nearing their goal of circumnavigating the Arctic.

You can check it out for yourself using this KMZ file. Or, if you’d prefer, you can simply watch the video below that shows all of the data in the KMZ.

========================================================

In following the link from The Google Earth blog to the NSIDC page link they cite, I noted the September Average extent graph, which is different than the usual annual minimum extent graphs we see.



monthly graph

Figure 3. Monthly September ice extent for 1979 to 2010 shows a decline of 11.5% per decade.- click to enlarge



And of course, it looks like a “death spiral” to paraphrase Dr. Mark Serreze, but it is only 30 years of data, so who’s to say it isn’t part of a longer cycle? One thing that has always bugged me about NSIDC is that they don’t provide data to go with their plots, and of course none was listed with this one, so I decided to use the large size of that plot to hand digitize the values.

Here’s the manually digitized data I got from that NSIDC September average extent graph. Values are year, and average September extent in million square kilometers:

1979 7.20

1980 7.80

1981 7.25

1982 7.45

1983 7.55

1984 7.20

1985 6.90

1986 7.60

1987 7.50

1988 7.50

1989 7.10

1990 6.25

1991 6.60

1992 7.55

1993 6.50

1994 7.20

1995 6.20

1996 7.90

1997 6.75

1998 6.60

1999 6.25

2000 6.35

2001 6.80

2002 5.95

2003 6.20

2004 6.10

2005 5.60

2006 5.90

2007 4.30

2008 4.70

2009 5.40

2010 4.90

I wondered what JAXA would show for September averages. Fortunately since JAXA provides the daily data here, it was easy to bring it into a spreadsheet and calculate the average. Here’s the values I got from my spreadsheet. Values are year, and average September extent in million square kilometers, rounded to nearest hundredths:

2002 6.11

2003 6.28

2004 6.16

2005 5.70

2006 5.98

2007 4.60

2008 5.08

2009 5.53

2010 5.45

Note that 2002 didn’t have a full month of valid daily data, but it appeared to have enough since JAXA plots September extent on their own graph. I plotted them both, using Dplot, and here’s the output:



click to enlarge



Feel free to check my work, the output of the spreadsheet I used to calculate the JAXA averages is here: JAXA_2002-2010_SeptAvg

…as a PDF file of values (WordPress.com won’t let me upload XLS files)

It seems that the differences between NSIDC and JAXA average September extent are getting larger since 2007, and that JAXA is always showing more extent than NSIDC. In September 2010 there’s a whole half million square kilometer difference between the two averages. It’s curious.

Speaking of NSIDC, Dr. Walt Meier has asked to do a guest post here, and I’ve approved a slot for him, so I’m going to hold much of my weekly discussion in deference to him. In the meantime, the WUWT Sea Ice Page has a wide collection of images and graphs from both hemispheres to brief you.

Also, if you have not seen it yet, this book review from WUWT contributor Verity Jones on what the Russian Arctic and Antarctic Research Institute thinks about the Arctic Ice loss (they predict a rebound) is well worth a read.

Update: the JAXA average calcs might be in error, an artifact of how the spreadsheet cells return, unfortunately I won’t be able to check again and replot until late tonight, see upcoming announcement. – Anthony

Advertisements

84 thoughts on “Sea Ice News #27

  1. Death spirals are such complicated stuff! I wonder if a falsification could show up by 2014 or 2031 or 2101. I’ll stayed glued to my seat watching for a while longer.

  2. Two sailing expeditions, one Norwegian and one Russian, successfully navigated both passages and are nearing their goal of circumnavigating the Arctic.
    One of the 2 was Boerge Ousland. These trips are being used to promote global warming alarm. It is made to appear that global warming has decimated North Pole ice so that there is now open water all around the circumference of the Arctic Ocean. But that isn’t true.
    PDF of the 2010 Boerge Ousland trip
    http://www.corsair-sweden.com/blog/TheNorthPolePassage.pdf
    –page 1 of the PDF, their map shows they did not stay in the Arctic but part of the trip was in the North Atlantic
    They say circumnavigated “the Earth on the Arctic Ocean” but to do that they needed to go north of Greenland. They went south of Greenland.
    –Page 2 of the PDF, they did not plan to stay in water:
    Circumnavigating the Earth on the Arctic Ocean in a single summer is an impossible challenge – if you try to do it the traditional way…..we have chosen a light and lithe trimaran….can easily be pulled onto the shore to avoid pack ice.
    They planned to run into ice. So they used a lighter boat that could be carried over where there was no open water.
    ……………………………………………………………………………………………………………………
    P.S. Just to make it clear: I am not saying those involved with these 2 journeys are doing it to promote global warming alarm. Nor am I saying what they did was a small accomplishment. I am simply pointing out that what is perceived about these trips and what is real about them are two different things.

  3. Excuse me Anthony but it is Verity Jones (not Valerie).
    Bernie
    REPLY: Yep, fixed. Valerie Jones also in my head, former CNN meteorologist – Anthony

  4. Excellent post.
    Great work on the difference between Jaxa and NSIDC extents. It will be interesting to see what Dr Meier has to say about it, though it seems strange that around the same time as his boss starts talking about “death spirals” and no summer ice by 2013, the extents start to diverge (at this rate, there’ll be a 1m sq km difference by 2013), and also about the conclusions of the book that Verity Jones reviewed.
    On past form, I expect a whole lot of hand waving.

  5. So to summarize: Another summer has gone by and the Arctic Ocean ice did not all melt – again.

  6. Benoit Mandelbrot born 1924 died Thursday, October 14, 2010. As all here know, or should, his “fractal geometry” allied with Edward Lorenz’s Chaos Theory describes complex dynamic systems ranging from atmospheric physics to cell morphology to futures trading on the New Orleans cotton exchange in 1900. Among other things, Mandelbrot’s “self-similar” geometry underlies computer graphics, impacts information theory, bears on quantum probabilities, and so on and on.
    From a “climate science” standpoint, Mandelbrot’s iterative/recursive techniques bear on statistical “noise levels,” much as if natural processes were broadcasting information as sets of complex interference patterns. Absent such mathematical context and perspective, anyone restricting inquiries to “bottom-up” research will encounter seeming perplexities which in fact are no such thing.

  7. It would be good to see close by the graph: Average Arctic Sea Ice Extent, September 1979 to 2010
    The Average Antarctic Sea Ice Extent, March 1979 to 2010

    REPLY:
    Have a look at the sea ice page

  8. It seems that the differences between NSIDC and JAXA average September extent are getting larger since 2007, and that JAXA is always showing more extent than NSIDC…..Speaking of NSIDC, Dr. Walt Meier has asked to do a guest post here, and I’ve approved a slot for him….
    In a perfect world we could expect that no one would be suspicious of the NSIDC having Mark Surreze running it. We are not in a perfect world. It would be unrealistic to expect that people shouldn’t have suspicions. Maybe Walt Meier will allay suspicions in his guest post. But, he may also create more questions. I hope he will be ready to field any challenges from commenters.

  9. John Blake says:
    October 17, 2010 at 7:44 pm
    My discovery of recursion really opened up the possibilities of programming back in the days of limited memory, both in minis & micros.
    As for this post. How many icebreakers were operating prior to 1935?
    DaveE.

  10. John Blake says:
    October 17, 2010 at 7:44 pm
    Oh Hell. I meant my discovery of recursion through the work of Mandelbrot.
    DaveE.

  11. “Speaking of NSIDC, Dr. Walt Meier has asked to do a guest post here, and I’ve approved a slot for him…”
    Very class act Anthony. Separates you from the wanna bees at RC, desmug blug and others to vile to mention. It must drive them nuts when you allow folks like Dr Meier and others to post here as they would never survive such an act were they to do the same on their blogs.
    My admiration for you has no bounds.

  12. Could someone please remind me why is it that comparisons continue to be made with the 1979-2000 average ice extent; and not with an updated period (ie 1979 – 2009)? Ssurely an average over 31 years will provide a much better indication than a 22 year average (over a period when the record my have been anomalous).

  13. I do not agree with Dr. Meier but I do respect his willingness to engage in conversation.
    Did this willingness to engage have anything to do with his replacement by Mark Serreze?
    DaveE.

  14. John Blake says: (October 17, 2010 at 7:44 pm) Benoit Mandelbrot born 1924 died Thursday, October 14, 2010.
    Rest in peace, Benoit Mandelbrot; Earth is a more wonderful place because of you.

  15. All of this prompts me to inquire: Has anyone ever done a ‘rate of change’ evaluation of the matter before us?
    You know: The rate of change of loss of sea ice, versus a rate of change of increase of sea ice, and then compared those with the the various rates of change in the oscillations of sea temps?
    And what about the velocity of various ocean currents and their rates of change?
    Certainly, ocean currents aren’t constant, and so then, neither would their affects be so either.
    So much in life depends upon rates of change.
    In fact, you might call it the ‘calculus’ of life …

  16. “And of course, it looks like a “death spiral” to paraphrase Dr. Mark Serreze, but it is only 30 years of data, so who’s to say it isn’t part of a longer cycle?”
    Thirty years warm, thirty years cold, the sixty-year climate cycle is just a bit too long to fix itself in the public memory.
    .
    Roger Carr says: October 17, 2010 at 8:42 pm
    John Blake says: (October 17, 2010 at 7:44 pm) Benoit Mandelbrot born 1924 died Thursday, October 14, 2010.
    Rest in peace, Benoit Mandelbrot; Earth is a more wonderful place because of you.

    It is indeed. One of my life’s achievements was getting the Mandelbrot algorithm to reside entirely on an Intel ‘287 math co-processor. RIP

  17. Hi Anthony,
    You may already know this, but NSIDC data is on their FTP here:
    ftp://sidads.colorado.edu/DATASETS/NOAA/G02135
    It’s separated into different files for each month (average monthly values), but the files do include both extent and area. The official Sept numbers are (1979-2010):
    7.2
    7.85
    7.25
    7.45
    7.52
    7.17
    6.93
    7.54
    7.48
    7.49
    7.04
    6.24
    6.55
    7.55
    6.5
    7.18
    6.13
    7.88
    6.74
    6.56
    6.24
    6.32
    6.75
    5.96
    6.15
    6.05
    5.57
    5.92
    4.3
    4.68
    5.36
    4.9
    It looks like your values seem to all be within 0.05 million km^2 (I didn’t check every single value though).
    It’s a pain to work with individual files, but once you import them all into one spreadsheet, it’s not so bad. If you’re only working with September, it’s a piece of cake though. 🙂
    I just wish they’d give one more sig fig for the monthly averages…don’t know if it’d be significant.
    -Scott
    REPLY: No I didn’t know of this FTP source, they never seem to offer the data with any of their press releases, and I recently asked Dr. Meier about doing this. The impression I got was they hadn’t planned on making it available. Unfortunately, I’m about to travel, and I won’t be able to replot the graph with these official numbers before I leave. – Anthony

  18. “… I plotted them both, using Dplot… ”
    I’ve been meaning to mention that. I found out about Dplot from WUWT, and after looking over the capabilities that it has, I purchased it. I am 100% pleased with it. That thing can wizz through 3D quake plots with ease. I’ve mentioned my satisfaction with it to the program author, but you are the one who first pointed me at it.
    Thank You.

  19. Stefan of Perth says:
    October 17, 2010 at 8:20 pm
    “Could someone please remind me why is it that comparisons continue to be made with the 1979-2000 average ice extent; and not with an updated period (ie 1979 – 2009)? Ssurely an average over 31 years will provide a much better indication than a 22 year average (over a period when the record my have been anomalous).”
    Actually, I agree with Mike McMillan in that I would argue that we need 60 years at least. Whilst the influence of PDO cycles on Arctic Ice conditions is not yet FULLY understood, a prudent approach would be to get a set of measurements that encompass at the very least a complete PDO cycle. Even better would be to see several PDO cycles since I would assume some potential for variability between cycles.
    We only have 30 or so years of solid measurements. Before that the data is certainly open to debate. Until we have confirmation that the extent is not following a sine curve, of which we’ve only seen half during the satellit era, then I’ll take the measurement against the average with a grain of salt.
    Show me extents consistently outside of the min/max for the 60 year period and I’ll start to take notice.

  20. Well done on the two yachts traversing the NW and Northern passages in one year therefore circumnavigating the globe via the Arctic ocean.
    A great feat considering some posters on this blog insisted the NW passage wasn’t open 😉
    Andy

  21. Great work on the difference between Jaxa and NSIDC extents.”
    Perhaps NSIDC homogenizes the bad ice out.
    BTW, that was a nice cute Polar Bear in the Boerge Ousland link.

  22. Is there any way to retrieve the 1979/80/81/82/83/84 satellite images of the Polar sea ice min/max area and extent?
    I am interested because the alarmists do have a habit of manipulating the temperature record to suit their agenda, lowering early temperature records to exaggerate warming.
    Is it possible they over estimated the early sea ice maximums and minimums to show a greater decline over the 30yrs than is the actual case? Going by JAXA numbers the decline isnt that great and does not qualify as a death spiral.

  23. From what I’ve learned at WUWT, these data are nice, but kind of meaningless without the commensurate wind data to go with it. Floating ice is driven hard before a prevailing wind, no matter the thickness of whatever is floating.

  24. I think of “death spiral” as intended to convey the idea of accelerating change and not merely a linear decline. But that idea is based on just a few years of data, not 30 years.

  25. SSam says:
    October 17, 2010 at 9:44 pm
    “… I plotted them both, using Dplot… ”
    I’ve been meaning to mention that. I found out about Dplot from WUWT, and after looking over the capabilities that it has, I purchased it. I am 100% pleased with it. That thing can wizz through 3D quake plots with ease. I’ve mentioned my satisfaction with it to the program author, but you are the one who first pointed me at it.
    Thank You.
    _____________________________________________________________
    Well I happen to know who wrote the Dplot software, he works for the USACE ERDC GSL, they blow things up over there, at really high sampling rates, and I do mean really high sampling rates.

  26. We all welome and look forward to Dr. Walt Meier.
    Can he please bring some of his data with him. We previously asked about Arctic-Antarctic sea ice correlation, when a suitable time shift has been applied to align the patterns (correlation analysis doesn’t naturally handle that sort of manipulation and the mis-aligned data undoubtably gives erroneously low correlation measurements).
    Or, at very least, could Dr Meier tell us where we can pick up Antarctic sea ice data in a commonly used and convenient format.

  27. I completely disagree with this evaluation that fact is that since 2007 NH ice has been increasing, Even the 2010 AREA UNDER THE CURVE for the past 3 months IS GREATER than 2009 look at the DMI ice extent. Just wait for 2011 to complete knock NSIDC off their pedestal. Also again we seem to forget about SH ice which is consistently ABOVE!

  28. Is it possible to create an approximation of the sea ice extent by some other means, from as far back as possible, up to and including the present date? The satellite data could then be plotted on this approximation to give some idea of just how the last 30 odd years measured fits in with the bigger picture. This might give some justification for fitting straight line trends to small samples of data. Or then again it might not.
    Extrapolation of the straight line plot would indicate (roughly) that in September 1933 the arctic sea ice extent was 12 million square kilometres (I think not, based on historical accounts described on WUWT), illustrating both the risks of extrapolating data trends and the limitations of attributing linear trends to segments of (potentially) cyclically varying data.

  29. AndyW says:
    October 17, 2010 at 10:14 pm
    Well done on the two yachts traversing the NW and Northern passages in one year therefore circumnavigating the globe via the Arctic ocean.
    A great feat considering some posters on this blog insisted the NW passage wasn’t open 😉
    Andy
    Go read the article again and remember where the NW passage is.

  30. [This is something I’ve already posted on an Aussie site today. It’s not relevant to sea-ice, but may be relevant to how climate is recorded, and, just possibly, how it’s misrecorded. I certainly feel it’s worth noting, but if you feel it’s too far off-topic, I’ll understand if I’m snipped. Please keep in mind I’m talking about the southern spring, not far from the ocean, at about 31 degrees latitude.]
    The discrepancy I’m about to mention may have been due to a simple misread by me or by someone at the other end.
    The last two mornings here in the hills south of Kempsey have been freezing. I know that there was frost in some places on Sunday morning.
    When I checked the data yesterday, the minimum for Sunday was 3.0. I’m almost certain that’s what I saw on the Elders website. The coldest minimum on record, 2.8, occurred on the first day of October in 1992, so 3.0 on the 17th is freakish. I sat up and noticed, so it’s unlikely I misread.
    This morning, yesterday’s minimum had been amended on the Elders website to 3.5.
    It’s been in my mind for some time that we should all be making copies of published weather records of our respective localities. I know in my locality there is some very interesting data, particularly the monthly mean temp records, which show all the highest maxima occurring between 1910 and 1920, except for august, which had it’s hottest average maximum in 1946.
    I’d hate it if that data were to be mysteriously amended. That’s all I’m saying for now. Like I said, it may have been a simple error. The problem is, twenty years ago it could only have been a simple error. Now we wonder.

  31. Well I think I have the end all-be all comparison of JAXA vs NSIDC;
    http://picasaweb.google.com/117077348819630829996/ArcticSeaIce#
    Graphs 4-6.

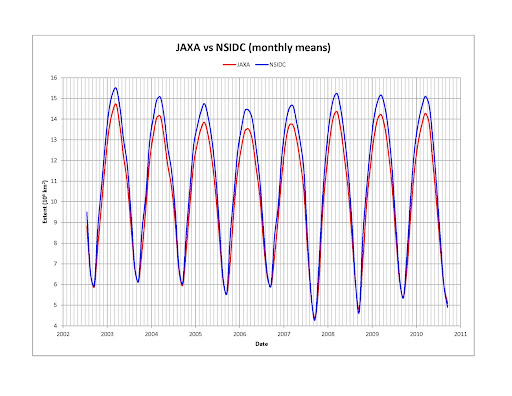

    Graph 4: Time series of monthly means for JAXA and NSIDC.

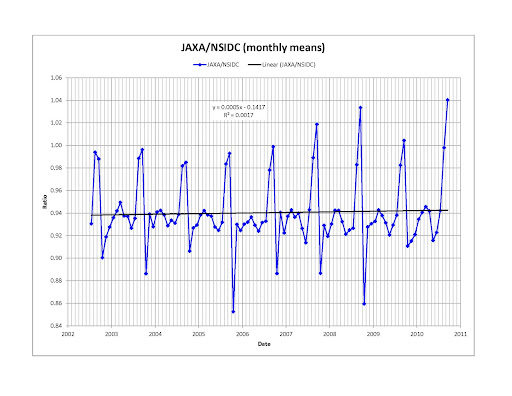

    Graph 5: Monthly time series of the ratio of JAXA/NSIDC.

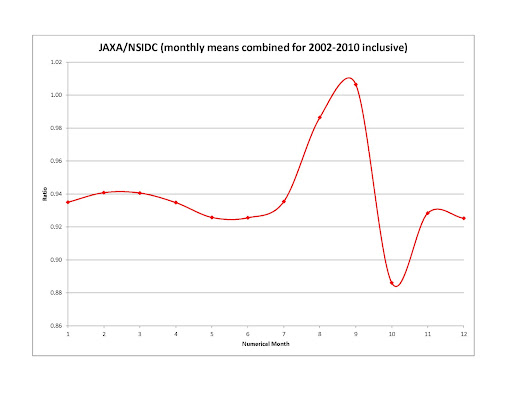

    Graph 6: JAXA/NSIDC ratios for the same months combined for all years for overall monthly average (each month shown as it’s numerical order in a year).
