Earth’s ‘ozone hole’ shrinks to lowest since 1988

From NASA Goddard:

Warm Air Helped Make 2017 Ozone Hole Smallest Since 1988

Measurements from satellites this year showed the hole in Earth’s ozone layer that forms over Antarctica each September was the smallest observed since 1988, scientists from NASA and NOAA announced Friday.

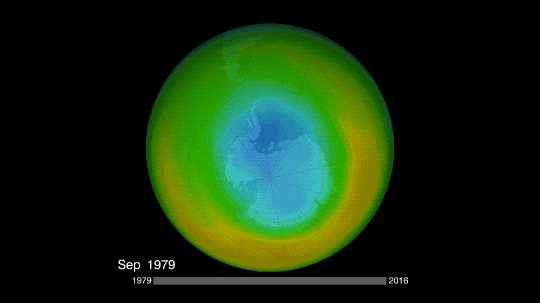

According to NASA, the ozone hole reached its peak extent on Sept. 11, covering an area about two and a half times the size of the United States – 7.6 million square miles in extent – and then declined through the remainder of September and into October. NOAA ground- and balloon-based measurements also showed the least amount of ozone depletion above the continent during the peak of the ozone depletion cycle since 1988. NOAA and NASA collaborate to monitor the growth and recovery of the ozone hole every year.

“The Antarctic ozone hole was exceptionally weak this year,” said Paul A. Newman, chief scientist for Earth Sciences at NASA’s Goddard Space Flight Center in Greenbelt, Maryland. “This is what we would expect to see given the weather conditions in the Antarctic stratosphere.”

The smaller ozone hole in 2017 was strongly influenced by an unstable and warmer Antarctic vortex – the stratospheric low pressure system that rotates clockwise in the atmosphere above Antarctica. This helped minimize polar stratospheric cloud formation in the lower stratosphere. The formation and persistence of these clouds are important first steps leading to the chlorine- and bromine-catalyzed reactions that destroy ozone, scientists said. These Antarctic conditions resemble those found in the Arctic, where ozone depletion is much less severe.

In 2016, warmer stratospheric temperatures also constrained the growth of the ozone hole. Last year, the ozone hole reached a maximum 8.9 million square miles, 2 million square miles less than in 2015. The average area of these daily ozone hole maximums observed since 1991 has been roughly 10 million square miles.

Although warmer-than-average stratospheric weather conditions have reduced ozone depletion during the past two years, the current ozone hole area is still large because levels of ozone-depleting substances like chlorine and bromine remain high enough to produce significant ozone loss.

Scientists said the smaller ozone hole extent in 2016 and 2017 is due to natural variability and not a signal of rapid healing.

Ozone depletion occurs in cold temperatures, so the ozone hole reaches its annual maximum in September or October, at the end of winter in the Southern Hemisphere. Credits: NASA/NASA Ozone Watch/Katy Mersmann

First detected in 1985, the Antarctic ozone hole forms during the Southern Hemisphere’s late winter as the returning sun’s rays catalyze reactions involving man-made, chemically active forms of chlorine and bromine. These reactions destroy ozone molecules.

Thirty years ago, the international community signed the Montreal Protocol on Substances that Deplete the Ozone Layer and began regulating ozone-depleting compounds. The ozone hole over Antarctica is expected to gradually become less severe as chlorofluorocarbons—chlorine-containing synthetic compounds once frequently used as refrigerants – continue to decline. Scientists expect the Antarctic ozone hole to recover back to 1980 levels around 2070.

Ozone is a molecule comprised of three oxygen atoms that occurs naturally in small amounts. In the stratosphere, roughly 7 to 25 miles above Earth’s surfacethe ozone layer acts like sunscreen, shielding the planet from potentially harmful ultraviolet radiation that can cause skin cancer and cataracts, suppress immune systems and also damage plants. Closer to the ground, ozone can also be created by photochemical reactions between the sun and pollution from vehicle emissions and other sources, forming harmful smog.

Although warmer-than-average stratospheric weather conditions have reduced ozone depletion during the past two years, the current ozone hole area is still large compared to the 1980s, when the depletion of the ozone layer above Antarctica was first detected. This is because levels of ozone-depleting substances like chlorine and bromine remain high enough to produce significant ozone loss.

ozone9.11[1]

At its peak on Sept. 11, 2017, the ozone hole extended across an area nearly two and a half times the size of the continental United States. The purple and blue colors are areas with the least ozone. Credits: NASA/NASA Ozone Watch/Katy Mersmann

NASA and NOAA monitor the ozone hole via three complementary instrumental methods. Satellites, like NASA’s Aura satellite and NASA-NOAA Suomi National Polar-orbiting Partnership satellite measure ozone from space. The Aura satellite’s Microwave Limb Sounder  also measures certain chlorine-containing gases, providing estimates of total chlorine levels.

NOAA scientists monitor the thickness of the ozone layer and its vertical distribution above the South Pole station by regularly releasing weather balloons carrying ozone-measuring “sondes” up to 21 miles in altitude, and with a ground-based instrument called a Dobson spectrophotometer.

The Dobson spectrophotometer measures the total amount of ozone in a column extending from Earth’s surface to the edge of space in Dobson Units, defined as the number of ozone molecules that would be required to create a layer of pure ozone 0.01 millimeters thick at a temperature of 32 degrees Fahrenheit at an atmospheric pressure equivalent to Earth’s surface.

This year, the ozone concentration reached a minimum over the South Pole of 136 Dobson Units on September 25— the highest minimum seen since 1988. During the 1960s, before the Antarctic ozone hole occurred, average ozone concentrations above the South Pole ranged from 250 to 350 Dobson units. Earth’s ozone layer averages 300 to 500 Dobson units, which is equivalent to about 3 millimeters, or about the same as two pennies stacked one on top of the other.

“In the past, we’ve always seen ozone at some stratospheric altitudes go to zero by the end of September,” said Bryan Johnson, NOAA atmospheric chemist. “This year our balloon measurements showed the ozone loss rate stalled by the middle of September and ozone levels never reached zero.”


Anthony’s thoughts on the issue:

While this is good news, it may not be related to the CFC reductions from the Montreal Protocol.

While there are claims that the shrinking ozone hole is due entirely to CFC reductions, it has been suggested that the ozone hole has been a permanent feature of Antarctica for millennia, and that it is a product of cold, wind patterns, and lack of sunlight in Antarctica’s deep freeze dark winter. Ozone in the upper atmosphere is manufactured by the interaction of sunlight, specifically the ultraviolet spectrum:

Stratospheric ozone. Stratospheric ozone is formed naturally by chemical reactions involving solar ultraviolet radiation (sunlight) and oxygen molecules, which make up 21% of the atmosphere. In the first step, solar ultraviolet radiation breaks apart one oxygen molecule (O2) to produce two oxygen atoms (2 O) (see Figure Q2-1). In the second step, each of these highly reactive atoms combines with an oxygen molecule to produce an ozone molecule (O3). These reactions occur continually whenever solar ultraviolet radiation is present in the stratosphere. As a result, the largest ozone production occurs in the tropical stratosphere.

The production of stratospheric ozone is balanced by its destruction in chemical reactions. Ozone reacts continually with sunlight and a wide variety of natural and human produced chemicals in the stratosphere. In each reaction, an ozone molecule is lost and other chemical compounds are produced. Important reactive gases that destroy ozone are hydrogen and nitrogen oxides and those containing chlorine and bromine.

Source: https://www.esrl.noaa.gov/csd/assessments/ozone/2010/twentyquestions/Q2.pdf

Yes, and without sunlight, ozone production stops, and the chemical reactions take over. Cold is also a big factor in the atmospheric chemistry process. This is why the ozone hole over Antarctica is a seasonal phenomenon.

Figure Q10-1 Source: NOAA ESRL

Low polar temperatures. The severe ozone destruction represented by the ozone hole requires that low temperatures be present over a range of stratospheric altitudes, over large geographical regions, and for extended time periods. Low temperatures are important because they allow liquid and solid PSCs to form. Reactions on the surfaces of these PSCs initiate a remarkable increase in the most reactive chlorine gas, chlorine monoxide (ClO) (see below and Q8). Stratospheric temperatures are lowest in both polar regions in winter. In the Antarctic winter, minimum daily temperatures are generally much lower and less variable than in the Arctic winter (see Figure Q10-1). Antarctic temperatures also remain below the PSC formation temperature for much longer periods during winter. These and other meteorological differences occur because of the unequal distribution among land, ocean, and mountains between the hemispheres at middle and high latitudes. The winter temperatures are low enough for PSCs to form somewhere in the Antarctic for nearly the entire winter (about 5 months) and in the Arctic for only limited periods (10–60 days) in most winters.

Source: https://www.esrl.noaa.gov/csd/assessments/ozone/2010/twentyquestions/Q10.pdf

While there is evidence that the worst posited offenders (CFC-11, and CFC-12) are in fact purging from the atmosphere, the question remains over whether the ozone hole would ever go away, since we have no data prior to the 1980’s, we just don’t have much data history on it.

CFC concentrations in Earth’s atmosphere. Source: https://www.esrl.noaa.gov/gmd/hats/graphs/graphs.html

We are worried about it now because we can observe it for the first time in human history. The fact that NASA now says a mild winter made the ozone hole the smallest observed since 1988, suggests that it truly is just a seasonal feature of the region and reliant mostly on weather patterns for its year-to-year intensity, rather than being driven entirely by chlorofluorocarbon catalytic depletion. Even the American Geophysical Union admits that the Montreal Protocol seems to have no effect on the change in size of the ozone hole.

Time will tell, the jury is still out on this one.
