Through the Ice, Darkly

Guest Post by Willis Eschenbach

As always, I get distracted by the daily news. The weather news today is a lovely rainy morning here in drought-plagued California, we got just under an inch (2cm) in last night’s storm, and the outer world is green and happy. Regarding the climate news, Anthony highlighted a claimed recent darkening of the Greenland ice cap.  This is said to be reducing the ice cap’s albedo, which is the percentage of sunshine reflected back to space, and thus leading to more solar absorption and more melting.

Being an inherently suspectful type oif fellow, I thought I’d take a look at the albedo and other anatomical features of Greenland. First, the big view. Let me start with a map showing the global “all-sky” albedo from the CERES satellite data. It shows the average of all satellite observations, both when the sky is clear and when it is cloudy.

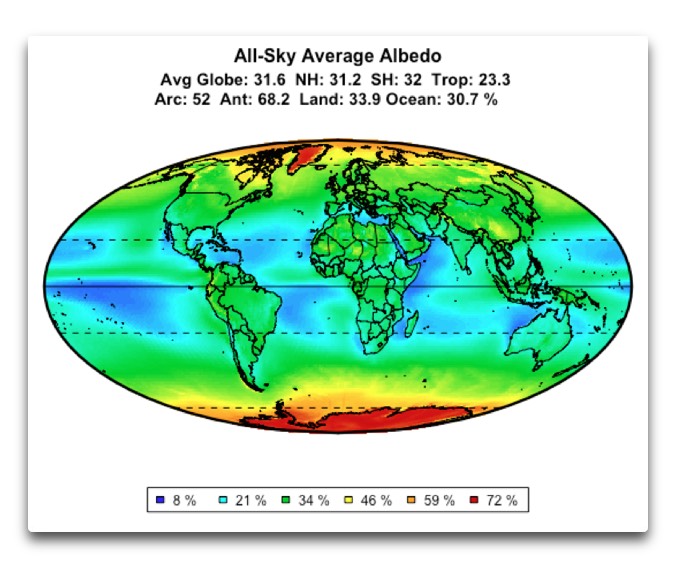

greenland all sky average albedoFigure 1. All-sky average albedo, CERES top-of-atmosphere data Mar 2000 – Feb 2015.

Overall, the combination of the clouds and the surface reflect just under a third of all the sunlight that hits the planet. In general the albedo is smallest in the tropics and increases towards both poles. In Figure 1, you can see the inter-tropical convergence zone just above the equator. You can also see Greenland, bright red up near the north pole, with an average albedo of about 65%

The CERES data provides us with another view of the albedo, which is just the measurements taken when the sky is clear. Figure 2 shows that clear-sky albedo, the solar reflection from the surface when there are no clouds..

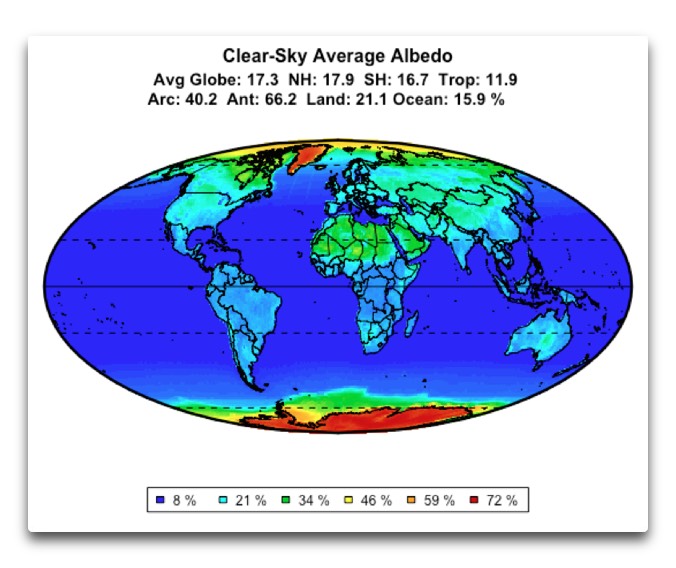

greenland clear sky average albedoFigure 2. Clear-sky average albedo, CERES top-of-atmosphere data Mar 2000 – Feb 2015.

As you can see, without the clouds there is much less sunlight reflected from the surface. For example, the ocean reflects less than 10% of the incident sunlight … but even without clouds, Greenland still has an albedo of about 65% because like Antarctica, it has a permanent ice cap. It is the darkening of this Greenland ice cap that I set out to investigate.

Now, there’s a problem with measuring albedo near the poles. Albedo is a ratio. It is a fraction with reflected solar energy on the top and the incoming sunshine on the bottom. Most of Greenland is above the Arctic Circle. So when the sun gets to very near zero in the winter, the albedo gets very uncertain and averages get distorted. As a result, I look instead at the total amount of sunshine that is reflected from Greenland. The incoming sun is constant on an annual basis, so any change in the albedo will be reflected as a change in the total amount of sunshine reflected.

Figure 3 below shows the month-by-month changes in the all-sky reflections from Greenland. I masked out the ocean, so Figure 3 represents solar reflections of just the area of the island itself.

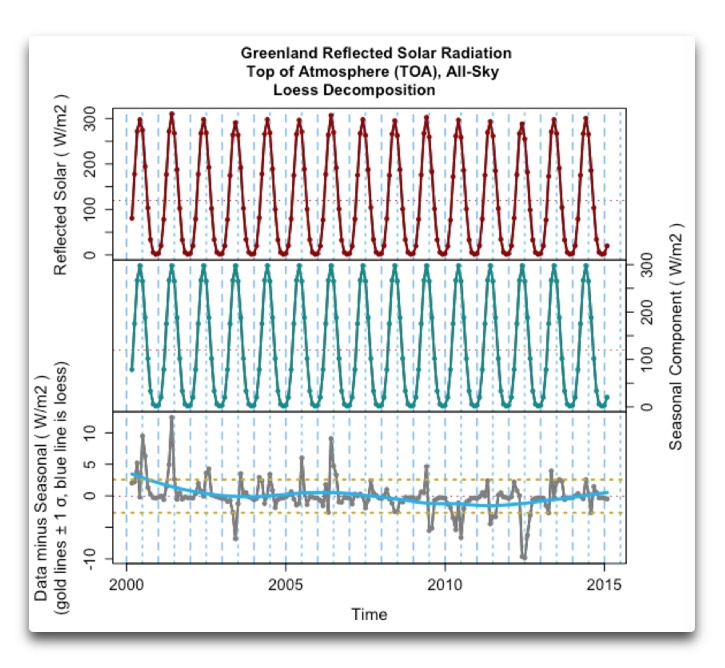

greenland toa reflected solar all skyFigure 3. All-sky average reflected solar energy, CERES top-of-atmosphere data. Units are watts per metre squared (W/m2). Mean value is 119.8 W/m2. Top panel shows raw data. Middle panel shows the average seasonal variation in the data. Bottom panel shows the residuals, which are the raw data minus the seasonal component. Standard deviation of the residuals is indicated by the horizontal gold dashed lines.

The average amount of energy reflected by the clouds plus the surface is about 120 W/m2. There is no trend visible over the period, and the standard deviation of the residuals (bottom panel) is only about ± 2.5 W/m2.

“Ah”, I hear you thinking, “but that includes the clouds”. Indeed it does, it is not the surface albedo from the ice cap. I like to look at what is happening overall before I look at the specifics. Having seen that there is no overall albedo trend in Greenland, Figure 4 shows the Greenaland surface reflections when the sky is clear.

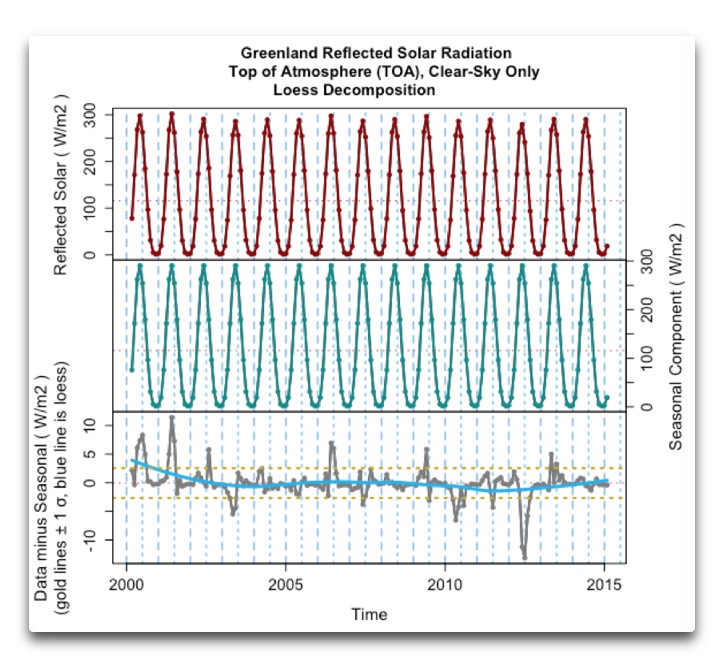

greenland toa reflected solar clear skyFigure 4. Clear-sky average reflected solar energy, CERES top-of-atmosphere data. Units are watts per metre squared (W/m2). Mean value is 115.9 W/m2. Top panel shows raw data. Middle panel shows the average seasonal variation in the data. Bottom panel shows the residuals, which are the raw data minus the seasonal component. Standard deviation of the residuals is indicated by the horizontal gold dashed lines.

I note first that the surface average reflection is about 116 W/m2, only slightly smaller than the 120 W/m2 we saw in the all-sky data in Figure 3. This shows that the albedo of the surface and the albedo of the clouds are quite similar, with the clouds reflecting slightly more than the ice cap

And just like with the all-sky data, there is no trend in the surface data either. There is no indication at all of the claimed darkening of the surface.

Finally, I was interested in what to me was the most curious feature of Figure 4. This is the large dip in surface reflection in the summer of 2012 that reaches a minimum in July. I seemed to remember some oddity that year, and a bit of searching found this from the National Snow and Ice Data Center:

An intense Greenland melt season: 2012 in review

February 5, 2013

Greenland’s surface melting in 2012 was intense, far in excess of any earlier year in the satellite record since 1979. In July 2012, a very unusual weather event occurred. For a few days, 97% of the entire ice sheet indicated surface melting.

Now, we know from Figure 2 that water has a much lower albedo than ice. So we can see that meltwater on the icecap reduced the reflection of sunlight, and led to the 2012 summer drop in reflected solar energy shown in the CERES data.

The appearance of this July 2012 event in the CERES data supports the validity of the data, and also shows that the data should be more than precise enough to show any trend in the solar reflection over the fifteen-year period of the record … and despite that, there is no such trend visible.

Go figure … I don’t know why the original researchers are claiming a darkening of Greenland, but I’m unable to find it in the CERES data.

w.

My Usual Request: If you disagree with me or anyone, please quote the exact words you disagree with. I can defend my own words. I cannot defend someone else’s interpretation of some unidentified words of mine.

My Other Request: If you think that e.g. I’m using the wrong method on the wrong dataset, please educate me and others by demonstrating the proper use of the right method on the right dataset. Simply claiming I’m wrong doesn’t advance the discussion.

128 thoughts on “Through the Ice, Darkly

    • Why is this here? Did you mean to post it elsewhere, say for example on the thread discussing the subject of your link?

      Or is this just drive-by nonsense? The world wonders …

      w.

      • “The world wonders …”
        Halsey was set off in the wrong direction by such nonsense… 8-)

    • So, oldnwise – any comments on your link? Since you posted it twice, you must agree with the source. And this relates to albedo ….. how?

    • OH my, that link is so frightening: “Global warming is going into overdrive.” Isn’t it amazing how much more powerful mother nature is with her El Nino that can do that? I hope you noticed that, 1oldnwise4me@reagan.com.

  1. Willis,
    “Go figure … I don’t know why the original researchers are claiming a darkening of Greenland, but I’m unable to find it in the CERES data.”

    They looked at the period 1981-2012. It looks like a downtrend in your plot up to 2012, and there’s almost twice as long you haven’t looked at.

    “So we can see that meltwater on the icecap reduced the reflection of sunlight, and led to the 2012 summer drop in reflected solar energy shown in the CERES data.”
    Yes. Wet ice is part of their feedback mechanism.

    • Yes, there is a clear drop from 2000-2003 in Willis’ graphs. About 4 W/m^2 by eye.

      Pretty flat since but may well have also changed leading up to y2k. However, not much evidence of Greenland getting “locked into a feedback loop” as suggested by the paper.

      That is the old “tipping point” argument again. Recovery after the sharp dip in 2012 is not in any way consistent with that claim.

      Good work Willis.

      • Actually this is just standard Climate Science® practice – start at an outlier year in one direction and end at an outlier year in the other direction and you can get a nice trend of your choice.

        They were lucky they had 2012 available though. Large melt events only occur about once a century (the previous one was in 1888). During the previous (warmer) interglacial they came about once per decade.

    • Willis,

      “Go figure … I don’t know why the original researchers are claiming a darkening of Greenland, but I’m unable to find it in the CERES data.”

      They looked at the period 1981-2012. It looks like a downtrend in your plot up to 2012, and there’s almost twice as long you haven’t looked at.

      Sorry, Nick, but their data claims there is a decrease in the albedo from 1996 onwards which accelerates after 2006. See their Figure 1 here.

      Instead of a steady decrease followed by an accelerating drop after 2006, the CERES data shows little change since 2000. Other than a couple of upticks at the start and a downtick at the end, it’s basically flat.

      So no, it’s NOT because I looked at a shorter period. Your unending desire to discredit me has overcome your caution, you are just making stuff up.

      w.

      • I’d give Nick the benefit of the doubt, Willis. He’s knowledgeable & unflappable. That said, he does appear to have an agenda at times…

      • Willis,
        “you are just making stuff up”

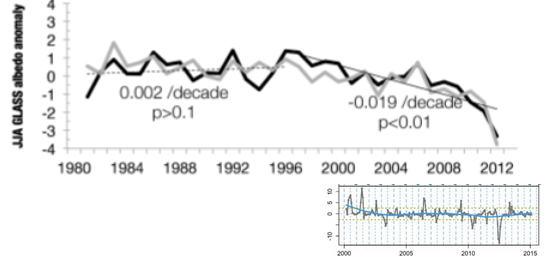

        Not made up. The time intervals are different. But below I’ve aligned the albedo plot from their Fig 1 with your Fig 4, scaled. Their grey is the MAR result, black is GLASS. The main features are similar, especially for MAR. Theirs has less detail, being annual. But there is the steep dip in 2012, peak about 2006 and high values around 2000. As for trend, you probably should add an actual 2000-2012 trend line.
