Proper Cherry Picking

Guest essay by Johannes Herbst

There is a much discussed graph in the blogosphere from ‘Tamino’ (Grant Foster), which aims to prove that there is no delay or pause or decline in global warming.

He states: Twelve of sixteen were hotter than expected even according to the still-warming prediction, and all sixteen were above the no-warming prediction:

clip_image001

Let’s get a larger picture:

ptxt

  • We see the red HADCRUT4 graph, coming downwards a bit from 1960 to 1975, and inclining steeper beyond 2000, with a slight drop of about the last 10 years.
  • We see a blue trend, rising at the alarming rate of 0.4°C within only one decade! This was the time when some scientists started to worry about global warming.
  • We see the green trend, used by the blogger Tamino in the first graphic, rising less than 0.1°C per decade.
  • Below we see the Sunspot Numbers, pulsing in a frequency of about 11 years. Comparing it with the red temperature graph, we see the same pattern of 11 years pulsing. It shows clear evidence that temperature is linked to the sunspot activity.

Tamino started his trend at high sun activity and it stopped at low activity. Therefore the weak increase during 18 years.

Which leads us to the question: How long should a time be for observing climate change? If we look at the sunspot activity and the clear pattern it produces in the temperature graph, the answer is: 11 years or a multiple of it.

Or we can measure from any point of:

·high sun activity to one of the following

·low sun activity to one of the following

·rising sun activity to one of the following

·declining sun activity to one of the following

to eliminate the pattern of sunspot numbers.

Let’s try it out:

ptxt2

The last point of observation of the trend is between 2003 and 2014, about 2008. But even here we can see the trend has changed.

We do not know about the future. An downward trend seems possible, but a sharp rise is predicted from some others, which would destroy our musings so far.

Just being curious: How would the graph look with satellite data? Let’s check RSS.

ptxt3

Really interesting. The top of both graph appears to be at 2003 or 2004. HADCRUT4 shows a 0.05°C decline, RSS a 0.1°C per decade.

A simple way for smoothing a curve

There is a more simple way for averaging patterns (like the influence of sunspots). I added a 132 months average (11 years). This means at every spot of the graph all neighboring data (5.5 years to the left and 5.5 years to the right) are averaged. This also means that the graph will stop 5.5 years from the beginning or the end. And voila, the curve is the same as with our method in the previous post to measure at the same slope of a pattern.

As I said before the top of the curve is about 2003, and our last point of observation of a 11 years pattern is 2008. From 2008 to 2003 is only 5 years. This downtrend, even averaged, is somehow too short for a long time forecast. But anyway, the sharp acceleration of the the 1975-2000 period has stopped and the warming even halted – for the moment.

ptxt4

Note: I gave the running average graph (pale lilac) an offset of 0.2°C to get it out of the mess of all the trend lines.

If Tamino would have smoothed the 11years sun influence of the temperature graph before plotting the trend like done here at WFT, his green trend would be would be the same incline like the blue 33 year trend:

clip_image002

Even smoother


Having learned how to double and triple smooth a curve, I tried it as well on this graph:

clip_image003

We learned from Judith Curry’s Blog that on the top of a single smoothed curve a trough appears. So the dent at 2004 seems to be the center of the 132 month’s smoothed wave. I double smoothed the curve and reached 2004 as well, now eliminating the dent.

Note: Each smoothing cuts away the end of the graph by half of the smoothing span. So with every smoothing the curve gets shorter. But even the not visible data are already included in the visible curve.

According to the data, after removing all the “noise” (especially the 11 year’s sun activity cycle) 2004 was the very top of the 60 years sine wave and we are progressing downwards now for 10 years.

If you are not aware about the 60 years cycle, I just have used HADCRUT4 and smoothed the 11 years sunspot activity, which influences the temperature in a significant way.

clip_image004

We can clearly see the tops and bottoms of the wave at about 1880, 1910, 1940, 1970, and 2000. If this pattern repeats, the we will have 20 more years going down – more or less steep. About ten years of the 30 year down slope are already gone.

One more pattern

There is also a double bump visible at the downward slopes of about 10/10 years up and down. By looking closer you will see a hunch of it even at the upward slope. If we are  now at the beginning of the downward slope – which could last 30 years – we could experience these bumps as well.

Going back further

Unfortunately we have no global temperature records before 1850. But we have one from a single station in Germany. The Hohenpeissenberg in Bavaria, not influenced from ocean winds or towns.

ptxt7

Sure, it’s only one single station, but the measurements were continuously with no pause, and we can get somehow an idea by looking at the whole picture. Not in terms of 100% perfection, but just seeing the trends. The global climate surely had it’s influence here as well.

What we see is a short upward trend of about ten years, a downward slope of 100 years of about 1°C, an upward trend for another 100 years, and about 10 years going slightly down. Looks like an about 200 years wave. We can’t see far at both sides of the curve, but if this Pattern is repeating, this would only mean: We are now on the downward slope.  Possibly for the next hundred years, if there is nothing additional at work.

The article of Greg Goodman about mean smoothers can be read here:

http://judithcurry.com/2013/11/22/data-corruption-by-running-mean-smoothers/

==================================

Johannes Herbst writes at: http://klimawandler.blogspot.de/

About these ads
This entry was posted in Climate data. Bookmark the permalink.

422 Responses to Proper Cherry Picking

  1. M Courtney says:

    So by smoothing a lot you get a tell-signal of a double-bump that indicates a change in trend. From which you conclude we could be in for 100 years of cooling.

    It sounds possible but then, so does Tamino.

    Surely, it is fairer to say that over the last 17 years there has been no significant temperature trend and, as we don’t know why, anything can happen now. Isn’t that more easily justified?

  2. Rob says:

    Nice graphs. With a Dalton type solar minima surely ahead, things are going to increasingly get interesting.

  3. steveta_uk says:

    Looking at Tamino’s graph, you see a nice 1.2C/century trend.

    Why are we panicing?

  4. Espen says:

    Nice! Tamino is smart, but not very wise, a very annoying combination. His idea requires that the global temperature is just random noise around a linear trend. There are good reasons to believe that his idea is overly simple. One way to look at it is presented in this article, but I’d also like to point to Bob Tisdale’s idea that global SST increases in steps after El Niños, i.e. that the released heat is retained in the earth system for quite a while.

  5. Am I missing something, or did Tamino use 1997 instead of 1998 as his breakpoint? That seems a more pertinent form of cherry-picking than anything else.

  6. Willis Eschenbach says:

    Johannes says:

    … Below we see the Sunspot Numbers, pulsing in a frequency of about 11 years. Comparing it with the red temperature graph, we see the same pattern of 11 years pulsing. It shows clear evidence that temperature is linked to the sunspot activity.

    I’m sorry, Johannes, but your eyes are fooling you badly. The correlation between HadCRUT and sunspots is a pathetic 0.014, with a p-value of 0.54.

    In other words, the data you cite clearly shows that there is no correlation between the HadCRUT4 dataset and the sunspot dataset.

    Which is no surprise, as many, many people have looked at the sunspots vs HadCRUT4 correlation and found nothing …

    So while Tamino may indeed be very wrong … I fear you are as well.

    w.

  7. H.R. says:

    “Which leads us to the question: How long should a time be for observing climate change?”
    ====================
    Just my opinion, but when the Vikings’ descendants re-establish the farms of the MWP on Greenland, I’d say the climate has changed.

    What is so magical about 30, 60, 90 or one hundred years? Time shouldn’t matter. Climate change should be pronounced when the climate is observed to change.

    (But let’s not lose sight of the original issue of CO2 based CAGW, which has morphed into ‘climate change.’)

  8. RichardLH says:

    Try these for a CRTM (c.f. Greg Goodman) 15 year treatment of HadCrut and GISS data.

    HadCrut
    http://i29.photobucket.com/albums/c274/richardlinsleyhood/HadCrut4Monthly11575Lowpass1575SGExtensions_zps48569a45.gif

    GISS
    http://i29.photobucket.com/albums/c274/richardlinsleyhood/GISS11575LowpassSG15_zps3d9a93bb.gif

    Because of the shortness of the data it is not possible to do a full 15 year pass on the satellite data but a 7.5 year version shows these displays

    UAH
    http://i29.photobucket.com/albums/c274/richardlinsleyhood/UAH175LowPass_zps3af20c1b.gif

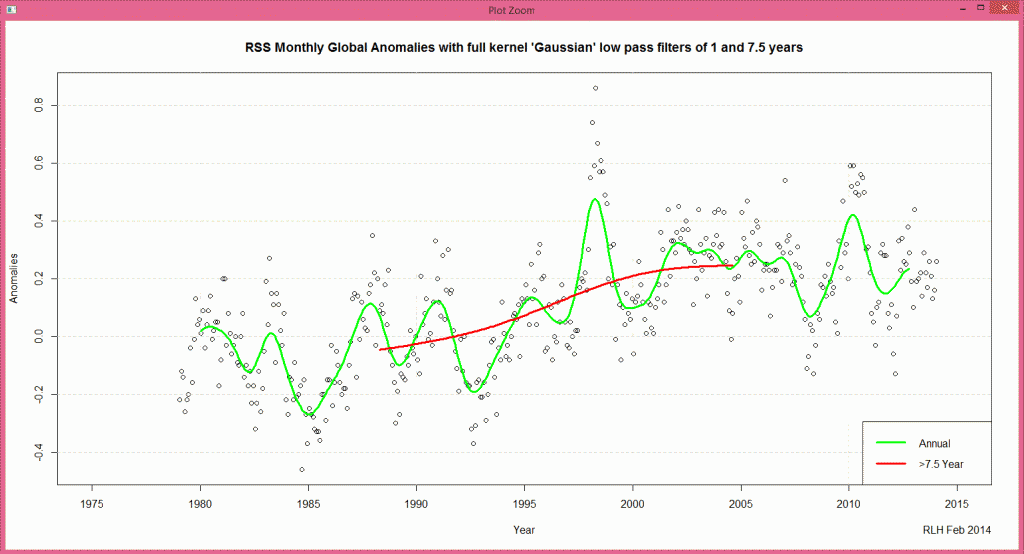

    RSS
