By Jim Steele
Focusing only on CO2’s warming effect distorts our understanding of how the atmosphere warms and cools. More importantly it ignores how CO2 is critical for cooling our atmosphere. Oxygen and nitrogen comprise 99% of our atmosphere. Those molecules do not absorb or emit radiation. Our air is heated by collisions with solar heated surfaces and warmer atmospheric molecules. So, we must understand how oxygen and nitrogen shed their absorbed energy, so it can exit back to space.

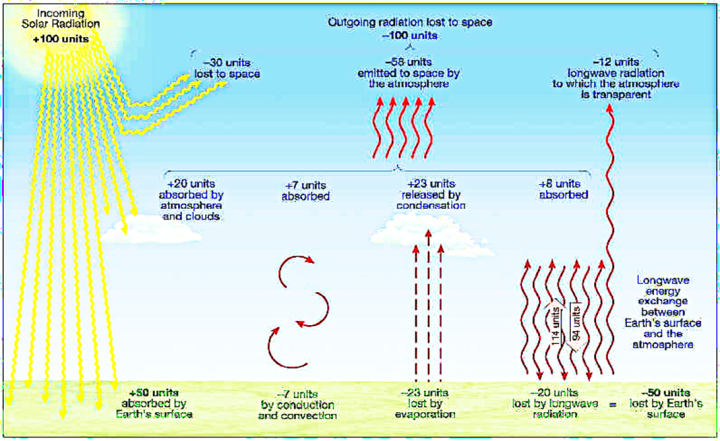

Only the sun’s radiation adds heat to our world. Of the arriving solar heat 30% is reflected without warming the earth. 20% warms the atmosphere directly and only 50% warms the earth’s surface.
About 25% of that surface heat (12 units) gets radiated back to space immediately at wavelengths that are not affected by greenhouse gases.
About 14% (7 units) of the surface heat warms the air above via surface collisions with that heated air carried away from the surface by rising convection.
Slightly less than 50% (23 units) of the surface heat causes evaporation with moist convection also carrying heat away from the surface.
The surface only radiates 16% (8 units) of absorbed heat away, which is however also intercepted by greenhouse gases, primarily water and CO2. But greenhouse gases redirect some of that heat back to the surface and slow the earth’s cooling rate.
Eventually at the top of our atmosphere (the troposphere) greenhouse gases must radiate about 58% of all incoming solar heat back to space.

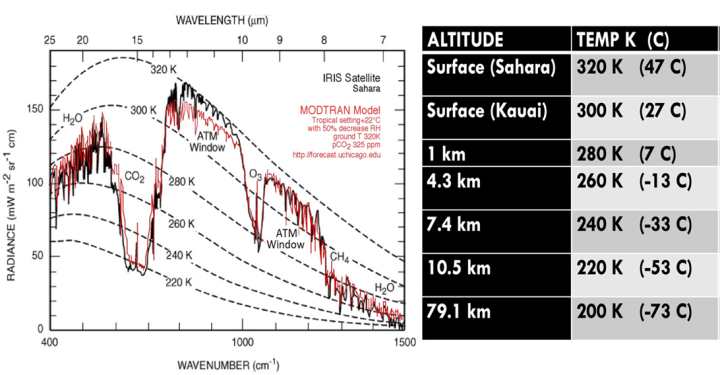

This diagram illustrates the physics showing how the earth cools by radiating infrared heat back to space according to Planck’s Law.
The 320k dashed line represents how much heat via each infrared wavelength should theoretically radiate back to space if there is no interference from greenhouse gases. Here, its from the Sahara desert’s surface when the surface is heated to 47 Celsius. This theoretical line is based on solid reproducible & trustworthy science.
The other dashed lines represent how much heat each wavelength should radiate from cooler temperatures. These cooler temperatures happen at higher altitudes as seen in the table on the right.
The solid black line represents what wavelengths of heat that satellites actually detected leaving earth. The thin red lines are model predictions. Only infrared heat with wavelengths between 10 and 13 microns as well as between 8 and 9.5 match theory. That’s because greenhouse gases do not interfere with those wavelengths, allowing 25% of the surface heat to escape immediately.
Water vapor absorbs infrared wavelengths between 14 & 25 microns as well and between 6 & 8 microns. Satellites detect those wavelengths but with intensities suggesting the heat has radiated from cooler temperatures. Satellites can’t detect the latent heat absorbed during water’s evaporation at the surface, but satellites do see the heat once released when water vapor cools and condenses to form clouds and rain at 1 to 4 kilometers of altitude. Above water vapor’s condensation altitudes, water vapor provides an insignificant greenhouse effect as the air is very dry.
CO2 primarily absorbs infrared centered around 15 micron wavelengths but satellites do not detect any heat from 15 micron wavelengths being emitted from the surface or lower atmosphere. So, a second critical question is why don’t satellites detect 15 micron wavelengths until the top of the troposphere and stratosphere? Radiant heat proven to be absorbed and emitted by CO2.
Greenhouse theory argues infrared absorbed by CO2 is trapped near the surface according to the following model.

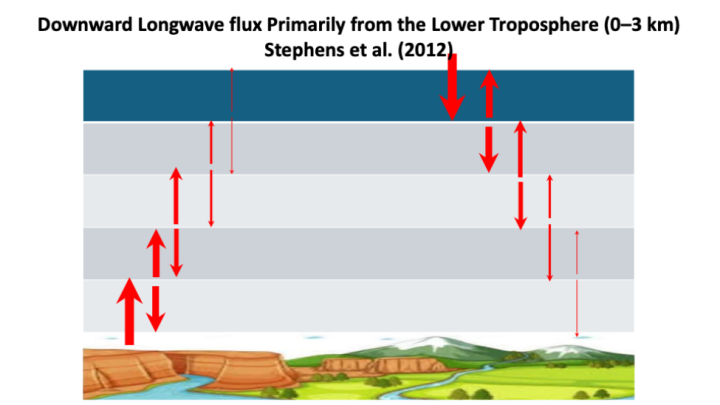

Surface heat radiates upward but some is intercepted by greenhouse gases.
Those gases absorb the infrared heat but then quickly emit it. However, about half is redirected back towards the surface, slowing the surface’s cooling rate.
The infrared that continues upwards is again intercepted sending half back towards the surface
The same dynamic continues so by 2 to 4 kilometers altitude, virtually no surface radiation absorbed and emitted by CO2 escapes. So, satellites simply don’t detect it.
The same diminishing dynamic reduces the amount of infrared emitted from higher altitudes that can reach the surface. So, most scientists believe warming via a greenhouse effect happens mostly in the lowest atmosphere.
But this dynamic only partially explains atmospheric warming.
That greenhouse theory does not account for how collisions, as illustrated by Newton’s Cradle, that transfer energy from greenhouse gases to non-greenhouse gases and vice versa.
Water and CO2 do not trap absorbed infrared heat, but quickly emit it in just milliseconds after it is absorbed. This is called the relaxation time.
Now compare well studied collision frequencies to relaxation times.

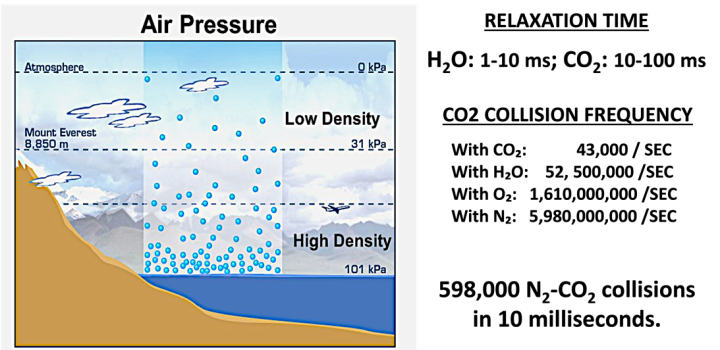

Near the surface, nitrogen molecules can collide with CO2 6 billion times in just one second. So, before a CO2 molecule can relax and emit any radiation, nitrogen will collide 600,000 times with CO2 and steal it’s absorbed energy and transfer it to other atmospheric molecules via more collisions.
Collisions with nitrogen and oxygen constantly steal heat from CO2 and because nitrogen and oxygen don’t radiate that heat, satellites don’t detect any wavelengths centered around 15 microns until CO2 emits that heat in the stratosphere.
Heat trapped by oxygen and nitrogen can only lose that collisionally absorbed heat by transferring energy back to a greenhouse gas via more collisions. Only then can greenhouse gases radiate that energy back to space. However, CO2 will only radiate heat back to space where heat stealing collisions are greatly reduced, and that only happens in the less dense upper troposphere and stratosphere, exactly where satellites detect 15 micron wavelength emissions back to space.
Heated air constantly convects to the upper atmosphere, but without CO2, there would be no shedding of the air’s absorbed energy. There would only be runaway warming.
Greenhouse warming in the lower atmosphere is balanced by CO2 cooling in the stratosphere. This explains why CO2 concentrations do not correlate with earth’s temperatures over millions of years!
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
I said that here more than a decade ago.
And it is still wrong..
You get my negative vote as you made an assertion without providing any objective scientific evidence. Back up you bold statements.
and E.Schaffer is wrong – see how easy that is?
So perhaps you can explain why we still cannot extract a human CO2 heating signal, and why the ”Global average temperature” is still within natural variation range.
So why do refrigerators use R-744?
They don’t. R-744 is CO2, and it’s use as a refrigerant requires specialized high pressure systems, so is only used in large scale, commercial freezer set ups. Consumer fridges still use R134a for the most part, as do most automotive systems. Eco nuts have banned most good refrigerants and replaced them with poorer efficiency ones, and in some cases like YF1234 are now flammable and extremely toxic in leaks and fires, whereas all the old, better performing refrigerants were inert and non flammable.
You did.
That is true.
Sorry I missed it Stephen
Outstanding article, Jim. Thanks!
This article and many others clearly show that Global Warming aka Climate Change aka Boiling et al was never about the science. Once the left realized that courts stated they cannot judge scientific papers and results, but had to weigh them all equally then it opened the doors for idealogues to use science toward their political and financial ends. Hence the mess we are in.
DEI in science is the woke IPCC ideal
and any model that assumes CO2 is a well mixed gas is flawed since the satellites have shown it is NOT well mixed globally …
How could it be well mixed? It is almost all emitted at the surface, and it is almost all absorbed by the surface. The air is densest at the surface, so the concentration would have to be highest per volume unit at the surface. I have never understood that claim. Maybe in a closed box it will mix evenly, but not on earth.
Zzzz
Every greenhouse proves that wrong.
Otherwise gardeners could dose up with CO2 in March and it would still be high in September.
That’s September in the same year, not 100 years later.
Greenhouses do not prove anything about the carbon cycle across the entire planet.

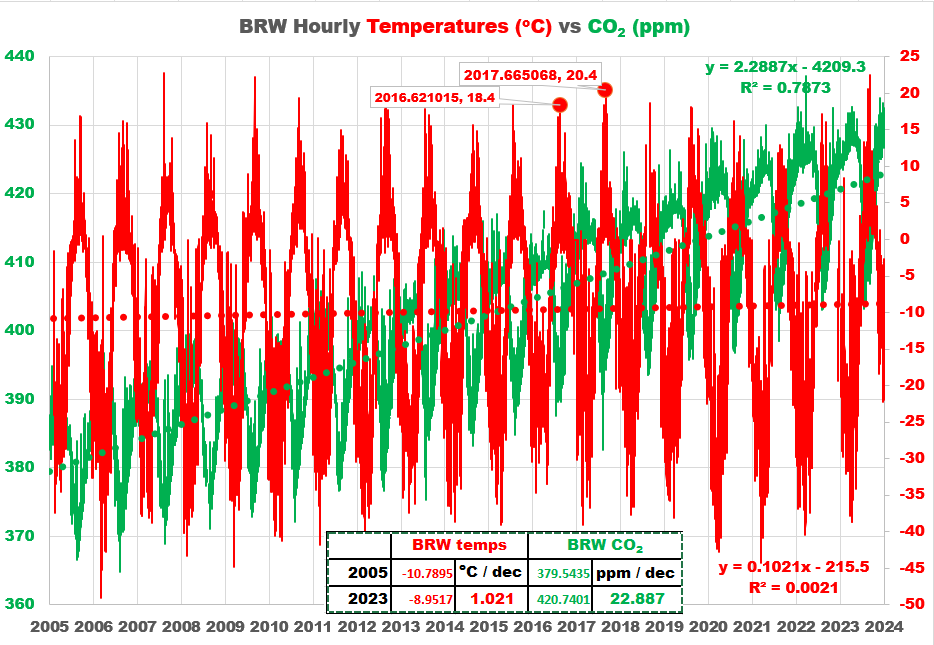

The attached chart shows the seasonal photosynthesis CO2 swings for Barrow Island. Every single in situ hourly CO2 temp and CO2 monitoring shows this pattern, except for a very flat pattern at SPO
It is well mixed..
Substantiation?
Check the Scripps Institute site. https://scrippsco2.ucsd.edu/ The monitoring network that Charles Keeling set up wasn’t just the “continuous” monitoring at Moana Loa. It also included weekly(?) flask measurements at a number of sites strung out from the Arctic Coast of Alaska to the South Pole. There is a variation in CO2 between the tropics and the polar areas. But it’s slight.
The seasonal variations for the South Pole and Pt. Barrow are very different. See the graph supplied by Banton, below.
Here:
The satellite data.
Here’s a paper from 2017, fig 4, showing a range of 10 ppm. out of 370.
https://acp.copernicus.org/articles/17/3861/2017/acp-17-3861-2017.pdf
The observations from OCO satellites say otherwise. The concentrations var between 390 and 408 ppm in this animation from 2015 prepared by the OCO-3 project of NASA/JPL
Thanks.
I couldn’t remember the scale bar range on those animations when I watched them when they were first released.
To be fair, this is a variation of little over 2% either way relative to the mean of the scale, so it depends on what you consider well-mixed. That’s the issue with scales that do not start at 0, they are prone to visually exaggerate differences.
As Willis has shown, over the ages the earth’s temperature has been stable within 0.25% if you look at the temperature in Kelvin.
399+/- 8 seems pretty well mixed to me. Just saying.
The substantiation for CO2 being “well-mixed” depends entirely on the definition one is using for “well-mixed.”
CO2 levels are at a bit over 420ppm.
CO2 levels vary from place to place by 3 to 5 ppm.
That is the definition of a well mixed gas.
That is well-mixed horizontally.
The original commenter was talking about vertical mixing; he referred to the surface, not the latitude.
CO2 is a heavy molecule.
There would be even less of it at higher elevations, where there is little mixing, say 3 km.
Also, H2O freezes on molecules, or what ever, at about 2 km.
Low ppm above the clouds
Most of the outward low frequency radiation photons leave at the poles, thereby cooling the earth
“CO2 is a heavy molecule.
There would be even less of it at higher elevations, where there is little mixing, say 3 km.”
No, the lower atmosphere is what’s known as a homosphere, where atmospheric turbulence maintains relative concentrations approximately constant.
This article promulgates the idea that cold molecules can radiate energy to hotter ones. This is contrary to the 2nd law of thermodynamics, which has never been disproven! The rest is fine, but no energy can be back radiated from the higher parts of the atmosphere. It must only go out to space, which of course is much colder. Physics anyone?
It is not contrary to the second law of thermodynamics, which concerns net energy exchanges. All layers of the atmosphere are radiatively exchanging energy with the layers above and below.
Incorrect to say all layers radiatively exchanging energy. Air parcels expand and carry heat w/o exchanging heat outside the parcel. No heat enters or leaves a air parcel of air.
‘All layers of the atmosphere are radiatively exchanging energy with the layers above and below.’
The word ‘radiatively’ invalidates the above sentence. Kirchoff’s Law, as well as the other properties of thermal radiation, only applies to condensed matter, It most decidedly does not apply to gases, at least under conditions that prevail anywhere outside of plasma physics laboratories on this planet.
Presuming that you will continue to insist that radiant transfer models accurately describe the physics of energy transport in the troposphere, perhaps you’d be willing to show us how photons, rather than energy, are conserved in the process. Your Nobel Prize awaits you!
https://physics.stackexchange.com/questions/290528/difference-in-thermal-radiation-between-condensed-matter-and-gases
Frank, you obviously didn’t bother reading your reference. In part –
Even your own reference doesn’t support you. The comment you probably accepted is complete nonsense – probably a physics lecturer who doesn’t understand what he teaches.
‘Frank, you obviously didn’t bother reading your reference.’
Actually, Michael, you’re the one who didn’t bother reading the reference – take another look at the ‘JPL table’ and let me know if any of the’Typical Sources’ pertain to gases in Earth’s atmosphere.
Now read the source the ‘JPL response’ actually links to:
“Continuum Emissions from Ionized Gas
Thermal blackbody radiation is also emitted by gases. Plasmas are ionized gases and are considered to be a fourth state of matter, after the solid, liquid, and gaseous states. As a matter of fact, plasmas are the most common form of matter in the known universe (constituting up to 99% of it!) since they occur inside stars and in the interstellar gas. However, naturally occurring plasmas
are relatively rare on Earth primarily because temperatures are seldom high enough to produce the necessary degree of ionization.”
Notice that a ‘continuum of emissions’ only arises from ionized gases, i.e., plasmas, and that these are rare on Earth.
You are a tiresome troll who aids the cause of climate alarmists by spewing easily refuted nonsense.
Frank, your reference also states –
I suppose you are now going to say that the author really meant something else?
I’d suggest some fairly basic physics textbooks, but they might be written by someone like Raymond Pierrehumbert – or even Michael Mann PhD, or Gavin Schmidt PhD.
Believe as you wish, but the Earth has cooled over the past four and a half billion years, and continues to do so (being hotter than its surroundings.)
Still quoting from JPL’s lame response, where they conflate atmospheric gases and plasmas. Again, with respect to differentiating between the radiative spectra of condensed matter and gases, the key word is ‘continuum’.
‘Believe as you wish, but the Earth has cooled over the past four and a half billion years…’
I think most folks would agree that the Earth is cooler now than it was during the Hadean Eon, so take a bow. In fact, I’m going to nominate you for a ‘Lord Kelvin’ award – if you’ll recall, he was the 19th century authority figure who locked the scientific consensus of his day into a low-ball estimate of the Earth’s age, based on his estimate for how long it would take molten rock to solidify and cool. Of course, he had no knowledge that heat from the decay of radioactive minerals in rock made his estimates, shall we say, a bit light, but apparently that’s a flaw the two of you share.
Which of course sounds scientific, but you can’t explain what it means. That’s because you don’t know what you are talking about. All matter above absolute zero emits IR radiation, with frequencies proportional to absolute temperature. Temperatures do not move in discrete units. Bad luck for you.
Really? What flaw do I share with Kelvin? The knowledge that the Earth has cooled over the past four and half billion years?
The mistake here is thinking Kirchhoff’s Law only works for continuous spectra like solids. In gases, the spectrum isn’t smooth, it’s line by line. But the law still applies. At every absorption line, the emissivity equals the absorptivity. That’s why CO2 and H2O both absorb and emit at the same infrared bands. The physics doesn’t break down for gases, it just has to be applied discretely rather than as a continuum.
‘At every absorption line, the emissivity equals the absorptivity.’
The mistake here is thinking Kirchhoff’s Law works for mixtures of IR-active and non-IR active gases. The reality is that thermal radiation absorbed by GHGs is converted to sensible heat via collision with non-IR active gas species within meters of the Earth’s surface. In other words, since the rates of spontaneous emission lag those of absorbtion by several orders of magnitude in the lower troposphere, Kirchhoff’s Law, and therefore radiative transfer models, are not applicable.
That’s not how it works. Collisions between IR-active and non-IR-active gases are exactly why we treat the troposphere as being in local thermodynamic equilibrium. In LTE, the populations of molecular energy states are governed by the local temperature, which means emission and absorption coefficients remain tied by Kirchhoff’s Law. Yes, absorbed radiation can thermalize quickly into translational energy of the bulk gas, but because collisions also repopulate excited states, those same molecules emit according to the local temperature. Radiative transfer models explicitly use this: absorption → collisional redistribution → emission, all consistent with energy conservation and Kirchhoff’s Law. Far from being “not applicable,” LTE is precisely what justifies their use in the troposphere.
Try again. Collisions occur faster than relaxation regardless of which way the energy transfer occurs. No emissions have time to happen.
Collisions do happen faster than spontaneous emission in the dense lower atmosphere, that’s why we assume LTE. But LTE doesn’t mean “no emission”; it means collisions continually repopulate excited states according to the Boltzmann distribution. Those states then emit at rates set by temperature, giving the observed thermal spectrum. If collisions really quenched emission entirely, the atmosphere would be dark in the infrared, which is flatly contradicted by satellite spectra.
‘If collisions really quenched emission entirely, the atmosphere would be dark in the infrared, which is flatly contradicted by satellite spectra.’
Satellites measure the Earth’s IR emissions as seen from their positions beyond the atmosphere and the spectrum of H2O largely overlaps that of CO2, hence the above statement is deceptive.
No one is contesting the facts that spontaneous emission of photons and radiation to space by GHGs takes place in the upper troposphere. What’s finally beginning to come under scrutiny is the predominant process by which GHGs in the lower troposphere facilitate the transport of heat from the surface to the upper troposphere, i.e., enabler of convection or radiative pinball machine.
Well said Frank!
My article simply acknowledges there is a certain degree of radiative pinball happening. What I hoped to show was convection and collisions that are the predominant processes transporting heat away from the surface and out to space
Glad you liked the metaphor, Jim. An equally good one is likening the alarmist model of radiative-centric energy transfer to the apparatus used for my state’s weekly lottery drawings – lot’s of vertical movement and ‘conservation’ of
ping-pong balls, er photons, as opposed to energy.That’s a misrepresentation. Yes, water vapor and CO2 absorption bands overlap, but not completely. CO2 dominates in the 15 µm region where H2O absorption drops off, and satellites measure this directly. More importantly, radiative transfer in the lower troposphere doesn’t require every absorbed photon to be re-emitted before a collision. Collisions maintain local thermodynamic equilibrium, ensuring the gas emits according to temperature. That’s why the atmosphere radiates upward at every layer, not just at the top. Convection is certainly important for moving energy, but it complements radiation rather than replacing it. Radiative transfer models already couple both. The “radiative pinball” idea is just a colorful restatement of the well established fact that photons are repeatedly absorbed, re-emitted, and scattered until escaping to space.
‘CO2 dominates in the 15 µm region where H2O absorption drops off, and satellites measure this directly.’

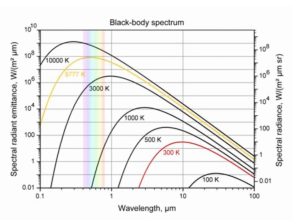

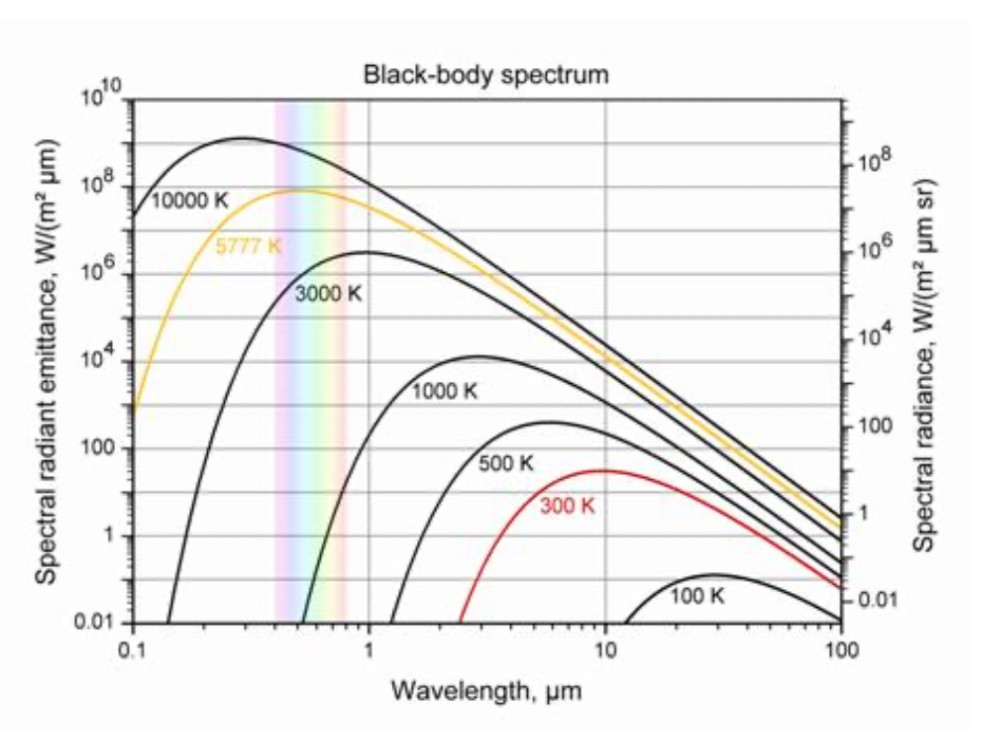

Looking at the so-called Planck curve, that emission peak is miniscule. Another problem for CO2 is that everyone who has run the radiative transfer codes agrees that it only emits to space above 80km.
