Guest Essay by Alan Welch – facilitated by Kip Hansen –14 May 2022
Nerem et al Paper, 2018, 4 Years on
by Dr Alan Welch FBIS FRAS, Ledbury, UK — May 2022
(Note: One new image has been added at the end of the essay.)
Abstract Having analysed the NASA Sea Level readings over the last 4 years it has been concluded that the accelerations derived by Nerem et al. are a consequence of the methodology used and are not inherent in the data. The analyses further predict that the perceived accelerations will drop to near zero levels in 10 to 20 years.
———————————————————————-
It is now 4 years since the paper by Nerem et al. (2018) 1 was released. It spawned many disaster pictures, such as the Statue of Liberty with the sea lapping around her waist, and a proliferation in the use of Climate Crisis or Climate Catastrophe in place of Climate Change by the likes of the BBC and the Guardian.
It also kick-started my interest in Climate Change, not by what it presented, but by the unacceptable methodology used in determining an “acceleration”. I have inserted acceleration in quotes as care must be used in interpreting the physical meaning behind the coefficients derived in fitting a quadratic equation. In the paper by Nerem et al. there were 3 stages.
Mathematical – Coefficients are calculated for a quadratic equation that fits the data set.
Physical – Attaching a label – ”acceleration” – to 2 times the quadratic coefficient.
Unbelievable – Extrapolating to the year 2100.
The first is straightforward and acceptable. The second is very dependent on the quality of the data and the length of period involved. The third is fraught with danger as the quadratic term dominates the process when used outside the range of data. The last point is illustrated in Figure 1. This appeared in https://edition.cnn.com/2018/02/12/world/sea-level-rise-accelerating/index.html with the caption “Nerem provided this chart showing sea level projections to 2100 using the newly calculated acceleration rate”.
Figure 1
As a retired Civil Engineer with 40 years’ experience in engineering analysis I appreciate that curve fitting can, with care, be used to help understand a set of data. But to extrapolate 25 years’ worth of data for more than 80 years into the future is in my mind totally unacceptable. But it is this “acceleration” that generated the alarmist press following publication.
I will now discuss several aspects concerning the sea level data, including what could have been done differently in 2018, what the current situation is and what can be learnt from studying the last 10 years’ worth of data. Prior to 2012 the data, and any related analysis, were more erratic, but with time a steadier picture is emerging.
The Feb 2018 data were the first data analysed. The data used were derived from the NASA site https://climate.nasa.gov/vital-signs/sea-level/. These data do not include any of the adjustments introduced by Nerem et al. but calculated values for slope and “acceleration” are not too dissimilar. In discussing “acceleration” the process can be made simpler by taking the values of the straight-line fit, i.e., the slope, away from the actual readings and working with what are called the “residuals”. Using residuals or the full data results in the same “acceleration” but it is easier to see the trends using the residuals.
Figure 2 below shows quadratic and sinusoidal fits starting in Jan 1993 up to the Feb 2018 using the latest values of sea levels. (See Note 1 below)
Figure 2
Situation in 2021.
A later set of results refer the period from Jan 1993 up to Aug 2021. The above graph has been updated in Figure 3 to show that the x2 coefficient is now 0.0441.
Figure 3
This update shows that the sinusoidal form curve is still a reasonable alternative to the quadratic curve although the period could be extended to 24 or 25 years and the amplitude increased slightly. The 22-year period and the amplitude have been retained for the sake of continuity although the quadratic curve is reassessed at each update, which has the effect of slightly modifying the slope and residuals.
Study of the last 10 years set of data.
The NASA data were analysed over the last 10 years on a quarterly basis using the full Aug 2021 set of data. The “acceleration” was calculated for each time step using the data from 1993 up to each date. In tandem with this a second set of “accelerations” were derived by assuming the data followed the pure sinusoidal curve listed on the figures above. In the long-term these “accelerations” will approach near zero but when the wavelength and period being analysed are similar unrepresentative “accelerations” will be derived. Note 2 gives more detail for the sinusoidal curve to explain the process and results and illustrate the curve fitting process.
The results of these 2 sets of analyses are plotted in Figure 4 as “accelerations” against date NASA data set was released and analysed. For example, the two “accelerations” for 2018 would be those derived using a quadratic fit for both the NASA data and the pure sinusoidal curves over the period Jan 1993 to Jan 2018 respectively. The graph on the left shows the “acceleration” for the NASA data and the sinusoidal curve. Their shapes are very similar but offset by about 3 years. Shifting the sinusoidal curve over 3 years shows how closely the 2 curves follow each other. This close fit is of interest. The NASA “acceleration” peaked in about Jan 2020 and is reducing from then onwards dropping by about 8% over 2 years. Working backwards from the peak the “accelerations” keep reducing until at about Oct 2012 they were negative, i.e., deacceleration. The close fit with the shifted sinusoidal curve may be coincidental but there seems to be a clear message there, that is the high “acceleration” quoted by Nerem et al. is more an outcome of the method used and not inherent in the basic data.
Figure 4
The next few years will be telling as to whether the sinusoidal approach is more representative to the actual behaviour and if the NASA data continues to produce a reducing “acceleration”. If the actual “acceleration” curve follows the trend of the sinusoidal curve the perceived “acceleration” will have halved in about 6 years and reached near zero values in about 15 years.
1. Nerem, R. S., Beckley, B. D., Fasullo, J. T., Hamlington, B. D., Masters, D., & Mitchum, G. T. (2018). Climate-change-driven accelerated sea-level rise detected in the altimeter era. (full text .pdf) Proceedings of the National Academy of Sciences of the United States of America, 115(9). First published February 12, 2018
Note 1. The NASA data changes from month to month. Usually this is confined to the last month or two of data due to the method used in smoothing the readings. In July 2020 there was a major change to all the data by up to 2.5 mm which had little effect on the slope, but the “acceleration” was reduced by about 0.005 mm/yr2. I have been unable to ascertain the reason behind these adjustments, but they have little effect on the overall findings.
Note 2. The Sinusoidal Curve shown in figure 5 will be analysed.
Figure 5
The “accelerations” derived from analysing this sinusoidal curve over a range of periods from 2.5 years to 70 years are shown in figure 6.
Figure 6
The next 5 figures illustrate the curve fitting process for various time periods.
Figure 7 uses a short 5-year period and the fitted quadratic curve is very close to the actual sinusoidal curve and in this instant gives an “acceleration” of -0.2716 mm/yr2 very close to the curve’s maximum acceleration of 0.285 mm/yr2 obtained by differentiating the equation twice.
Figure 7
Figure 8 uses a 15-year period and the “acceleration” drops to -0.0566 mm/yr2.
Figure 8
Figure 9 is very close to the period used by Nerem et al. in that it uses 25 years. The resulting “acceleration” is 0.0904 mm/yr2 similar to that paraded by Nerem.
Figure 9
Figure 10 covers 35 years and results in a rapid reduction in “acceleration” to 0.0118 mm/yr2. (typo corrected with thanks to Steve Case)
Figure 10
Finally extending the period to 65 years, which is nearly 3 periods of 22 years, results in a near zero “acceleration” as shown in Figure 11.
Figure 11
The following image has been added at the request of Dr. Welch (15 May 2022, 9:00 am EST):
Fig 2 from Nerem 2022 with prediction by Welch
# # # # #
About Dr. Alan Welch:
Dr. Welch received a B.Sc.(Hons 2A) Civil Eng. From the University of Birmingham and his PhD from the University of Southampton. He is a Chartered Civil Engineer (U.K.), a member of the Institution of Civil Engineers (U.K.) (retired), a fellow of the British Interplanetary Society, and a fellow of the Royal Astronomical Society.
Currently retired, he has over thirty years’ professional experience across many fields of engineering analysis. Complete CV here
.
# # # # #
Comment from Kip Hansen:
Dr. Welch has been working on this analysis for years and has put his findings together at my suggestion as an essay here. The above is the result of many edited versions and is offered here as an alternative hypothesis to Nerem (2018) ( .pdf )and Nerem (2022). In a practical sense, Nerem (2022) did not change anything substantial from the 2018 paper discussed by Welch
On a personal note: This is not my hypothesis. I do not support curve fitting in general and an alternate curve fitting would not be my approach to sea level rise. I stand by my most recent opinions expressed in “Sea Level: Rise and Fall – Slowing Down to Speed Up”. Overall, my views have been more than adequately aired in my previous essay on sea levels here at WUWT.
I do feel that Dr. Welch’s analysis deserves to be seen and discussed.
Dr. Welch lives in the U.K. and his responses to comments on this essay will be occurring on British Summer Time : UTC +1.
Praise for his work in comments should be generous and criticism gentle.
# # # # #
Discover more from Watts Up With That?
Subscribe to get the latest posts sent to your email.
Well, may I suggest we continue to accumulate, and not “correct” the data for 1000 years then make a decision. Curve fitting pover such a small period, even less than one cycle, is bad practice
Robert ==> Well, at least another century or so….
So when exactly did the sea level stop rising in a linear fashion (the standard dogma around here is that that is a natural consequence of the end of the little ice age) and start varying sinusoidly as suggested by Dr. Welch? If you take his curve fitting and extrapolate back a hundred years or more you will see just how wrong it is.
IW
Alan is not suggesting that evidence exists for a natural or anthro sinusoidal variation, so much as showing that two different choices for curve fitting leads to a didactic conclusion. Geoff S
Geoff,
using the same analysis I could fit the data with any curve whose Taylor series expansion had a positive coefficient for the x^2 term. Which doesn’t mean anything except that everything look parabolic locally.
Furthermore Dr. Welch’s analysis also seems flawed since he uses one equation for his fit to the data and then a second different one to fit the acceleration. When he says that the sine wave is shifted by 3 years when discussing Fig. 4 he is saying that he needs two curves to fit the data, one for the values themselves and then a completely different one for the acceleration. If a sinusoid fit was valid then the same sinusoid would fit both the data and the acceleration derived from it.
The 3 year shift comes about due to the fact I stuck to the 22 year cycle first derived in 2018. Later I said the curve could be improved to a slightly longer period but I didn’t want to keep tuning all the while. It was the close fit of the shapes that is of interest. In Nerem 2022 paper he plots a similar graph (fig 2) but stops a year earlier saying it has leveled off.
I have added my sinusoidal based accelerations to this figure and sent a copy to Kip. I am unable to submit figures so I’ll contact Kip to see if he can upload it in a comment.
sorry for late reply due to time differences.
I am not implying SLR is rising sinusoidal but the readings may have a sinusoidal variation due to the method of measurement. I have already commented that the less than 100% coverage may have a bearing due to possible decadal ocean osculations. We are only talking of a 3.5mm amplitude but show that applying the methodology of Nerem et al leads to similar exaggerated “accelerations”. I have then predicted the trend (again dangerous) for the next few years – so watch this space.
Thank you Kip and Alan for perseverance with this analysis.
And Kip, for continuing to request proper error analysis and reporting that is a fault with many climate papers.
Which raises the point that the measurement accuracy of satellite distance measurements seems a larger error than that quoted in conclusions from papers. Reliance seems to be placed on old saws like central limit and laws of large numbers. Has this apparent discrepancy been resolved? Or do we have two scientific communities who use and accept different ways to calculate accumulated error? Both cannot be right.
Also, there needs to be more clarity in explanations why discrete tide gauge data shows no acceleration while satellite data are sometimes claimed to. Explanations for fundamental discrepancies are better than ignoring them. Geoff S
Geoff ==> There is simply no explanation as to why the oft-reported Sea Level Rise acceleration is not showing up at tide gauges around the world.
The most common response of the Sea Level Rise groups is to fudge to “global” tide gauge record to line up with the start of the satellite record and then say the whole thing is accelerating — despite no individual tide gauges showing any acceleration at all.
Kip, when the latest mean sea level [Feb 2022] is 99mm LOWER than the first MSL [May 1914] at probably the best Pacific Ocean tide gauge there is not only no acceleration, there is possibly no SLR [as Morner always said].
This is supported by the increase in Pacific atoll areas, too.
http://www.bom.gov.au/ntc/IDO70000/IDO70000_60370_SLD.shtml
Geoff may I throw in my pennies worth. The difference between Satellite and tidal gauges is they measure different things as their coverage is different and they are affected by decadal ocean oscillations differently. There may be a low background (0.01 mm/yr2) acceleration in all readings but this could easily be due to long term (millennium) variations that may exist in sea levels and temperatures.
See my post above LINK about the 0.01mm/yr² acceleration.
Climbing beans? Glad to know some people have a real life with real goals. I’ve tried Kentucky pole beans, and the local deer population just north of Milwaukee, WI loves them.
Steve & Alan ==>. We grow bush beans…… my wife picks them as I do not bend so easily.
Kip, you say tide gauge acceleration is not showing up any tide gauges at all, in particular since the start of the satellite record 30 yrs ago (if I have understood you correctly).
Looking at Sea Level Info (sidebar of this website) there are some tide gauges with records longer than 100 years. Of those practically all show acceleration in the last 30 years (except Scandanavia which is affected by Post Glacial Rebound) .
For example: Fremantle long term 1.75 mm/yr, 1992-2022 4.85mm/yr; Fort Denison 0.78, 3.34; The Battery 2.89,4.19; Honolulu 1.55,2.58; Trieste 1.32,3.3; Newlyn (UK) 1.91.4.00; Brest 1.03, 3.02; Key West 2.53,4.77; San Diego 2.21,3.3.
there are some tide gauges with records longer than 100 years. Of those practically all show acceleration in the last 30 years
______________________________________________________
That spaghetti chart is a few years old now, but an update would probably show the same thing. Namely the rate of sea level rise over three decades or so tends to undulate porpoise or whatever you would like to name the 30 some odd years woggle.
Your post illustrates the point that extrapolating a mere 30 years or so of sea level rise out to 2100 is likely to produce large errors.
Moby ==> I fear, you are misunderstanding the forest and looking at this years growth on individual tree branches.

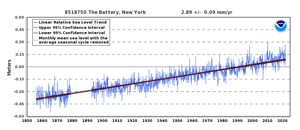

The Battery in NY continues it’s century long rise at about 3 mm per year. This includes the vertical land movement (downward) of about 1.3 – 1.5 mm/year. Like ALL tide gauge records, it has a lot of yer to year, decade to decade variation. Variation is no acceleration.
Moby ==> If you were to add the proper uncertainty range to the Battery graph, it would be between +/- 1 to 2 cm wide and swallows most of the variation.
Nerem makes the same mistake. Looks for acceleration in the annual/decadal variation.
The same is true of all the guages you mention.
Check back in 30-50 years and you’ll see.
What do you term the “proper uncertainty range”?
Phil ==> Tide Gauges have an original measurement error (uncertainty range) of +/- 2 centimeters — centimeters, not millimeters. Their 6 minute averages carry the same uncertainty range according to NOAA specs. And this refers to the most modern acoustic and laser tide gauges. Earlier tide gauges had much larger uncertainty ranges.
It is impossible to get rid of the uncertainty by averaging the time series….
See my essay: https://wattsupwiththat.com/2021/03/07/mind-over-math-throwing-out-the-numbers/
That’s the resolution of the instrument, they’re measuring a quantity with a daily fluctuation of about 2m multiple measurements certainly can yield a mean with better uncertainty than that.
Phil ==> The uncertainty of measurement is the uncertainty ….. it is pretense to claim a higher degree of accuracy or precision through “averaging” measurements taken at different times of a changing object (property).
Original measurement error can not be eliminated.
You’re calculating a mean value and the uncertainty of the mean does depend on the number of points:
“The average value becomes more and more precise as the number of measurements 𝑁 increases. Although the uncertainty of any single measurement is always ∆𝑥, the uncertainty in the mean ∆𝒙avg
becomes smaller (by a factor of 1/√𝑁) as more measurements are made.”
https://www.physics.upenn.edu/sites/default/files/Managing%20Errors%20and%20Uncertainty.pdf
I suggest you read it.
I think *YOU* are the only one that needs to read your link.
kip: “measurements taken at different times of a changing object (property).”

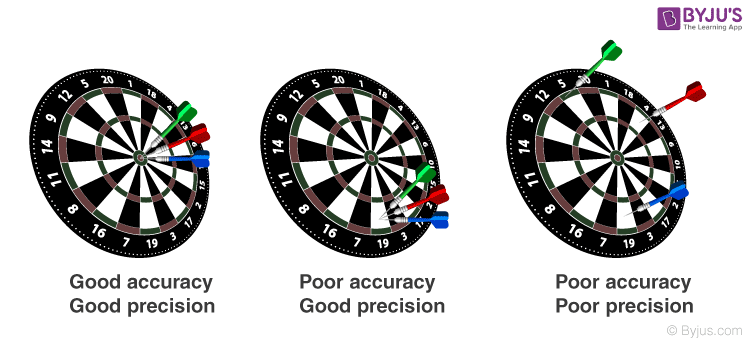

Uncertainty is a measure of accuracy, not precision. More measurements only defines the precision with which you can calculate the mean, it does not help with accuracy.
