What’s below the Greenland Ice?

By Andy May

An interesting PNAS article discusses the deepest portion of the Camp Century Greenland Ice core. It is not paywalled. The researchers, led by Andrew Christ (Dept. of Geology, University of Vermont) found evidence of an ice-free vegetated environment at the base of the Camp Century ice core roughly one million years ago. This means the glaciers, which are currently 1.4 km (0.9 miles) thick, at the Camp Century location completely melted and reformed sometime between 0.7 and 1.4 million years ago. The Camp Century location, along with other deep ice core locations, are shown in Figure 1.

The Greenland Ice Sheet was complete by 7.5 Ma (million years ago) and grew substantially between 3.3 and 2.7 Ma. So, generally we are discussing a period of time when Greenland was usually very much like today.

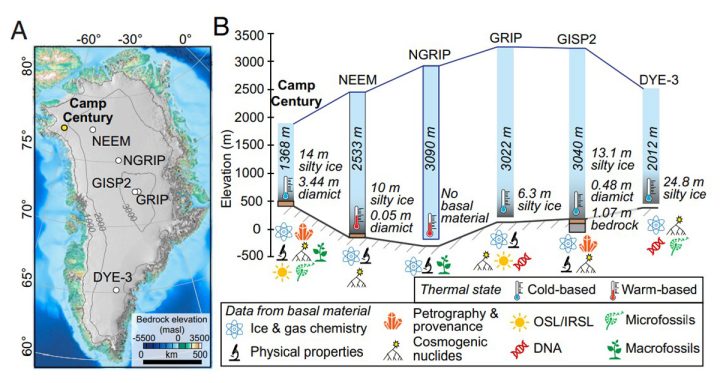

Figure 1. Camp Century location and Greenland Ice cross section.

The sediments below the ice, contain well-preserved fossil plants and other paleo-evidence of an ice-free environment at the Camp Century location. Macrofossils were also found at NGRIP, but in ice. Photographs of the macrofossils found in the Camp Century core are shown in Figure 2.

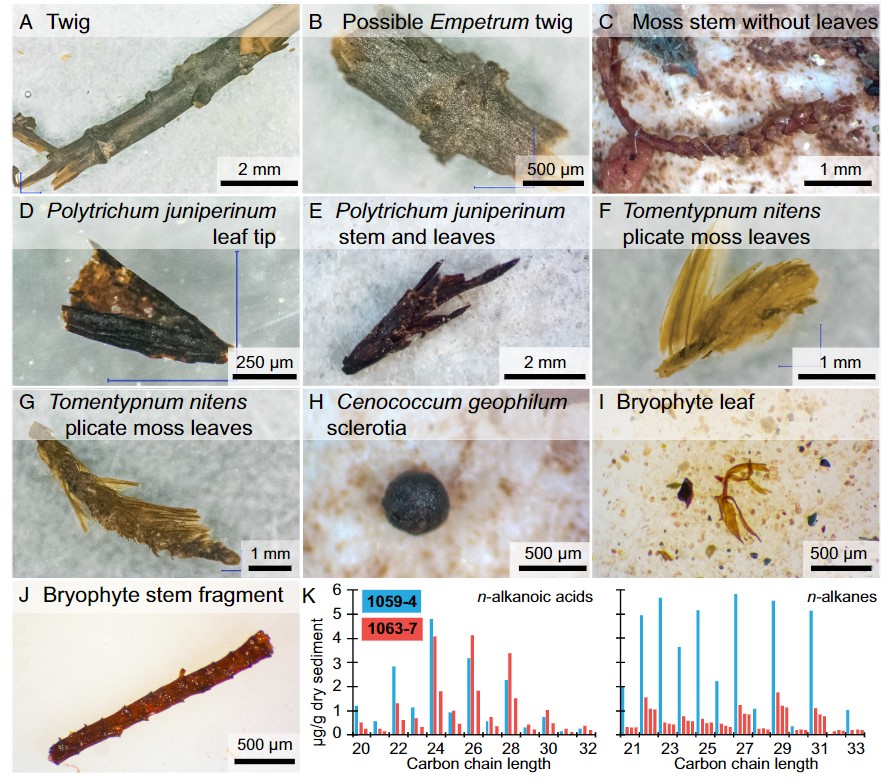

Figure 2. Macrofossil microphotographs and leaf wax concentrations from the basal cores.

The basal sediment portion of the Camp Century core is 3.4 meters thick. The researchers divided it into three units. The evidence suggests that the most recent sediment layer experienced melting and refreezing between 0.7 and 1.4 Ma. In Figure 3 we show Javier’s illustration of the past million years.

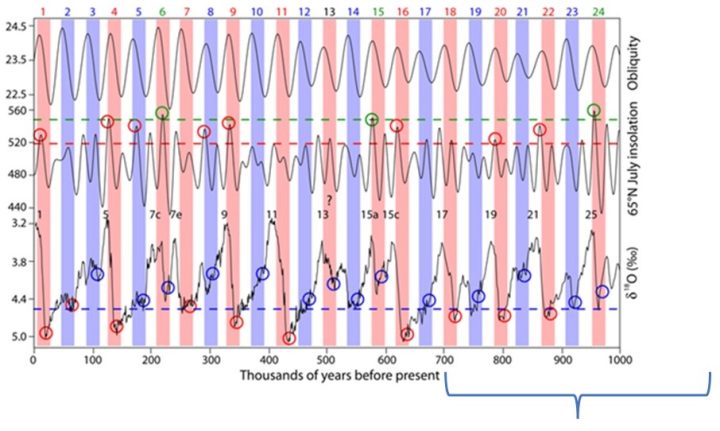

Figure 3. Javier’s figure of the last 25 “MIS” interglacials, with 0.7 to 1.4 Ma marked. The δ18O (change in the oxygen 18 ratio) pseudo-temperature anomaly is high, but not particularly unusual, for MIS 25, and the 65°N insolation anomaly is unusually high. Perhaps this is when the melting occurred.

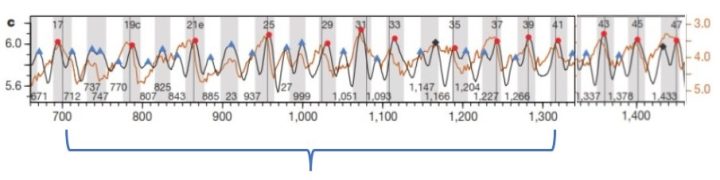

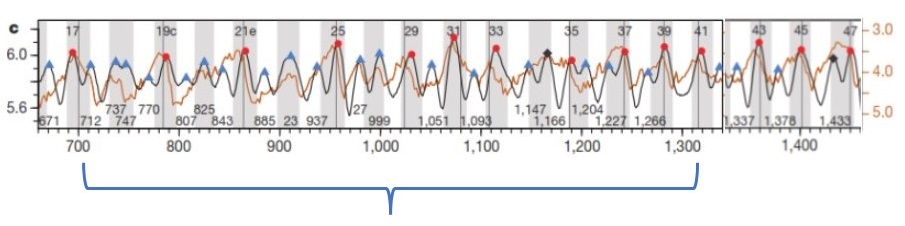

Figure 4 shows the entire possible interval for the Camp Century melting event from Tzedakis, et al. (2017).

Figure 4. Orbital obliquity peaks are shaded in gray, the black line is the caloric summer half-year insolation at 65°N, the red circles are insolation maxima nearest the onset of interglacials, black diamonds are continued interglacials, light blue triangles are failed interglacials. The orange line is the δ18O stack representing temperature. The upper numbers are MIS numbers for interglacials and the lower are kyrs (thousands of years) before present or the number of a continued interglacial or a failed interglacial. The “Mid-Pleistocene Transition” toward lower-frequency higher-amplitude glacial cycles is apparent near MIS 38/37. Source Tzedakis, et al., Nature, 2017.

The earlier portion of the time of the melting is near the “Mid-Pleistocene Transition,” about 1.25 Ma. The Mid-Pleistocene transition (MPT) is a time defined by the total energy required for an interglacial to begin and be successful. Before 1.5 Ma, less total energy was required to melt the glacial ice and enter an interglacial period like today. The amount of energy required increases with time until about 0.6 Ma, when it leveled off, see Figure 5. The period of possible total melting seen in the Camp Century core, at 77°N and 61°W, is essentially the breadth of the Mid-Pleistocene transition.

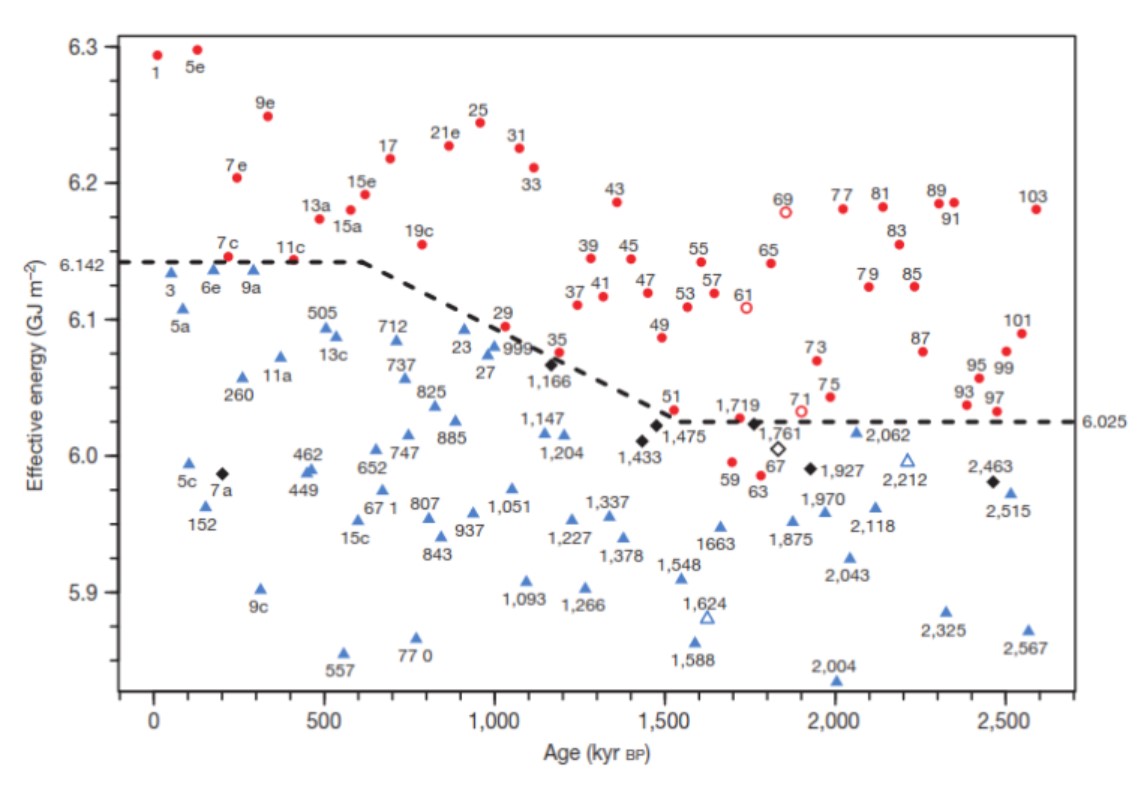

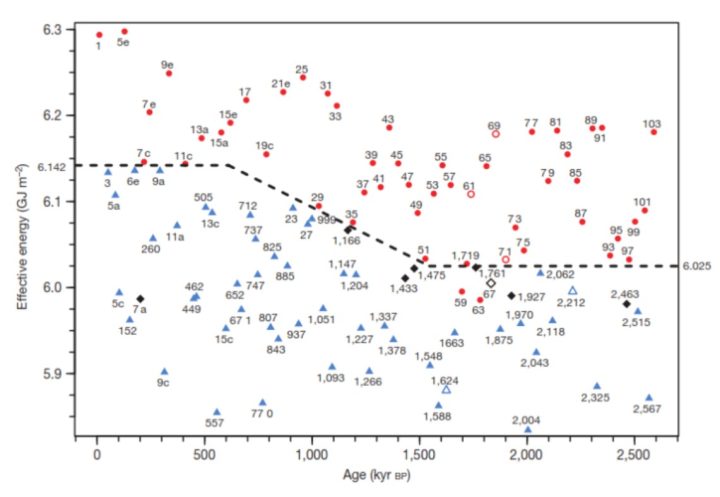

Figure 5: Temperature peaks for the last 2.6 million years separated into successful interglacials (red dots), failed interglacials (blue triangles), continued interglacials (black diamonds) and uncertain assignments (open symbols). The dashed black line separates successful interglacials from unsuccessful interstadials with only two misclassifications (59 and 63). The ramp in the dashed line is the “Mid-Pleistocene transition.” The Y axis is the effective “melting” energy, that is the mean summer solstice insolation peak. Source: After Tzedakis, et al., 2017.

During the MPT transitional period, the stability of the northern ice sheet was in flux. As Figures 3 and 4 show, MIS 31 (1.7 Ma) and MIS 25 (9.6 Ma) were unusually warm and occurred during a period with few very cold glacials. In fact, the glacial periods prior to 600K years ago, just weren’t as cold as the glacials of the past 600K years. The Dye ice core suggests it was ice free between 424 and 374 ka (MIS-11), but Dye is much farther south than Camp Century (see Figure 1). MIS 11 is just after the end of the MPT.

The gold curve in figure 4 is δ18O, an oxygen isotope ratio that varies linearly with surface temperature. It peaks during MIS intervals. The other curve in Figure 4 is the 65°N insolation. These curves are also shown in Figure 3, where they are easier to read.

The current elevation of the underlying sediment layer at Camp Century is 500 meters above mean sea level, removing the 1.4 km. of overlying ice would result in a rebound of about 950 meters in roughly 10,000 years. So, if conditions were the same when the ice melted, the elevation would eventually be about 1,400 meters.

Conclusions

It is hard to draw any firm conclusions from the data shown in this article, but I find it very interesting, and it is a well written paper, it is recommend reading. It is amazing that the Greenland ice sheet completely melted to 77°N. However, that it occurred during the MPT is less surprising, since it was clearly a climatically unstable time. This geological event does not affect the current climate debate, but it does show that natural forces can cause extreme changes in climate.

Figures 3, 4 and 5 show how much colder glacial periods are in the past 600K years, than they were in the previous two million years. We currently live in a bitterly cold portion of Earth’s history. Something to think about, when governments are trying to force us back into the Little Ice Age (roughly 1300 to 1850) by limiting CO2 emissions.

5 25 votes
Article Rating
52 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Scissor
May 11, 2022 2:16 pm

Any sign of Biden’s brain?

Gordon A. Dressler
Reply to  Scissor
May 11, 2022 2:44 pm

My understanding is the scientists involved are far from completing their microscopic examinations of the ice cores.

Don
Reply to  Scissor
May 11, 2022 5:52 pm

They didn’t actually do any Microbiology work or nano particles search on the samples unfortunately !

Buckeyebob
Reply to  Don
May 12, 2022 11:39 am

If they had, they might have found Biden’s brain

Tom Halla
May 11, 2022 2:25 pm

Considering the Little Ice Age was known for war, pestilence, and famine, anyone who thinks that was some sort of Golden Age of climate has serious problems.

Gordon A. Dressler
Reply to  Tom Halla
May 11, 2022 2:54 pm

Most AGW/CAGW alarmists indeed consider it to have been a “Golden Age” for climate because there was, simply put, no large scale sources of anthropogenic CO2 emissions . . . and hence, no possibility for there to have been climate change™ back then.

On the other hand, other AGW/CAGW alarmists—notably among them Michael Mann—are working feverously, night and day, to erase or adjust-away the Little Ice Age from climate records.

peter schell
Reply to  Gordon A. Dressler
May 12, 2022 6:27 am

I thought they already had.

Don’t they claim the little ice age, and the Medieval warm period, were just regional, and the actual climate of the earth was far more moderate and it is only recently that the entire world began to warm at an unprecedented rate?

I find it a bit like arguing about bible stories with a true believer. The bible is factual because the bible says it is.

AndyHce
Reply to  Tom Halla
May 12, 2022 7:43 pm

Aren’t war, famine, and persilence major pastimes of today’s world?

Rud Istvan
May 11, 2022 2:39 pm

Saw this paper about the bottom of the ‘lost’ Camp Century ice core when it first came out. Thanks to Andy for brining it here.

Figure 5 gives a further reason why it was tundra at the bottom of the core, so no year round ice. Until about 1mya, the glacial duration was about 45ky, yet the interglacials were about as now at 10-15ky. Then ‘suddenly’ the glacial duration switched to about 110ky. So to a first order approximation, at the bottom of Camp Century core there was less than half as much ice to melt, but the same amount of time to melt it.

I have searched, but not yet found a plausible reason for the switch to doubled glacial duration. Plate tectonics should be too slow. The Black Sea deluge happened way after. It just did, and we don’t know why.

Javier
Reply to  Rud Istvan
May 11, 2022 3:03 pm

I have searched, but not yet found a plausible reason for the switch to doubled glacial duration.

The most likely reason is very simple. The planet has been cooling for the past 55 million years. After Antarctica glaciation the cooling accelerated, and during the Pleistocene the cooling approached 1ºC per million years. Antarctica is limited by the ocean, but the Arctic is surrounded by land. As ice sheets expanded outside the Arctic the amount of ice became too large to melt during the warming phase of a Milankovitch obliquity cycle (41 kyr). The planet started skipping one cycle until so much ice accumulates that it triggers powerful negative feedbacks, like a spring pulled too far. For example much of the ice accumulates over continental platforms that are inundated as the sea level rises, and water quickly melts lots of ice. The result is that the cycle becomes 82 kyr long. But also interglacials become warmer when they are finally produced. When eccentricity is very high the 41 kyr periodicity briefly happens. The final average is around one interglacial every 73 kyr. The 100 kyr cycle is a myth. The last glacial period was unusual as it skipped two interglacials so the past interglacial happened 123 kyr before the Holocene. This had not happened before, but the astronomical reasons are clear. Tzedakis has explored them.

Once this interglacial is over we will have to wait about 70,000 years for the next (82 kyr spacing minus 12 kyr Holocene).

Since the MPT it seems the planet is no longer cooling, but stable in the present very cool condition. We’ll have to wait tens of millions of years before the ice age is over.

So be patient with the climate.

Rud Istvan
Reply to  Javier
May 11, 2022 3:33 pm

Thanks Javier. That is the first cogent explanation I have read after years of searching.

RickWill
Reply to  Javier
May 11, 2022 5:16 pm

The more interesting question is – what caused the end of the last glacial episodes?

It was linked to the NH winter warming cycle but that cycle was less intense than previous cycles where glaciation only moderately reversed and then continued in the next cooling phase.

Nicholas McGinley
Reply to  Javier
May 12, 2022 9:53 am

One thing to note is that the location is not far from the coastline.
So this statement:
It is amazing that the Greenland ice sheet completely melted to 77°N”,

is not supported by the data.
All that was required is for the margin of the ice to move inland a ways.


Nicholas McGinley
Reply to  Andy May
May 12, 2022 2:37 pm

Ok, that is different of course.
The evidence shows that at that location, plants were growing so it can be inferred there was no ice for some extended period of time.

whiten
Reply to  Rud Istvan
May 11, 2022 4:57 pm

Rud Istvan

Unless you get to conclude to a clear simple logical definition of Climate, than there will very unlikely to be a sadisfactory answer to your question.

Well, perhaps!

cheers

Rud Istvan
Reply to  whiten
May 11, 2022 5:20 pm

There has been an official AMS one I have used for decades:
climate is the envelope of weather over a period of at least 30years.

Now a legit criticism of that is, since many roughly 60 cycle weather patterns are discernible, it should double. But if warmunists did that, climate alarm would collapse.

whiten
Reply to  Rud Istvan
May 12, 2022 8:10 am

Yep, there you have it Rud… no hope you appreciating ever an answer to your question!

M. Cycles climate theory cares not about the 30 years weather cycles, and any other explanations outside the premise of this theory in regard to real Climate in long term, will also have no much chance with you or any one regarding climate as a 30 years weather cycles.

A 30 years weather cycle in climate terms only useful supposedly only for understanding and addressing the supposed modern era (anthropogenic) Climate Change.

The main and only defining parameter of Climate is the thermal variation in long term (millennia scale), either of the (global) Atmosphere or more precisely/complex one of
the (global) Surface-Atmosphere coupling.

And also there is other important and essential other parameters and indicators, in tight relation to Climate, to address, analyze, theorize and hopefully better understand Climate.

Such as:

Cryosphere variation, global ice content variation, sea level variation,
atmospheric CO2 concentration variation, the aridity factor variation.
All considered in long term.

Maybe, if you address and consider the definition of Climate in this particular way, you may have a better chance on reaching an answer to your question.

cheers

Last edited 13 days ago by whiten
RickWill
Reply to  Rud Istvan
May 11, 2022 5:10 pm

about as now at 10-15ky

Half a precession cycle.

The globe entered the current cycle of glaciation about 500 years ago when perihelion last occurred before the austral summer solstice.

Boreal winters are now in a cooling phase and that means more NH winter precipitation as snow. Not yet accumulating but that will be observed within the current millennium. Without intervention, the land masses abutting the North Atlantic will again be covered in mile high ice that will persist for three or four precession cycles.

Gordon A. Dressler
May 11, 2022 2:42 pm

Hmmm . . . in the above article I did not see any reference to “all that liquid water” that others claim exists under the Greenland ice sheet, at the ice/land interface, that is asserted to be causing all that “slip slidin’ away” (with tip of the hat to Paul Simon for the phrase) and the asserted resulting “accelerated” loss of ice volume.

Maybe it’s there and just not revealed by the few ice core samples taken down to bedrock, as indicated in the article’s Figure 1?

Rud Istvan
Reply to  Gordon A. Dressler
May 11, 2022 3:38 pm

Whether or not there is liquid water under the Greenland Ice Sheet, it can NEVER ‘slip slide’ away. Greenland geologically is bowl shaped, and the vast majority of its ice in inside the rocky bowl.
Illustrations and explanations in essay ‘Tipping Points’ in ebook Blowing Smoke.

RexAlan
Reply to  Rud Istvan
May 11, 2022 4:24 pm

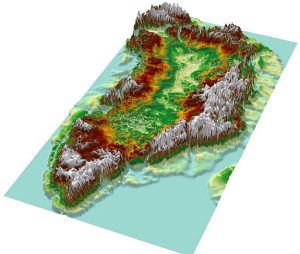

This is what the topography of Greenland looks like without ice.
