NASA’s Curiosity Rover Captures Shining Clouds on Mars

From NASA

May 28, 2021

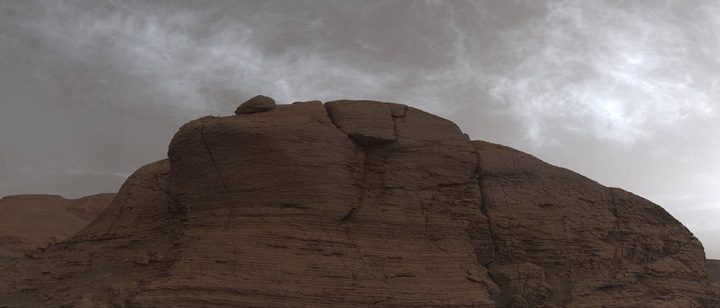

NASA’s Curiosity Mars rover captured these clouds just after sunset on March 19, 2021

NASA’s Curiosity Mars rover captured these clouds just after sunset on March 19, 2021, the 3,063rd Martian day, or sol, of the rover’s mission. The image is made up of 21 individual images stitched together and color corrected so that the scene appears as it would to the human eye. Credits: NASA/JPL-Caltech/MSSS

The science team is studying the clouds, which arrived earlier and formed higher than expected, to learn more about the Red Planet.

Cloudy days are rare in the thin, dry atmosphere of Mars. Clouds are typically found at the planet’s equator in the coldest time of year, when Mars is the farthest from the Sun in its oval-shaped orbit. But one full Martian year ago – two Earth years – scientists noticed clouds forming over NASA’s Curiosity rover earlier than expected.

This year, they were ready to start documenting these “early” clouds from the moment they first appeared in late January. What resulted are images of wispy puffs filled with ice crystals that scattered light from the setting Sun, some of them shimmering with color. More than just spectacular displays, such images help scientists understand how clouds form on Mars and why these recent ones are different.

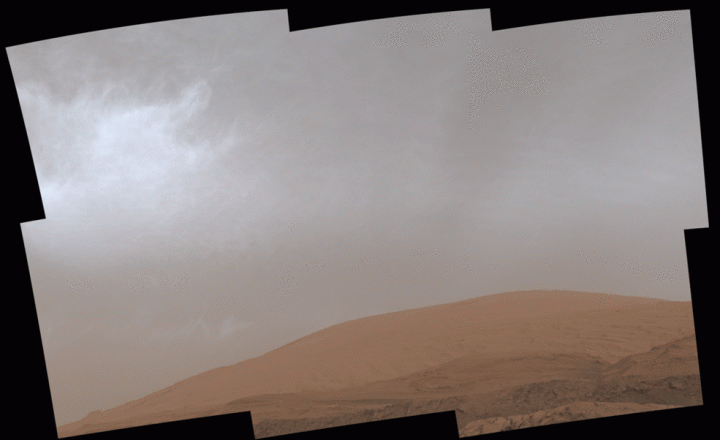

This GIF shows clouds drifting over Mount Sharp on Mars, as viewed by NASA’s Curiosity rover on March 19, 2021, the 3,063rd Martian day, or sol, of the mission. Each frame of the scene was stitched together from six individual images.

This GIF shows clouds drifting over Mount Sharp on Mars, as viewed by NASA’s Curiosity rover on March 19, 2021, the 3,063rd Martian day, or sol, of the mission. Each frame of the scene was stitched together from six individual images.Credits: NASA/JPL-Caltech/MSSS

In fact, Curiosity’s team has already made one new discovery: The early-arrival clouds are actually at higher altitudes than is typical. Most Martian clouds hover no more than about 37 miles (60 kilometers) in the sky and are composed of water ice. But the clouds Curiosity has imaged are at a higher altitude, where it’s very cold, indicating that they are likely made of frozen carbon dioxide, or dry ice. Scientists look for subtle clues to establish a cloud’s altitude, and it will take more analysis to say for sure which of Curiosity’s recent images show water-ice clouds and which show dry-ice ones.

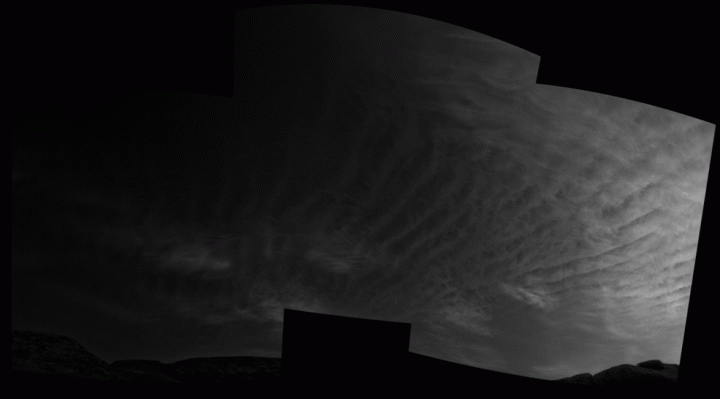

Using the navigation cameras on its mast, NASA’s Curiosity Mars rover took these images of clouds just after sunset on March 31, 2021, the 3,075th so, or Martian day, of the mission.

Using the navigation cameras on its mast, NASA’s Curiosity Mars rover took these images of clouds just after sunset on March 31, 2021, the 3,075th sol, or Martian day, of the mission.Credits: NASA/JPL-Caltech

The fine, rippling structures of these clouds are easier to see with images from Curiosity’s black-and-white navigation cameras. But it’s the color images from the rover’s Mast Camera, or Mastcam, that really shine – literally. Viewed just after sunset, their ice crystals catch the fading light, causing them to appear to glow against the darkening sky. These twilight clouds, also known as “noctilucent” (Latin for “night shining”) clouds, grow brighter as they fill with crystals, then darken after the Sun’s position in the sky drops below their altitude. This is just one useful clue scientists use to determine how high they are.

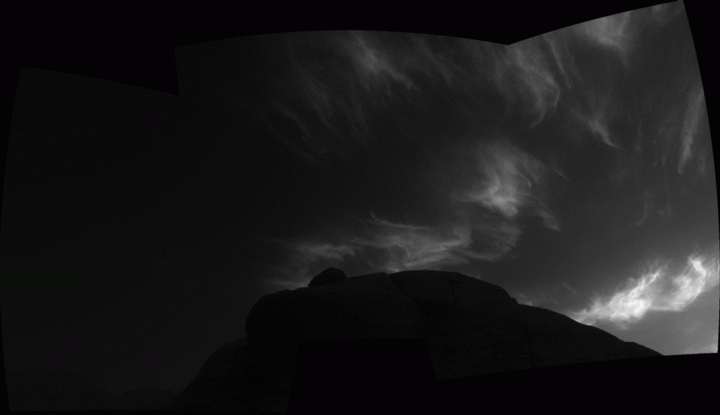

Using the navigation cameras on its mast, NASA’s Curiosity Mars rover took these images of clouds just after sunset on March 28, 2021, the 3,072nd sol, or Martian day, of the mission.

Using the navigation cameras on its mast, NASA’s Curiosity Mars rover took these images of clouds just after sunset on March 28, 2021, the 3,072nd sol, or Martian day, of the mission.Credits: NASA/JPL-Caltech

Even more stunning are iridescent, or “mother of pearl” clouds. “If you see a cloud with a shimmery pastel set of colors in it, that’s because the cloud particles are all nearly identical in size,” said Mark Lemmon, an atmospheric scientist with the Space Science Institute in Boulder, Colorado. “That’s usually happening just after the clouds have formed and have all grown at the same rate.”

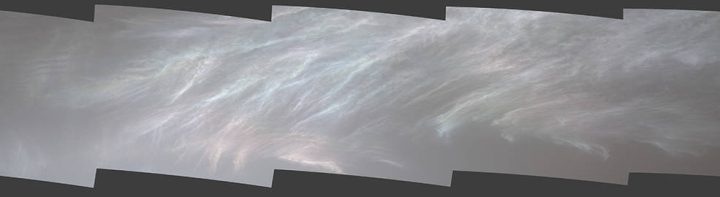

NASA’s Curiosity Mars rover spotted these iridescent, or “mother of pearl,” clouds on March 5, 2021

NASA’s Curiosity Mars rover spotted these iridescent, or “mother of pearl,” clouds on March 5, 2021, the 3,048th Martian day, or sol, of the mission. Seen here are five frames stitched together from a much wider panorama taken by the rover’s Mast Camera, or Mastcam.Credits: NASA/JPL-Caltech/MSSS

These clouds are among the more colorful things on the Red Planet, he added. If you were skygazing next to Curiosity, you could see the colors with the naked eye, although they’d be faint.

“I always marvel at the colors that show up: reds and greens and blues and purples,” Lemmon said. “It’s really cool to see something shining with lots of color on Mars.”

For more about Curiosity, visit:

https://mars.nasa.gov/msl/

For more about NASA’s Mars program, visit:

https://mars.nasa.gov
