Lakes on Greenland Ice Sheet can drain huge amounts of water, even in winter

UNIVERSITY OF CAMBRIDGE

Research News

IMAGE: LAKES FORM ON THE SURFACE OF THE GREENLAND ICE SHEET EACH SUMMER AS THE WEATHER WARMS. THEY EXIST FOR WEEKS OR MONTHS BUT CAN DRAIN IN A MATTER OF HOURS… view more CREDIT: IAN WILLIS

Using satellite data to ‘see in the dark’, researchers have shown for the first time that lakes on the Greenland Ice Sheet drain during winter, a finding with implications for the speed at which the world’s second-largest ice sheet flows to the ocean.

The researchers, from the University of Cambridge, used radar data from a European Space Agency satellite to show that even when the heat from the Sun is absent, these lakes can discharge large amounts of water to the base of the ice sheet. These ‘drainage events’ are thought to play a significant role in accelerating the movement of the ice by lubricating it from below.

Previous studies of draining lakes have all been carried out during the summer months, through a combination of direct field observations and optical satellite data, which requires daylight.

The approach developed by the Cambridge researchers uses the radar ‘backscatter’ – the reflection of waves back to the satellite from where they were emitted – to detect changes in the lakes during the winter months, when Greenland is in near-total darkness.

The results, reported in the journal The Cryosphere, imply that the ‘plumbing’ system beneath the Greenland Ice Sheet doesn’t just slowly leak water from the previous summer, but even in the depths of the Arctic winter, it can be ‘recharged’, as large amounts of surface lake water cascade to the base of the ice sheet.

Many previous studies have shown that the Greenland Ice Sheet is losing mass, and the rate of loss is accelerating, due to melting and runoff.

“One of the unknowns in terms of predicting the future of the ice sheet is how fast the glaciers move – whether they will speed up and if so, by how much,” said co-author Dr Ian Willis from Cambridge’s Scott Polar Research Institute (SPRI). “The key control on how fast the glaciers move is the amount of meltwater getting to the bottom of the ice sheet, which is where our work comes in.”

Lakes form on the surface of the Greenland ice sheet each summer as the weather warms. They exist for weeks or months but can drain in a matter of hours due to hydrofracturing, transferring millions of cubic metres of water and heat to the base of the ice sheet. The affected areas include sensitive regions of the ice sheet interior where the impact on ice flow is potentially large.

“It’s always been thought that these lakes drained only in the summer, simply because it’s warmer and the sun causes the ice to melt,” said co-author Corinne Benedek, also from SPRI. “In the winter, it’s dark and the surfaces freeze. We thought that the filling of the lakes is what caused their eventual drainage, but it turns out that isn’t always the case.”

Benedek, who is currently a PhD candidate at SPRI, first became interested in what happens to surface lakes in the winter while she was a Master’s student studying satellite thermal data.

“The thermal data showed me that liquid water can survive in the lakes throughout the winter,” she said. “Previous studies using airborne radar had also identified lakes buried a few metres beneath the surface of the ice sheet in the summer. Both of these things got me thinking about ways to observe lakes all year long. The optical satellite imagery we normally use to observe the lakes isn’t available in winter, or even when it’s cloudy.”

Benedek and Willis developed a method using data from the Sentinel-1 satellite, which uses a type of radar called synthetic aperture radar (SAR). SAR functions at a wavelength that makes it possible to see through clouds and in the dark. Ice and water read differently using SAR, and so they developed an algorithm that tracks when sudden changes in SAR backscatter occur.

Over three winters, they identified six lakes which appeared to drain over the winter months. These lakes were buried lakes or surface lakes that were frozen over. The algorithm was able to identify where the backscatter characteristics of the lake changed markedly between one image and the next one recorded 12 days later.

The SAR data was backed up with additional optical data from the previous autumn and subsequent spring, which confirmed that lakes areas shrank considerably for the six drained lakes. For three of the lakes, the optical data as well as data from other satellites was used to show the snow- and ice-covered lakes collapsed, dropping by several metres, again confirming the water had drained.

“The first lake I found was surprising,” said Benedek. “It took me a while to be sure that what I thought I was seeing was really what I was seeing. We used surface elevation data from before and after the events to confirm what we were thinking. We know now that drainage of lakes during the winter is something that can happen, but we don’t yet know how often it happens.”

“Glaciers slow down in the winter, but they’re still moving,” said Willis. “It must be this movement that causes fractures to develop in certain places allowing some lakes to drain. We don’t yet know how widespread this winter lake drainage phenomenon is, but it could have important implications for the Greenland Ice Sheet, as well as elsewhere in the Arctic and Antarctic.”

###

4.2 5 votes
Article Rating
Subscribe
Notify of
46 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Vuk
April 1, 2021 2:38 am

If lakes drain, that amount of fresh water floating on the top, when it freezes may not melt by the following summer, that would indeed be climate change emergency.

commieBob
Reply to  Vuk
April 1, 2021 5:01 am

Huh? We have this phenomenon that hasn’t been previously described. We have no idea of what it has done over history. As far as we can tell, it’s doing what it has always done.

It’s like treating the ozone hole like something that has never before occurred in the history of the planet.

Oh look, there’s something. OMG, it just changed. We’re all going to die! Something like that.

Rhs
Reply to  commieBob
April 1, 2021 5:55 am

Something changed and we’re all going to die is the pillar of AGW.
The rent seekers only have to quantify change to get paid.
It would be loverly if they had to take it one step further and qualify how much and how long the change has to be before even 2% of the population is affected.
If I recall correctly, at it’s current rate of melt, refreeze, and accumulation, Greenland will raise the ocean sea level about a foot in a thousand years?

Steve Case
Reply to  Rhs
April 1, 2021 6:42 am

“… at it’s current rate of melt,…Greenland will…

Please stop buying into the bullshit! Greenland isn’t melting. It may have some surface melt much like the surface melt and re-freeze that forms icicles on your roof in January. But in general it isn’t melting, it’s well below freezing nearly everywhere, nearly all the time, it can’t melt.

dk_
Reply to  Vuk
April 1, 2021 7:14 am

Er, or maybe several localized source of heat that isn’t affected by darkness or -40 temperatures. Volcanoes and geysers exist, without dependency on alarmism. But I wouldn’t mind sacrificing some extinction cosplay hysterics into a few.

Editor
April 1, 2021 2:50 am

These lakes must have existed before this study started looking at them. Therefore the scientists have to re-assess all past work and all past observations of ice gain or loss, in order to understand what has been happening up until now. We aren’t looking at a sudden acceleration of ice loss from these lakes, in spite of the writer’s intention to make us think that way. We are looking at a process that has been going on for ages and that we weren’t aware of. Basically, nothing has changed. Before this study at the observed rate of ice loss, it was going to take 10,000 years or more just for half of Greenland’s ice to melt. After this study, it will still take 10,000 years or more just for half of Greenland’s ice to melt.

Steve Case
Reply to  Mike Jonas
April 1, 2021 3:14 am

Spot on – BINGO – Plus Ten – Exactly etc.

Besides all that:

These ‘drainage events’ are thought to play a significant role in accelerating the movement of the ice by lubricating it from below.

The operative word in that line of bullshit is “Thought”.

The glaciers move over the surface the same way ice skates do. The weight of the skater or the glacier forms a thin layer of water allowing it to slide. Adding more water isn’t going to make it slide any faster. And as was pointed out this has been going on right along as it is with every other breathless “worse than previously thought” announcement of newly discovered phenomenon in the world of Climate “Science”.

H.R.
Reply to  Steve Case
April 1, 2021 3:40 am

The glaciers move over the surface the same way ice skates do. The weight of the skater or the glacier forms a thin layer of water allowing it to slide. Adding more water isn’t going to make it slide any faster. And as was pointed out this has been going on right along as it is with every other breathless “worse than previously thought” announcement of newly discovered phenomenon in the world of Climate “Science”.

.
.
It’s worse than we thought! Apparently none of the Climate Cyan Tits (h/t Leo smith) have ever ice skated.

Shocking!

Steve Case
Reply to  H.R.
April 1, 2021 4:12 am

Cyan (/ˈsaɪ.ən, ˈsaɪˌæn/)[1][2][3] is a greenish-blue color. [Wikipedia]

Ha ha ha ha ha ha ha ha ha!

First chuckle of my day and saved to my file of factoids, quotes and smart remarks. (-:

noaaprogrammer
Reply to  Steve Case
April 1, 2021 9:20 am

It’s my understanding that much of the interior ground-level of Greenland is bowl-shaped. So the drainage of the lakes enable the interior ice sheet to move uphill?!

Steve Case
Reply to  noaaprogrammer
April 1, 2021 10:26 am

Yes, I saw that a few days ago. I’m going to check to make sure that I added that one to my file of factoids, quotes & smart remarks

Smart Rock
Reply to  noaaprogrammer
April 1, 2021 11:26 am

As long as the top surface of the ice is sloping down towards the edge of the ice cap, the ice will move in that direction. If you look at glaciated terrain like the Canadian Shield, you can see lots of places where the ice has moved over hills. It’s easy to visualise if you learn to regard ice as a plastic, not a rigid medium.

H.R.
Reply to  Steve Case
April 1, 2021 9:39 am

Credit Leo Smith, Steve. I stole it from him. He used it a couple of days ago.

In the context he used it, the word play was not as obvious, and it took me a minute.

Leo wrote about the writers of the science releases – “wannabe Cyan Tits.”

Then I cottoned on to what he was referring to: the type who flunked math, then physics, then chemistry, then accounting, then psychology (crikey!), and they couldn’t weave a basket and flunked basket weaving 101. So they got their degree in journalism 😜 and write these releases.

Steve Case
Reply to  H.R.
April 1, 2021 10:43 am

Thanks for lesson in etymology (-:

fretslider
April 1, 2021 3:11 am

 “The key control on how fast the glaciers move is the amount of meltwater getting to the bottom of the ice sheet, which is where our work comes in.”

But it isn’t the only one. The roughness of the rock surface (friction) and the weight of the glacier will also affect how fast it moves

“Pressure beneath glaciers is not constant due the roughness of the ground surface. Higher pieces of ground increase the ice pressure as the glacier moves over that bump, thereby increasing the temperature and reducing the level of friction. Moving on from that higher piece of ground the pressure reduces, decreasing the temperature and then the level of friction increases. The cycle continually reoccurs at different rates and locations, depending on the roughness of the ground surface.”

https://www.tribonet.org/modeling-ice-friction-in-glaciers/.

Did they factor that in? I’m not sure that they did.

Last edited 13 days ago by fretslider
Clyde Spencer
Reply to  fretslider
April 1, 2021 9:10 am

fretslider
Yes, the topography and total relief are important considerations. If the bedrock is polished and has little relief, then the ice can speed up if water is newly introduced to the ice-bedrock contact. However, this is only likely near the terminal margins where the ice might be thin enough that plastic flowage won’t seal tension cracks.

If the topography has high relief, then the ice will either have to shear over, or flow around, obstructions. Adding water won’t have much impact because the ice movement is being buttressed by obstructions, not just retarded by friction.

Ron Long
April 1, 2021 3:20 am

So I wondered how many of these “lakes” there were in Greenland. I went to Google Earth Pro /tm) and scanned around, even zoomed into select areas, like where someone had noted a photo. The majority of satellite data is obviously old data with large pixels, like maybe Landsat, I saw one scene labelled as 1984, for example, with newer Quickbird smaller pixel data only near items of interest. I can report that I found no lakes, even though these were all summer scenes. Changing to the comment that the water from draining lakes speeds up a glacier, I will remark that all of the glaciers visible were moving to the sea, often in fiords, where they calved, all appearing normal. The movement of a glacier is controlled by the recharge rate in upper areas and the inclination and roughness of the topographic low the glacier travels over. Without recharge at the origin a glacier stops moving, and judging from the amount of calving ice clearly visible, these Greenland glaciers are moving along in a mode that has to be close to normal. Nothing to see here, folks, move along.

April 1, 2021 3:35 am

Using satellite data to ‘see in the dark’, researchers have shown for the first time that lakes on the Greenland Ice Sheet drain during winter, a finding with implications for the speed at which the world’s second-largest ice sheet flows to the ocean.

Wolfgang
April 1, 2021 3:41 am

“Many previous studies have shown that the Greenland Ice Sheet is losing mass, and the rate of loss is accelerating, due to melting and runoff.”

That’s wrong! The DMI reports here:
http://polarportal.dk/fileadmin/user_upload/PolarPortal/season_report/polarportal_saesonrapport_2020_EN.pdf
beginning on page 3 on the melting and calving of the ice sheet.
Figure 2 on page 4 shows, that the melting in 2017, 2018 and 2020 was less than in previous years and -surprise (?!)- and in 2017 and 2018 was no loss in the Total Mass Balance. The loss in 2020 was only about 150 Gt/y.
The data show that the ice sheet has lost less and less mass since its maximum loss in 2012, with fluctuations until today, i.e. just the opposite of what is often claimed.
The rate of loss is not accelerating, it is slowing down, and very significantly!

Pat from Kerbob
Reply to  Wolfgang
April 1, 2021 7:39 am

Says in there that melting started 10 days later than average in 2020

Rod Evans
April 1, 2021 3:56 am

I just checked the date, are we sure this is a genuine story?

ATheoK
Reply to  Rod Evans
April 1, 2021 6:44 pm

Sadly, it looks to be a genuine story, not an April Fool joke.
https://tc.copernicus.org/articles/15/1587/2021/

Peta of Newark
April 1, 2021 4:13 am

Quote:””Cambridge researchers uses the radar ‘backscatter’ – the reflection of waves back to the satellite from where they were emitted””

Well isn’t that the craziest thing
Because when we’re all being lectured, told, re-educated, brainwashed, arm-twisted, trolled, ad-hommed, bore-holed, ignored, cancelled, fined, taxed, tattooed and derided about the Green House Gas Effect….
…. No Such Thing as ‘backscatter’ Is Possible.

We’re told that when a photon, carrying (electromagnetic) energy is emitted from somewhere anywhere, it HAS to be absorbed by whatever it hits.
No matter what the temperature of either ‘party’
Otherwise we are bludgeoned by a supposed violation of the 1st Law
We are told about ‘Net Energy Flow’
Isn’t that right Spencer? No, this is not some sweet Socialist Share & Share Alike Disneyworld.
Thermodynamics is cold and hard.

There is NO net flow. Energy flow ONLY goes in one direction and if it cannot be absorbed by whatever it hits, it ‘backscatters’

Yet here it is with all the Inarguable Authority of A Sputnik

This climate thing is the Biggest Pile Of Stinking Rotten Shyte that there ever was.

But its now too late to call it out.
Hansen should have been pulled to shreds 30 years ago, but, The Good Men Said Nothing.
and there’s nowhere left to run to…

Edit to add:
And yes, i do realise this is radar and ‘reflection’ we’re talking about.

OK
Why was Grenfell Tower covered on plastic foam to try keep it warm,
Why not inward facing mirrors?

Ah you say, the foam was coated with Aluminium – that’s shiny stuff
Yes it is but it also has vanishingly low emissivity, hence why the Aluminium is fitted on the cold-side or the outside, not on the warm inside
Thus the combination of low thermal conductivity allied to low emissivity would have kept the tower warm

Exactly as Earth’s Atmosphere has. Low conductivity and low emissivity

Last edited 13 days ago by Peta of Newark
Clyde Spencer
Reply to  Peta of Newark
April 1, 2021 9:16 am

Whether one is talking about visible light, IR, or radio waves, a fraction will penetrate and be absorbed in solid objects like water, ice, or rock, and the rest will be reflected, with the proportions being determined by the complex refractive index applicable at the particular wavelength, and the angle of incidence of the wave front. Look up Fresnel’s Equation for reflectivity.

meab
Reply to  Peta of Newark
April 1, 2021 12:36 pm

Stupid comment. Ever use a “space blanket”? It’s an aluminized blanket used for wintertime emergencies. It doesn’t have any insulating properties as it’s made from only 12 micron thick mylar – it’s thinner than a human hair. It works by reflecting the IR emitted by the human body back to the body and, secondarily, by helping to reduce convection heat loss. Other than making the person who is being saved clammy, it works very well. Warms a person right up. They’re now being used at Biden’s border cages as cheap blankets. So why don’t you just cover the person with a few microns of dirt to save them? The reason that a space blanket works is that Aluminum reflects IR while dirt absorbs IR and re-radiates it away from the body.

What reflects and what is absorbed depends on the frequency of the EM radiation and the material. Most people learned that in school, it’s why different objects can have different colors under a white light.

Retired_Engineer_Jim
Reply to  Peta of Newark
April 1, 2021 12:44 pm

Here and I always thought that the way radar worked was to emit a signal, detect the reflected signal (that part of the backscatter reaching the detector) figure out the time difference and you’ve got the distsance to the object reflecting the signal. (This is, clearly, a simplified explanation.)

Nelson
April 1, 2021 4:52 am

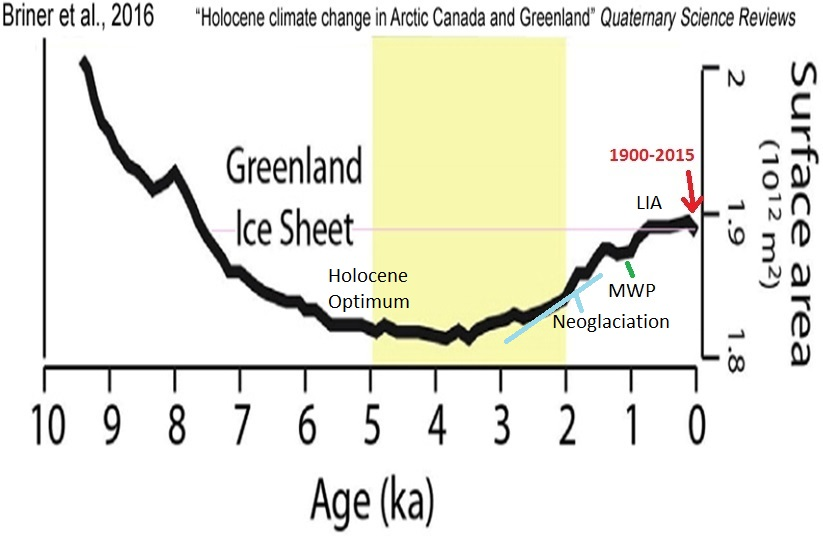

Interesting issue. Greenland is losing ice mass since the end of the little ice age, but Greenland has gained a tremendous amount of ice over the last 5k years. The recent acceleration is nothing more than the positive phase of the AMO. We know since 2012 or so that Greenland has been getting colder.

April 1, 2021 4:52 am

What they don’t tell you is that the Greenland glacier contains 2 850 000 cubic kilometers of is and that the main glaciers thickness is between 2 to 3 kilometers which I mention in this video.
https://youtu.be/UJOEr964GpI

Steve Case
Reply to  Per Strandberg
April 1, 2021 5:45 am

Thanks for the You Tube link. I’ve book marked it for reference

Nelson
April 1, 2021 4:55 am

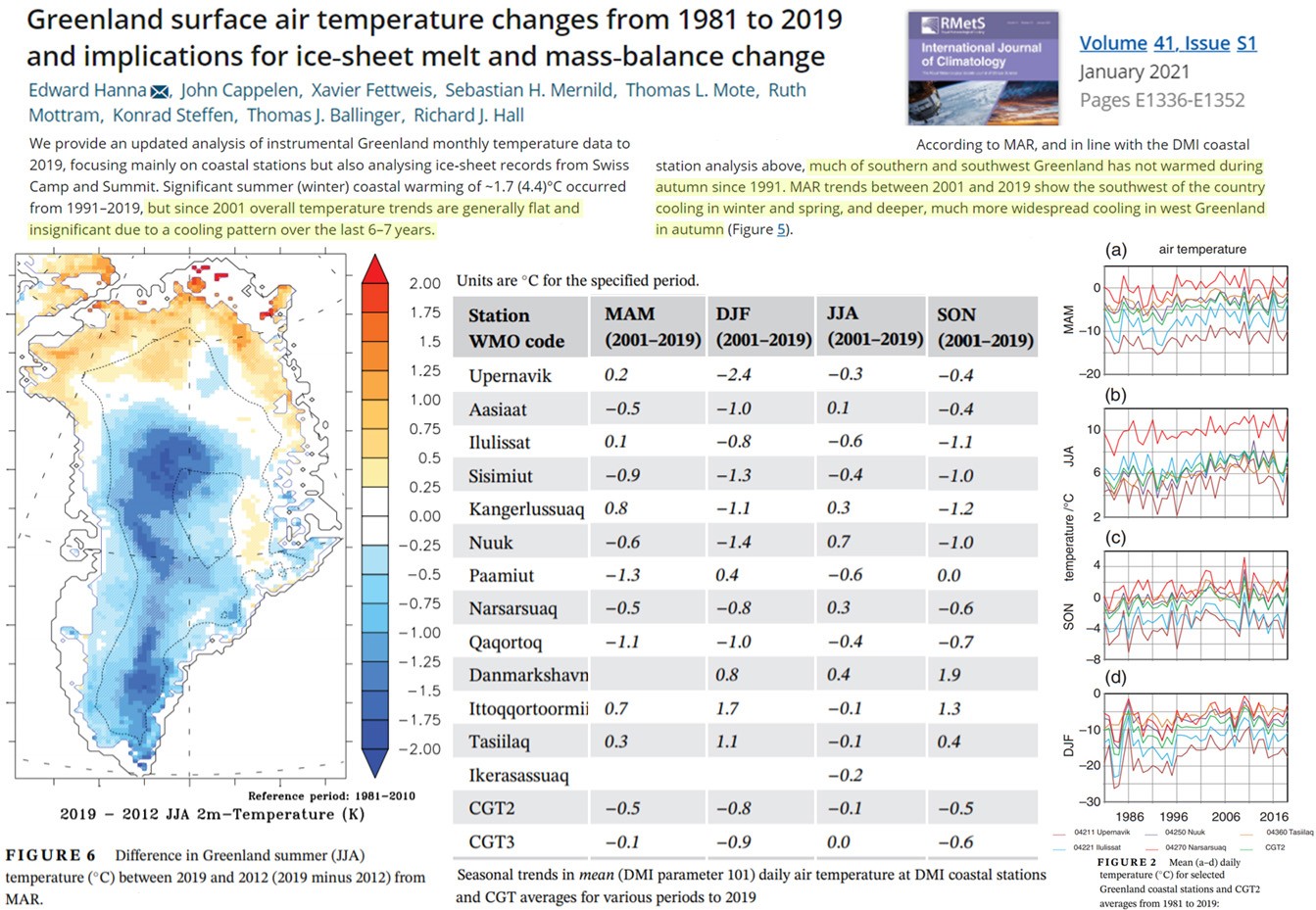

Here is a recent paper on Greenland temperatures that was posted at No Trick Zone
