Martian Muddy Waters

No… Martian Muddy Waters is not an extraterrestrial blues musician.  It’s just a catchy title that links Mars, mud and water together.

pia21261

The network of cracks in this Martian rock slab called “Old Soaker” may have formed from the drying of a mud layer more than 3 billion years ago. The view spans about 3 feet (90 centimeters) left-to-right and combines three images taken by the MAHLI camera on the arm of NASA’s Curiosity Mars rover. Credits: NASA/JPL-Caltech/MSSS

Guest post by David Middleton

Clear as mud: Desiccation cracks help reveal the shape of water on Mars

BOULDER, CO, USA: As Curiosity rover marches across Mars, the red planet’s watery past comes into clearer focus.

In early 2017 scientists announced the discovery of possible desiccation cracks in Gale Crater, which was filled by lakes 3.5 billion years ago. Now, a new study has confirmed that these features are indeed desiccation cracks, and reveals fresh details about Mars’ ancient climate.

“We are now confident that these are mudcracks,” explains lead author Nathaniel Stein, a geologist at the California Institute of Technology in Pasadena. Since desiccation mudcracks form only where wet sediment is exposed to air, their position closer to the center of the ancient lake bed rather than the edge also suggests that lake levels rose and fell dramatically over time.

“The mudcracks show that the lakes in Gale Crater had gone through the same type of cycles that we see on Earth,” says Stein. The study was published in Geology online ahead of print on 16 April 2018.

The researchers focused on a coffee table-sized slab of rock nicknamed “Old Soaker.” Old Soaker is crisscrossed with polygons identical in appearance to desiccation features on Earth. The team took a close physical and chemical look at those polygons using Curiosity’s Mastcam, Mars Hand Lens Imager, ChemCam Laser Induced Breakdown Spectrometer (LIBS), and Alpha-Particle X-Ray Spectrometer (APXS).

[…]

The Geological Society of America

1814-oldsoaker-sm

“Old Soaker: Mastcam image of the Old Soaker rock slab taken on Sol 1555. The red-toned bed is covered by ridges that are the remnants of sediment that filled cracks that formed in drying lake in Gale Crater some ~3.5 billion years ago. The slab is about 80 cm across.”  GSA

Mudcracks are very interesting for two reasons.  They indicate that:

  1. Water was present in the past.
  2. Mud was present in the past.

The mud is actually more interesting than the water.

Early land plants led to the rise of mud

Mud rocks increased in riverbeds as rootless plants spread around 458 million years ago

BY CAROLYN GRAMLING, MARCH 1, 2018

Magazine issue: Vol. 193, No. 6, March 31, 2018, p. 9

Early plants made Earth muddier. Ancient riverbed deposits of mud rock — rocks containing bits of clay and silt smaller than grains of sand — began increasing around 458 million years ago, around the time that rootless plants became common across Earth, researchers say.

Anecdotally, geologists have long noted that early sediment deposits became muddier at some point, and suggested a connection with plants (SN: 6/22/74, p. 398). But no one had ever pinpointed when that muddening happened.

So geologists William McMahon and Neil Davies, both of the University of Cambridge, decided to look for when amounts of mud rock began increasing in 704 ancient river deposits from 3.5 billion to 300 million years ago. The researchers searched through nearly 1,200 published papers for data on mud rock in river deposits, and collected new field data at 125 ancient river outcrops. At those outcrops, the researchers calculated the percent of mud rock in the overall deposit by measuring the thickness of the muddy layers compared with the thickness of layers containing larger grains such as sand.

The resulting fractions showed the median mud content was about 1 percent before around 458 million years ago. At that point, the mud content steadily increased over about the next 100 million years or so to reach a median of about 26 percent in outcrops dated 359 million to 299 million years old, McMahon and Davies report in the March 2 Science.

That steady upsurge suggests that neither cyclical nor episodic forces — such as glacial-interglacial changes or tectonic events — could have driven the increase in muddiness. Instead, plants are the likeliest culprit. A primitive group of rootless plants called bryophytes, which includes modern mosses and liverworts, had likely become common by about 458 million years ago. Rooted plants further increased the mud content when they arose and began to spread around 430 million years ago, eventually forming great forests about 382 million years ago.

 […]

Update – From the actual paper

The article isn’t exactly right, the correlation is of the appearances of mudrocks and deeply-rooted plants.

Evolution of alluvial mudrock forced by early land plants



William J. McMahon,

Neil S. Davies*

Science  02 Mar 2018:

Vol. 359, Issue 6379, pp. 1022-1024

DOI: 10.1126/science.aan4660

Mudrocks get a vegetative assist

Mudrocks such as slate and shale are rarely found in stratigraphy older than about 500 million years. McMahon and Davies compiled a large database of mudrock occurrence over the past 3.5 billion years to help assess the origin of this ubiquitous rock type (see the Perspective by Fischer). Mudrocks appeared at the same time as did deep-rooted land plants. The interplay between plants and sedimentary rocks suggests that a change in erosion rate and the chemistry of sediments delivered to the oceans occurred around 500 million years ago.

[…]

However, land plants do promote the production of clay minerals and the depth of chemical weathering profiles by increasing atmosphere-substrate connectivity through rooting, through the direct secretion of organic acids and chelates, and by developing symbiotic relationships that increase the capacity of cyanobacteria and fungi to dissolve soil grains (2, 18, 21–26).

[…]

The timing relative to the appearance of plants is unlikely to be a coincidence, as plants can greatly contribute to the development and retention of alluvial mudrocks.

[…]

A fuller understanding of mudrock in the absence of vegetation is a prerequisite for any studies that invoke ancient terrestrial mudrock strata as a primary archive of geochemical or petrological data and will have implications for understanding the context and nature of mudrocks that are increasingly detected on nonvegetated planets such as Mars (8, 37).

Science



The primary building block of mudrocks are clay minerals and Mars has an abundance of clay minerals, much more abundant than expected.

Clay Minerals on Martian Surface Are More Abundant Than Expected

By Sarah Miller Dec 21, 2012

Clay minerals are found to be more abundant on the Martian surface than previously thought, according to a new study co-authored by the Georgia Institute of Technology.

Clay minerals are rocks that are formed when water is present for long periods of time. The presence of clay minerals on Mars was first discovered in 2005, indicating that the planet once hosted liquid water on the surface.

Now, a team of researchers has found that the planet is hosting more clay minerals than expected. The research team has detected the presence of clay in some of the rocks studied by Opportunity Rover when it landed at Eagle crater in 2004. But the rover detected only acidic sulfates in the rocks and since then moved to Endeavour Crater, a place NASA’s Mars Reconnaissance Orbiter pinpointed for clay minerals.

Using spectroscopic analysis from the Mars Reconnaissance Orbiter, the research team was able to identify the clay minerals at Eagle crater. They also found that clays also exist in the Meridiani plains, through which the rover trekked towards its current position.

“It’s not a surprise that Opportunity didn’t find clays while exploring,” James Wray, a faculty member at the Georgia Institute of Technology and a member of Curiosity’s science team, said in a statement.

We didn’t know they existed on Mars until after the rover arrived. Opportunity doesn’t have the same tools that have proven so effective for detecting clays from orbit.”

[…]

Nature News

Prior to the Mars Reconnaissance Orbiter’s discovery of clay minerals, they weren’t even looking for them.  The Opportunity Rover wasn’t equipped to identify clay minerals.

While this doesn’t necessarily mean that plant life once existed on Mars, it does elevate the probability a bit.  And, ironically, the mudrocks are actually the best places to look for evidence of past life on Mars.  Now if we can just find those rascally Silurians.

Advertisements

  Subscribe
newest oldest most voted
Notify of
MarkW

Could it be the Silurians who are hiding in the deep oceans?

Tom in Florida

Perhaps they have disguised themselves as missing heat.

Bryan A

Now stop being Ursillians

Bryan A

Here are some Close-ups from ChemCamcomment imagecomment image
And a slightly larger Color viewcomment image

DonM

Bryan,
those photos clearly show cross-fencing. The obvious deduction is a competing agrarian community of very tiny Martians. Based on the photos, anthropologists are now able to formalize their opinions about the religious culture of this specific tiny Martian community.

Latitude

…little bitty rice paddies

MarkW

Those surfaces look like reptilian skin to me.
I think we have found the Silurians.

Rootless plants on Mars…..I ask you, how silly can you get?
These mud cracks have nothing to do with plants, the cracks are filled either by silica (quartz) or by calcite! Inorganic substances! What’s the problem???

Chimp

MarkW April 20, 2018 at 8:05 pm
By George, I think you’ve got it!
Forget about plants. The surface of Mars is coated in reptilian skin!

“These mud cracks have nothing to do with plants, the cracks are filled either by silica (quartz) or by calcite! Inorganic substances!”
Yes but they may have something to do with marine organisms.
Calcite is the primary constituent of the shells of marine organisms, e.g., plankton (such as coccoliths and planktic foraminifera), the hard parts of red algae, some sponges, brachiopods, echinoderms, some serpulids, most bryozoa, and parts of the shells of some bivalves (such as oysters and rudists)
And why is calcite inorganic? It’s a carbonate mineral. Isn’t organic carbon-based?

Duster

Dr. Strangelove, I think if you dig into the history of it, the “organic” designation has more to do with the early petroleum industry than with geochemistry or biochemistry. At least that is what I recall from my classes, but that was a long time ago and the professor was a crypto-abiogenic booster.

ShrNfr

Yes, this article does muddy the waters a tad, doesn’t it??

HotScot

David
“Clay Minerals on Martian Surface Are More Abundant Than Expected”
Funny that, I guess humanity doesn’t know, what it doesn’t know.
Imagine that!

Tom in Florida

“We didn’t know they existed on Mars until after the rover arrived. Opportunity doesn’t have the same tools that have proven so effective for detecting clays from orbit.”
Robots, computers and models can only do what we program them to do so of course Opportunity didn’t have the correct tools, they didn’t know it needed them. What else don’t they program due to lack of knowledge?

Richard

Couldn’t somebody have done some climate modelling to find out? Even Mars is a globe, and so deserves deserves to be warmed, silurogenically. I mean, climate changed, silurogenicslly. My bad!

J Mac

Every farm kid who has squished mud between his toes, in a muddy low spot with drying mud around it, will recognize that image immediately.
Mars is showing itself to be/have been more like Earth than most supposed.

DonK31

In my admittedly ancient experience, these squares are the drying skin over a low spot that has not yet completed drying. As with a sponge, if you add water to ground it expands. As it drys it shrinks. The top drys first; leaving square and desiccating pieces of future dust.
If there is no rain for another week or so and if farm equipment continually rolls over the dried dirt it turns to dust. The dust can be so fine that walking through it barefoot is like walking through talc.
If these squares occur on Mars the ground has not completed drying.

Chimp

There is a lot of water ice under the thin surface of Mars. In briny solution, it can even now and then briefly turn liquid.
https://www.space.com/17048-water-on-mars.html

Duster

Your experience is pretty accurate, but … if the skin dries hard, and then the skin is either abruptly flooded with a dose of really muddy water, or is buried under aolian dust, then the skin surface can be preserved as it appeared when exposed, the same way fossil tracks are preserved. The integrity of the skin depends on clay content. With little clay, the surface wil tend to crumble or erode easily. but we make ceramics out of clay for a reason. So, if your puddle were in clayey soil, or outright clay, it can be very stable. In the Bet Netopa valley in Israel we measured “cracks” like that which were more than 10 meters deep. They were also wide enough to lose a dog, a cat, or a small child.

beng135

Don’t worry, muddy waters says everything gonna be alright:
https://youtu.be/w5IOou6qN1o?list=PL13B605BD15775187

Bryan A


Bob Marley says so too

Philip

Maybe I am just being a bit dumb today, but someone needs to explain to me how rootless plants increase mud. There is no explanation, it is just stated — appears out of thin air.

Chimp

But the researchers wondered why the plants might have caused more mud rock to develop. They suggest such plants could have tempered the impact of wind and rain against rocks. They also think it was possible that they secreted organic acids that caused changes in soil chemistry. There is even a chance, they note, that they caused changes in landscape—altering the paths of rivers and streams, for example, by adding a stabilizing factor to riverbanks.
Read more at: https://phys.org/news/2018-03-ancient-rootless-linked-production-mud.html#jCp

Keith J

Symbiotic organisms secrete demineralizing chemicals which break rocks to minerals to release or make available elements needed for life. Take for example feldspar which contains potassium, microrhyzia or plant symbiots, have enzymes to cleave this mineral.
Mud is clay and clays serve as ion traps. Releasing these ions takes energy which of course organism derives benefit.
Life finds a way.

Duster

Mud is charateristically more than just clay and usually includes silt and fine sand; some may even lack clay
(https://en.wikipedia.org/wiki/Mudstone). The “mudrock” rubric includes rock of various textures from claystone, through mudtsone to siltstone and shale.

Chimp

It was still the Ordovician 458 Ma, so the Silurians would have to wait.

Chimp

I can’t access the full text, so can’t see their evidence for a steady, rather than stepwise, increase in muddiness. If it really is steady, without a signal from the Ordovician and Carboniferous-Permian ice ages, then they might have a case attributing the trend to rootless and rooted plants.
But, as the incidence of plants would have fallen during the ice ages, I’m not yet totally convinced. Maybe an increase in dustiness cancelled out whatever negative effect glaciations had on plant life.

Chimp

I should say solely to plants.

Chimp

I saw that, but regrettably have let my membership lapse.

Chimp

David,

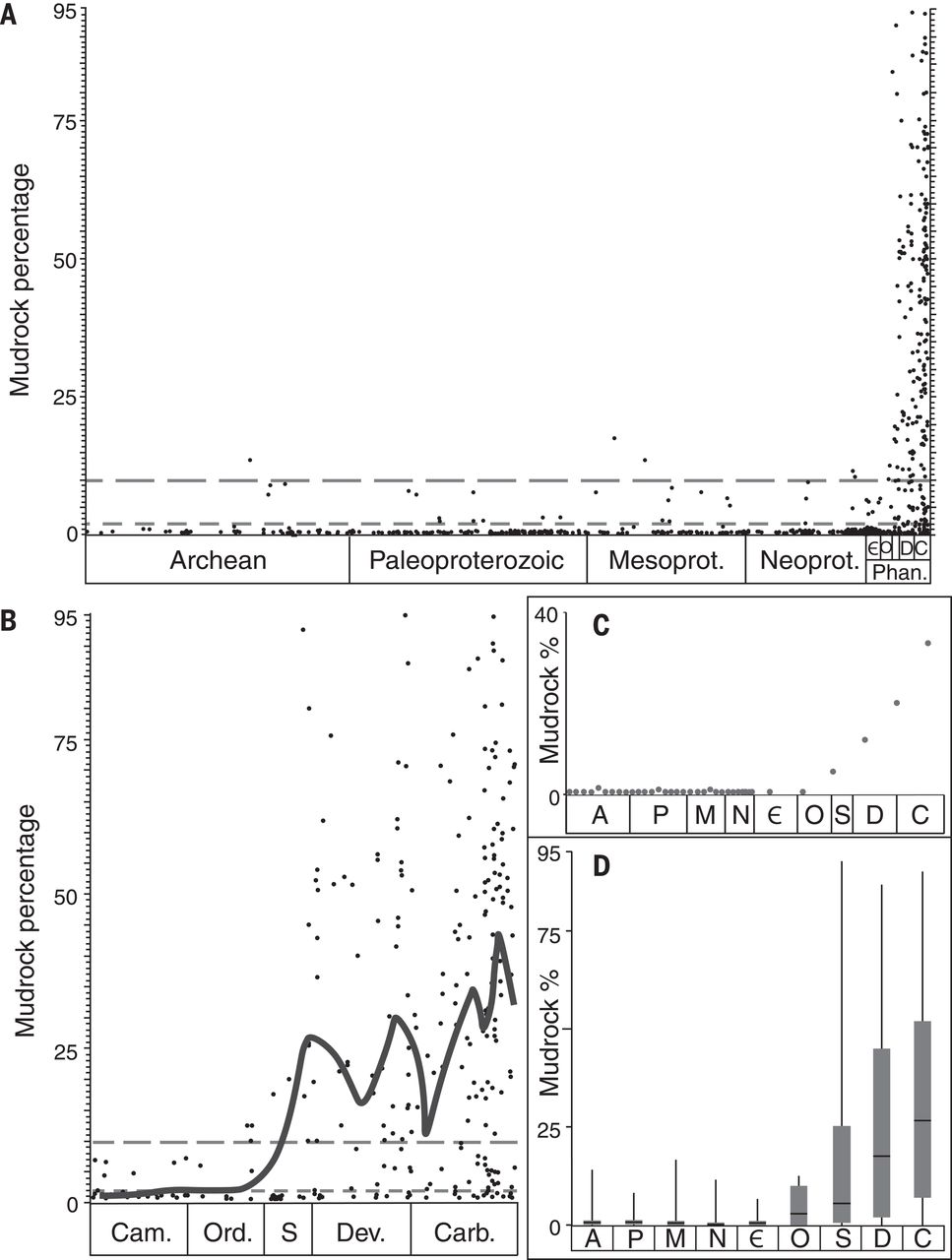

Could you post their graph of muddiness over time here?
