The planet cools as El Niño disappears

UAH Global Temperature Update for May, 2016: +0.55 deg. C

June 1st, 2016 by Roy W. Spencer, Ph. D.

NOTE: This is the fourteenth monthly update with our new Version 6.0 dataset. Differences versus the old Version 5.6 dataset are discussed here. Note we are now at “beta5” for Version 6, and the paper describing the methodology is still in peer review.

The Version 6.0 global average lower tropospheric temperature (LT) anomaly for May, 2016 is +0.55 deg. C, down 0.16 deg. C from the April value of +0.71 deg. C (click for full size version):

UAH_LT_1979_thru_May_2016_v6

The global, hemispheric, and tropical LT anomalies from the 30-year (1981-2010) average for the last 17 months are:

YEAR MO GLOBE NHEM. SHEM. TROPICS

2015 01 +0.30 +0.44 +0.15 +0.13

2015 02 +0.19 +0.34 +0.04 -0.07

2015 03 +0.18 +0.28 +0.07 +0.04

2015 04 +0.09 +0.19 -0.01 +0.08

2015 05 +0.27 +0.34 +0.20 +0.27

2015 06 +0.31 +0.38 +0.25 +0.46

2015 07 +0.16 +0.29 +0.03 +0.48

2015 08 +0.25 +0.20 +0.30 +0.53

2015 09 +0.23 +0.30 +0.16 +0.55

2015 10 +0.41 +0.63 +0.20 +0.53

2015 11 +0.33 +0.44 +0.22 +0.52

2015 12 +0.45 +0.53 +0.37 +0.61

2016 01 +0.54 +0.69 +0.39 +0.84

2016 02 +0.83 +1.17 +0.50 +0.99

2016 03 +0.73 +0.94 +0.52 +1.09

2016 04 +0.71 +0.85 +0.58 +0.94

2016 05 +0.55 +0.65 +0.44 +0.72

Cooling from the weakening El Nino is now rapidly occurring as we transition toward likely La Nina conditions by mid-summer or early fall.

The “official” UAH global image for May, 2016 should be available in the next several days here.

The new Version 6 files (use the ones labeled “beta5”) should be updated soon, and are located here:

Lower Troposphere:http://vortex.nsstc.uah.edu/data/msu/v6.0beta/tlt/uahncdc_lt_6.0beta5.txt

Mid-Troposphere:http://vortex.nsstc.uah.edu/data/msu/v6.0beta/tmt/uahncdc_mt_6.0beta5.txt

Tropopause:http://vortex.nsstc.uah.edu/data/msu/v6.0beta/ttp/uahncdc_tp_6.0beta5.txt

Lower Stratosphere:http://vortex.nsstc.uah.edu/data/msu/v6.0beta/tls/uahncdc_ls_6.0beta5.txt

Advertisements

  Subscribe
newest oldest most voted
Notify of
george e. smith

Does the Dewey Decimal system work for Anomaly works of “Climature”.
Happy that el nino is off to bed.
G

Dinsdale

More proof that the “warmest evah” is just natural variation and can’t be the fault of man.

BFL

Ah but the NOAA is predicting higher than normal temperatures this summer for most of the U.S. & Alaska. Ignoring approaching La Nina??
https://www.climate.gov/news-features/featured-images/noaa-2016-summer-outlook-where-are-highest-chances-hot-summer-us

TA

Well, I would love to see the middle of the U.S. being cooler than either coast throughout the summer, but I’m skeptical. Normally, the central U.S. is the hottest part of the nation in summer.
I could see that happening if they were just talking about a few weeks, but this is a prediction for the entire summer. Like I say, I hope it happens. If it does, it will be unusual.

jorgekafkazar

Wishful thinking.

Gabro

TA,
Correct me if wrong, but IMO the SW is the hottest region. Humidity in the central region might make the heat feel worse, however.
Record highs by state above 120 degrees F:
SW: 127.25 F. Ave.
CA 134 at -178 feet elevation
AZ 128 at 505 feet
NV 125 at 605 feet
NM 122 at 3418 feet
South Central: 120.00 Ave.
TX 120 at 2660 feet
OK 120 at 1350 feet
AR 120 at 396 feet
North Central: 120.67 Ave.
ND 121 at 1857 feet
KS 121 at 1651 feet
SD 120 at 1750 feet
I guess that TX and OK could be considered as southwestern rather than south central states. But the TX high was recorded at Monahans, in the far SW of the state. And even without Death Valley, the SW would “win”.

TA

Gabro June 2, 2016 at 12:10 pm wrote: “TA, Correct me if wrong, but IMO the SW is the hottest region. Humidity in the central region might make the heat feel worse, however.”
Yes, you are correct, Gabro, the desert regions are hotter. That 134 temp in CA was in Death Valley I assume.
My comment was more related to the West coast and East coast versus the central U.S., not the desert regions.
Normally, around this time of year, a high pressure system will set up over the central U.S. and will just sit there and things get hotter and hotter under it as long as it stays in place.
Usually, both coasts are cooler than the central U.S. because they are near the oceans, and outside the high pressure system.
On occasion, the center of the high pressure system will not be located in the central U.S. but wil be offset to one coast or the other, which makes the coast hotter than the central U.S., because the center of the high is located there, and normally the eastern edge of the high (if the center is offset to the west) will be located over the central U.S., which brings storm fronts through the central U.S. as the jetstream arcs up over the high and then south.
That seems to be what they are describing in the NOAA forecast. I have seen this type of setup before, but usually the high pressure system will drift this way rather than sitting still out west for very long. I look forward to a cooler summer! 🙂
In the past, California had a drought that lasted for about 200 years. A high pressure system sitting on top of California, like the one predicted for this summer, would certainly cause a drought if it sat there long enough. My question would be: Is there some kind of circumstance where a high pressure system would sit over Calfornia for 200 years? Would that be necessary to cause a 200-year drought or could some other factor be the cause?
I don’t think this tornado season is going to amount to much. We haven’t had very many tornadoes and the ones we have had have mostly been lower power tornadoes. And now the season is about over. Although if the jetstream can manage to bring storm fronts into the central U.S. we might generate a few tornadoes, even later this year.
When the high pressure system is sitting on top of us, no storm fronts, or very few, can pentrate the high, so that’s the end of the tornado season usually, for us.
It’s been a real cool spring. We are going to hit our first 90 degree temperature later this week. We’ll see how it goes from there.

Dinsdale: More proof that the “warmest evah” is just natural variation and can’t be the fault of man.
That is not so. All it shows is that if there is persistent warming caused by accumulating CO2, there is also natural variability so that the “persistent warming” is not strictly monotonic. The dynamics are too complicated, and there is too much known to be unknown, for much more of an inference than that.

Timo Soren

Wow @matthewrmarler the dropoff in UAH temps ‘shows there is persistent warming caused by….” amazing deduction from a single graph.
The dropoff in UAH show how powerful the internal variation is and how WEAK your god-C02 is.

Timo Soren,

The dropoff in UAH show how powerful the internal variation is and how WEAK your god-C02 is.

It’s not often that I agree with Matthew (and here I only partially agree with him), but you might want to check your fire: he’s no warmist.
matthewrmarler,

The dynamics are too complicated, and there is too much known to be unknown, for much more of an inference than that.

The question is one of magnitude, not one of inferring that there’s an effect — laboratory experimentation and well-established physcial theory get us that much. ~3 K/2xCO2 is the value upon which different lines of evidence converge according to Knutti and Hegerl (2008), with the lower end of the lower end of the range (2 K/2xCO2) being better constrained and the upper bound of 4.5 K/2xCO2 being fuzzier and higher values being difficult to rule out.

brandon, would I be correct if I told my children that there is actually no empirical evidence that humans cause any warming – that it is assumed, based on the knowledge of physics and chemistry that we have, and of a lack of cause by any other factor? Would that be an accurate description? Thanks.

jorgekafkazar

“The dynamics are too complicated.” So the science isn’t “settled?” That would explain why the climate models totally fail to predict temperatures. But what proof do you have that recent warming (or the lack thereof) isn’t completely due to natural variability?

jorgekafkazar

Timo. He did say “IF.”

timo soren, ‘shows there is persistent warming caused by….”
since you truncated what I wrote, I shall repeat it: if there is persistent warming caused by accumulating CO2, there is also natural variability so that the “persistent warming” is not strictly monotonic.
the conditional is clearly stated.

brandonrgates: ~3 K/2xCO2 is the value upon which different lines of evidence converge according to Knutti and Hegerl (2008), with the lower end of the lower end of the range (2 K/2xCO2) being better constrained and the upper bound of 4.5 K/2xCO2 being fuzzier
The theories all rely on untested assumptions. For here, let me just note that the theories make different predictions for different altitudes, and to date they “run hot” at each altitude.. At the surface, the main theories ignore the non-radiative cooling of the earth surface, hence over-estimate the surface warming.
All of the energy transport processes within the climate system are poorly quantified.

I may lose my tomatoes but I planted more than usual of beets and you should do also.
[OK? .mod]

Persistent warming caused by co2 ? And your proof is models from 2002? Increased co2 man made or natural, I haven’t been convinced. There are no negative numbers, the sinks should be smaller not gigantic larger, and the rate of co2 production does not match the rate of increase in ppm/v per year. Slight warming? I’ll go along with the late 1990’s being warmer. Do I know that for sure, no. Correlation is not causation.
How did the IPCC get all the numbers to match in 2001 when the TSI was wrong? Don’t believe me, do the math. The correct TSI drops the temperature 2 to 3 C. Let’s go with 2 C the lower number. Still a huge difference. How do you explain that? That’s all the warming predicted till 2100. Even the small differences in TSI which show up in solar cycles is enough to wipe out the predicted warming.
By the way, even the current models which are lower , are still higher than the observed increases in temperature.

bazzer1959,

brandon, would I be correct if I told my children that there is actually no empirical evidence that humans cause any warming – that it is assumed, based on the knowledge of physics and chemistry that we have, and of a lack of cause by any other factor? Would that be an accurate description?

No, that would not be an accurate description.
matthewrmarler,

The theories all rely on untested assumptions.

That statement relies on fantasy. Start with Harvard’s HITRAN database.

For here, let me just note that the theories make different predictions for different altitudes, and to date they “run hot” at each altitude..

And latitudes. But no, not all models run hot at the surface:
http://1.bp.blogspot.com/-ZY_oL2cq4r4/VQiX3rRH2aI/AAAAAAAAAYo/0VNOKoRIQJw/s1600/CMIP5%2Bvs%2BHADCRUT4%2Btrend%2B1860-2014%2B01.png

At the surface, the main theories ignore the non-radiative cooling of the earth surface, hence over-estimate the surface warming.

Sorry, no, non-radiative cooling at the surface is anything but ignored by the “main theories”:comment image
Net LW loss from the surface is given as 63 W/m^2, compared to 97 W/m^2 for net sensible and latent heat transfers to the atmosphere carried away from the surface by convection. Seriously, think about what you are arguing. *IF* teh modulz “ignored” on the order of 100 W/m^2 of net flux away from the surface, they’d *really* be running damn hot.

All of the energy transport processes within the climate system are poorly quantified.

lol. You just got done confidently declaring that teh modulz overestimate warming because they ignore non-radiative cooling. Now all of a sudden energy transport processes are poorly quantified. Which is it?
Oh never mind, whatever, fine; let’s assume that uncertainty means no problem. The best way to be certain there is a problem is for a problem to be made manifest. I agree, that is a perfectly valid scientific protocol.

Brandon Gates
A premise to the argument of Knutti and Hegerel is that the equilibrium climate sensitivity is a constant but this premise is not necessarily true. Thus there is no logical reason for belief in the proposition that the conclusion of this argument is true.

Don Clifford

La Nina or the ENSO is cycling cold, just as the AMO and PDO are cycling cold, and solar activity is heading toward a multi-century nadir. these are predictable natural cycles the produce natural variability. If indeed these all crater at around the same time, a mini ice age is very real possibility.

Looks like El Niño as the main effect. If some of the people claiming El NIño is regulated by lunar tide precession could do a formal post, it would be nice.

Again, cooling in the presence of increased C02.
Andrew

bit chilly

it’s warm cooling though 🙂

Ian

It’s much worse than “warm cooling”.

Bindidon

Bad Andrew
You can’t establish any relation between temperature anomalies and CO2 atmospheric concentration increase over such a short term. That’s a matter you need a century for I guess…
Please download the CO2 data since 1880 into e.g. Excel, build the logarithm of that, and compare it with some surface temperature datasets (GISS, NOAA, HadCRUT4).

afonzarelli

Bindi, i find it some what disturbing these days that so many of y’all are taking this CO2 warming thing back 150 years when the ipcc is only making a claim for the last 50 years. (and perhaps as little as just half of recent warming or less when one considers natural warming and other sources of anthro warming besides CO2) This seems to be rather new to me and i have been watching for this as i’ve always assumed that one day y’all would eventually go there. You may not exactly be drinking the kool aid, but your getting a little too close to the vat…

Bindidon

afonzarelli on June 1, 2016 at 4:43 pm
To be honest, afo: I’m not at all a CO2 warmism fan. I sometimes simply react on really meaningless short term relations.
The same obviously applies for the relation between CO2 emissions and its atmospheric concentration: it varies all the time, depending on how much CO2 is stored in / released off the oceans.

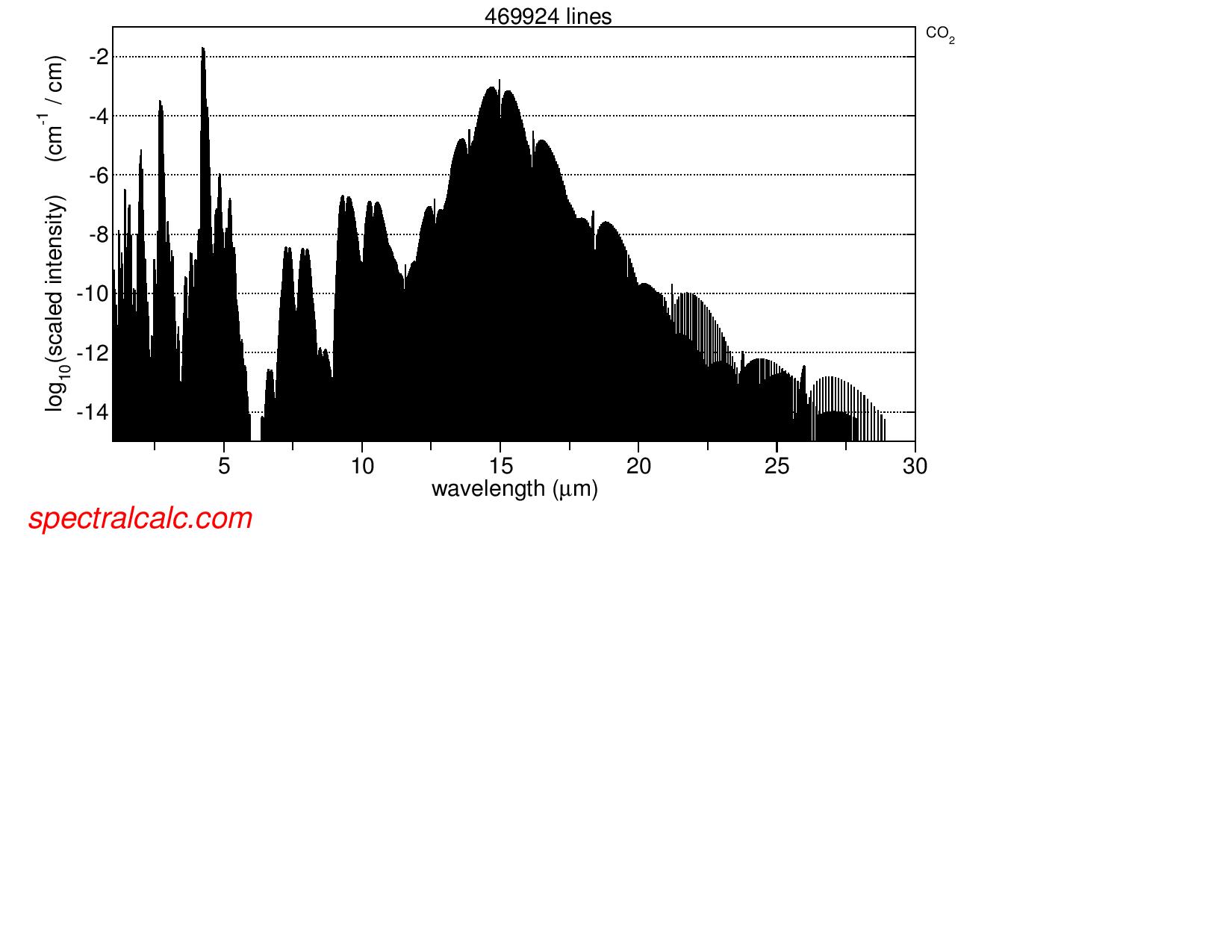

What imho is more interesting: to have a look at spectralcalc.com, and to plot there CO2’s absorption/emission power in the IR range (4-40µ).
