CERN’s CLOUD experiment results suggests industrial revolution reduced cloud cover, cosmic rays have an impact too

From CERN

Our planet’s pre-industrial climate may have been cloudier than presently thought, shows CERN’s CLOUD experiment in two papers published in Nature.

CERN experiment points to a cloudier pre-industrial climate

In two papers1,2 published today in the journal Nature, new results from the CLOUD3experiment at CERN4 imply the baseline pristine pre-industrial climate may have been cloudier than presently thought. CLOUD shows that organic vapours emitted by trees produce abundant aerosol particles in the atmosphere in the absence of sulphuric acid. Previously it was thought that sulphuric acid – which largely arises from fossil fuels – was essential to initiate aerosol particle formation. CLOUD finds that these so-called biogenic vapours are also key to the growth of the newly-formed particles up to sizes where they can seed clouds.

“These results are the most important so far by the CLOUD experiment at CERN,” said CLOUD spokesperson, Jasper Kirkby. “When the nucleation and growth of pure biogenic aerosol particles is included in climate models, it should sharpen our understanding of the impact of human activities on clouds and climate.”

The Intergovernmental Panel on Climate Change (IPCC) considers that the increase in aerosols and clouds since pre-industrial times represents one of the largest sources of uncertainty in climate change5. CLOUD is designed to understand how new aerosol particles form and grow in the atmosphere, and their effect on clouds and climate.

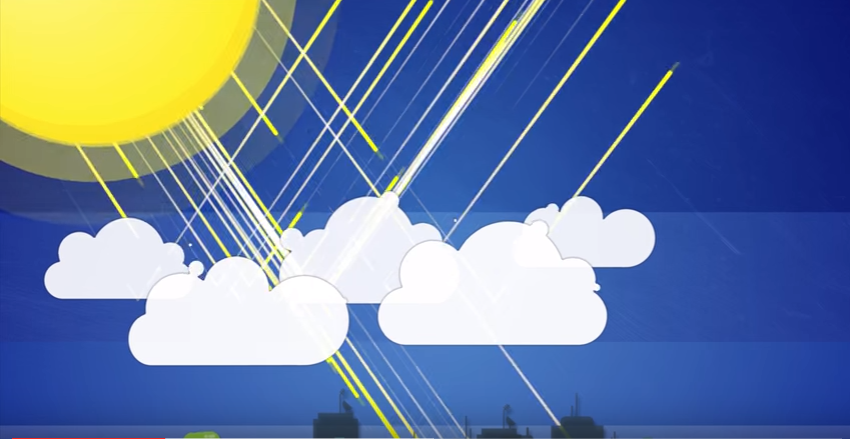

CLOUD also finds that ions from galactic cosmic rays strongly enhance the production rate of pure biogenic particles – by a factor 10-100 compared with particles without ions. This suggests that cosmic rays may have played a more important role in aerosol and cloud formation in pre-industrial times than in today’s polluted atmosphere.

A paper published simultaneously in Science (Bianchi, F., et al. Science, doi 10.1126/ science.aad5456(link is external), 2016) describes an observation of pure organic nucleation at the Jungfraujoch observatory by the same mechanism reported by CLOUD. The measurements did not involve CLOUD directly but most of the authors are also members of the CLOUD collaboration.

“The observation of pure organic nucleation at the Jungfraujoch is very satisfying,” said Kirkby. “It confirms that the same process discovered by CLOUD in the laboratory also takes place in the atmosphere.”


Footnote(s)

1. Kirkby, J., et al. Ion-induced nucleation of pure biogenic particles. Nature, doi 10.1038/nature 17953(link is external) (2016).

2. Tröstl, J., et al. The role of low-volatility organic compounds in initial particle growth in the atmosphere. Nature, doi 10.1038/nature18271(link is external) (2016).

3. The CLOUD experiment consists of a large instrumented chamber in which the atmosphere can be precisely simulated, and the formation and growth of aerosol particles and the clouds they seed can be studied under precisely controled atmospheric conditions. Unwanted contaminants can be suppressed well below the part-per-trillion level. The CLOUD experiment uses a beam from CERN’s Proton Synchrotron to simulate cosmic rays – particles bombarding the atmosphere from space.

The experimental collaboration comprises 21 institutes: Aerodyne Research, California Institute of Technology, Carnegie Mellon University, CERN, Finnish Meteorological Institute, Goethe University Frankfurt, Helsinki Institute of Physics, Karlsruhe Institute of Technology, Lebedev Physical Institute, Leibniz Institute for Tropospheric Research, Paul Scherrer Institute, Stockholm University, Tofwerk, University of Beira Interior, University of Eastern Finland, University of Helsinki, University of Innsbruck, University of Leeds, University of Lisbon, University of Manchester, and University of Vienna.

4. CERN, the European Organization for Nuclear Research, is the world’s leading laboratory for particle physics. Its headquarters are in Geneva. Its Member States are: Austria, Belgium, Bulgaria, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Israel, Italy, Netherlands, Norway, Poland, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom. Romania is a Candidate for Accession. Cyprus and Serbia are Associate Member States in the pre-stage to Membership. Pakistan and Turkey are Associate Member States. European Union, India, Japan, JINR, Russian Federation, UNESCO and United States of America have Observer status.

5. Boucher, O. et al. in Climate Change 2013: The Physical Science Basis. Working Group I Contribution to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change (eds. Stocker, T.F. et al.) 571–658 (Cambridge Univ. Press, 2013).


Supporting information to press briefing on Nature publications by the CLOUD collaboration:

Kirkby, J. et al. Ion-induced nucleation of pure biogenic particles. Nature, doi 10.1038/nature17953 (2016).
Tröstl, J. et al. The role of low-volatility organic compounds in initial particle growth in the atmosphere. Nature, doi 10.1038/nature18271 (2016).

The background to the CERN CLOUD experiment. CLOUD is studying how new aerosol particles form or “nucleate” in the atmosphere and grow to sizes where they modify clouds and climate. Using a particle beam from the CERN Proton Synchrotron, CLOUD is also investigating whether these processes are affected by ionisation from galactic cosmic rays. Atmospheric aerosol particles cool the climate by reflecting sunlight and by forming more numerous but smaller cloud droplets, which makes clouds brighter and extends their lifetimes. Cooling due to increased aerosol particles from human activities has offset part of the warming caused by increased greenhouse gases. To determine the amount of cooling requires knowledge of the aerosol state of the pre-industrial atmosphere. Unfortunately we cannot directly measure this since there are almost no regions of today’s atmosphere that are perfectly free of pollution. So the pre-industrial atmosphere must be simulated with climate models based on sound measurements of the underlying microphysical processes obtained by laboratory experiments. CLOUD brings together fundamental experiments with climate modeling in a single international collaborative effort.

What has CLOUD studied? CLOUD has studied the formation of new atmospheric particles in a specially designed chamber under extremely well controlled laboratory conditions of temperature, humidity and concentrations of nucleating and condensing vapours. In the present experiments we measured the formation and growth of particles purely from organic vapours emitted by trees (so-called biogenic vapours). The particular vapour studied was alpha- pinene, which gives pine forests their characteristic pleasant smell. Alpha-pinene is rapidly oxidised on exposure to ozone, creating vapours with extremely low volatilities but only tiny concentrations of around one molecule per trillion (1012) air molecules.

What’s special about the CLOUD experiment? Using CERN know-how, the CLOUD chamber has achieved much lower concentrations of contaminants than all previous experiments, allowing us to measure particle nucleation and growth from biogenic vapours in the complete absence of contaminant vapours such as sulphuric acid. The collaboration has developed state-of-the-art instruments to measure the vapours, ions and aerosol particles at ultra low concentrations in the air sampled from the CLOUD chamber. We measure how these vapours and ions form molecular clusters and which vapours control the subsequent particle growth. A special feature of CLOUD is its capability to measure nucleation enhanced by cosmic-ray ionisation generated by a CERN pion beam – or with all the effects of ionisation completely suppressed by an internal electric field.

What has CLOUD discovered? CLOUD has found that oxidised biogenic vapours produce abundant particles in the atmosphere in the absence of sulphuric acid. Previously it was thought that sulphuric acid – which largely arises from sulphur dioxide emitted by fossil fuels – was essential to initiate particle formation. We found that ions from galactic cosmic rays strongly enhance the production rate of pure biogenic particles – by a factor 10-100 compared with particles without ions, when concentrations are low. We also show that oxidised biogenic vapours dominate particle growth in unpolluted environments, starting just after the first few molecules have stuck together and continuing all the way up to sizes above 50-100 nm where the particles can seed cloud droplets. The growth rate accelerates as the particles increase in size, as progressively higher-volatility biogenic vapours are able to participate. We quantitatively explain this with a model of organic condensation.

Why is it important for our understanding of climate? Ion-induced nucleation of pure biogenic particles may have important consequences for pristine climates since it provides a hitherto-unknown mechanism by which nature produces particles without pollution. And, once embryonic particles have formed, related but more abundant oxidised biogenic vapours cause the particle growth to accelerate. Rapid growth of the new particles while they are still small and highly mobile implies a larger fraction will avoid coagulation with pre-existing larger particles and eventually reach sizes where they can seed cloud droplets and influence climate. Pure biogenic nucleation and growth may raise the baseline aerosol state of the pristine pre-industrial atmosphere and so may reduce the estimated anthropogenic radiative forcing from increased aerosol-cloud albedo over the industrial period. Ion- induced pure biogenic nucleation may also shed new light on the long-standing question of a physical mechanism for solar-climate variability in the pristine pre-industrial climate.

A paper published simultaneously in Science (Bianchi, F. et al. Science, doi 10.1126/science.aad5456, 2016) reports observations made at the Jungfraujoch of pure organic nucleation in the free troposphere, confirming the relevance of the CLOUD measurements to the atmosphere.
