By Javier Vinós
The Earth’s oceans contain a vast mass of cold water beneath a thin layer of warm water, and the limited amount of mixing between them plays a crucial role in our existence. Tides, primarily influenced by changes in the moon’s orbit, are the main force behind this mixing, which has the potential to cool the climate. Keeling, who pioneered CO2 measurements, believed this theory and predicted a cooling trend for the next decade. The impact of the 18.6-year lunar cycle on climate has been known for some time, but more recent research has revealed its influence on the El Niño Southern Oscillation (ENSO). In 2007, two Canadian scientists studying the effects of this cycle on the Pacific coast of North America successfully predicted the occurrence of a major El Niño event in 2015 based on lunar orbital data. Remarkably, their prediction proved accurate.
The potential uniqueness of the Earth-Moon system
When astrophysicists discuss the abundance of potentially habitable planets around Sun-like stars, they often overlook a crucial fact: Earth’s formation was probably an incredibly rare event. About 4.5 billion years ago, our planet was born from a chance collision between early Earth and a Mars-sized planet. This serendipitous event explains two extraordinary features of Earth that may be exceptionally rare among other Earth-like planets. The first remarkable feature is Earth’s large metallic core, which generates a strong magnetic field despite the planet’s size. This magnetic field plays an important role in protecting our atmosphere from the solar wind, preventing the loss of light gases. The second unusual aspect of Earth is that it has an unusually large satellite for its size. Normally, the mass ratio between a planet and its satellite is about 1:10,000. However, the Earth-Moon system has a mass ratio of only 1:81, so close that it is sometimes referred to as a double planet.
The presence of such a large satellite exerts a powerful influence on Earth. It may have been essential to the presence and maintenance of complex life over time. The gravitational pull of the Moon stabilizes the tilt of the Earth’s axis. A change in the axial tilt of the Earth of as little as 2.4° can lead to a glaciation. Thus, without the Moon, Earth’s climate may have been too unstable for complex life to evolve.
The main effect the Moon has on Earth is through its gravitational pull. This pull significantly affects Earth’s climate through the tides it produces in the ocean, atmosphere, and crust.
Tides’ effect on climate
The Moon’s orbit is tilted by 5° relative to Earth’s orbital plane, also known as the ecliptic (see Figure 1). The points where the Moon’s orbit intersects the ecliptic are called nodes. Eclipses occur only when the Moon is near a node and the line connecting the two nodes is aligned with the Sun. This alignment occurs approximately every six months, creating an eclipse season.
However, the Moon’s orbital plane around the Earth undergoes a gradual precession that causes one of the nodes to complete a full rotation relative to one of the equinoxes (the point where neither lunar pole points toward Earth) over a span of 18.61 years. This phenomenon is called the lunar nodal cycle. As a result of this precession, the 5° tilt of the Moon’s orbit is either added to or subtracted from the Earth’s axial tilt, resulting in a change in the Moon’s declination (its position relative to Earth’s equator). This declination varies from a maximum of 28.5° during a major lunar standstill (see here for a discussion of standstills) to a minimum of 18.5° during a minor lunar standstill, completing a full cycle over the course of 18.61 years. These changes affect Earth’s tidal patterns.
Tides are a complex phenomenon. As a result of the Moon orbiting the Earth in the same direction as the Earth’s axial rotation, it takes 24.84 hours for the Moon to be over the same location, so there is a semidiurnal tide every 12.42 hours. But this is only one of the many constituents of the tides, and it is called M2 (M for Moon and 2 for being semidiurnal). The next constituent in strength is due to the lunar-solar declination. It is diurnal with a period of 23.93 hours, and it is called the K1 constituent. NASA animations of these basic tidal components can be seen here.
Since the strength of this diurnal tidal constituent is directly related to the declination of the Moon over the Earth’s equator, we observe an 18.6-year cycle in the strength of the lunisolar diurnal tide. The semi-diurnal tides are also affected but to a lesser extent. For example, the amplitudes of the largest diurnal and semi-diurnal tidal constituents, K1 and M2, vary by 13% and 5%, respectively, over an 18.6-year cycle.
The lunar nodal cycle influences surface ocean temperatures through vertical mixing, which is influenced by increased or decreased tidal currents depending on the phase of the cycle. Numerous studies analyzing oceanic and atmospheric time series have identified an 18.6-year cycle in sea surface temperature and sea level pressure at various locations in the Pacific and other regions. There is a large body of literature on this topic (Yasuda, 2018).
In the Pacific, two notable low-frequency oscillations affect sea surface temperature and sea level pressure. The first and most widely known is the Pacific Decadal Oscillation (PDO). However, there is also a shorter-period low-frequency oscillation known as the North Pacific Bidecadal Oscillation. This oscillation was first discovered in Alaska in 1998. A year later, in 1999, Shoshiro Minobe established a correlation between the PDO and the Bidecadal Oscillation, showing that both oscillations occur in synchrony.[1]
Figure 2a shows the North Pacific Index (NPI) during winter (December to February). The NPI serves as an indicator of sea level pressure changes in the Aleutian Low, a large region in the North Pacific. It has a strong correlation with the Pacific Decadal Oscillation (PDO). When the PDO reflects colder temperatures, the NPI shows higher pressure patterns and the other way around. The graph shows the NPI and two Gaussian smoothed curves. The thick solid line emphasizes the long-term, multi-decadal variation, while the thick dashed line represents the shorter-term, bidecadal variation.
Figure 2b from Minobe 1999 shows a wavelet analysis of the data. The graph illustrates time on one axis and frequency on another, while the third dimension is represented by the color scale indicates the pressure anomaly measured in hPa. This analysis identifies two prominent oscillations: one occurring every 60 years and another every 20 years. Significant climate shifts that cause sudden changes in the climate and ecology of the Pacific, such as the one in 1976 that triggered global warming, coincide with a simultaneous phase change in both oscillations.
Dave Keeling’s little-known tidal research
The ocean plays a critical role in moderating surface temperature variations on our planet. This fact is evident when comparing the greater seasonal temperature variations observed in continental climates compared to oceanic climates. Our existence depends on the lack of significant mixing between a thin layer of warm water, only a few hundred meters thick, on top of an icy cold ocean with an average temperature below 4°C.[2] Even a small increase in vertical mixing could be catastrophic. It is clear, then, that vertical mixing in the ocean has the potential to be a climatic factor. The only two forces that can influence this vertical mixing are the wind and the Moon, as they contribute the necessary mechanical energy to the ocean. The Moon contributes about 4 TW (terawatts) of energy, while the wind contributes about 2 TW.
Charles David Keeling (1928-2005) was an outstanding scientist. In the late 1950s, he established a meticulous system for accurately measuring the background concentration of CO2 in the atmosphere. Keeling’s dedication quickly led to the discovery that these concentrations were steadily increasing. Despite several attempts to shut down the Mauna Loa station due to budget cuts, he single-handedly ensured its continued operation. Many considered this ongoing effort costly and routine, but Keeling’s persistence prevailed. In recognition of his remarkable scientific achievements, he was awarded the 2002 National Medal of Science, the highest lifetime honor for scientific achievement in the United States. The atmospheric CO2 record at Mauna Loa, known as the “Keeling Curve,” was designated a National Historic Chemical Landmark in 2015.
It is not widely known that Dave Keeling, in his later years of research, focused on the Moon as a means of understanding climate variability on Earth. While he firmly believed that CO2 increases were the cause of global warming, he sought to identify additional factors that could account for previous cooling periods that could not be explained by CO2 changes. Keeling theorized that changes in the Moon’s effect on ocean mixing could affect surface temperatures – a simple and scientifically sound mechanism. The only question remaining was the magnitude of these changes.
Figure 3 is taken from a 1997 article by Keeling.[3] The strongest tides occur under certain circumstances:
(1) during a Sun-Earth-Moon syzygy or linear alignment,
(2) when the Moon is at its closest point to the Earth (perigee),
(3) when the Moon is at one of the nodes of the Earth’s ecliptic, and
(4) when the Earth is closest to the Sun (perihelion).
On average, these conditions coincide about every 1800 years (1682, 1823, or 2045 years ± 18 years). However, harmonics and shorter periodicities occur when only a subset of these conditions are met.
Figure 3 illustrates a 93-year cyclic pattern in tidal amplitude resulting from the succession of five nodal cycles. It’s important to note that tidal forcing does not increase continuously over decades. Rather, it increases on some days during a few lunar months when alignments occur, as indicated by the vertical lines in the figure. After that, the tidal forces may average out in the following years, only to regain strength 18 years later. The arcs connecting the peaks in tidal force are provided only as a visual aid to show the recurring pattern separated by an 18-year interval.
This figure is also reproduced in my book where I explain how tidal forcing is a likely candidate for triggering Dansgaard-Oeschger events during glacial periods.[4]
Keeling and co-author Timothy Whorf made an interesting observation about the alignment of significant increases in tidal forcing over the last 400 years. They noticed a correlation between these periods and the cool periods documented in a separate publication by Phil Jones, who retired as director of the Hadley Climate Research Unit (HadCRU) in 2016. These cool periods are represented by the gray bars at the top of Figure 3.
While it may be unreasonable to claim that the cooling climate of these periods was caused solely by the increase in tidal forcing, it is plausible to consider that tidal forcing played a role in enhancing the cooling effect beyond what would have occurred in its absence. They projected another peak in tidal forcing in the coming 2030s (labeled “D” in the figure). This should coincide with my projection of a temperature drop due to the coincidence of low solar activity and the transition of the Atlantic Multidecadal Oscillation into its cold phase. Nature has yet to show its true strength to our overconfident climate modelers.
The Moon as an El Niño predictor
In 2007, two Canadian scientists, McKinnell and Crawford, conducted a study examining the relationship between the lunar nodal cycle and various factors such as air temperatures, sea surface temperatures, and 400-year tree ring records along the Pacific coast of North America.[5] One notable finding they made was the correlation between winter sea surface temperatures measured at Scripps Pier in San Diego, California, and the tidal constituent K1, which influences diurnal tidal amplitude. Figure 4 shows this relationship.
Remarkably, the strongest positive January temperature anomalies at Scripps Pier consistently coincided with a lunar nodal cycle minimum. On the other hand, the lowest anomalies were often, though not always, observed within a year or two of a nodal cycle maximum.
McKinnell and Crawford also observed a remarkable synchronization between the lunar nodal cycle and some of the largest El Niño events of the 20th century, such as those in 1940/41, 1957/58, and 1997/98. Attributing the cause of El Niño solely to the Moon would be inaccurate, as there are instances (e.g., 1972/73, 1982/83) when El Niño events do not align with the nodal cycle.
Nevertheless, the relationship between the 18.6-year lunar cycle and El Niño had already been described in a 2001 article and has been further emphasized in recent studies.[6] [7] The explanation presented in the 2001 article suggests that tidal forces acting on the Pacific gyre modify the transport of cold water into the equatorial region, thereby influencing the likelihood and magnitude of El Niño events.
Even in the absence of a major El Niño event, the Scripps Pier data presented in Figure 4 show the presence of consecutive Niño episodes during lunar nodal cycle minimums. These are the Niño events of 1940/41 and 1941/42, 1957/58 and 1958/59, and 1976/77 and 1977/78.
Based on the available data, McKinnell and Crawford suggest:
“We also note that the response of North American coastal SSTs to many major El Niños of the 20th century are confounded with the SST response anticipated by the [lunar nodal cycle]. This unlikely coincidence will attract greater attention if a major El Niño occurs around 2015.”
(McKinnell & Crawford, 2007)
As we now know, a major El Niño did occur in 2015.
Given the challenges associated with predicting the occurrence of an El Niño event, let alone its magnitude, it is truly remarkable that the authors were able to successfully predict a major El Niño eight years in advance. Even more amazing is the fact that this prediction was based on the 18.6-year lunar cycle. It is recommended that anyone involved in ENSO forecasting consider the accumulated knowledge of the Moon’s influence on ENSO. While not a hard and fast rule, it is apparent that the likelihood of a major El Niño event, or even successive Niño episodes, is higher for 2034. Such an event could potentially temporarily mitigate the expected cooling trend, although cooling would be expected following the El Niño.
Minobe, S., 1999. Geophys. Res. Lett. 26 (7), pp.855–858. ↑
-
Data from Viktor Gouretski, U of Hamburg, shows that the global average ocean temperature from 1000 to 6500 meters is 1.7°C. Overview: (Gouretski, 2019). ↑
-
Keeling, C.D. & Whorf, T.P., 1997. PNAS, 94 (16), pp.8321–8328. doi.org/10.1073/pnas.94.16.8321 ↑
-
Vinós, J., 2022. Climate of the Past, Present and Future: A scientific debate. 2nd ed. Critical Science Press.www.amazon.com/dp/B0BCF5BLQ5 Also in French www.amazon.fr/dp/B0BRJ94Z2H/ ↑
-
McKinnell, S.M. & Crawford, W.R., 2007. J. Geophys. Res. Oceans, 112 (C2). doi.org/10.1029/2006JC003671 ↑
-
Cerveny, R.S. & Shaffer, J.A., 2001. Geophys. Res. Lett. 28 (1), pp.25–28. doi.org/10.1029/2000GL012117 ↑
-
Yasuda, I., 2018. Sci. Rep. 8 (1), p.15206. doi.org/10.1038/s41598-018-33526-4
Download the bibliography here. ↑
An earlier version of this post appeared on Climate Etc.
For more information on El Nino’s check out this page on our Everything Climate site
Dwarf planet Pluto’s mass is only 8.09 times its moon or twin Charon. The barycenter of their system lies outside the bodies of both dwarves.
The lunar cycle low point correlation is an important finding, but Los Niños also occur at other points in the 18-19 year cycle, to include Super Los Niños, as in 1982-83. Lately, they’ve been occurring at 15-18 year intervals. Los Niños of whatever strength happen about two to seven years apart.
Excellent article about factors affecting climate and weather which is rarely discussed. Is the 18.6-year lunar cycle evident within the AMO (Atlantic Multi-decadal Oscillation) temperature record?
Yes, excellent article.
In 2007, two Canadian scientists studying the effects of this cycle on the Pacific coast of North America successfully predicted the occurrence of a major El Niño event in 2015 based on lunar orbital data. Remarkably, their prediction proved accurate.
________________________________________________________________________
Climate models stink at predicting El Niño and La Niña but some Canadians examining the motions of the moon have been successful. Well how ’bout that (-:
Yeah amazing. To think Canadians could do something like that. What’s next, cats doing calculus?
😜
Nah, calculus is in the dog’s skillset. Cats can’t even do trigonometry.
https://web.williams.edu/Mathematics/sjmiller/public_html/103/Pennings_DogsCalculus.pdf
I think cats are hiding their intelligence so they can have us as their servants!
I’m a cat lover so I watch cat videos on YouTube- while not watching videos on the Ukraine war, and UFOs, and climate emergency bullshit. I’ve seen cat videos lately where cats open windows and doors. In one video a cat opened a large cookie jar with a very large cap that was screwed on. The cat actually turned the cap until it opened. Notice how they look at us- staring. I think they’re thinking “I’ll just pretend I’m not smarter they these naked apes and they’ll keep feeding me- all I have to do is look cute.”
“Keeling theorized that changes in the Moon’s effect on ocean mixing could affect surface temperatures – a simple and scientifically sound mechanism. The only question remaining was the magnitude of these changes.”
Well, yes, that is the question, and I didn’t see any resolution. Mixing requires turbulence, which requires angular momentum creation, which requires shear, which requires torque. The main source of torque in the ocean is wind. Tidal forces can provide some in shallow water configurations, where water is forced to move relative to a solid surface. But how much? I would have thought relatively small.
“I would have thought relatively small.”
Probably- but, as climate emergency cultists often tell us, a tiny difference in temperature can be catastrophic. 🙂
I think you are wrong on this one, Nick. The Moon provides more mechanical energy to the oceans than the wind, and unlike the wind, this energy will be provided under sea ice and even at the bottom of the ocean. It causes all the water mass to move, and not just the part in contact with the atmosphere.
Javier,
“The Moon provides more mechanical energy to the oceans than the wind”
That would be a hard one to pin down. But in any case case the requirement for creating turbulence is shear, a velocity gradient, and to do that you need torque. The wind/water interface clearly provides that – ocean waves are one outcome. And it creates it at the surface, which is where a mixing layer will potentially convey more heat from below to the surface.
There aren’t so many places where a tidal motion can create torque, and if it is below the ice or at a sea bottom, that is a long way from the surface mixing layer.
“convey more heat from below to the surface”
Oops , from the surface to below
It is given in the Keeling paper referenced.
There aren’t so many places where a tidal motion can create torque
Quite a lot I would say. Here you have an Atlas of tidal currents in the Arctic. What they say is:
“The Moon provides more mechanical energy to the oceans than the wind”
Really, Nick? Proving the moon’s power would be hard, but proving the wind is stronger, that’s Settled Science, is it?
Javier, your post begins (My boldface): “The Earth’s oceans contain a vast mass of cold water beneath a thin layer of warm water, and the limited amount of mixing between them plays a crucial role in our existence. Tides, primarily influenced by changes in the moon’s orbit, are the main force behind this mixing, which has the potential to cool the climate.
Really? Did you just make that up? You appear to be forgetting (1) the ocean gyres (i.e. circulation) which are caused by the trade winds which are caused by the temperature differences between the tropics and extratropics and by the rotation of the Earth…and (2) thermohaline circulation, which is caused by differences in temperature and salinity. I stopped reading the post after your opening paragraph.
But I did glance at the illustrations after that. Also, you presented Figure 4 as some kind of indicator of a relationship between a lunar cycle and El Nino events. Curiously, you’ve overlooked NOAA’s Oceanic Nino Index…
Climate Prediction Center – ONI (noaa.gov)
…which shows that there were 21 El Nino winters between 1950 and 2010, while your figure 4 shows 3 El Nino years during that period. Being able to account for three out of twenty-one is a pathetic relationship.
Regards,
Bob
What puzzled me, and turned me right off, was the assertion that the deep ocean is colder than 4°C
Such is physically impossible water has its maximum density at that temperature.
So if some deep water became (somehow) warmer than its surroundings, it would ‘bubble up to the top’
BUT, if that same water became colder that its 4°C surroundings, it would also ‘bubble up to the top’
Thus, water at 4°C at the bottom of any body of water is perfectly trapped – if it heats it rises, if it cools it rises.
This is of course as many schoolchildren know, how fish in (shallow) ponds survive winter – unless the pond freezes completely solid, there will always be liquid water at the bottom for them to survive the winter
NASA’s explanation of tides is childishness itself – they perfectly avoid the issue of why a High Tide occurs simultaneously on opposite sides of the globe and their graphic implies Negative Gravity is the cause
OK, they talk about ‘other tangential forces’
So why is there a tidal bulge on both sides simultaneously. There’s only one Moon and only one Earth.
Do NASA really regard themselves as so superior, coming across as patronising & condescending in that us underlings cannot handle ‘Inertia’
BTW and as regards ‘mixing’
What makes the wind?
Not unusual for CliSci, we have yet another grotesque Cause & Effect error
Yes The Atlantic (also) has its equivalent of ENSO
It is much smaller for myriad reasons:
IOW, ENSO is a perfect storm of self reinforcing factors while the Atlantic equivalent has everything working against it
So Long As, The Amazon Forest remains intact
“Such is physically impossible water has its maximum density at that temperature.”
Not impossible, you forget the effect of pressure. Attached are measured temperatures from the U of Hamburg database of deep Argo data.
Here is another plot, going the other way.
Here is a plot of all the variables, temperature, salinity, density and depth (pressure). Source Columbia U (Deep, Dark Fridge – directions (columbia.edu))
I didn’t make anything up. All in that article is taken from published articles. Obviously, you have the right to disagree.
Excellent article. I had first come across Keeling & Whorf 1997 last year. Very interesting in respect to the ~18.6 year cycle.
I was also interested in hourly tide gauge data to explore the energy exchange between ocean and atmosphere as the tide rises and falls. More here. https://wattsupwiththat.com/2023/03/18/the-danger-of-short-datasets/#comment-3696587
The point is that the change in potential energy in the atmosphere with the timed changes in the water level is significant. The vertical column of the atmosphere gains/loses about 8.6 Watt-hours per square meter of potential energy with each foot of rise/fall of the water level.
Something to think about when considering the ocean tides. If I understand correctly, the atmosphere component of coupled climate models must assume a fixed sea level datum (i.e. no vertical ocean tide dynamics.)
Interested layman here. Thought-provoking article. Isn’t the next step to correlate the rhythms and outcomes of these lunar cycles with the rhythms and outcomes of sunspot activity? That could lead to a model for short-term temperature fluctuations. And who knows, there may be longer term implications also.
I was thinking the same. Also, as a Brit it was interesting to note that there was a strong El Niño in 1976 when there was a blocking high over the U.K. giving us our long hot summer.
There wasn’t a strong El Niño in 1976. There was a week one that didn’t start until after the summer of ’76. This followed a strong La Niña, ending just before the summer of 76.
I’m doubtful there is any correlation between ENSO conditions and British weather.
Well something is!
Blocking high in summers of 1976 and 2003 giving hot extended summers.
Blocking highs in winters of 1962/63 and 2017/2018 giving extended cold winters. Same as happening now in southern Europe, which is why we’re having a cool July. The jet stream is weaker but has a bigger north south amplitude.
I do have one question, can this model hind cast a significant amount?
Lots of people make predictions. Someone is bound to get a single El Nino right.
But can that one get all the others right and not predict any extra El Nino’s?
I suspect that the answer is No, or the article would say so.
Practically speaking, if a scientist with the influence of Keeling couldn’t get this idea to fly, it must have problems.
It was socially acceptable and endorsed by the in-crowd. Stopping that takes some real difficulties. Like it’s a nice idea, but bunkum. Too small an effect that it may as well be ‘no effect’.
You got the mass ratio wrong.
Nope. Check it. It is 1:81. It is everywhere, NASA, Wikipedia.
https://en.wikipedia.org/wiki/Tidal_acceleration
Not just the Sun and the Moon have influence on tides and therefore climate, I remember on a school trip back when I was a lad to the science museum, (or maybe it was the maritime museum-we visited both) was the first time I saw an analogue tide prediction calculator, a monster of a machine that had pulleys not just for the Sun and Moon, but all the planets as well as over 30 other variables. Maybe if the CO2 fanatics can appreciate just how complex the factors affecting the climate are, they can stop obsessing about 42 thousandths of 1% of the atmosphere. Or is that just wishful thinking?
https://ntslf.org/about-tides/doodson-machine
Very cool. Thanks for that link!
Great reference to that Doodson machine . .
“Thus, without the Moon, Earth’s climate may have been too unstable for complex life to evolve.”
That really is mind blowing!
There might be a lot of life in the universe, but there might not be that much life that has the ability to leave the planet they were born on.
There might be life in underground oceans on many planets and moons, but there may be few spacefaring life forms.
I read the other day that a supernova is capable of wiping out any surface life on planets within about 100 lightyears of the blast. So even if there are places where surface life can develop, they may be located in the wrong place at the wrong time.
That could be us, too. That’s why humanity needs to get off-planet as soon as possible, if we are to assure the continuation of the human race.
This article was supremely stupid and not worth my time.
Yet you thought it a good use of your time to make an inane comment.
Apparently Javier didn’t notice the 1998 data point from his figure 4, taken from McKinnell & Crawford (2007), came one year after the 1997/98 El Niño was already underway.
While the moon’s tides are undeniably important, they provide ocean mixing, not energy.
Can anyone show how the El Niño conditions of today are related to recent lunar tides?
I had the privilege of meeting Dr. Paul Pukite at the 2018 AGU fall meeting, where he was presenting a poster building on his 2017 lunisolar work. This came several years after I had followed along with WeatherAction’s Piers Corbyn and his monthly weather forecasting using Pier’s lunisolar method, which he didn’t explain very much. I have since learned that while the moon’s tidal forces are important to mixing, the sun’s energy is the climate driver.
It was in 2014 that I had turned away from a modest lunar research interest to the actual source of energy changes from solar activity. To make a long story short, it’s been clear to me since then that the solar forcing of the present El Niño condition is in every respect following the solar cycle influence of this solar cycle just as the 2015/16 El Niño followed solar activity above my warming threshold of 95 SN during the last solar cycle.

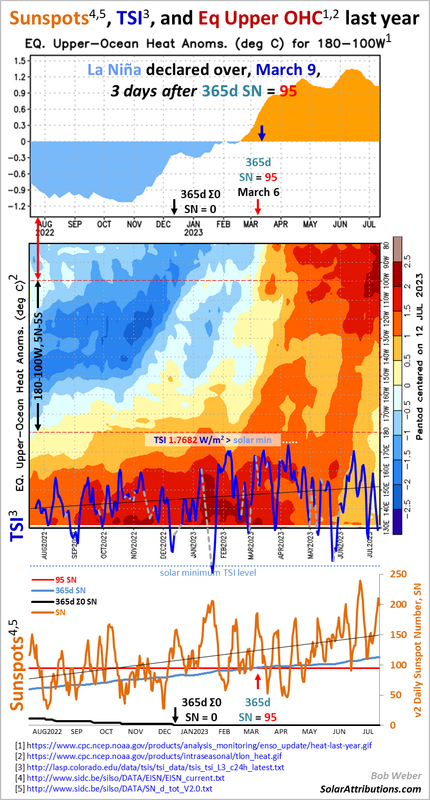

The 2015/16 El Niño was driven by the solar maximum of solar cycle #24, and ended from TSI falling below the decadal sun-ocean warming threshold I has established in 2014/15.
