Unique Solar System Views from NASA Sun-Studying Missions

From NASA

Jan. 26, 2021

Illustration showing Solar Orbiter's perspective on the planets as it orbits the Sun
This computer-generated view shows the perspective of the Solar Orbiter spacecraft on Nov. 18, 2020, illustrating why Solar Orbiter’s view shows — from left to right — Venus, Earth, and Mars, with Mercury and the Sun off camera to the right.Credits: ESA

Though they focus on the star at the center of our solar system, three of NASA’s Sun-watching spacecraft have captured unique views of the planets throughout the last several months. Using instruments that look not at the Sun itself, but at the constant outflow of solar material from the Sun, the missions — ESA and NASA’s Solar Orbiter, NASA’s Parker Solar Probe, and NASA’s Solar and Terrestrial Relations Observatory — have sent home images from their distinct vantage points across the inner solar system.

All three missions carry instruments to study the Sun and its influence on space, including cameras that look out the sides of the spacecraft to study the Sun’s outer atmosphere, the solar wind, and the dust in the inner solar system. It’s these instruments that, at various points in 2020, saw several planets pass through their fields of view.

Each of the three missions has a distinct orbit, so their perspectives are different from both ours here on Earth and from each other. This is reflected in each spacecraft’s view of the planets, which show the bodies in different positions than what would have been seen from Earth and from the other spacecraft on those dates.


Solar Orbiter

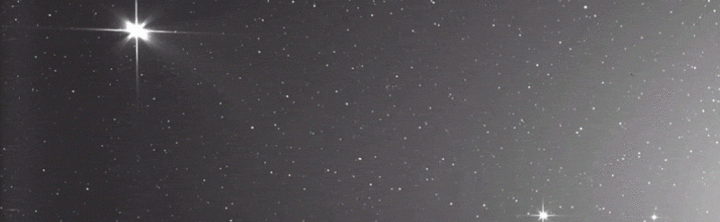

Series of images showing three bright planets -- Venus, Earth, and Mars -- against a background of stars.

ESA and NASA’s Solar Orbiter took these images of Venus, Earth, and Mars on Nov. 18, 2020.Credits: ESA/NASA/NRL/Solar Orbiter/SolOHIDownload an unlabled version of this image.

Looking back towards home from about 155.7 million miles (250.6 million kilometers) away, the Solar Orbiter Heliospheric Imager, or SoloHI, aboard ESA and NASA’s Solar Orbiter spacecraft captured Venus, Earth, and Mars together on Nov. 18, 2020. The Sun is located on the right, outside the image frame.

Launched in February 2020, Solar Orbiter returned its first images in July 2020, including the closest-ever view of the Sun. SoloHI, one of ten instruments on the spacecraft and the only heliospheric imager, looks off to the side of the Sun to capture the solar wind and dust that fills the space between the planets.


Parker Solar Probe

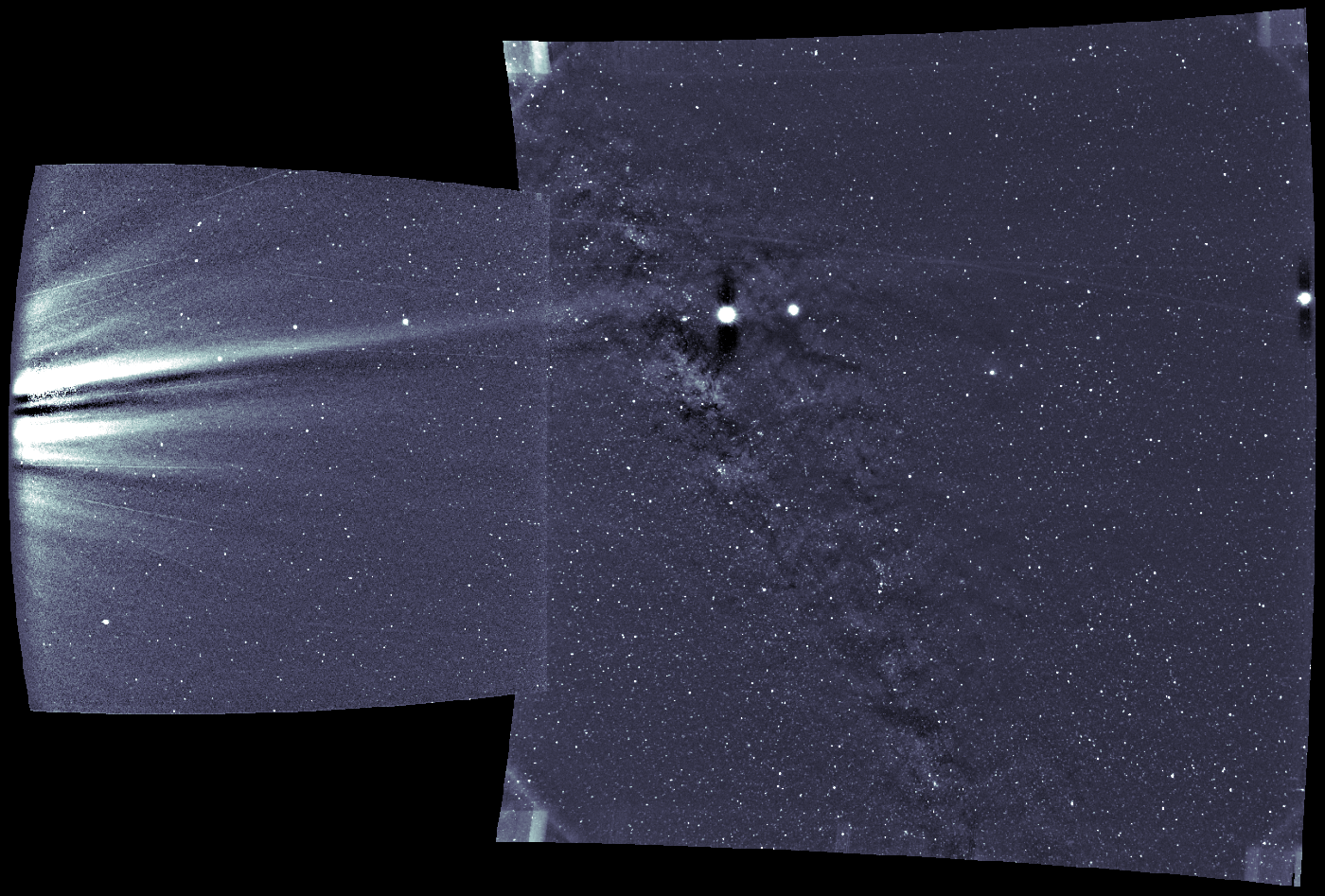

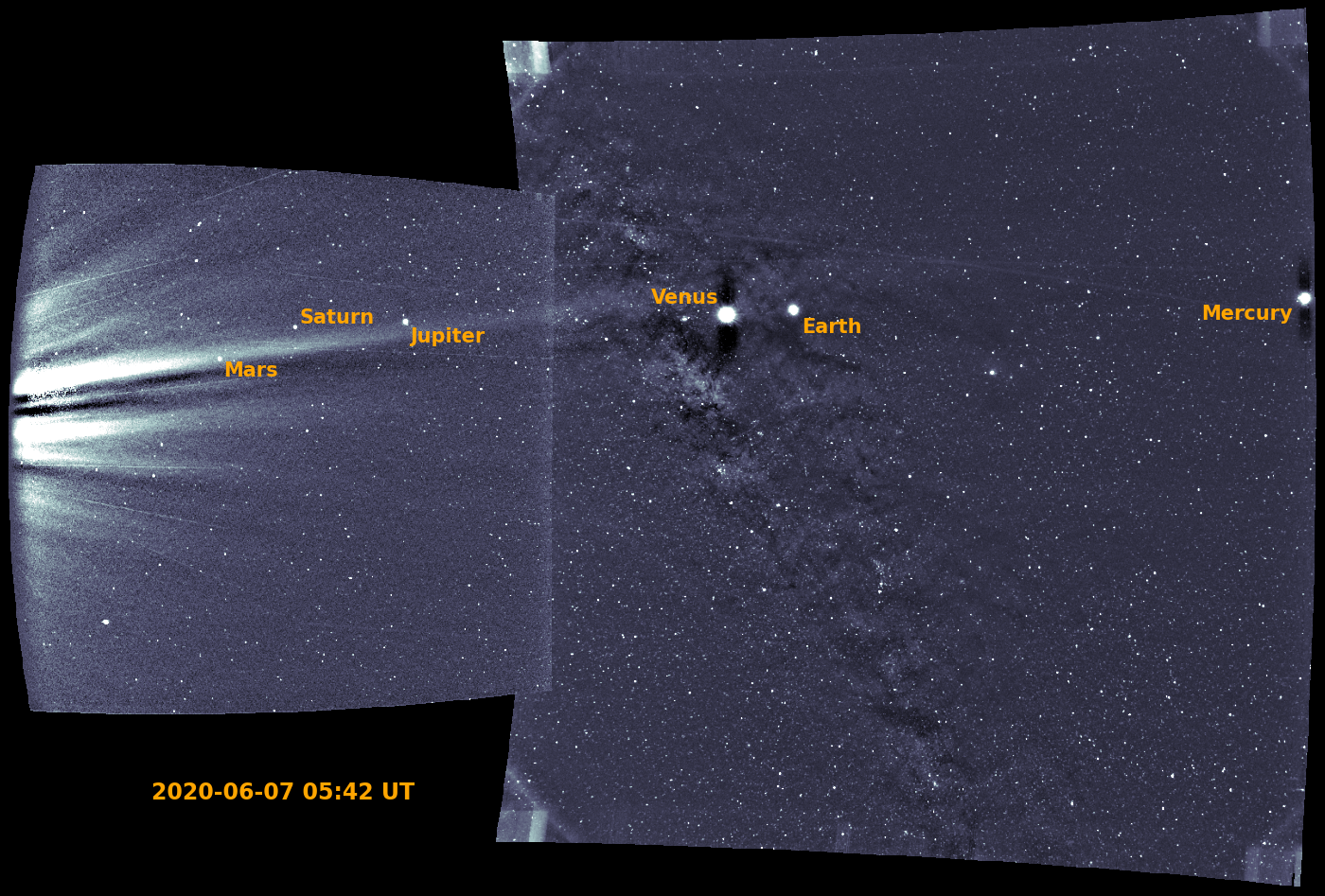

NASA’s Parker Solar Probe saw almost all the solar system’s planets in a pair of images captured on June 7, 2020.
Click and drag the slider to see a labeled (left) and unlabeled (right) version of the image.
Credits: NASA/Johns Hopkins APL/Naval Research Laboratory/Guillermo Stenborg and Brendan Gallagher

As Parker Solar Probe wheeled around the Sun on June 7, 2020, its Wide-field Imager for Solar Probe instrument, or WISPR, snapped two image frames that captured six of our solar system’s planets: Mercury, Venus, Earth, Mars, Jupiter, and Saturn.

WISPR captures images of the solar corona and inner heliosphere in visible light, along with images of the solar wind and other structures as they approach and pass the spacecraft. The spacecraft was approximately 11.6 million miles (18.7 million kilometers) from the Sun, and about 98.3 million miles (158 million kilometers) from Earth, when WISPR gathered the images.


STEREO

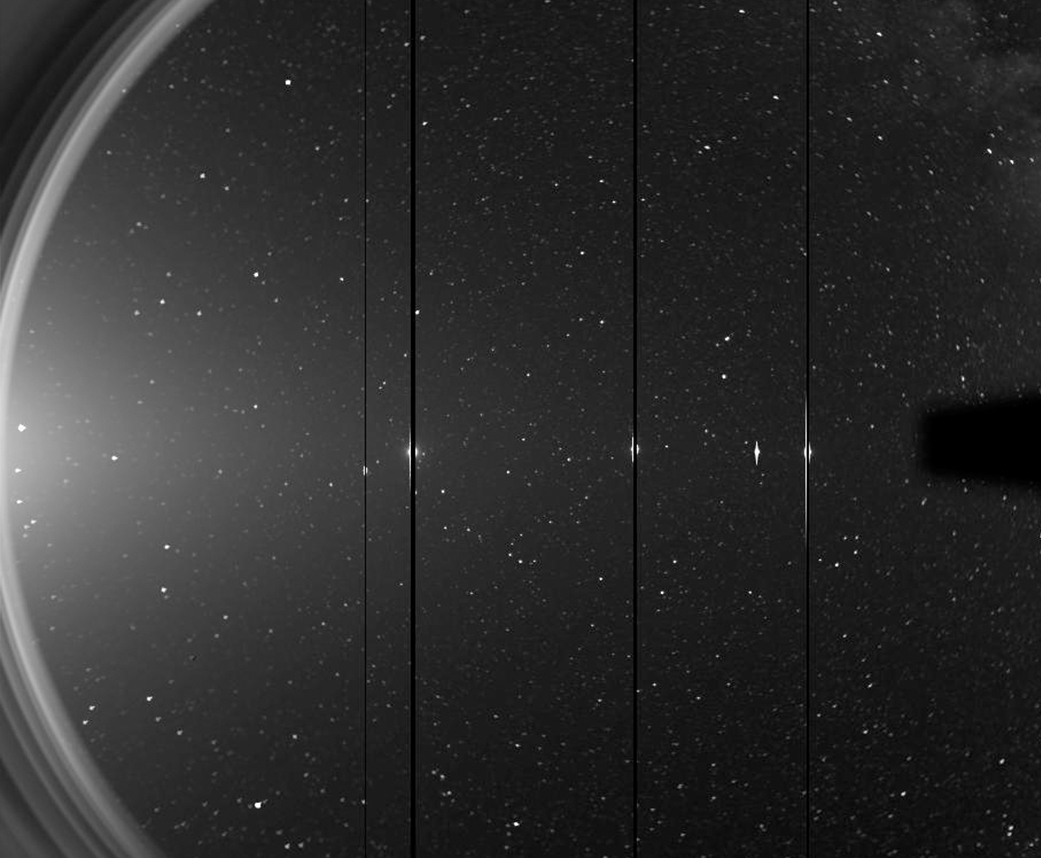

NASA’s Solar and Terrestrial Relations Observatory saw most of the solar system’s planets in one image on June 7, 2020. Click and drag the slider to see a labeled (left) and unlabeled (right) version of the image.
Credits: NASA/STEREO/HI

NASA’s Solar and Terrestrial Relations Observatory, or STEREO, captured this view of most of our solar system’s planets on June 7, 2020. Though this image was taken around the same time as Parker Solar Probe’s, STEREO’s position in the solar system gave it a different perspective on the planets. This image is from one of the Heliospheric Imagers on STEREO, which views the outer atmosphere of the Sun, the corona, and the solar wind, allowing scientists to study how solar material travels out into the solar system. The dark columns in the image are related to saturation on the instrument’s detector, caused by the brightness of the planets combined with the long exposure time.

Two diagrams illustrating the positions of Parker Solar Probe and STEREO in space on June 7, 2020
(Left) This graphic illustrates Parker Solar Probe’s position and view of the solar system on June 7, 2020. The inset shows the spacecraft and its orientation, as well as the location of the WISPR instrument on the spacecraft and the fields of view of its inner and outer telescopes. The slightly brighter region between the two fields of view is the telescopes’ overlapping views. The green loops overlapping the inner planets mark Parker Solar Probe’s path around the Sun. (Right) This graphic illustrates the position of NASA’s Solar and Terrestrial Relations Observatory on June 7, 2020, when it saw most of the solar system’s planets in one image.Credits: NASA/Johns Hopkins APL/Yanping Guo; NASA/STEREO/HI


Sarah Frazier and Miles Hatfield
NASA’s Goddard Space Flight Center, Greenbelt, Md.

Michael Buckley
Johns Hopkins University Applied Physics Laboratory, Laurel, Md.

Last Updated: Jan. 26, 2021

Editor: Sarah Frazier
