Dr Kelvin Kemm
Over the past 25 years, the world electricity demand doubled. All indications are that it will double again over the next 25 years. In fact, the time span is likely to be much shorter. The emergence of more electricity-intensive consuming technologies such as data centres is causing electricity demand to rise more steeply. Then one must add the rising demand of developing countries in which. People are moving from cooking dinner over an open fire outdoors to acquiring an electrical stove and fridge.
The image of electricity demand is a large boulder rolling down a hill, it is not stopping or slowing. In fact it is rolling faster and faster.
Without doubt fossil fuels will continue to be the backbone of world electricity generation for decades to come. But equally certain is that nuclear power is making a rapid advance across the globe. That means not only for the traditional large, industrialised countries, but also for the less developed, or much smaller countries. Rapid development of Small Modular Reactor technology is also accelerating the options for the adoption of nuclear power on a large scale. South Africa was the first country in the world to start developing a commercial Small Modular Reactor, and has continued with the work for over 30 years.
Some years ago, South Africa announced its intention to add an additional 2500 MW of new nuclear to its existing nuclear base. Early in 2024, the energy minister confirmed the acceleration of this goal. The intention, from inception, was to build a new 2400 MW coastal nuclear plant, but also to dedicate 100 MW to the development of SMR’s for inland use. In September 2024, the energy minister gave a public address in which he stated that we must go ahead on the basis of science and facts, and not be ‘fighting in the mud’ with activists who rely more on emotion than reality.
South Africa is forging ahead with a new nuclear build. This is excellent news. The current initiative is for an additional 2500 MW of nuclear, composed of a 2400 MW new large nuclear power station on the coast, plus 100 MW dedicated to Small Modular Reactor (SMR) development.
The announcement of the continuation of the project was greeted with applause by many, but as always, the anti-nuclear lobby were frothing at the mouth about all the imagined problems associated with nuclear power.
But let us digress for a moment, to consider the macro-implications of this initiative.
Building a large nuclear plant is essentially following in the footsteps of the traditional route, that being; placing a large plant on the coastline at an ideal site. The resulting power is then transmitted over some distance to consumers.
But what of SMR’s? The crucial difference with a gas-cooled SMR, which does not need a large body of water for cooling purposes, is that you can take the reactor to the consumer. You can place the rector anywhere you like. This reality enables planners to embrace. Embark on a highly flexible. Nuclear solution across the entire country.
Think about it!
Let us now make a comparison with a cell phone system. Prior to the advent of cell phones, a telephone network consisted of major exchanges, interconnected by means of long-range connections. Then cell phones arrived. The cells are something like the honeycomb of a beehive, and each cell has its own main base station antenna. Each cell handles calls within the cell.
The emergence of Small Modular Reactor (SMR) systems onto the modern scene, essentially makes a nuclear cell system a reality. One can now place a gas-cooled SMR anywhere, and it can serve its own ‘cell.’ This ‘cell’ could be a mining complex, a municipality, a collection of factories, or an agricultural area encompassing the farm, proceeding to processing, packaging, and transport. Such a ‘cell’ does not even need to be connected to the National Grid, and can be owned by a Province, Municipality, or private company.
The SMR revolution effectively means that the fundamental planning options available for the distribution of electricity have changed significantly.
A gas-cooled SMR, such as the South African HTMR-100 is walk-away-safe. The fuel cannot suffer a meltdown under any circumstances. Such an SMR emits absolutely nothing during normal operations, no solids, no liquids, no gases. The fuel is in the form of balls, the size of a tennis ball, and each ball lasts between two and three years in the reactor. So, the amount of refuelling required is extremely small, in comparison to coal, gas, or oil plants. So no continuous refuelling structure is required, such as a conveyor belt, pipeline, or railway line.
What all this means is that small nuclear plants can be safely and effectively placed in industrial areas or agricultural areas, or near an idyllic town. One of the accusations of the extremist anti-nuclear lobby has always been that nuclear reactors are ugly industrial structures which spoil beautiful scenic coastlines
With modern SMR’s we can totally remove that accusation. Since then is a bomb, it’s nothing during operation. And what’s more? Is totally silent. It can be integrated into the Vista of any setting. With this in mind, the developers of the HTMR-100 range of reactors approached Johann Koch of Johann Koch Design Architects (JKDA) with a proposal to work together to develop SMRe complexes for a range of customers.
Stratek Global originally developed the HTMR-100 for a classic industrial setting in South Africa, such as a gold-mining complex, far inland, and far away from any large water body. However, Stratek Global has been approached by potential customers from around the world, including the Middle East, Australia, a number of African countries, and also island states.
Furthermore, site factors such as the altitude, have varied from sea level to high altitude. The prevailing weather conditions have varied from hot and dry, to cold and wet, including snow.
As a result, Stratek Global is in a position to offer any type of nuclear power complex which can be designed to fit, not only any site but which can also be skilfully designed to match the scenery or cultural nature of the people and area.
Since nuclear is completely clean and green, emitting no gasses, liquids, or anything else, during normal operations, there is no reason why nuclear power stations must be viewed as ugly industrial buildings. They can be made as attractive as a hotel complex or holiday resort.
Illustrated here or four of the designs developed as a result of customer requests. They are named; the Impala Design, Kudu Design, Oryx Design, and Sable Design.
The Kudu Design was developed for an African savanna setting. It is shown here with a single reactor of 100 MW thermal output, or 35 MW electrical output.
Kudu Design: For a temperate setting near a town or agricultural cluster
A most useful aspect of the. HTMR-100 is that an SMR complex can be designed to take up to ten reactors. All ten can be run from a single control room. Obviously, building more reactors per site reduces the unit cost, because you don’t have to duplicate the administration building, the workshops, or a variety of other facilities. Furthermore, if a site is designed for, say, ten reactors they do not all have to be constructed at the same time. An owner can add reactors, in later years, as the demand rises, or as finances become available, thereby allowing for immense planning flexibility.
The Oryx Design was developed as a result of a request from the Middle East. It also features a single reactor, but can easily be adapted for more reactors.
Oryx Design: A one reactor setup for a desert region

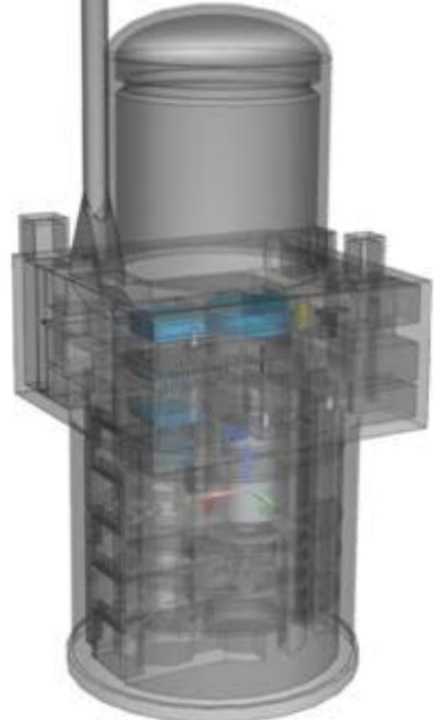

Computer graphic showing the interior arrangement of the reactor building. Approximately 60% of the reactor is underground. Ground-level is at the bottom of the ventilation stack.
The single reactor Impala Design is a workhorse design for an industrial setting such as a South African gold mining complex. This design was developed to fit into any existing industrial complex. It illustrates that other than the actual nuclear reactor itself, in the cylindrical concrete containment vessel, the rest of the power station consists of perfectly normal industrial buildings.
Impala Design: A basic one reactor design for an existing industrial setting
The Sable Design was developed as a result of a request from a country which experiences snow conditions. The request was for a ten-reactor complex. The reactors can be added, over a period of some years, as the customer sees fit.
Sable Design: Showing eight reactors, in a snow region
Dr Kelvin Kemm is a nuclear physicist and is Past Chairman of the South African Nuclear Energy Corporation (Necsa). He is currently Chairman of Stratek Global, a nuclear project management company based in Pretoria, South Africa. The company carries out strategy development and project planning in a wide variety of fields for diverse clients. They are working towards building an HTMR-100 nuclear reactor in Pretoria. Kelvin.kemm@stratekglobal.com.
