The Solar Storm That Nearly Sparked A Nuclear Confrontation

Paul Dorian

A solar image on May 23rd, 1967 features a bright region (top, center) which is where the solar flare occurred on that day. Credit: National Solar Observatory historical archive, American Geophysical Union


It was during the height of the Cold War and a powerful solar storm could have led to a disastrous military conflict between the US and Soviet Union if not for the early efforts of the US Air Force to monitor solar activity. On May 23rd, 1967, a solar storm took place that was so powerful, it jammed radar and radio communications in polar regions and the US Air Force actually began to prepare aircraft for war thinking the nation’s surveillance radars were being jammed by the Soviet Union.  Fortunately, space weather forecasters in the military suspected there might be another cause and they relayed information about the possibility that a solar storm could have been the reason for the disrupted radar and radio communications.  As it turned out, this information was enough to keep the planes on the ground and the US avoided a potential nuclear weapon exchange with the Soviet Union.

Early efforts on monitoring the sun

The US military began monitoring solar activity and space weather disturbances in the upper atmosphere during the latter part of the 1950’s.  By the 1960’s, the US Air Force Air Weather Service (AWS) formed a new branch whose specific purpose was monitor the sun for solar flares that could lead to a disruption on Earth with radio communications and power line transmissions. During the 1960’s, the AWS set up a network of observers in the US and in overseas locations who provided regular input to solar forecasters at the North American Aerospace Defense Command (NORAD).  In fact, by 1967, several observatories around the world were sending daily reports directly to NORAD solar forecasters.

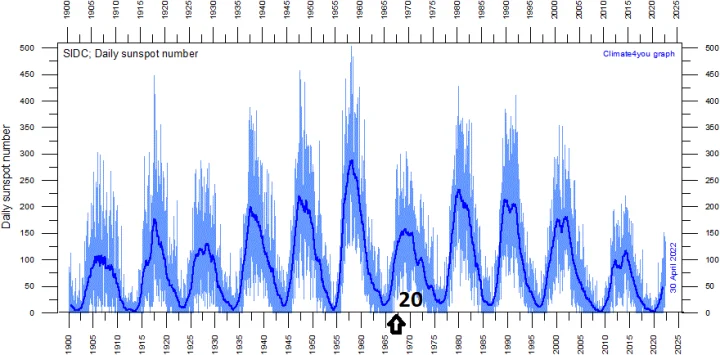

Daily observations of the number of sunspots since 1 January 1900 according to Solar Influences Data Analysis Center (SIDC). The thin blue line indicates the daily sunspot number, while the dark blue line indicates the running annual average. The arrow indicates the time of the solar storm referenced in this posting (May 23rd, 1967). Data source: WDC-SILSO, Royal Observatory of Belgium, Brussels. Last day shown: 30 April 2022. Last diagram update: 4 May 2022.

The solar storm results in a close call

In 1967, solar cycle #20 was ramping up towards solar maximum with an increasing number of sunspots and this period is often associated with an increase in solar activity such as flares.  On May 18, 1967, observers detected an unusually large group of sunspots with intense magnetic fields on one region of the sun. By May 23rd, observers and forecasters saw the sun still appeared to be quite active and likely to produce a major solar flare. Observatories in New Mexico and Colorado actually saw a flare visible to the naked eye while a solar radio observatory in Massachusetts reported the sun was emitting unprecedented levels of radio waves.  A significant worldwide geomagnetic storm was forecast to occur within 36-48 hours, according to a bulletin from NORAD’s Solar Forecast Center in Colorado Springs, Colorado on May 23:

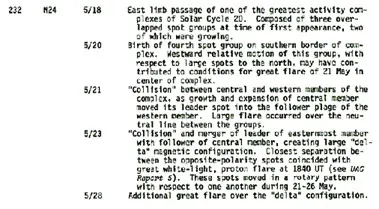

Notes recorded during May 1967 regarding the region of the sun where the major flare occurred on May 23rd. Credit: National Solar Observatory historical archive, American Geophysical Union.

As the solar flare event unfolded on May 23, radars at all three Ballistic Missile Early Warning System (BMEWS) sites in the far Northern Hemisphere were disrupted. These radars, designed to detect incoming Soviet missiles, appeared to be jammed. Any attack on these stations – including jamming their radar capabilities – was considered an act of war.

Retired Colonel Arnold L. Snyder, a solar forecaster at NORAD’s Solar Forecast Center, was on duty that day. The tropospheric weather forecaster told him the NORAD Command Post had asked about any solar activity that might be occurring. Along with the information from the Solar Forecast Center, NORAD learned the three BMEWS sites were in sunlight and could receive radio emissions coming from the sun. These facts suggested the radars were being ‘jammed’ by the sun, not the Soviet Union, Snyder said. As solar radio emissions waned, the ‘jamming’ also waned, further suggesting the sun was to blame, he said.

During most of the 1960s, the Air Force flew continuous alert aircraft laden with nuclear-weapons. But commanders, thinking the BMEWS radars were being jammed by the Russians and unaware of the solar storm underway, put additional forces in a “ready to launch” status during this particular event. The Air Force did not launch additional aircraft as information from the Solar Forecasting Center made it to commanders in time to stop the military action, including a potential deployment of nuclear weapons.

A report of solar activity on May 26 from the Space Disturbance Forecast Center, a civilian forecasting center at the Environmental Science Services Administration (now NOAA). Credit: ESSA/NOAA

The solar flare on May 23rd, 1967 was accompanied by a coronal mass ejection (CME) which triggered a powerful geomagnetic storm that hit Earth about 40 hours later.  U.S. radio communications were disrupted in almost every conceivable way for almost a week.  In fact, this particular solar storm was so strong that the Northern Lights – normally limited to sky watchers in the high latitudes – were visible as far south as New Mexico.

The solar storm of May 1967 is ranked as one of the top in the record books.  The solar storm that is known as the most powerful in recorded history is known as “The Carrington Event” took place in September of 1859.  That geomagnetic storm caused telegraph systems to fail all over North America and Europe and the northern lights were visible down to Cuba.  A Carrington-like solar storm today would likely be devastating given the dependence on power grids and satellite networks.

Meteorologist Paul Dorian

Follow us on Facebook, Twitter, YouTube

5 12 votes
Article Rating
Newest Most Voted
Inline Feedbacks
View all comments
Tom Halla
May 23, 2022 2:05 pm

And satellite communications were just barely getting started in 1967. I wonder what effect a similar flare would have now.

Reply to  Tom Halla
May 23, 2022 3:23 pm

Probably not much. With the delay time for the signal it’s more desirable to sent most things by fiber optic surface lines. It would disturb things like weather forecasting and entertainment as those signals are often passed through satellite somewhere their delivery. GPS would be a mess as we have many people who can’t navigate without a GPS unit.

May 23, 2022 2:25 pm

I have heard this tale SO many times over the years – and it is bunkum.

SAC SOP (Strategic Air Command Standard Operating Procedure) was, and probably still is, that if the detection window for an attack was reduced – for ANY reason, natural or man-caused – the response time was also reduced. Assets were put on higher alert status, reconnaissance was increased, and NCA (National Command Authority – POTUS, Congress, etc.) was also alerted to be prepared for rapid movement out of target zones.

I got this from a retired SAC bomber commander. He and his crew sat in their B52 on the tarmac here, fully armed, UNTIL BMEWS came fully back “on line.” There was no stand down when the problem was identified to be a solar event.

jeffery p
Reply to  writing observer
May 23, 2022 2:38 pm

Yeah, but it’s more exciting when you tell it the other way.

Frank from NoVA
Reply to  writing observer
May 23, 2022 3:29 pm

Ah, Dr. Strangelove I presume…

“Yes gentlemen, they are on their way in and no one can bring them back. For the sake of our country and our way of life, I suggest you get the rest of SAC in after them, otherwise we will be totally destroyed by red retaliation. My boys will give you the best kind of start, fourteen hundred megatons worth, and you sure as hell won’t stop them now. So let’s get going. There’s no other choice. God willing, we will prevail in peace and freedom from fear and in true health through the purity and essence of our natural fluids. God bless you all.”

Reply to  Frank from NoVA
May 23, 2022 5:48 pm

Fortunately General Jack D. Ripper was not in charge of NORAD.

Ian Johnson
Reply to  Frank from NoVA
May 24, 2022 1:33 am

On the subject of Dr Strangelove, would an event like the 2013 Chelyabinsk meteor have triggered the hypothetical Doomsday Machine?

D. J. Hawkins
Reply to  writing observer
May 24, 2022 6:14 am

I can understand the reasoning behind the alert. After all, whether natural or manmade, the radars going down still leave you blind. In fact, being natural might encourage bad actors to try their luck, on the theory that the other side will think, “Oh, it’s just the sun.”

Gerald Hanner
Reply to  writing observer
May 24, 2022 10:49 am

I recall one night it the mid-1970s where we were wakened by the klaxon. We ran to the aircraft and heard a “get ready to do” message coming in from the Primary Alerting System. A few minutes later we got a stand down message. Turned out that the Soviets were unloading a missile field in compliance with one of those SALT agreements. They didn’t bother to tell our side what they were doing. A few minutes after their launch it was clear the missiles were going to Kamchatka. Our side contacted their side and told them to stop doing that.

Rud Istvan
May 23, 2022 3:01 pm

I did a little research on ‘space weather’ at after reading the post. By far the biggest CME risk is to the electricity grid rather than say car electronics or satellites. For example, on 3/13/1989 a ‘minor’ event knocked out power to 6 million people in Canada for 9 hours and damaged transformers as far away as NJ.
To an extent, the grids could be somewhat ‘hardened’—but not completely, and according to NERC no one is willing to pay for costly ‘partial insurance’ for a ‘rare’ event. There are several scholarly studies readily available for US and European grids and the costs of not buying ‘partial insurance’ against a ‘Carrington’ scale space weather event. None are comforting in the least. Just Google ‘grid vulnerability to space weather’.

Ulric Lyons
May 23, 2022 3:16 pm

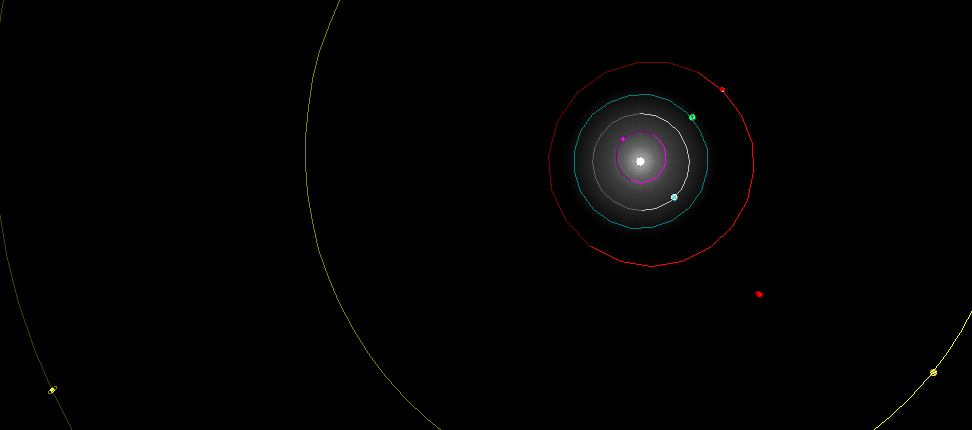

About half of major solar storm events occur at the inner planet trigger alignments, like with the Carrington event, with a typical pair of syzygies. The rest have the trigger alignments occurring in the previous weeks to the storm event, often at 1.5 solar rotations before the solar storm event. This is April 14th 1967, the second red body is Ceres:

Ulric Lyons
Reply to  Ulric Lyons
May 23, 2022 3:35 pm

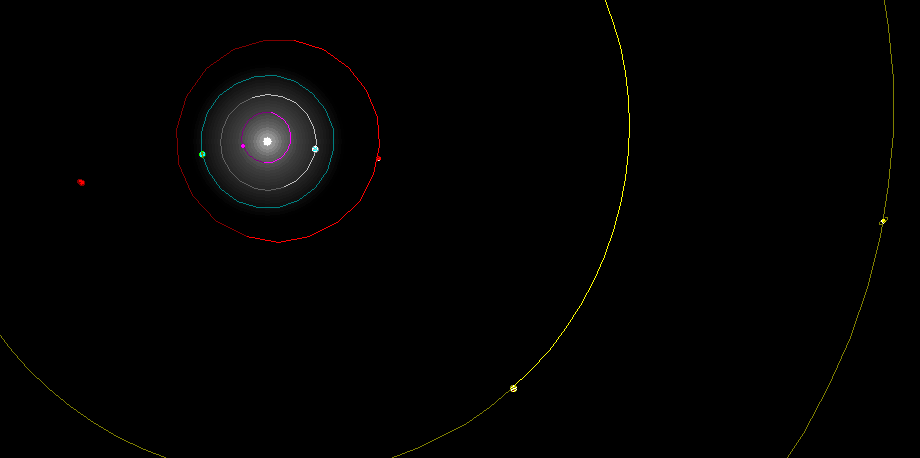

The Carrington Event, August 28 1859:
