‘Ozone hole’ may be a warming factor due to wind shifts

First, a clarification; while the AGU calls it an “ozone hole”, it technically isn’t. As NASA says here, it really isn’t a “hole” in the true sense of the word, it is simply a region of reduced O3 concentration that periodically changes in size, shape, and density.  -Anthony

Ozone hole might slightly warm planet

AGU_ozone_hole1

A map of ozone concentrations in the Southern Hemisphere shows thinning of the ozone layer over the South Pole. This region of reduced ozone, which is called the “ozone hole,” causes changes in wind patterns and cloud cover. Credit: NASA

AGU Release No. 13-39

WASHINGTON, DC—A lot of people mix up the ozone hole and global warming, believing the hole is a major cause of the world’s increasing average temperature. Scientists, on the other hand, have long attributed a small cooling effect to the ozone shortage in the hole.

Now a new computer-modeling study suggests that the ozone hole might actually have a slight warming influence, but because of its effect on winds, not temperatures. The new research suggests that shifting wind patterns caused by the ozone hole push clouds farther toward the South Pole, reducing the amount of radiation the clouds reflect and possibly causing a bit of warming rather than cooling.

“We were surprised this effect happened just by shifting the jet stream and the clouds,” said lead author Kevin Grise, a climate scientist at Lamont-Doherty Earth Observatory of Columbia University in New York City.

Grise notes this small warming effect may be important for climatologists trying to predict the future of Southern Hemisphere climate.

The work is detailed in Geophysical Research Letters, a journal of the American Geophysical Union. Grise collaborated on the study with Lorenzo Polvani of Columbia University, George Tselioudis of NASA Goddard Institute for Space Studies, Yutian Wu of New York University, and Mark Zelinka of Lawrence Livermore National Laboratory.

Hole in the sky

Each ozone molecule consists of three oxygen atoms bound together. These ozone molecules gather in the lower portion of the stratosphere about 20 to 30 kilometers (12 to 19 miles) above the ground—about twice as high as commercial airliners fly.

Thankfully for the living things below, this layer of ozone shields Earth from some of the hazardous ultraviolet radiation barraging the atmosphere. Unchecked, these ultraviolet rays can cause sunburns, eye damage and even skin cancer.

In the 1980s, scientists discovered thinning of the ozone layer above Antarctica during the Southern Hemisphere’s spring months. The cause of this “hole” turned out to be chlorofluorocarbons, such as Freon, from cooling systems, aerosols cans and degreasing solvents, which break apart ozone molecules. Even though the1987 Montreal Protocol banned these chlorofluorocarbons worldwide, the ozone hole persists decades later.

Many people falsely equate the ozone hole to global warming. In a 2010 Yale University poll, 61 percent of those surveyed believed the ozone hole significantly contributed to global warming. Additionally, 43 percent agreed with the statement “if we stopped punching holes in the ozone layer with rockets, it would reduce global warming”.

An actual consequence of the ozone hole is its odd effect on the Southern Hemisphere polar jet stream, the fast flowing air currents encircling the South Pole. Despite the ozone hole only appearing during the spring months, throughout each subsequent summer the high-speed jet stream swings south toward the pole.

“For some reason when you put an ozone hole in the Southern Hemisphere during springtime, you get this robust poleward shift in the jet stream during the following summer season,” said Grise. “People have been looking at this for 10 years and there’s still no real answer of why this happens.”

Cloud reflection

The team of scientists led by Grise wondered if the ozone hole’s impacts on the jet stream would have any indirect effects on the cloud cover. Using computer models, they worked out how the clouds would react to changing winds.

“Because the jet stream shifts, the storm systems move along with it toward the pole,” said Grise. “If the storm systems move, the cloud system is going to move with it.”

High- and mid-level clouds, the team discovered, traveled with the shifting jet stream toward the South Pole and the Antarctic continent. Low-level cloud coverage dropped in their models throughout the Southern Ocean. While modeling clouds is a difficult task due to the variety of factors that guide their formation and movement, Grise noted that observational evidence from the International Satellite Cloud Climatology Project, a decades-long NASA effort to map global cloud distributions, supports their theory of migrating cloud coverage.

When the cloud cover moves poleward, the amount of energy the clouds can reflect drops, which increases the amount of radiation reaching the ground. “If you shift the reflector poleward,” Grise explained, “you’ve moved it somewhere there is less radiation coming in.”

In 2007, the Intergovernmental Panel on Climate Change reported a direct cooling effect from the thinning ozone layer—specifically, a reduction of about 0.05 watts per square meter’s worth of energy reaching the ground. However, Grise and his colleagues estimated the indirect effect of the shifting cloud coverage to be an increase of approximately 0.2 watts per square meter. Their result not only suggests that warming rather than cooling would be taking place, but also that there’s a larger influence overall. Since the jet stream only shifts during the summer months, the warming only takes place in those months.

“Theoretically this net radiation input into the system should give some sort of temperature increase, but it’s unknown if that signal could be detected or what the magnitude of it would be,” said Grise. For comparison, worldwide, an average of about 175 watts per square meter reaches the ground from sunlight, according to the George Washington University Solar Institute.

Dennis Hartmann, an atmospheric scientist at the University of Washington in Seattle unrelated with the project, points out that since predicting cloud behavior is so challenging, the model used in Grise’s study could be underestimating clouds north of the jet stream being pulled toward the equator and in turn reflecting more light, potentially reducing or even negating the warming effect. Hartmann added that he also has some concerns about the modeling of the low-level cloud response.

Still, “this is certainly a very interesting topic and potentially important from a practical perspective of predicting Southern Hemisphere climate and even global warming rates,” he commented.

Climate tug-of-war

Looking toward the future, the jet stream should do less and less shifting to the south during the summer months as the ozone layer above the South Pole recovers. However, increasing levels of greenhouse gases can also change mid-latitude wind patterns and push the jet stream poleward, creating a complicated scenario which Grise said he plans to study in future work.

“You have sort of this tug-of-war between the jet being pulled equator-ward during the summer because of the ozone recovery and the greenhouse gases pulling the jet further poleward,” said Grise. “What the clouds do in that scenario is an open question.”

Funding for the research was provided by the National Science Foundation and by the U.S. Department of Energy’s Office of Science.

Notes for Journalists: Journalists and public information officers (PIOs) of educational and scientific institutions who have registered with AGU can download a PDF copy of this article by clicking on the following link:
http://onlinelibrary.wiley.com/doi/10.1002/grl.50675/abstract

Or, you may order a copy of the paper by emailing your request to Thomas Sumner. Please provide your name, the name of your publication, and your phone number.

Neither the paper nor this press release is under embargo.

Title:
The Ozone Hole Indirect Effect: Cloud-Radiative Anomalies Accompanying the Poleward Shift of the Eddy-Driven Jet in the Southern Hemisphere

Authors:
Kevin M. Grise: Lamont-Doherty Earth Observatory, Columbia University, Palisades, New York, USA

Lorenzo M. Polvani: Department of Applied Physics and Applied Mathematics, and Department of Earth and Environmental Sciences, Columbia University, New York, New York, USA;

George Tselioudis: NASA Goddard Institute for Space Studies, New York, New York, USA;

Yutian Wu: Center for Atmosphere Ocean Science, Courant Institute of Mathematical Sciences, New York University, New York, New York, USA;

Mark D. Zelinka: Program for Climate Model Diagnosis and Intercomparison, Lawrence Livermore National Laboratory, Livermore, California, USA.

Contact information for the authors:
Kevin Grise, +1 (845) 735-3802, Email: kgrise@ldeo.columbia.edu
Lorenzo Polvani, +1 (212) 854-7331, Email: lmp@columbia.edu

About these ads

88 thoughts on “‘Ozone hole’ may be a warming factor due to wind shifts

  1. Please can someone help me:
    Does this model explain the creation of clouds?
    Does this model explain how winds affect clouds?
    Is it general for other parts of the world or special to the Antarctic region?
    If only the Antarctic, why not the Arctic (how do winds know if it they are over sea or land)?
    Do I just completely misunderstand what this model is testing?

  2. “The cause of this “hole” turned out to be chlorofluorocarbons, such as Freon…
    Another one of those consensuses. Must be true. No other planets in our Solar System show this Ozone hole phenomenon, do they. Oh wait…

  3. Hilarious amount of BS (Bad Science) here, followed by the required overture for more funding for more BS:

    “creating a complicated scenario which Grise said he plans to study in future work.”

  4. I’ve suggested another mechanism for formation of the ozone hole based on properties of O2 and O3 plus the appearance of a thicker collar of O3 around the hole. It is like a turtleneck sweater rolled down. O2 is fairly magnetic as paramagnetic materials go – these are attracted to the poles of a magnet and O3 is diamagnetic which is repulsed from the poles of a magnet. To me the imagery shows this very well. I suspect the O2 in the hole is a higher percentage than average atmosphere because it takes the place of O3 and also displaces of other atmospheric gases at least to some degree. This is a very easy thing to test but I haven’t pricked anyone’s interest in this experiment it seems. In an argument with a self-described Ozone hole expert who visited WUWT and bragged about his role in the Montreal Accord, I found he wasn’t aware of this phernomenon. I be most gratified to hear from someone on this to be sure I’m not writing with invisible electrons.

  5. I guess the Antarctic Sea Ice increase can no longer be blamed on Stratospheric Ozone changes, even though many have said that this was “well understood science.”

  6. In the you cannot make this stuff up department:
    The prediction is based on computer models of clouds, which even AR5SOD says is still very difficult in the Japanese sense.
    The prediction is a value so small that even the authors say they don’t know if it would be detectable, or what the temperature impact would be.
    The prediction is only for summer, only for the southern ocean and south pole, where contrary to AGW predictions sea ice extent continues to set new records.
    Yet The AGU press release says this may be important for climate change. Undoubtedly what they mean is more government funding for more study of this admittedly undetectable niggle may be important for AGU members.

  7. Gary Pearse says at August 8, 2013 at 1:59 pm…
    That does make sense at first glance. It’s definitely not worth ignoring.

    But can you put some figures on the effect? The Antarctic is large and magnetic effects are relatively short-range.

    Also, it was my understanding that a smaller ozone hole had been observed at the north pole. That would blow the idea out of the water (no problems, these things do happen).

    The first thing to check is whether the hole is centred on the magnetic S Pole, the actual S Pole or the centre of the land mass.

  8. If their computer model makes the same unwarranted assumptions doubt the warmiing effect of “greenhouse” gases, then this is slated to be a bogus result. It is cold over the Antarctic and difficult to think that it will have any detectable effect on the climate. This all only academically interesting as we do not affect the ozone later.

    The CFC-ozone connection was junk science paid for by Dupont Chemical to get their out of patent refrigerant banned and then to sell their more expensive patented brand. Recent work shows that it is UV and nitrogen gas that affects the ozone, not human emissions.

  9. Another “models all the way down” paper that seems to totally ignore any actual temperature data. Antarctica is obviously cooling. Both station data and sea ice extent indicate that. Download directly to your round file.

  10. In a 2010 Yale University poll, 61 percent of those surveyed believed the ozone hole significantly contributed to global warming

    I prefer the other nonsense ( CO2 ) where 97% of the scientists agree.

  11. Correct me, if I am wrong, but this seems incorrect. “…In the 1980s, scientists discovered thinning of the ozone layer above Antarctica during the Southern Hemisphere’s spring months…” My understanding is that the ‘ozone hole’ was discovered in the 1950′s and the effect was latched onto in the 1970′s as the end-of-the-world due to CFC’s.

  12. If the ozone hole is still as big as it ever was, decades after CFC’s were banned. That’s pretty good evidence that CFC’s did not cause the ozone hole.

  13. M Courtney
    Magnetic pole has moved away from the land mass, currently is just outside the Antarctica’s polar circle at the latitude of 65S.

  14. MarkW says:
    August 8, 2013 at 2:56 pm

    If the ozone hole is still as big as it ever was, decades after CFC’s were banned. That’s pretty good evidence that CFC’s did not cause the ozone hole.
    +++++++++++++++++++++++++++++++++++++++++++

    That was my reaction too. You’d think that it at least merits more explanation in the article (assuming there is one, of course) as the whole premise depends on the CFC – ozone hole connection.

  15. Get ready America we will be paying $16.00 a gallon for gas like in Broke Euro Zone.

  16. The cause of this “hole” turned out to be chlorofluorocarbons ….. Even though the1987 Montreal Protocol banned these chlorofluorocarbons worldwide, the ozone hole persists decades later.“. Well, no. The cause of the “hole” was hypothesised to be chlorofluorocarbons. The banning of chlorofluorocarbons allowed the hypothesis to be tested. It failed the test.

  17. Mike Jonas:

    At August 8, 2013 at 3:21 pm you rightly and accurately point out

    The cause of the “hole” was hypothesised to be chlorofluorocarbons. The banning of chlorofluorocarbons allowed the hypothesis to be tested. It failed the test.

    Yes, but it is also important to remember that the ban was imposed by the1987 Montreal Protocol. And imposition of the Montreal Protocol was used as the model for imposition of the later Kyoto Protocol which attempted to constrain emissions of a basket of GHGs, notably CO2.

    Richard

  18. My father who was at the max Planck Institut fur Physic in 1935 to 37 flew to both poles every year and everytime there was a ozone hole in winter at both both poles Duh…..

  19. M Courtney says:
    August 8, 2013 at 2:16 pm

    “Gary Pearse says at August 8, 2013 at 1:59 pm…
    That does make sense at first glance. It’s definitely not worth ignoring.

    But can you put some figures on the effect? The Antarctic is large and magnetic effects are relatively short-range.

    Also, it was my understanding that a smaller ozone hole had been observed at the north pole. That would blow the idea out of the water (no problems, these things do happen).”

    Re the North Pole: apparently this area is subject to much more in the way of weather incursions from the land in the temperate zone, the jet stream undulating back and forth causing a better air mixing. If the explanation is not sufficient, it also creates the same problem with the CFC hypothesis where mag lines of force move the CFC’s to the poles. Here is a you-tube demonstration of oxygen’s strong paramagnetism.

    Incidentally, visualize the entire mix of gases which of course includes the most abundant one, nitrogen which would be preferentially pushed away by oxygen in the ozone hole, even though the actual strength is not high.

    The best I can do on short notice re ozone’s diamag is Wiki:

    http://en.wikipedia.org/wiki/Ozone

    I am at least amazed that no scientist appears to have investigated this plausible hypothesis.

  20. “We were surprised this effect happened just by shifting the jet stream and the clouds,” said lead author Kevin Grise, a climate scientist at Lamont-Doherty Earth Observatory of Columbia University in New York City.

    Three lies or inaccuracies right there. Can anyone spot them?

    1. “We were surprised”. No, I highly doubt that they were surprised, with the only possibility being that they were surprised they could actually adjust the model to get that particular result.

    2. “this effect happened”. Well, it happened in a model. That doesn’t mean the effect actually happened.

    3. Climate “Scientist”. Not sure “scientist” is an accurate word for this. Or he might be, except for this particular foray into non-scientific voodoo.

    Mind boggling that something so uncertain and riddled with doubt could actually be published as a result.

  21. Further re O2 paramagnetism and O3 diamagnetics as an explanation for the hole, is there not data from satellites on the varying composition of the atmosphere? That would be pretty supportive if it showed my prediction that O2 ratio to each other atmospheric gas is greater in the hole than its other atmospheric friends including CO2. This should make for a small depletion of oxygen and enrichment of CO2, N2, O3…in equatorial regions. Winds may disturb this relationship (although it certainly seems to hold somewhat for O3) My point is it can be tested and if correct, we can perhaps give the CFC folks a run for their money.

  22. Eliza : “My father who was at the max Planck Institut fur Physic in 1935 to 37 flew to both poles every year and everytime there was a ozone hole in winter at both both poles Duh…..”

    The ozone hole does not form in winter, so you father must have been observing something else.

    Shaved Ape” : “Correct me, if I am wrong, but this seems incorrect. “…In the 1980s, scientists discovered thinning of the ozone layer above Antarctica during the Southern Hemisphere’s spring months…” My understanding is that the ‘ozone hole’ was discovered in the 1950′s and the effect was latched onto in the 1970′s as the end-of-the-world due to CFC’s.”

    Yes, you are wrong (well you did ask). The ozone ‘hole’ (dip really) was recognised in the 1980′s when it was realised that ozone concentrations in the Spring were must lower than had been measured in the 50′s and 60′s See this graph http://www.atm.ch.cam.ac.uk/tour/tour_images/total_ozone.gif
    which show the concentrations as actually measured.

    The graph is from here http://www.atm.ch.cam.ac.uk/tour/part1.html which describes what has been observed, and what chemistry is involved.

  23. “Ozone hole” is a technical term meaning an area less than 220 DU thick. So, technically, there’s an ozone hole.

    The prediction I remember from the late 80s/early 90s was that the hole would continue to get worse even if we stopped all CFC emissions immediately, but then would stabilize after about 20 years, and recover after 50 or so years. So far, this is exactly what has happened.

  24. M Courtney says:
    August 8, 2013 at 2:16 pm

    “Gary Pearse says at August 8, 2013 at 1:59 pm…
    That does make sense at first glance. It’s definitely not worth ignoring.”

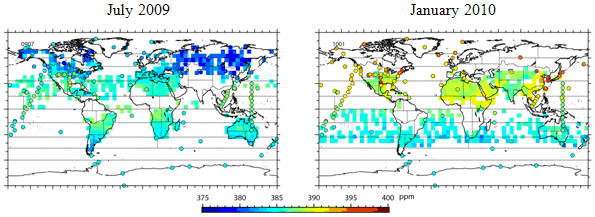

    Here is an image of CO2 concentration around the globe. As predicted in my post above based on diamagnetism:
